WiFi6 2.4G/5.8G Dual-frequency OpenWrt AX1800 MT7621+MT7905+MT7975 Gigabit ports* 5 UART Gigabit Router WiFi Module HLK-RM60 Test Board

  • Visitor
    18734
  • Buycount:
  • Price
    $59.38

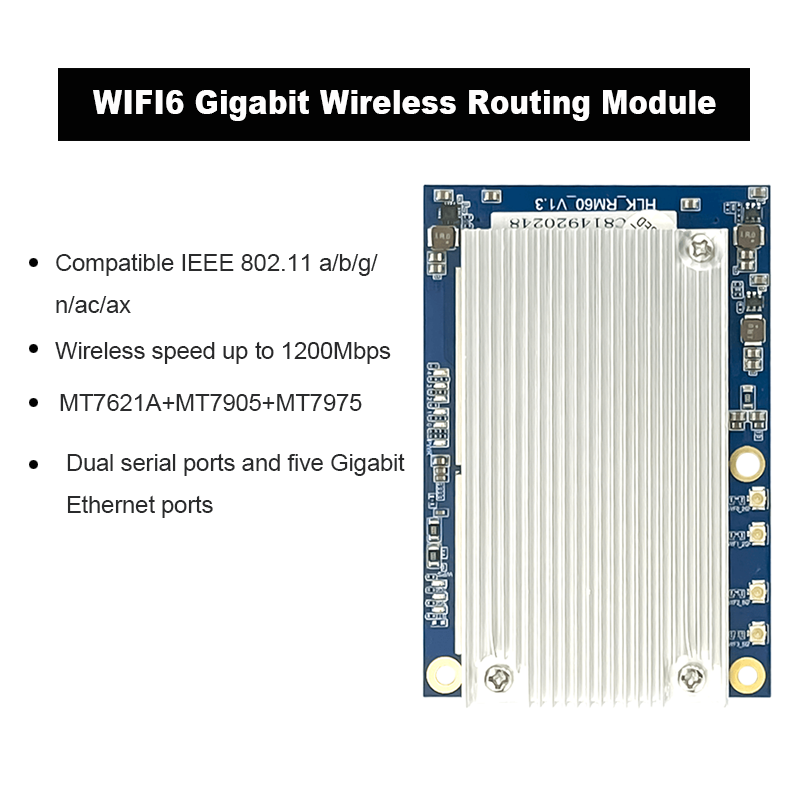

RM60详情图

Download Files

HLK-RM65: https://drive.google.com/drive/folders/156pIBs0rKDvnFZNoD0uBIjzKKSTZeYaU

HLK-7688A: https://drive.google.com/drive/folders/1fNV08Eu1_OCQUpqZ8By9CD68w4Ibh8fZ

HLK-RM60: https://drive.google.com/drive/folders/1WrerOCwMmxqeHFxjGQFIHfmw9LDR2teG

HLK-RM58S: https://drive.google.com/file/d/1tQjHtr3GOKEMJGjtrWmpxgh-OA4UBCMv/view

HLK-RM08S: https://drive.google.com/file/d/1vnyq0m8AySX9s-Hb3LmcJV_DQZnyrRrD/view

HLK-RM08K: https://drive.google.com/file/d/1vnyq0m8AySX9s-Hb3LmcJV_DQZnyrRrD/view

HLK-GD01: https://drive.google.com/drive/folders/1Y-xBwPyz2IDlPkSSQYoxwO6WWQ1s9bRo

HK-7628N: https://drive.google.com/drive/folders/1Z8-RLZVs9jjOHwORsGWpotGak7IFOwQo

HLK-7621: https://drive.google.com/drive/folders/14MdhLn9S1d7RK7_obvcoT2zCo8x5EadU

HLK-RM65: https://drive.google.com/drive/folders/156pIBs0rKDvnFZNoD0uBIjzKKSTZeYaU

HLK-7688A: https://drive.google.com/drive/folders/1fNV08Eu1_OCQUpqZ8By9CD68w4Ibh8fZ

HLK-RM60: https://drive.google.com/drive/folders/1WrerOCwMmxqeHFxjGQFIHfmw9LDR2teG

HLK-RM58S: https://drive.google.com/file/d/1tQjHtr3GOKEMJGjtrWmpxgh-OA4UBCMv/view

HLK-RM08S: https://drive.google.com/file/d/1vnyq0m8AySX9s-Hb3LmcJV_DQZnyrRrD/view

HLK-RM08K: https://drive.google.com/file/d/1vnyq0m8AySX9s-Hb3LmcJV_DQZnyrRrD/view

HLK-GD01: https://drive.google.com/drive/folders/1Y-xBwPyz2IDlPkSSQYoxwO6WWQ1s9bRo

HK-7628N: https://drive.google.com/drive/folders/1Z8-RLZVs9jjOHwORsGWpotGak7IFOwQo

HLK-7621: https://drive.google.com/drive/folders/14MdhLn9S1d7RK7_obvcoT2zCo8x5EadU


Introduction

HLK-RM60 is a high-performance embedded WIFI6 module launched by Hilink Electronics. The module complies with

IEEE standard 802.11a/b/g/n/ac/ax. The module integrates a 2.4G/5.8G radio frequency transceiver with a transmission rate.

High characteristics.


Featrures

  • Compatible IEEE 802.11 a/b/g/n/ac/ax

  • Dedicated high performance 32-bit RISC CPU

  • Sucol stack

  • Support Wireless upgrade(OTA)

  • 3.3V Single power supplypport 20/40MHz in 2.4G,Support 20/40/80MHZ in 5G

  • Support 2.4g/ 5.8 GHz ,Data rate up to 573+1201 Mbps

  • Support STA/AP

  • Built-in TCP/IP proto

  • Support Wireless upgrade(OTA)

  • 3.3V Single power supply

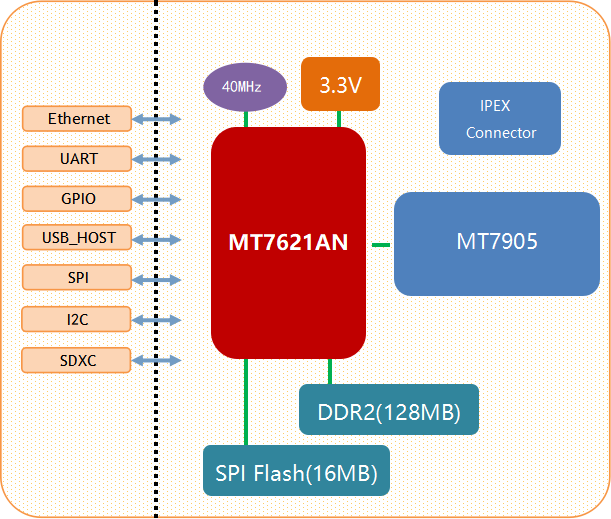

    RM60-1


Specification



Items

Parameter

Notes

Model Number

HLK-RM60


Main Chipset

MT7621


Kernel

MIPS1004Kc


Main frequency

880MHz


RAM

DDR2 128MB


Flash

16MB


Temperature

Ambient temperature-20℃~60℃


Humidity

Using:10~95%(Non-condensing)

Stock:5~95%(Non-condensing)


Size

90mm×60mm




Application field


  • Smart home;

  • Instrumentation;

  • Wi-Fi Remote monitoring/control

  • Toy field;

  • Color LED control

  • Intelligent integrated management of fire protection and security

  • Smart card terminals, wireless POS machines, handheld devices, etc.

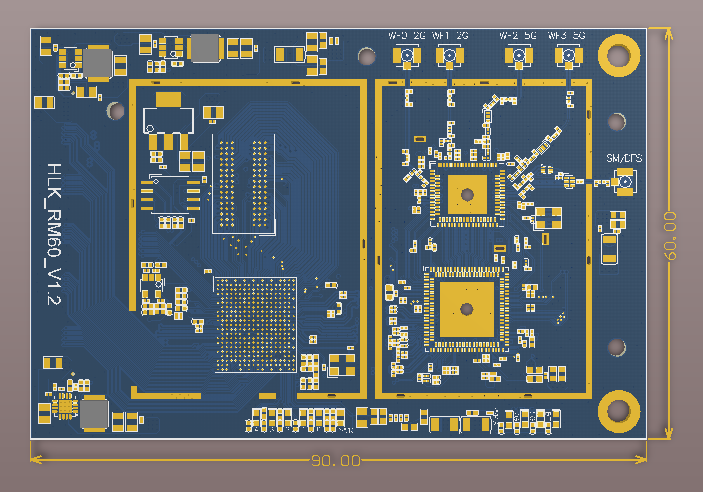

Size

SIZE


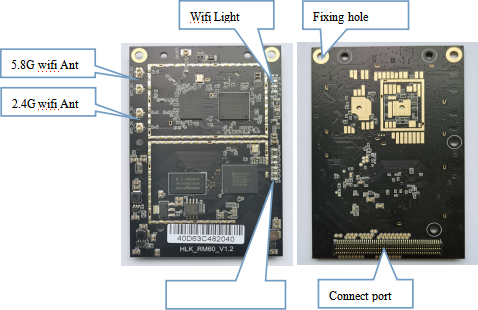

Interface description




INTERFACE



Enter the configuration web interface

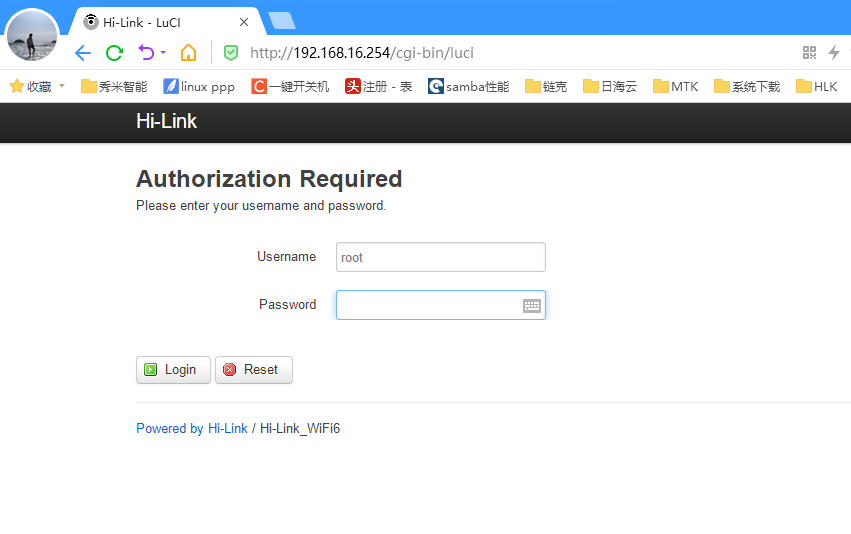

Connect the computer's network port and the module's LAN port, open the computer browser, enter 192.168.16.254,

and you will enter the web login interface, enter the user name: root, password: admin, and then click the Login button

to enter the configuration interface.

CONFIGUE 1

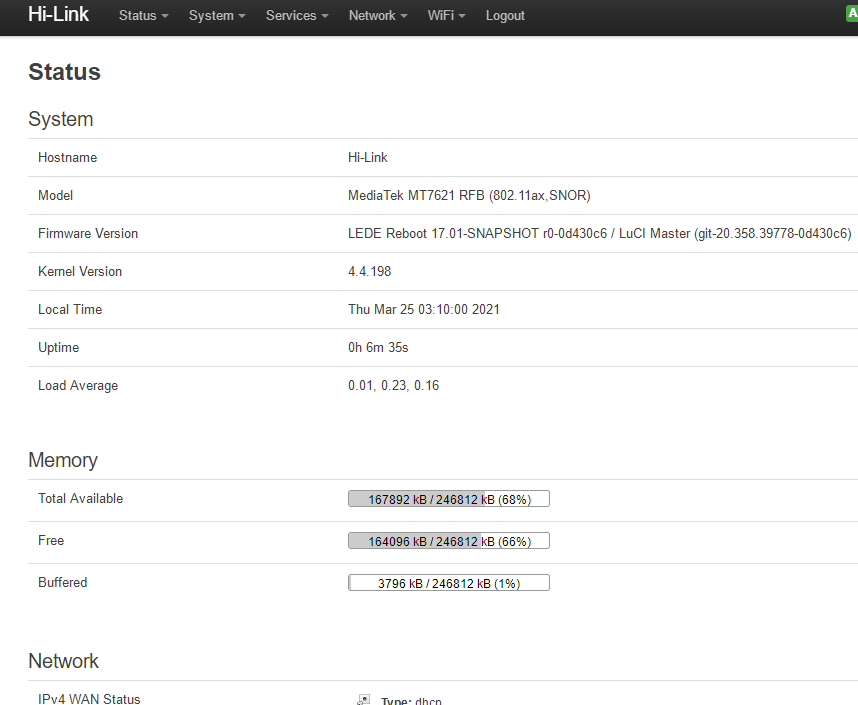

Enter the configuration interface:

configue 2



Set the WIFI name

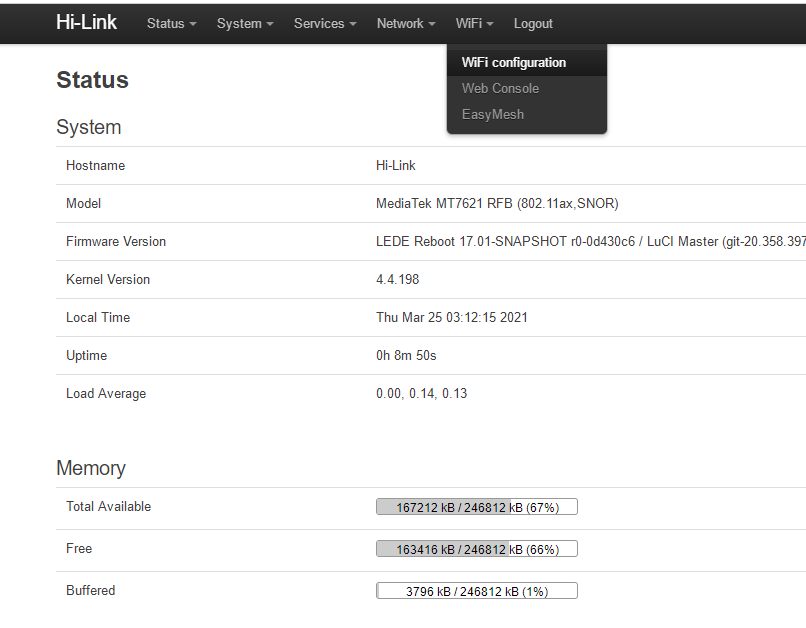

After entering the web configuration interface, click WIFI, select WIFI configuration, enter the wifi configuration interface

configue 3

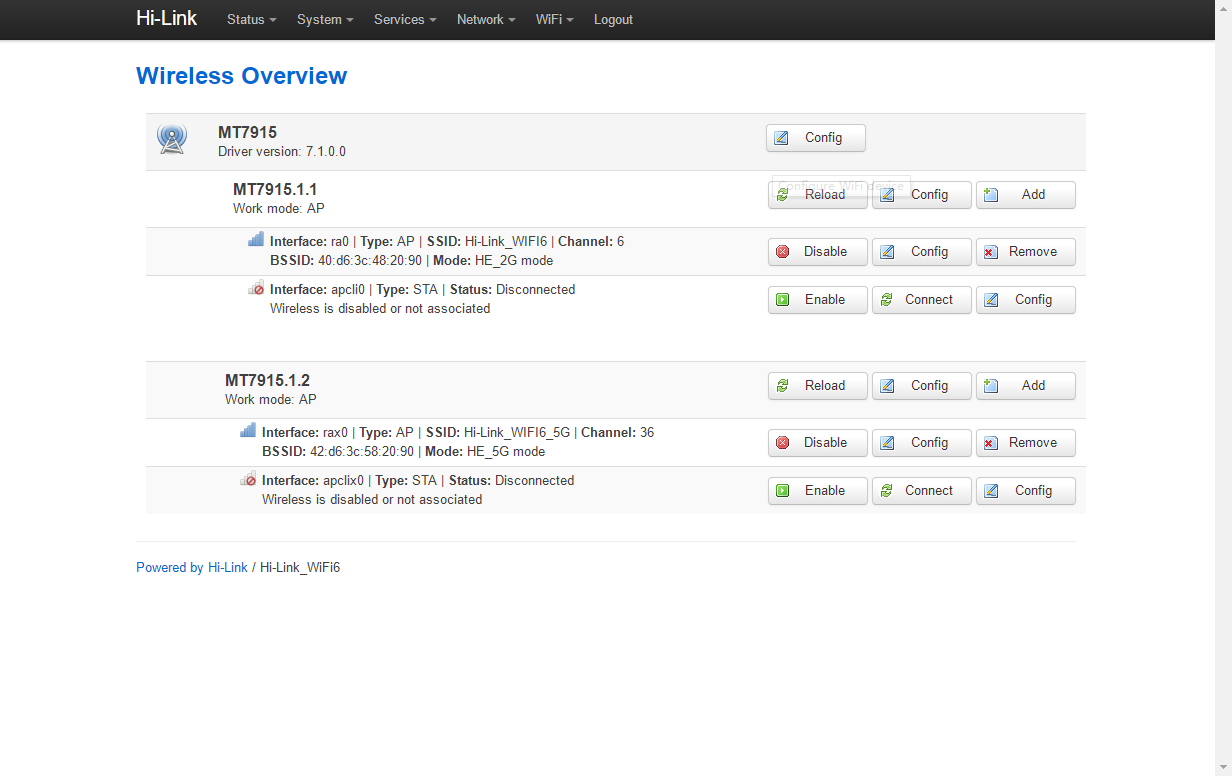

In this interface, you can see the WiFi name and mac address of 2.4g and 5.8g, click the config button to enter the

corresponding configuration interface

configue 4configue 4

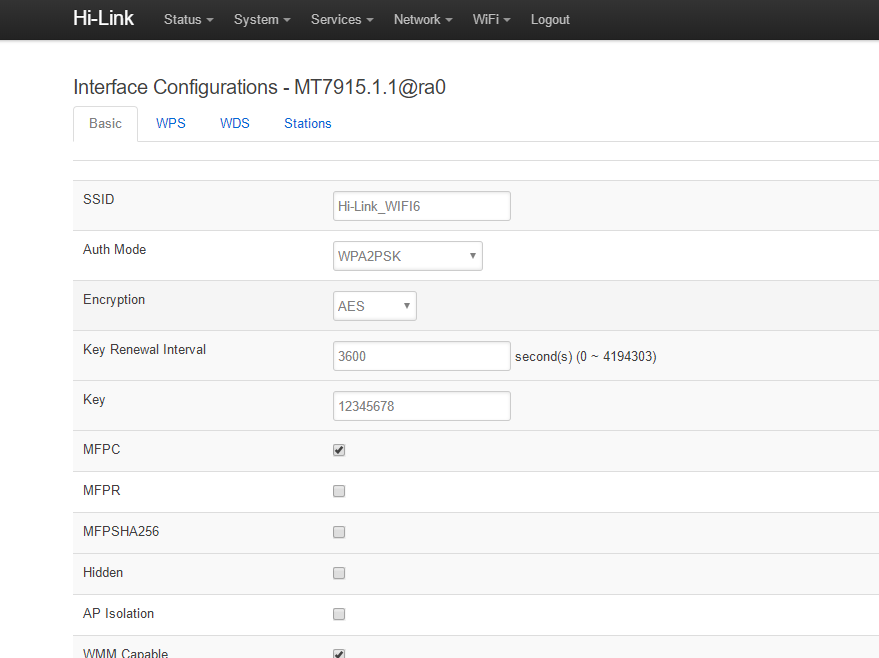

After clicking the config button, you will enter the configuration interface of the corresponding ssid and password

configue 5


After the configuration is completed, click the following button to make the configured information take effect.

configue 6
