Product Introduction

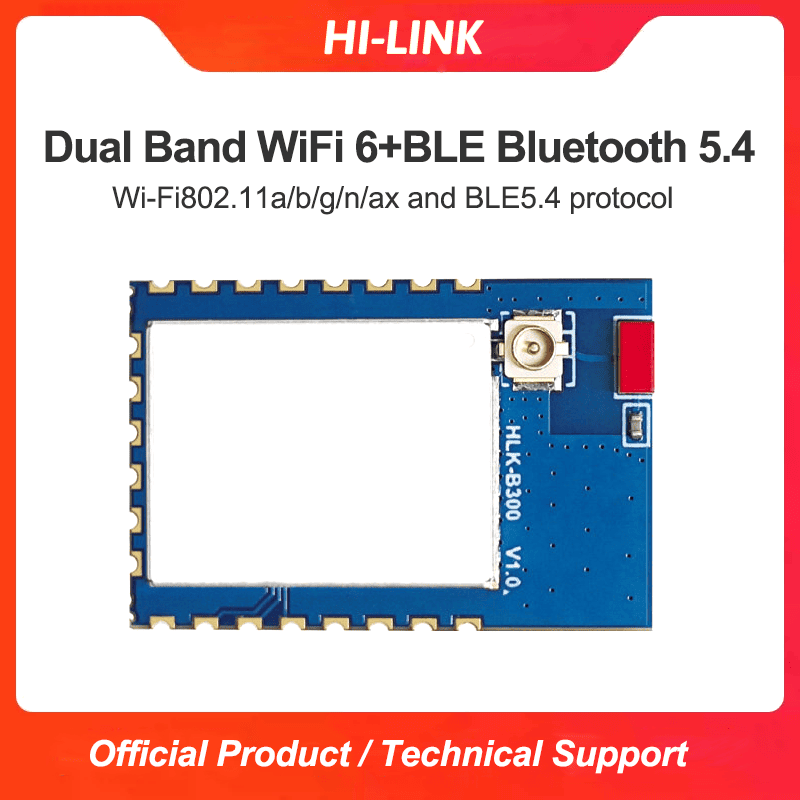

HLK-B300 is a low-cost embedded UART-WIFI (serial wireless network) module launched by Hailingke Electronics. It is a Wi-Fi6+BLE combination chipset used for low-power and high-performance application development.

This product is based on an embedded module that complies with network standards through a serial interface, embedded with a TCP/IP protocol stack, and capable of converting between user serial ports and wireless networks (WIFI/BLE).

Through the HLK-B300 module, traditional serial devices can transmit their data over the Internet network without changing any configuration, providing a complete and fast solution for users' serial devices to transmit data over the network.

Product Characteristics

• The system includes 20MHz and 40MHz 2.4G/5.8G radios, Wi Fi 802.11a/b/g/n/ax, and BLE5.4 baseband

• ArmV8-M core, clock speed: 160MHz

• Built in 512KB RAM, 4M embedded Flash memory

• The working voltage supports 2.1-3.63V, with a typical value of 3.3V

• BLE assists in achieving fast Wi Fi distribution network

• Supports AP/STA and BLE coexistence modes, with WiFi security support for WPA/WPA2/WPA3

• Peripheral interface, 2 * UART, 9 * GPIO,

• Widely used in the Internet of Things

Performance and electrical parameters

Pin introduction
