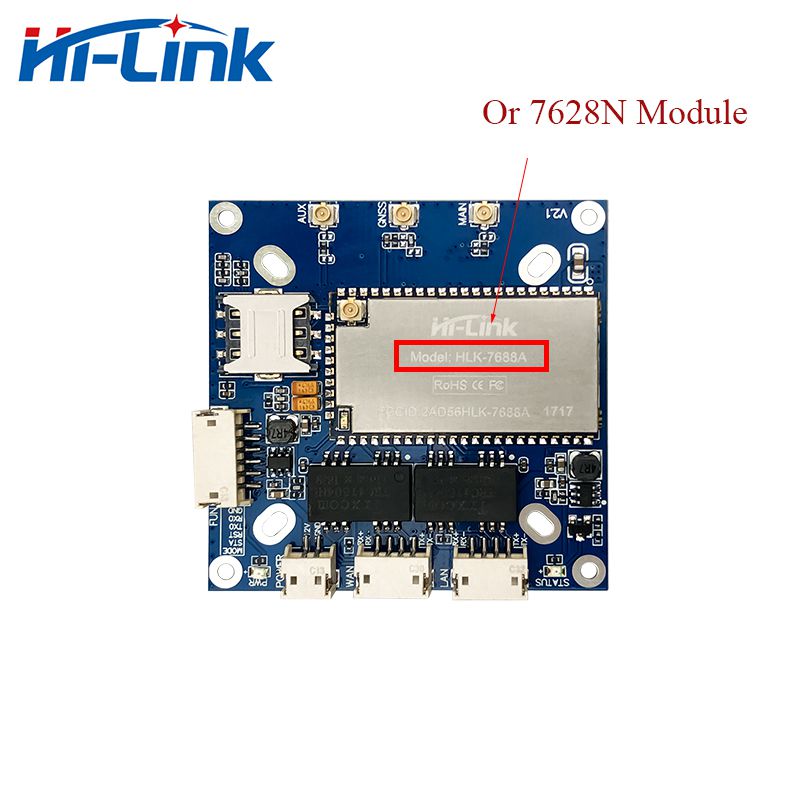

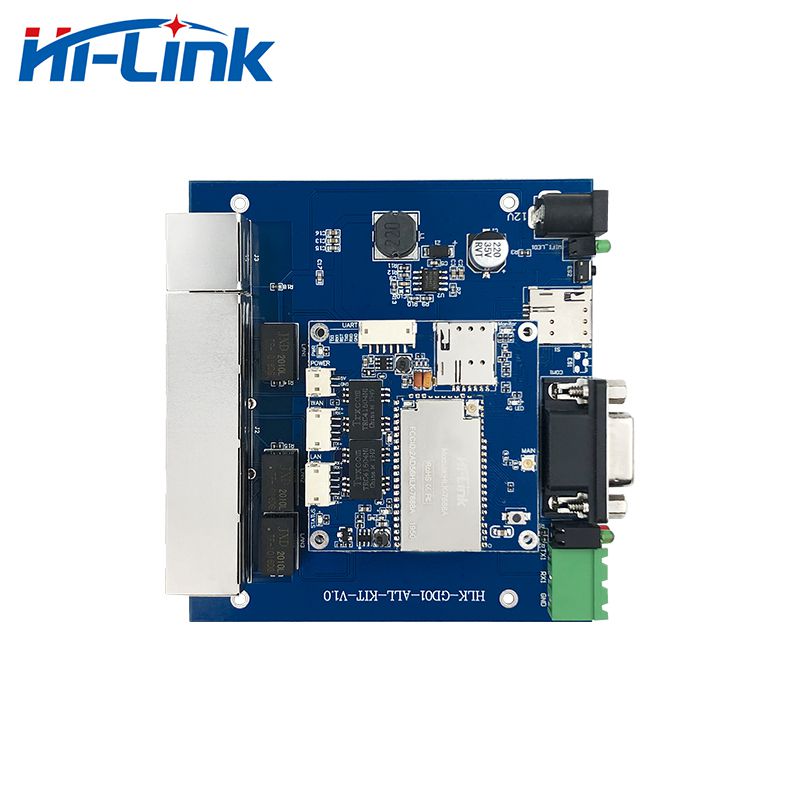

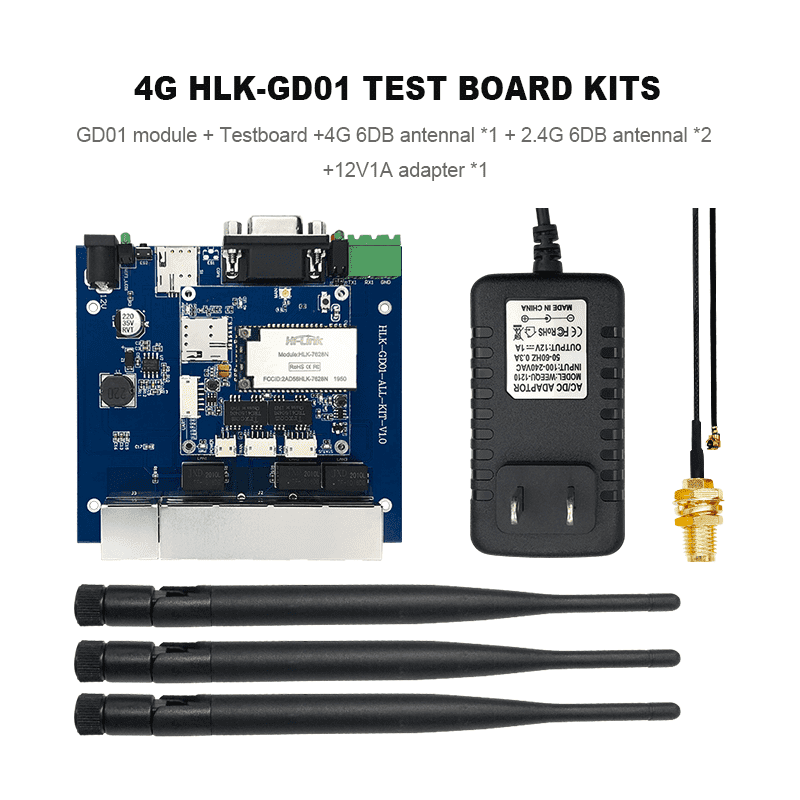

4G Serieal port UART Router WIFI module Gateway MT7688AN/MT7628 Chipset Wireless with EC25XX 4G Test board
-
Visitor15528
-
Buycount：
-
Price$59.50
Download Files
HLK-RM65: https://drive.google.com/drive/folders/156pIBs0rKDvnFZNoD0uBIjzKKSTZeYaU
HLK-7688A: https://drive.google.com/drive/folders/1fNV08Eu1_OCQUpqZ8By9CD68w4Ibh8fZ
HLK-RM60: https://drive.google.com/drive/folders/1WrerOCwMmxqeHFxjGQFIHfmw9LDR2teG
HLK-RM58S: https://drive.google.com/file/d/1tQjHtr3GOKEMJGjtrWmpxgh-OA4UBCMv/view
HLK-RM08S: https://drive.google.com/file/d/1vnyq0m8AySX9s-Hb3LmcJV_DQZnyrRrD/view
HLK-RM08K: https://drive.google.com/file/d/1vnyq0m8AySX9s-Hb3LmcJV_DQZnyrRrD/view
HLK-GD01: https://drive.google.com/drive/folders/1Y-xBwPyz2IDlPkSSQYoxwO6WWQ1s9bRo
HK-7628N: https://drive.google.com/drive/folders/1Z8-RLZVs9jjOHwORsGWpotGak7IFOwQo
HLK-7621: https://drive.google.com/drive/folders/14MdhLn9S1d7RK7_obvcoT2zCo8x5EadU
HLK-RM65: https://drive.google.com/drive/folders/156pIBs0rKDvnFZNoD0uBIjzKKSTZeYaU
HLK-7688A: https://drive.google.com/drive/folders/1fNV08Eu1_OCQUpqZ8By9CD68w4Ibh8fZ
HLK-RM60: https://drive.google.com/drive/folders/1WrerOCwMmxqeHFxjGQFIHfmw9LDR2teG
HLK-RM58S: https://drive.google.com/file/d/1tQjHtr3GOKEMJGjtrWmpxgh-OA4UBCMv/view
HLK-RM08S: https://drive.google.com/file/d/1vnyq0m8AySX9s-Hb3LmcJV_DQZnyrRrD/view
HLK-RM08K: https://drive.google.com/file/d/1vnyq0m8AySX9s-Hb3LmcJV_DQZnyrRrD/view
HLK-GD01: https://drive.google.com/drive/folders/1Y-xBwPyz2IDlPkSSQYoxwO6WWQ1s9bRo
HK-7628N: https://drive.google.com/drive/folders/1Z8-RLZVs9jjOHwORsGWpotGak7IFOwQo
HLK-7621: https://drive.google.com/drive/folders/14MdhLn9S1d7RK7_obvcoT2zCo8x5EadU
Introduction
Application area
Internet access
Specifications
Parameter Version | Parameters | Parameters |
WiFi parameters | Wireless standard | IEEE 802.11 b/g/n |
| Frequency range | 2.412GHz-2.484GHz | |
| Wifi rate | 300Mbps | |
| Connection | 32 terminals | |
Transmit power | 802.11b: +17 +/-2dBm (@11Mbps) | |
| 802.11g: +17 +/-2dBm (@54Mbps) | ||
| 802.11n: +13 +/-2dBm (@HT20,HT40- MCS7) | ||
Receiving sensitivity | 802.11b: <-88.4 dBm (@11Mbps ,CCK) | |
| 802.11g: <-75.7dBm (@54Mbps, OFDM) | ||
| 802.11n:< -73.6dBm (@HT20, MCS7) | ||
| Antenna type | External rod antenna | |

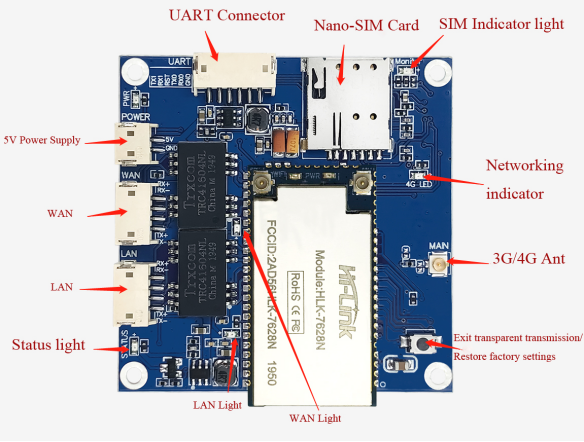

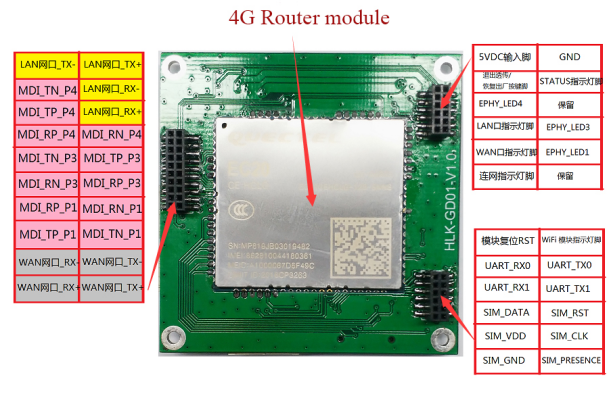

Hardware parameters | Hardware interface | 2 100M network interfaces |
| Work voltage | 4.6-5.5V | |
| Wireless antenna | Single antenna | |
| USB | USB 2.0 protocol | |
| Working temperature | -40℃~80℃ | |
| Storage environment | Temperature: <40℃, Relative humidity: <90%R.H. | |
4G parameters | Supported network | China Unicom (CUCC): 3G/4G China Mobile (CMCC): 3G/4G China Telecom (CTCC): 3G/4G |
| 4G rate | 150Mbps | |
Supported frequency | China Unicom (CUCC): Full frequency China Mobile (CMCC): Full frequency China Telecom (CTCC): Full frequency | |
Router function | Function | Firewall PPPOE / static IP / DHCP MAC / IP / PORT filtering DMZ settings |
