  5. 4G Serieal port UART Router WIFI module Gateway MT7688AN/MT7628 Chipset Wireless with EC25XX 4G module Wifi rate 300Mbps 4G rate 150Mbps
  • j

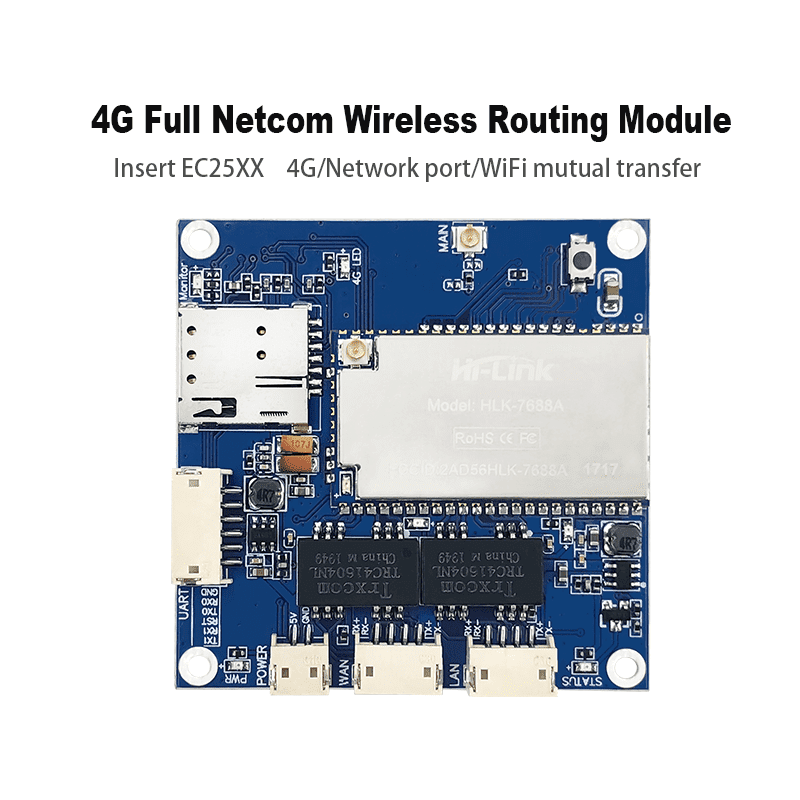

4G Serieal port UART Router WIFI module Gateway MT7688AN/MT7628 Chipset Wireless with EC25XX 4G module Wifi rate 300Mbps 4G rate 150Mbps

  • Visitor
    11372
  • Buycount:
  • Price
    $45.90

Download Files

HLK-RM65: https://drive.google.com/drive/folders/156pIBs0rKDvnFZNoD0uBIjzKKSTZeYaU

HLK-7688A: https://drive.google.com/drive/folders/1fNV08Eu1_OCQUpqZ8By9CD68w4Ibh8fZ

HLK-RM60: https://drive.google.com/drive/folders/1WrerOCwMmxqeHFxjGQFIHfmw9LDR2teG

HLK-RM58S: https://drive.google.com/file/d/1tQjHtr3GOKEMJGjtrWmpxgh-OA4UBCMv/view

HLK-RM08S: https://drive.google.com/file/d/1vnyq0m8AySX9s-Hb3LmcJV_DQZnyrRrD/view

HLK-RM08K: https://drive.google.com/file/d/1vnyq0m8AySX9s-Hb3LmcJV_DQZnyrRrD/view

HLK-GD01: https://drive.google.com/drive/folders/1Y-xBwPyz2IDlPkSSQYoxwO6WWQ1s9bRo

HK-7628N: https://drive.google.com/drive/folders/1Z8-RLZVs9jjOHwORsGWpotGak7IFOwQo

HLK-7621: https://drive.google.com/drive/folders/14MdhLn9S1d7RK7_obvcoT2zCo8x5EadU

HLK-RM65: https://drive.google.com/drive/folders/156pIBs0rKDvnFZNoD0uBIjzKKSTZeYaU

HLK-7688A: https://drive.google.com/drive/folders/1fNV08Eu1_OCQUpqZ8By9CD68w4Ibh8fZ

HLK-RM60: https://drive.google.com/drive/folders/1WrerOCwMmxqeHFxjGQFIHfmw9LDR2teG

HLK-RM58S: https://drive.google.com/file/d/1tQjHtr3GOKEMJGjtrWmpxgh-OA4UBCMv/view

HLK-RM08S: https://drive.google.com/file/d/1vnyq0m8AySX9s-Hb3LmcJV_DQZnyrRrD/view

HLK-RM08K: https://drive.google.com/file/d/1vnyq0m8AySX9s-Hb3LmcJV_DQZnyrRrD/view

HLK-GD01: https://drive.google.com/drive/folders/1Y-xBwPyz2IDlPkSSQYoxwO6WWQ1s9bRo

HK-7628N: https://drive.google.com/drive/folders/1Z8-RLZVs9jjOHwORsGWpotGak7IFOwQo

HLK-7621: https://drive.google.com/drive/folders/14MdhLn9S1d7RK7_obvcoT2zCo8x5EadU


Introduction

Internet access: 3G/4G dial-up Internet access, DHCP/STATIC, IP/PPPOE
Wifi rate  300Mbps
4G rate  150Mbps
Network Interface  2 100M
Number of connections: 32 terminals
Card  3G/4G
4G full Netcom
Router function
4G to network cable
4G to wifi


Application area

Smart home equipment
IoT control
Industrial control
Remote camera
Outdoor Internet
Network control equipment

Internet access


Specifications


Parameter Version


ParametersParameters







WiFi parameters

Wireless standardIEEE 802.11 b/g/n
Frequency range2.412GHz-2.484GHz
Wifi rate300Mbps
Connection32 terminals


Transmit power

802.11b: +17 +/-2dBm (@11Mbps)
802.11g: +17 +/-2dBm (@54Mbps)
802.11n: +13 +/-2dBm (@HT20,HT40- MCS7)


Receiving sensitivity

802.11b: <-88.4 dBm (@11Mbps ,CCK)
802.11g: <-75.7dBm (@54Mbps, OFDM)
802.11n:< -73.6dBm (@HT20, MCS7)
Antenna typeExternal rod antenna





Hardware parameters

Hardware interface2 100M network interfaces
Work voltage4.6-5.5V
Wireless antennaSingle antenna
USBUSB 2.0 protocol
Working temperature-40℃~80℃
Storage environmentTemperature: <40℃, Relative humidity: <90%R.H.




4G parameters


Supported network

China Unicom (CUCC): 3G/4G

China Mobile (CMCC): 3G/4G

China Telecom (CTCC): 3G/4G

4G rate150Mbps


Supported frequency

China Unicom (CUCC): Full frequency

China Mobile (CMCC): Full frequency

China Telecom (CTCC): Full frequency


Router function


Function

Firewall

PPPOE / static IP / DHCP

MAC / IP / PORT filtering

DMZ settings
