Brief Introduction

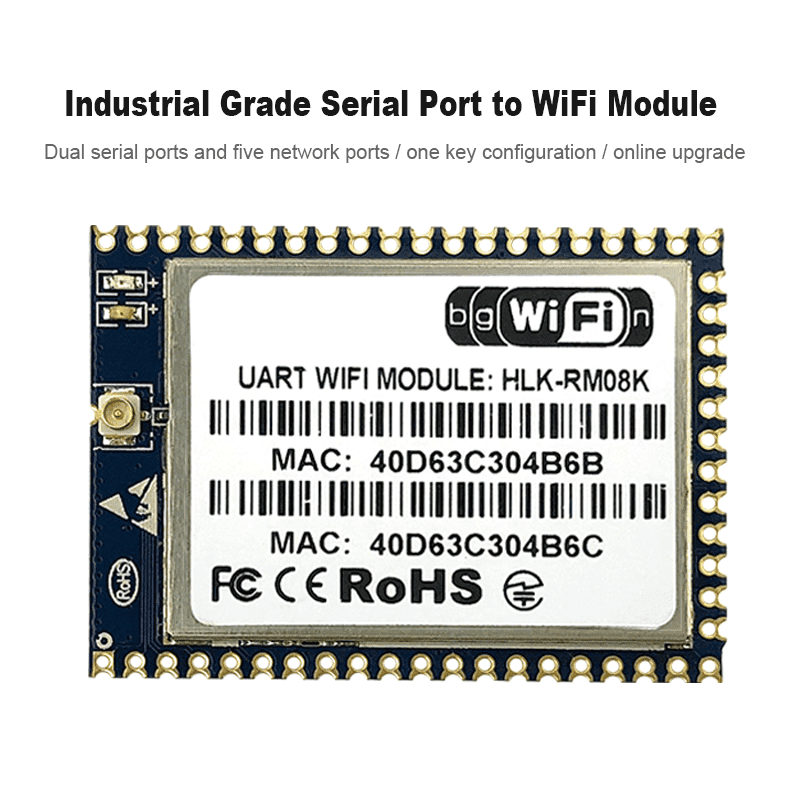

HLK-RM08K is a new low-cost embedded UART-ETH-WIFI module (serial port - Ethernet - Wireless network) developed by Shenzhen Hi-Link co., Ltd This product is an embedded module based on the universal serial interface network standard, built-in TCP / IP protocol stock, enabling the user serial port, Ethernet, wireless network (wifi) interface between the conversions. Through the HLK-RM08K module, the traditional serial devices do not need to change any configuration; data can be transmitted through the Internet network. Provide a quick solution for the user’s serial devices to transfer data via Ethernet.
Technical Specifications
| Network Standard | Wireless: IEEE802.11n/ IEEE802.11g/IEEE802.11b |
| Wireless: IEEE802.3/ IEEE802.3u | |
| Wireless Transmission Rate | 11n:maximum up to 150Mbps |
| 11g:maximum up to 54Mbps | |
| 11b:maximum up to 11Mbps | |
| Tracks Number | 1-14 |
| Frequency Power | 2.4-2.483G |
| Emission Range | 12-15DBM |
| Interface | 1WAN, 4 LAN, 2 Serial ports |
| Antenna | |
| Antenna Type | Ecternal Antenna(IPEX) |
| Functional Parameters | |
| WIFI work mode | Client/AP/Router |
| WDS Function | Support WDS wireless bridge connection |
| Wireless Security | Wireless MAC address filtering |
| Wirelss ssecurity function switch | |
| 64/128/152 bit WEP encryption | |
| WPA-PSK/WPA2-PSK, WPA/WPA2 security mechanism | |
| Network Management | Remote web management |
| Configuration file import and export | |
| WEB software upgrade | |
| Serial to Ethernet | |
| Maximum transmission | 230400bps |
| TCP connection | Max connection number ＞20 |
| UDP connection | Max connection number ＞20 |
| Serial band rate | 1200~2500000bps(2500000/n 1<=n<=65535 ) |
| Other Parameters | |
| Status indicator | Status indicator |
| Environment standard | Opearation temperature:-20-55℃ |
| Operating humidity:10%-90%RH(noncondensing) | |
| Storage temperature: -40-80℃ | |
| Storage humidity: 5%-90%RH(noncondensing) | |
| Additional properties | Frequency bandwidth optional: 20MHz. 40MHz. Automatic |
Serial to Ethernet
In this mode, ETH0 enable, WIFI function close. Ethernet can be configured as dynamic IP address (DHCP), can also be configured as static IP address (STATIC).
Serial to WIFI STA
In this mode, WIFI enable, module works in the STA mode, ETH function close. WIFI STA can be configured as dynamic IP address (DHCP), can also be configured as static IP address (STATIC).
Serial to WIFI AP
In this mode, WIFI enable, module works in the AP mode, ETH function close. In this mode, WIFI device can connect with the module and become the device under WIFI LAN.
Default mode
In this mode, WIFI enable, module works in the AP mode, ETH function enable. ETH0 works as WAN, ETH1-4 works as LAN. In this mode, WIFI device can connect with the module and become the device under WIFI LAN. WAN default IP is dynamic IP address. LAN, WIFI for the same local area network, enabled by default DHCP Server .
