Product Feature

1. Ultra wide range input (4:1), output 10W

2. Conversion efficiency 91%（Typ）

3. Isolation voltage: 1500VDC

4. Ultra low standby power consumption: 0.036W (typical)

5. Ultra fast start: 1mS (typical)

6. Operating temperature range ：-40°C~+85°C

7. Output protection: short circuit protection, over current protection, over voltage protection

8. Metal case, low output ripple

9. International standard pin, PCB board in-line installation

10. It is sealed with high quality environmental protection waterproof and thermal conductive glue, moisture proof and vibration proof, and meets the requirements of waterproof and dust proof IP65.

11. High reliability, long life design, long continuous working time

Enviroment Condition

Product Feature

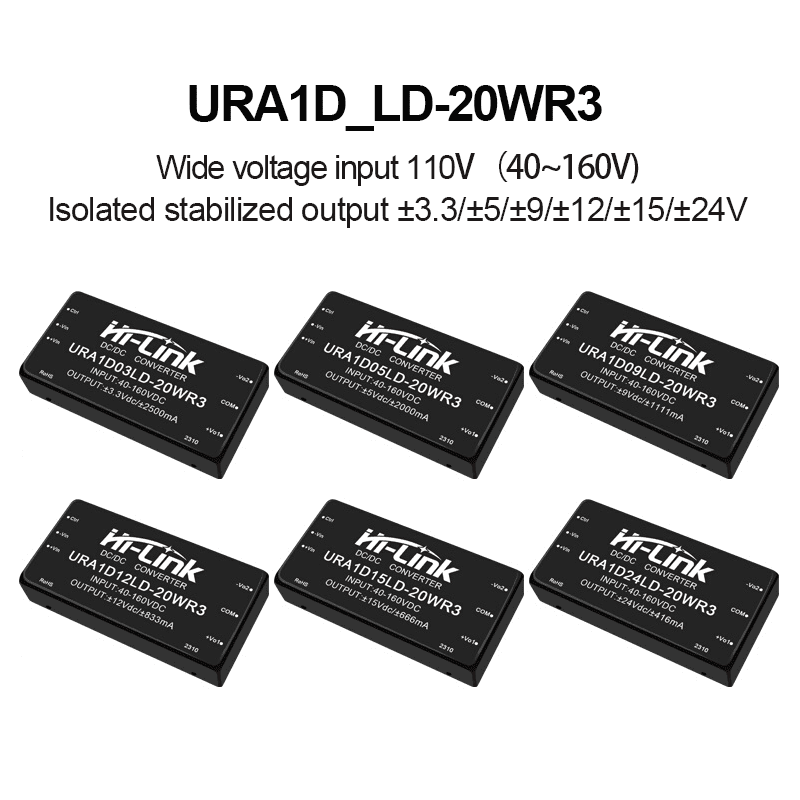

1. Ultra wide range input (4:1), output 20W

2. Conversion efficiency 91%（Typ）

3. Isolation voltage: 1500VDC

4. Ultra low standby power consumption: 0.036W (typical)

5. Ultra fast start: 1mS (typical)

6. Operating temperature range ：-40°C~+85°C

7. Output protection: short circuit protection, over current protection, over voltage protection

8. Metal case, low output ripple

9. International standard pin, PCB board in-line installation

10. It is sealed with high quality environmental protection waterproof and thermal conductive glue, moisture proof and vibration proof, and meets the requirements of waterproof and dust proof IP65.

11. High reliability, long life design, long continuous working time

Enviroment Condition

Input Characteristics

Output Characteristics

Note:

(1) For product model with output voltage ±5VDC or ±9VDC , the maximum output voltage accuracy is ±5% under 0% - 5% load condition

(2) When tested according to the 0%-00% load working condition, the load adjustment rate is ±5%

(3) 0%-5% load ripple & noise less than or equal to 5% Vo. Ripple and noise test method, Twisted pair test method, can add capacitive load at the output to reduce light load ripple

Typical Application Circuits

EMC parameter recommendation

Notes：

* Fuses and varistors are basic parts of protection circuits (required).

* If the certification is required, the safety capacitor and common mode inductance cannot be omitted.

Output filtering

For usual requirements of ripple and noise, the peripheral recommendation is only C2;

For strict requirements of ripple and noise, the above circuit is recommended. Notes:

(1) C2, C3 use high frequency low resistance electrolytic capacitor, and the total capacity can not exceed the maximum capacitive load indicated in the manual, otherwise the module will not start normally. (2) When the capacitive load is used, the minimum load of 3% must be guaranteed, otherwise the module output will be abnormal.

Dimension and Weight
