  4. WiFi Router Module

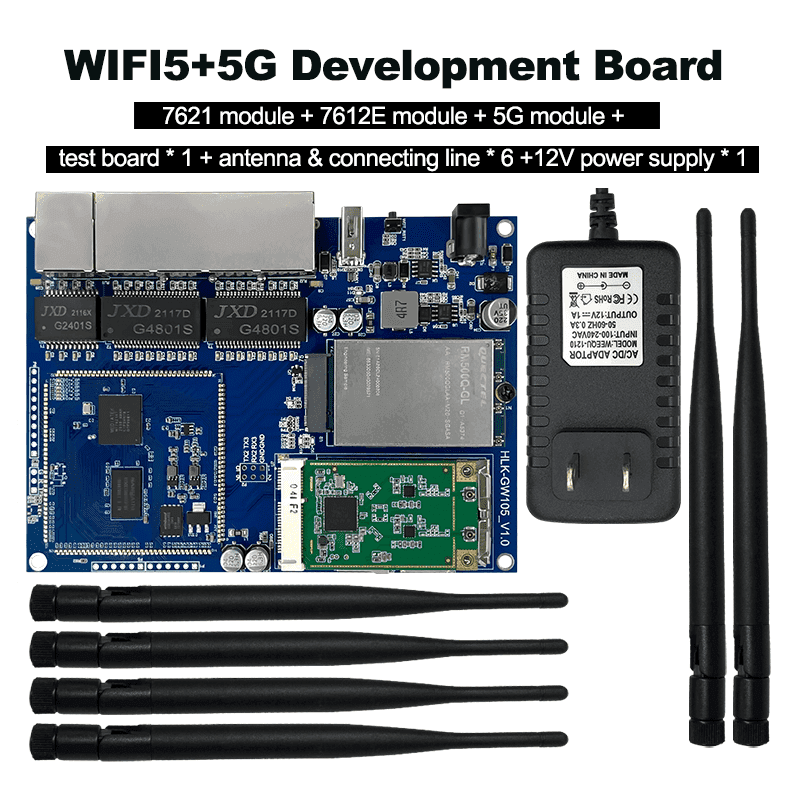

  5. 5G Wireless WiFi Module 5G module+MT7612E+MT7621 Dual Band Gigabit Wireless Network Card Linux System Development Board
  • j

5G Wireless WiFi Module 5G module+MT7612E+MT7621 Dual Band Gigabit Wireless Network Card Linux System Development Board

  • Visitor
    5943
  • Buycount:
  • Price
    $171.00

For hardware docs, please feel free to contact us.


Brief Introduction


HLK-7612E use a highly integrated single chip which has built in a 2x2 dual-band wireless LAN radio. It supports IEEE802. 11ac draft standard and provides the highest PHY rate up to 867Mbps, offering feature-rich wireless connectivity and reliable throughput from an extended distance. Optimized RF architecture and baseband algorithms provide superb performance and low power consumption. MT7612E integrates PA/LNA such that the number of the external components is reduced to minimum. Intelligent MAC design deploys a highefficient DMA engine and hardware data processing accelerators which offloads the host processor. The MT7612E supports the 802.11i security standard and implements hardware acceleration for TKIP, CCMP and WAPI. The device also supports 802.11e QoS for video, voice, and multimedia applications.

The HLK-7621 module use the MT7621A chipset.The MT7621A integrates aual-core MIPS-1004Kc (880MHz), HNAT/HQoS/Samba/VPN accelerators, 5-port GbE switch, RGMII, USB3.0, USB2.0, 3xPCIe, SD-XC. The powerful CPU with rich portfolio is suitable for 802.11ac, LTE cat4/5, edge, hotspot, VPN,AC (Access Control). It can also connect to touch-panel, ZigBee/Z-Wave for Internet Service Router and Home Security Gateway.

For the next generation router, MT7621A provides several dedicated hardware engines to accelerate the NAT, QoS, Samba and VPN traffic.These accelerators relief the CPU for other upper layer applications.


7621 Features

  • Embedded MIPS1004Kc (880 MHz, Dual-Core)

    - 32 KB I-Cache and 32 KB D-Cache per core

    - 256 KB L2 Cache (shared by Dual-Core

    - SMP capable

    - Single processor operation configurable

  • Gigabit Switch

    - 5 ports with full-line rate

    - 5-port 10/100/1000Mbps MDI transceivers

  • One RGMII/MII interface

  • 16-bit DDR2/3 up to 256/512 Mbytes

  • SPI(2 chip select), NAND Flash(SLC), SDXC,eMMC(4 bits)

  • USB3 x 1+ USB2 x 1 or USB2 x 2 (all host)

  • PCIe host x 3

  • I2C, UART Lite x 3, JTAG, MDC, MDIO, GPIO

  • VoIP support (I2S, PCM)

  • Audio interface (SPDIF-Tx, I2S, PCM)

  • Deliver the superb Samba performance via USB2.0/USB 3.0/SD-XC

  • HW storage accelerator

  • HW NAT

    - 2Gbps wired speed

    - L2 bridge

    - IPv4 routing, NAT, NAPT

    - IPv6 routing, DS-Lite, 6RD, 6to4

  • HW QoS

    - 16 hardware queues to guarantee the min/max bandwidth of each flow.

    - Seamlessly co-work with HW NAT engine.

    - 2Gbps wired speed.

  • HW Crypto

  • Deliver 400~500 Mbps IPSec throughput

  • Green

    -Intelligent Clock Scaling (exclusive)

    -DDR2/3: ODT off, Self-refresh mode

  • Firmware: Linux 2.6 SDK, OpenWRT

  • RGMII iNIC Driver: Linux 2.4/2.6



Brief Introduction


HLK-7612E use a highly integrated single chip which has built in a 2x2 dual-band wireless LAN radio. It supports IEEE802. 11ac draft standard and provides the highest PHY rate up to 867Mbps, offering feature-rich wireless connectivity and reliable throughput from an extended distance. Optimized RF architecture and baseband algorithms provide superb performance and low power consumption. MT7612E integrates PA/LNA such that the number of the external components is reduced to minimum. Intelligent MAC design deploys a highefficient DMA engine and hardware data processing accelerators which offloads the host processor. The MT7612E supports the 802.11i security standard and implements hardware acceleration for TKIP, CCMP and WAPI. The device also supports 802.11e QoS for video, voice, and multimedia applications.


7612E-2


7612E Block Diagram




7612E Specifications



Specifications

Chipset

MTK MT7612E  External PA/LNA/SWITCH: SKY85712-21

Interface

Normal Gold Finger miniPCIE

5.8G 2T2R 867Mbps 11ac   21dBm@A mode

DC Power

1x DC MINIPCIE Connector: 3.3V@1A 5V@1A

Power Consumption

3 Watt (Max)

Software

OpenWRT or MTK Linux SDK Driver and Tool Chain

Certification

Support CE & FCC, RoHS  Compliant

Environmental

Temperature: Operating: 0ºC -55 ºC, Storage: -40ºC to 90ºC

Humidity (non-condensing): Operating: 5% to 95%, Storage: Max . 90%


7612E RF Parameter

5G ITEM

RATE

Value

A Mode Pwr (dBm)

54M

21dBm

N HT20 Pwr (dBm)

MCS765M

20dBm

N HT40 Pwr (dBm)

MCS7135M

19dBm

AC VHT80 Pwr (dBm)

MCS9390M

18dBm

A Mode EVM (dB)

54M

-26dB

N HT20 EVM (dB)

MCS765M

-28dB

N HT40 EVM (dB)

MCS7135M

-28dB

AC VHT80 EVM (dB)

MCS9390M

-32dB

FeqErr (ppm)

Test with TX POWER test

± 10ppm

A RX sensitivity (dB)

54M

-70dBm

N HT20 RX sensitivity (dB)

MCS765M

-68dBm

N HT40 RX sensitivity (dB)

MCS7135M

-65dBm

AC VHT80 RX sensitivity (dB)

MCS9390M

-55dBm
