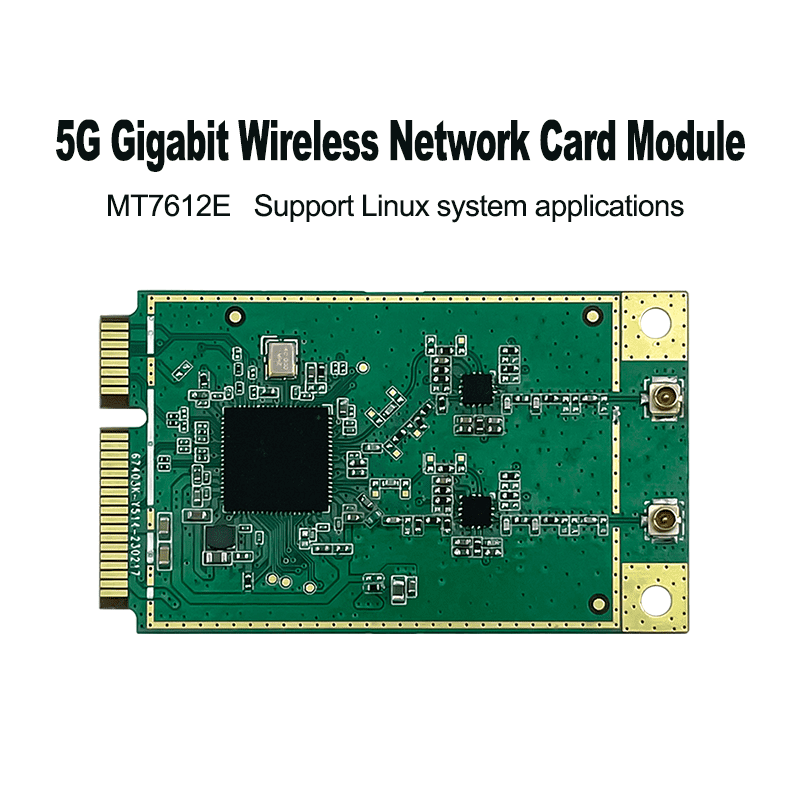

HLK-7612E 5G Wireless Communication WiFi Module MT7612E Dual Band Gigabit Wireless Network Card Linux /Android System

  • Visitor
    3168
  • Buycount:
  • Price
    $8.00

Brief Introduction


HLK-7612E use a highly integrated single chip which has built in a 2x2 dual-band wireless LAN radio. It supports IEEE802. 11ac draft standard and provides the highest PHY rate up to 867Mbps, offering feature-rich wireless connectivity and reliable throughput from an extended distance. Optimized RF architecture and baseband algorithms provide superb performance and low power consumption. MT7612E integrates PA/LNA such that the number of the external components is reduced to minimum. Intelligent MAC design deploys a highefficient DMA engine and hardware data processing accelerators which offloads the host processor. The MT7612E supports the 802.11i security standard and implements hardware acceleration for TKIP, CCMP and WAPI. The device also supports 802.11e QoS for video, voice, and multimedia applications.


7612E-2


Block Diagram




Specifications



Specifications

Chipset

MTK MT7612E  External PA/LNA/SWITCH: SKY85712-21

Interface

Normal Gold Finger miniPCIE

5.8G 2T2R 867Mbps 11ac   21dBm@A mode

DC Power

1x DC MINIPCIE Connector: 3.3V@1A 5V@1A

Power Consumption

3 Watt (Max)

Software

OpenWRT or MTK Linux SDK Driver and Tool Chain

Certification

Support CE & FCC, RoHS  Compliant

Environmental

Temperature: Operating: 0ºC -55 ºC, Storage: -40ºC to 90ºC

Humidity (non-condensing): Operating: 5% to 95%, Storage: Max . 90%


RF Parameter

5G ITEM

RATE

Value

A Mode Pwr (dBm)

54M

21dBm

N HT20 Pwr (dBm)

MCS765M

20dBm

N HT40 Pwr (dBm)

MCS7135M

19dBm

AC VHT80 Pwr (dBm)

MCS9390M

18dBm

A Mode EVM (dB)

54M

-26dB

N HT20 EVM (dB)

MCS765M

-28dB

N HT40 EVM (dB)

MCS7135M

-28dB

AC VHT80 EVM (dB)

MCS9390M

-32dB

FeqErr (ppm)

Test with TX POWER test

± 10ppm

A RX sensitivity (dB)

54M

-70dBm

N HT20 RX sensitivity (dB)

MCS765M

-68dBm

N HT40 RX sensitivity (dB)

MCS7135M

-65dBm

AC VHT80 RX sensitivity (dB)

MCS9390M

-55dBm
