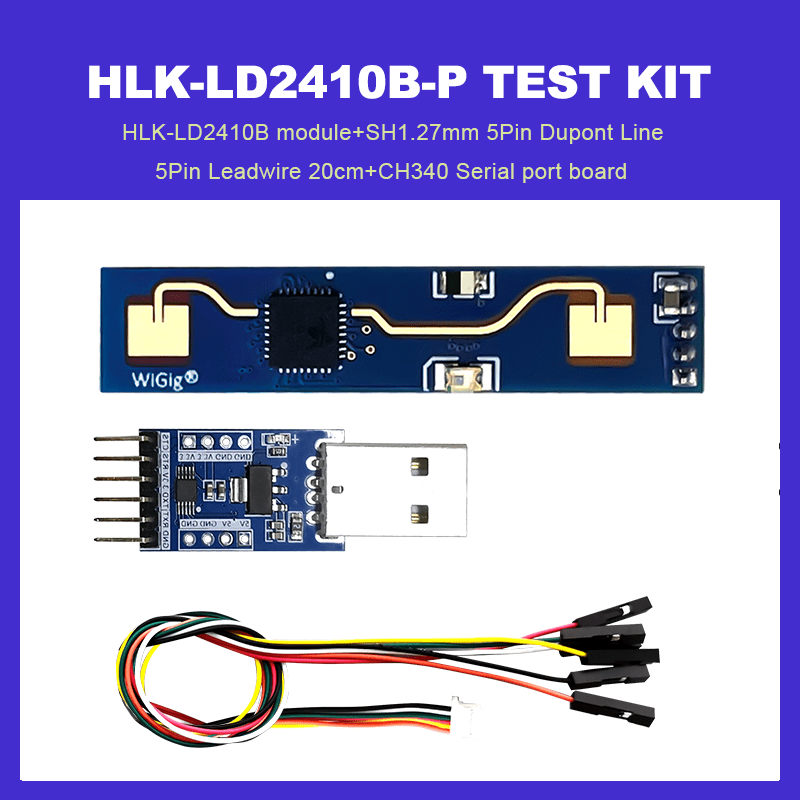

HLK-LD2410B+BLE 24Ghz Human Presence Motion/ Micromotion Detection Radar Sensor Module Test Board Kit support GPIO and UART
-
Visitor6214
-
Buycount:
-
Price$5.68
Download Files:
HLK-LD8001B/H, LD7901: https://drive.google.com/drive/folders/1aiIZDubSBSWa8osZvaEuoZJp1Z7ra97i
HLK-LD6002C: https://drive.google.com/drive/folders/1UFBTpL7mLjvzcOgDNnifWcXyOEQX2Cx5
HLK-LD6002B: https://drive.google.com/drive/folders/1ug-oR3rV8ndN-lEZMgYn8a-KIOFFdn4V
HLK-LD6002: https://drive.google.com/drive/folders/1oMJYYOvhXx9uJD9SCkCsjMzLqdOg7AqR
HLK-LD2461: https://drive.google.com/drive/folders/14_KgZpL4Th2LTRuq_W0X_ePjHu_Z6lcS
HLK-LD2450: https://drive.google.com/drive/folders/1kTt0Z3hjKKrIF3OCIDGdwQ4KotDJ8SGA
HLK-LD2415H: https://drive.google.com/drive/folders/1eOj3xdVOvwmmCniIhfUZZwE_R63wWeKO
HLK-LD2410S: https://drive.google.com/drive/folders/1wC8KC-DaNavNbpeVouZ1HdiBzZ9YrAcg
HLK-LD2410C: https://drive.google.com/drive/folders/1ypOlacBmmFXY6lDQ0f1hEJFmczNe-0WG
HLK-LD2410B: https://drive.google.com/drive/folders/16zI-fium_BZeP08EyQke0rWp0BJTMvw3
HLK-LD2410: https://drive.google.com/drive/folders/1lCQv3mfHJ3XKXzweeHPFnJ_8_D_EWEKk
HLK-LD2411: https://drive.google.com/drive/folders/1ZAFkDPr_BLQpmw1h6furMvg-hcByOt5z
HLK-LD101V: https://drive.google.com/drive/folders/1O8H_NBj3Bm8QCHyXO-5YvEremdVrs-EM
Product Description
LD2410B is a high-sensitivity 24GHz human presence status sensing moduledeveloped by Hi-link. Its working principle is to use FMCW frequency-modulated continuous waves to detect human targets in the set space. Combined with radar signal processing and precise human body sensing algorithms, it realizes high-sensitivity human presence status sensing, and can identify human bodies in motion and stationary states. And auxiliary information such as the distance of the target can be calculated.
This product is mainly used in indoor scenes to sense whether there is a moving or micro-moving human body in the area, and output the detection results in real time. The farthest sensing distance can reach 5 meters, and the distance resolution is 0.75m. Provides a visual configuration tool, which can easily configure the sensing distance range, sensing sensitivity in different intervals and unmanned delay time, etc., to adapt to different specific application needs.
Support GPIO and UART output, plug and play, and can be flexibly applied to different smart scenarios and terminal products.
Product parameters
Plug and play, easy assembly
The longest sensing distance is up to 5 meters
Large detection angle, coverage up to ±60 degrees
Accurate identification within the interval, support the division of the sensing range, and shield the interference outside the interval
Multi-level intelligent parameter adjustment to meet the needs of scene changes
Visual debugging and configuration tools
Small and simplified, the minimum size is only 7mmx35mm
Supports various installation methods such as ceiling hanging and wall hanging
24GHz ISM band, compliant with FCC and CE spectrum regulations
5~12V wide voltage power supply
The ultimate cost-effective choice
Solution Advantage
LD2410 human body sensing module adopts 24GHz millimeter wave radar sensor technology. Compared with other solutions, it has obvious advantages in human body sensing applications:
1.In addition to being sensitive to the moving human body, it can also sensitively sense the static, fretting, and sitting and lying movements of the human body that cannot be recognized by traditional solutions.;
2.It has good environmental adaptability, and the sensing effect is not affected by the surrounding environment such as temperature, brightness, humidity and light fluctuations;
3.With good shell penetration and can be hidden in the shell to work without opening holes on the surface of the product, which improves the aesthetics of the product;
4.Flexible configuration of the farthest sensing distance and the sensitivity on each distance door for flexible and fine-tuned personalization;
Application
* Human body sensor light control
It senses whether there is someone in the space, and automatically controls lights, such as lighting equipment in public places, various sensor lights, bulb lights, etc.
* Human body induction wake-up of advertising screen and other equipment
Automatically turn on when people come, and automatically sleep when no one comes to save power, information delivery is more accurate and efficient
* Life safety protection
UV lamp work protection, to prevent the UV lamp from being turned on when there are people around and causing personal injury
Automatic detection and alarm of dangerous places to prevent people from entering specific high-risk spaces, such as high-risk places entered by personnel from coal mine blasting
* Smart home appliances
When there is no one in the room for a long time, the TV, air conditioner and other electrical appliances are automatically turned off, saving energy and safety
* Intelligent security
Detection and identification of people intruding, staying, etc. within the specified range
Hardware illustration
Module size: 7mmx35mm, 5 pin holes are reserved in the hardware (the factory default does not match the pins)
The pin hole diameter is 0.6mm, and the pin spacing is 1.27mm
