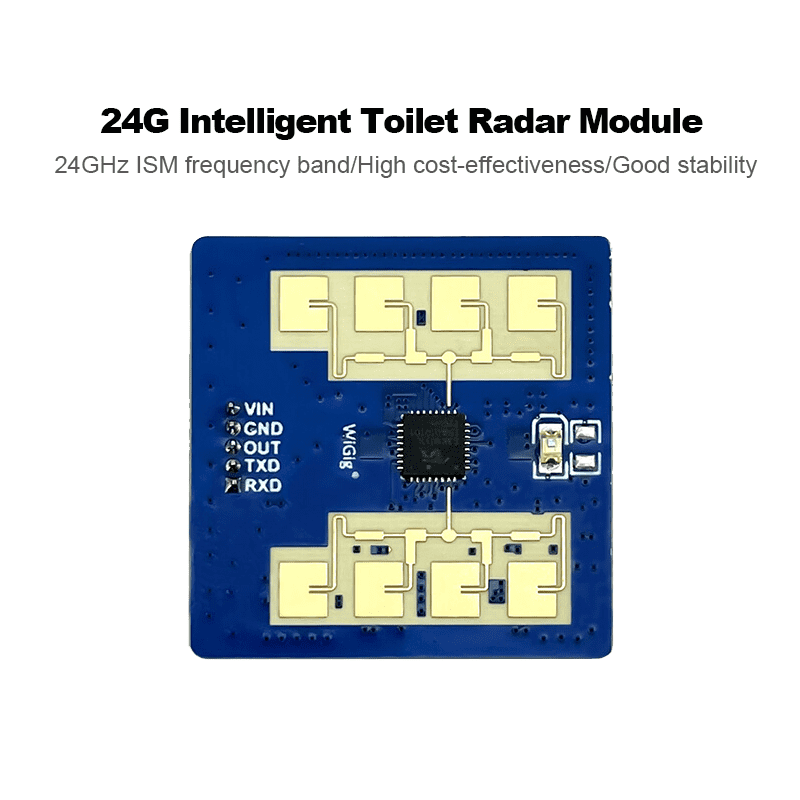

HLK-LD2411 24Ghz intelligent toilet radar sensor module gesture recognition induction automatic flipping and flushing

  • Visitor
    10421
  • Buycount:
  • Price
    $3.06

Radar Sensor Module Manual Link:

https://drive.google.com/drive/folders/16h1POBPM-CN3x7FaBTZa6IErEnPA2w4d?usp=sharing


Product Description

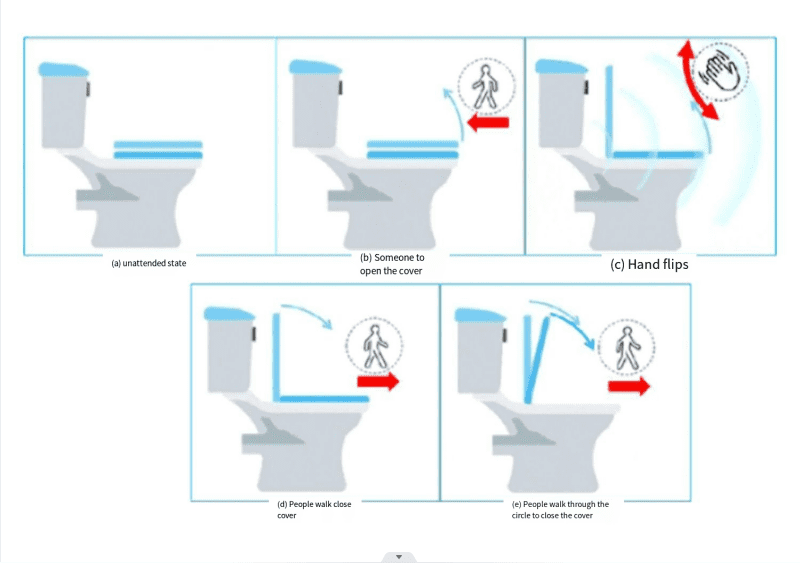

The LD2411 is a human distance sensing and gesture recognition module. it can recognise the user's gesture lifting and releasing movements, as well as detecting the user's movement into and

away from the toilet, and outputting GPIO signals through the detected movements to allow the manufacturer's microcontroller to control the opening or closing of the toilet lid.

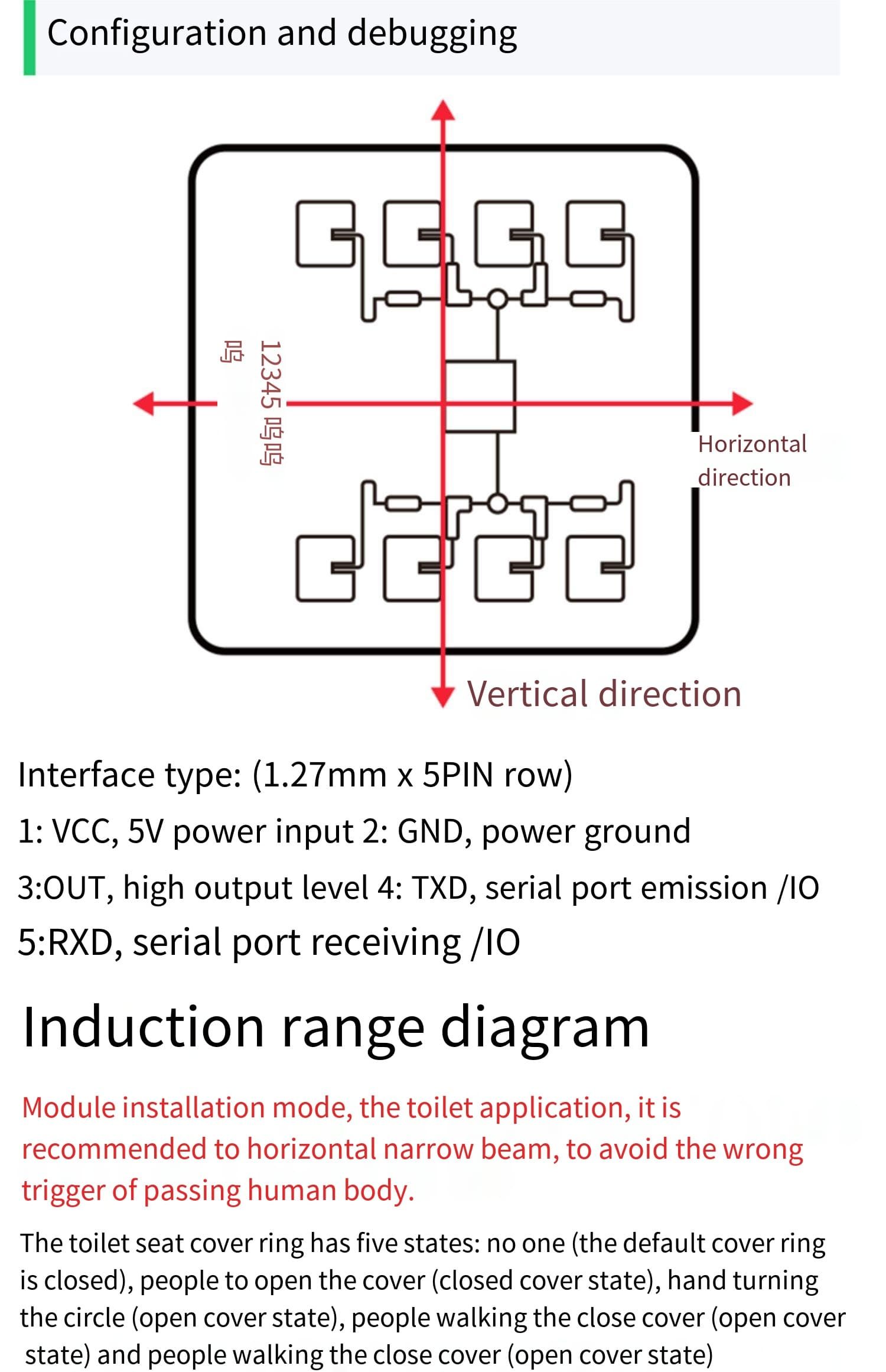

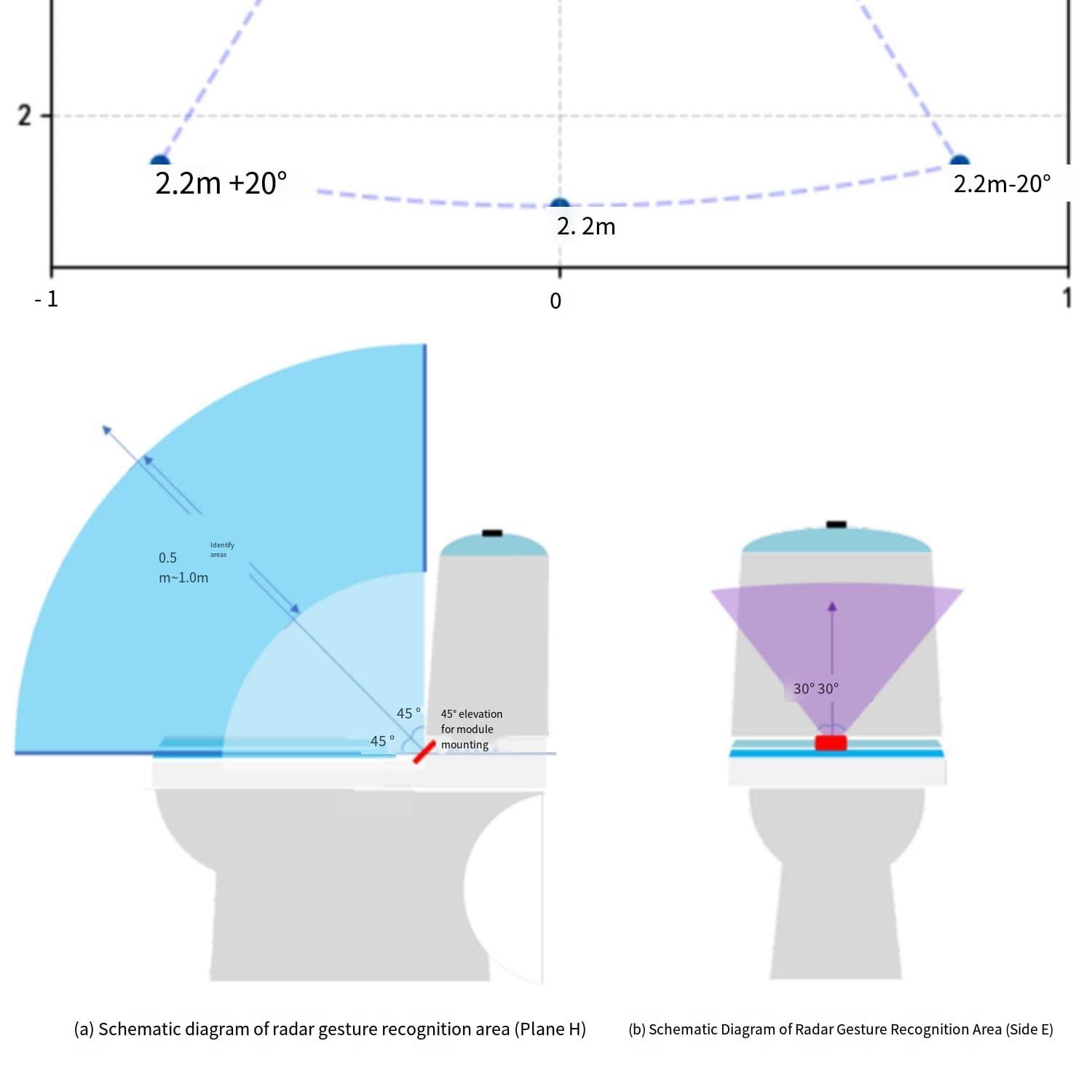

The module uses a 5V supply and the radar beam is designed in a wide and narrow way, with a horizontal angle (4 patch) of approximately ±20° and a vertical angle of ±40°, with adjustments

made to the antenna placement direction depending on the scenario. For toilet applications, a narrow horizontal beam is recommended to avoid false triggering of the human body passing by.


Product Feature

 Plugandplay, easyassemblymethod

 Sensing distance up to 2 metres, gesture recognition distance up to 1 metre

 Detectionanglecoverageupto±30degrees

 DistancesensingdistancecanbeadjustedviaBluetooth

 Theultimatevalueformoneychoice

O1CN018aTfej1kldpuFzGIv_!!2201505264724_译图

LD2411-3

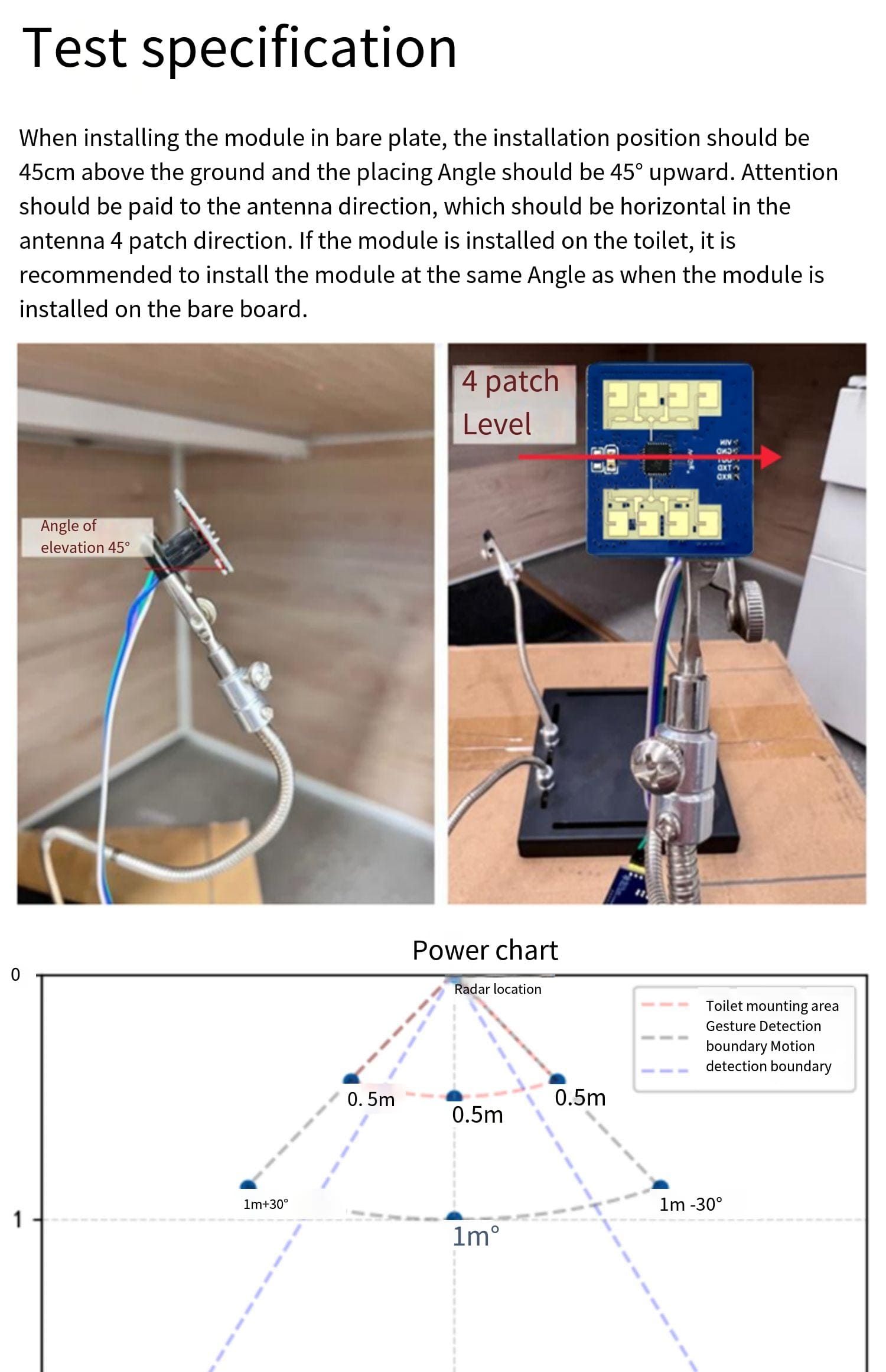

Installation Method


O1CN01rCMqlE1kldprkqdXo_!!2201505264724_译图


Welcome to contact us for more docs of the module.
