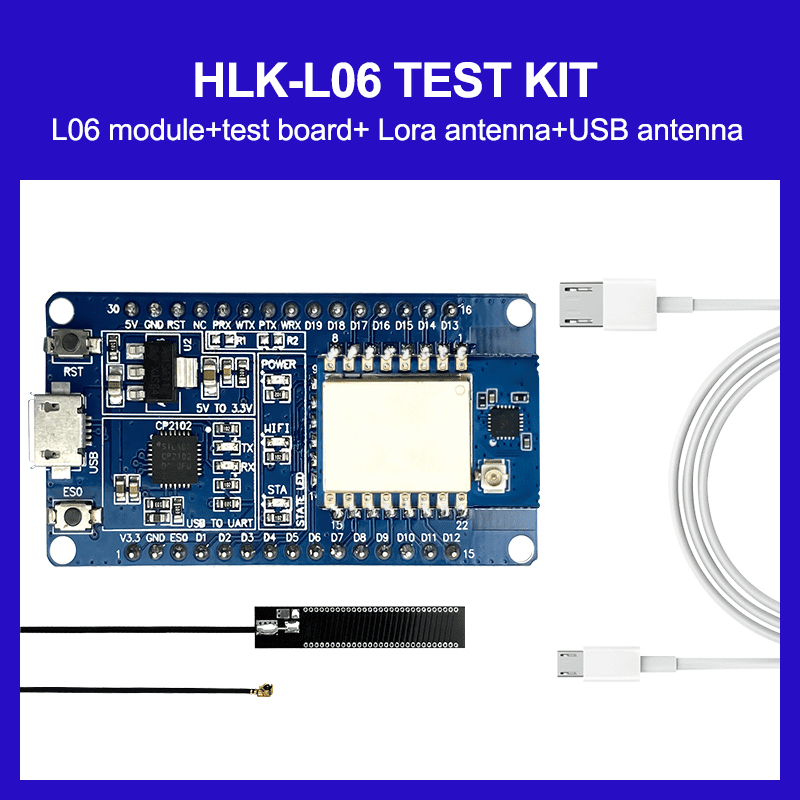

  5. Serial Port to LoRa Wireless RF Communication Module HLK-L06 support customized 868/915 frequency Long Distance Ultra Low Power IoT Module development board/ test kit
  • j

Serial Port to LoRa Wireless RF Communication Module HLK-L06 support customized 868/915 frequency Long Distance Ultra Low Power IoT Module development board/ test kit

  • Visitor
    2149
  • Buycount:
  • Price
    $6.58

L06-3

Product Descrption

HLK-L06 uses chips as wireless communication to achieve data transmission from serial port to wireless radio frequency. It has the characteristics of long transmission distance, low power consumption, strong anti-interference ability, and convenient use


Product Feature

  • Support data conversion from serial port to RF

  • The main frequency supports 32MHz

  • The main controller uses PY32F003 as the main controller

  • Using LLCC68 for communication, with a communication frequency of 433Mhz and a long transmission distance

  • Working voltage 3.0-3.6V, typical value 3.3V

  • Compatible with B36 module packaging and external antenna

  • Supports configuration of transmission rate and power for at commands

  • Maximum transmission power 22dBm

  • Supports one-to-one and one to many communication



Technical Specifications

Module
ModeHLK-L06
PackageDirect insertion/SMT
Antenna parametersfrequency range 433.040 - 434.790Mhz, support customized 868/915 frequency
Transmission powermaximum 22dBmProgrammable adjustment
Receiving sensitivity-129dBm
Antenna formExternal: I-PEX connector
Hardware parametershardware interface UART

working voltage 3.3V(3.0-3.6v)

Communication rateModulation method: 1.11-18.23Kbps

Working current

Continuous transmission:~120mA, maximum transmission power

Receiving mode: 5mA



working temperature -40℃~85℃
Serial port transparent transmissiontransmission speed 9600-115200bps

User ConfigurationAT+instruction set


Application
