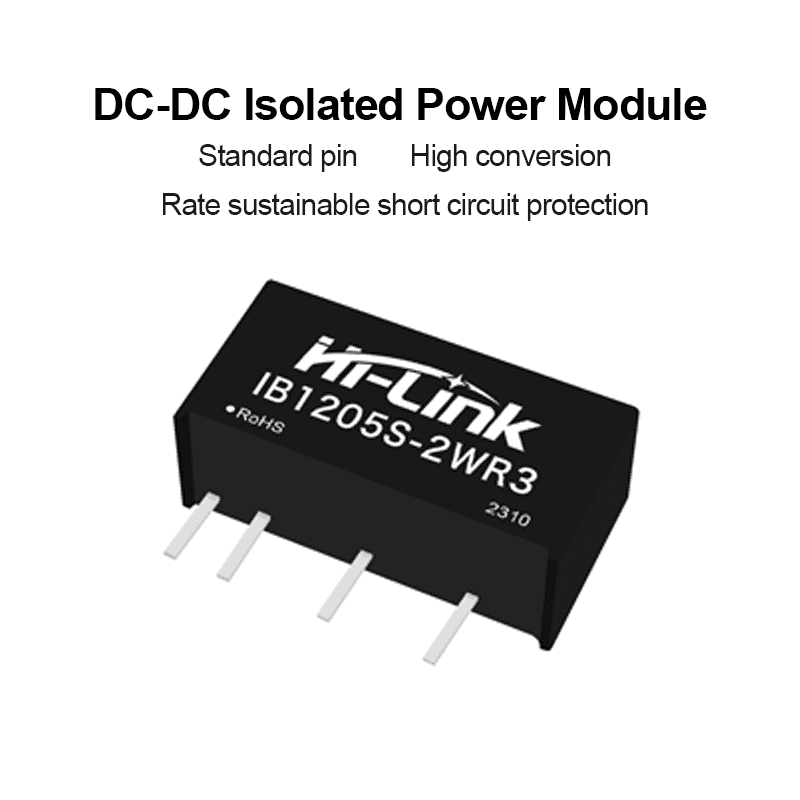

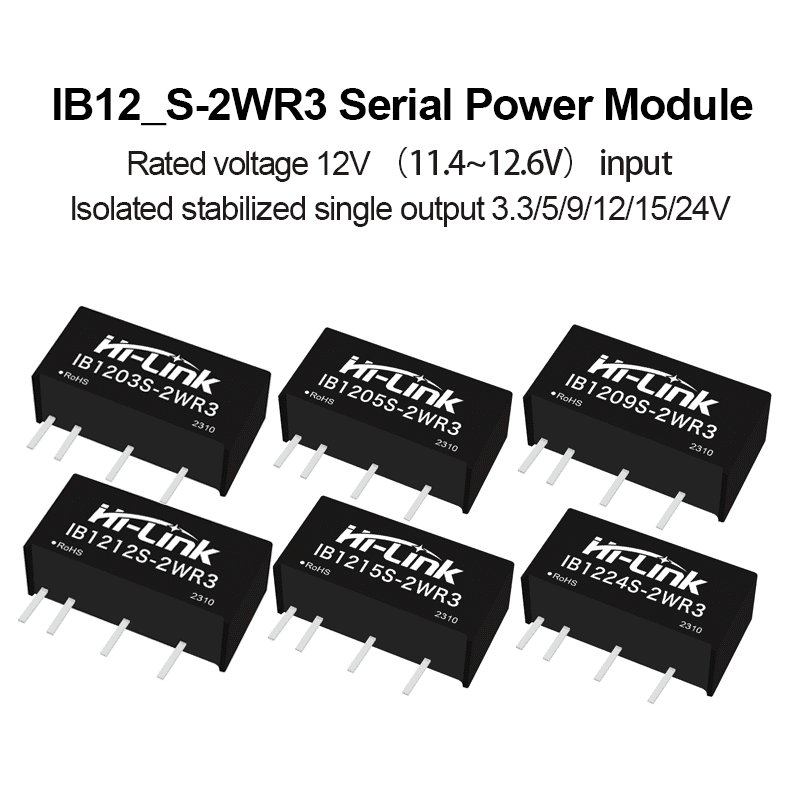

IB1212S-2WR3 IB1203/IB1209/IB1205/IB1224S-2W Hi-link DC-DC isolated power supply module with short-circuit protection
-
Visitor1655
-
Buycount：
-
Price$1.05
DC to DC power module:
1W: https://drive.google.com/drive/folders/1vk6luTBKSC5gfwLJC-DbyEZYVDwk87JV
2W: https://drive.google.com/drive/folders/1vjf-77LCVQl16Hcb1phADiU3Hz14mhYB
3W: https://drive.google.com/drive/folders/13pTx02uL4moskJ-PQsBYFytdq2pPt2mN
5W: https://drive.google.com/drive/folders/1okF0YdP1Xs35HxnAkTm45WOK0kH7qlb5?
6W: https://drive.google.com/drive/folders/18IOw7PyIx99lbm3u0FEhkepC82w601sw
10W: https://drive.google.com/drive/folders/1vuJp5ZoJA9Ci0M4wCS8nT689LVzgh2tC
12W: https://drive.google.com/drive/folders/1becUdxQODQ25_A_iarNnun3Vmi_wow1g
20W: https://drive.google.com/drive/folders/182aHyvoN8J0fCurg65jOkfQp17dyaXP6
30W: https://drive.google.com/drive/folders/1StP-0SJDyFpH3yQMLLQjkQXMDXc-RGeP
40W: https://drive.google.com/drive/folders/1IXRm7dueYYTNoyXCFp88wRQexmKAgCLm
B0505S-1WR2: https://drive.google.com/file/d/16BPrOWkzOz7efnf3OvF1XjClKGnO6znv/view
AC to DC power module:
40W: https://drive.google.com/drive/folders/1jI-hITgxjtByhSCpUMmrJATHO8b_gpN7
30W(C): https://drive.google.com/drive/folders/1Nz-_SdQAuVha0JM7nJTelIfophZsmUYb
20W: https://drive.google.com/drive/folders/1PlLOzt_k3Ky5THYGOWP72jqxWSkJsU6Z
15W(C): https://drive.google.com/drive/folders/1vnVfcgQH-OvujpO6asvQvjIgmwUS2Pti
10W: https://drive.google.com/drive/folders/1zaMfq4Dm3brmRWhTGp9-49c8hN5HsIuk
5W: https://drive.google.com/drive/folders/1_dzDfHi9HOnj_b0RJHCGZ9j87ma8PU7g
3W: https://drive.google.com/drive/folders/1xz8MPw9KeQXDlyAQoI3KXzjCoL4yBRVP
2W: https://drive.google.com/file/d/1_UaUPWX9K5Bfavle4C1imVY0-WjY4yso/view
Product Features:
7PinSIP international standard pin
Isolation voltage: 1500VDC
Low static current and high conversion efficiency
Low ripple coefficient and low noise
Working environment temperature: -40 ℃~+85 ℃
MTBF ≥ 3.5 million hours (3500000 Hrs)
Output short circuit protection: sustainable short circuit protection, automatic recovery
Built in soft start technology
Special specification products can be designed according to customer needs
Input characteristic:
| Item | Working Conditions | Min. | Typ. | Max. | Unit |
| Input voltage range | 5VDC input series | 4.75 | 5 | 5.25 | Vdc |
| 12VDC input series | 10.8 | 12 | 13.2 | ||
| 24VDC input series | 22.8 | 24 | 25.2 | ||
| Max output power | -- | -- | 2 | W | |
| Input fliter typle | Capacitive filtering | ||||
| Hot plug | Non-support | ||||
| *This series of modules does not have input anti reverse connection function. It is strictly prohibited to input positive and negative reverse connections, otherwise it will cause irreversible damage to the module | |||||
Output characteristic:
| Item | Working and testing condition | Min. | Typ. | Max. | Unit | |
| Output load | load percentage | 10 | -- | 100 | % | |
| Output Voltage Accuracy | See Error Envelope Curve | -- | -- | ±1 | % | |
| Linear adjustment rate | Input voltage variation ±5% | -- | -- | ±0.5 | % | |
| Load adjustment rate | 10%~100% load | -- | +1 | +2 | % | |
| Ripple & Noise | Pure resistive load, 20HMz bandwidth, peak-to-peak | -- | 30 | -- | mVp-p | |
| Temperature Drift Coefficient | Full load | -- | -- | ±0.03 | %/℃ | |
| Output short circuit protection | Continuous short circuit protection, automatic recovery | -- | ||||
| Notes: Ripple and Noise Test Methods Twisted Pair Test Method | ||||||
General characteristic:
| Item | Working condition | Min. | Typ. | Max. | Unit |
| Insulation voltage | Input output, test time of 1 minute, leakage current less than 1mA | 1500 | -- | -- | VDC |
| Insulation resistance | Input output, insulation voltage 500VDC 1000-M Ω | 1000 | -- | -- | MΩ |
| Isolation capacitor | Input output, 100KHz/0.1V --40-- pF | -- | 40 | -- | pF |
| Working temperature | Use reference temperature derating curve chart | -40 | -- | +85 | ℃ |
| Storage temperature | -40 | -- | +125 | ||
| Temperature rise of the casing during operation | -- | 25 | -- | ||
| Storage humidity | No condensation | 5 | -- | 95 | %RH |
| Pin resistance to welding temperature | Welding point distance from the shell 1.5mm, 10 seconds | -- | -- | +300 | ℃ |
| Switching frequency | Full load, nominal voltage input | -- | 100 | 300 | KHz |
| Shock | 10-55Hz, 10G, 30 Min. along X, Y and Z | ||||
| Shell material | Black flame retardant and heat-resistant plastic (UL94V-0) | ||||
| Minimum time between failures | MIL-HDBK-217F@25℃ | 3.5X10 6 | -- | -- | Hrs |
