URB2405S-6WR3 URB2424S/03S/09S/12S/15S-6WR3 24V to 3.3V/9V/12V/15V/24V 5DC DC isolated stablized voltage power supply module
-
Visitor415
-
Buycount：
-
Price$2.60
Download files:
DC to DC power module:
1W: https://drive.google.com/drive/folders/1vk6luTBKSC5gfwLJC-DbyEZYVDwk87JV
2W: https://drive.google.com/drive/folders/1vjf-77LCVQl16Hcb1phADiU3Hz14mhYB
3W: https://drive.google.com/drive/folders/13pTx02uL4moskJ-PQsBYFytdq2pPt2mN
5W: https://drive.google.com/drive/folders/1okF0YdP1Xs35HxnAkTm45WOK0kH7qlb5?
6W: https://drive.google.com/drive/folders/18IOw7PyIx99lbm3u0FEhkepC82w601sw
10W: https://drive.google.com/drive/folders/1vuJp5ZoJA9Ci0M4wCS8nT689LVzgh2tC
12W: https://drive.google.com/drive/folders/1becUdxQODQ25_A_iarNnun3Vmi_wow1g
20W: https://drive.google.com/drive/folders/182aHyvoN8J0fCurg65jOkfQp17dyaXP6
30W: https://drive.google.com/drive/folders/1StP-0SJDyFpH3yQMLLQjkQXMDXc-RGeP
40W: https://drive.google.com/drive/folders/1IXRm7dueYYTNoyXCFp88wRQexmKAgCLm
B0505S-1WR2: https://drive.google.com/file/d/16BPrOWkzOz7efnf3OvF1XjClKGnO6znv/view
AC to DC power module:
40W: https://drive.google.com/drive/folders/1jI-hITgxjtByhSCpUMmrJATHO8b_gpN7
30W(C): https://drive.google.com/drive/folders/1Nz-_SdQAuVha0JM7nJTelIfophZsmUYb
20W: https://drive.google.com/drive/folders/1PlLOzt_k3Ky5THYGOWP72jqxWSkJsU6Z
15W(C): https://drive.google.com/drive/folders/1vnVfcgQH-OvujpO6asvQvjIgmwUS2Pti
10W: https://drive.google.com/drive/folders/1zaMfq4Dm3brmRWhTGp9-49c8hN5HsIuk
5W: https://drive.google.com/drive/folders/1_dzDfHi9HOnj_b0RJHCGZ9j87ma8PU7g
3W: https://drive.google.com/drive/folders/1xz8MPw9KeQXDlyAQoI3KXzjCoL4yBRVP
2W: https://drive.google.com/file/d/1_UaUPWX9K5Bfavle4C1imVY0-WjY4yso/view

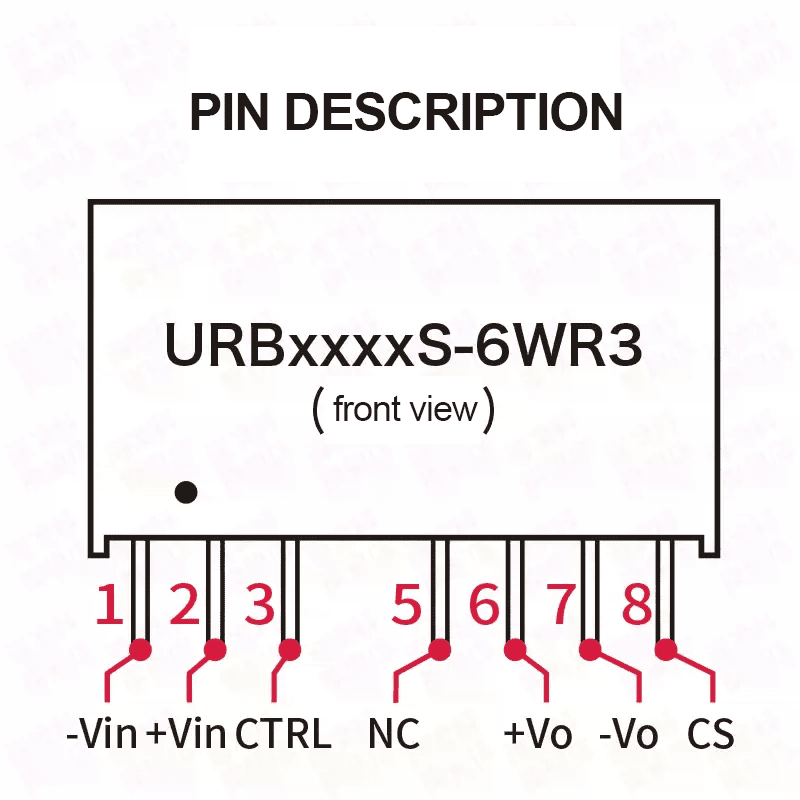

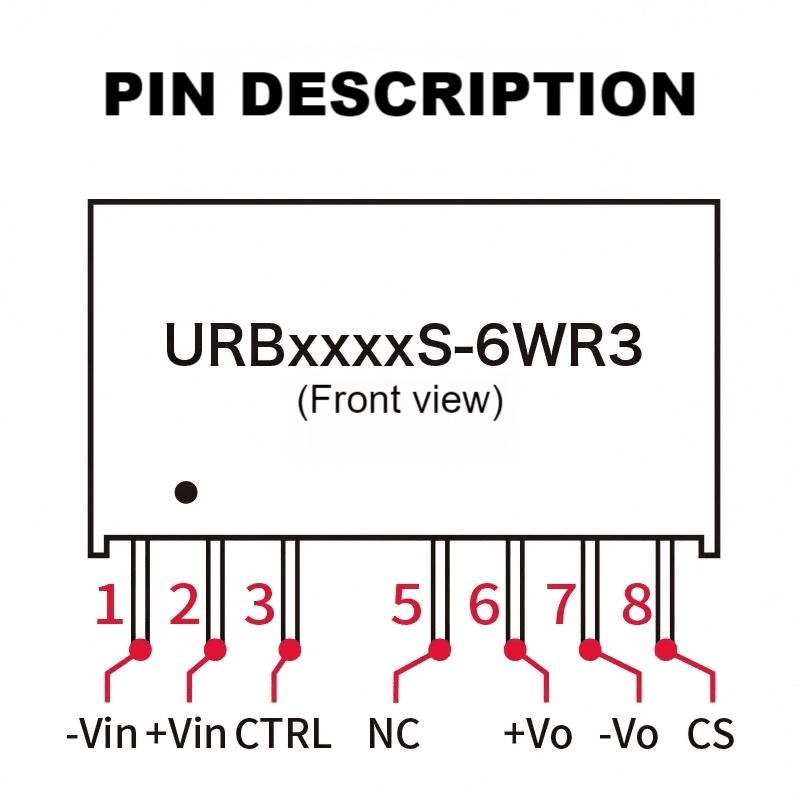

Product Feature
1. Wide input voltage range 4:1, isolated regulated output 6W
2. Isolation voltage 1500VDC
3. Transfer efficiency up to 84%
4. Low ripple noise
5. Operating temperature range ：-40°C~+85°C
6. Small SIP package, metal case, low output ripple
7. No-load power consumption less than 0.12W
8. Output short-circuit protection: continuous short circuit protection, automatic recovery

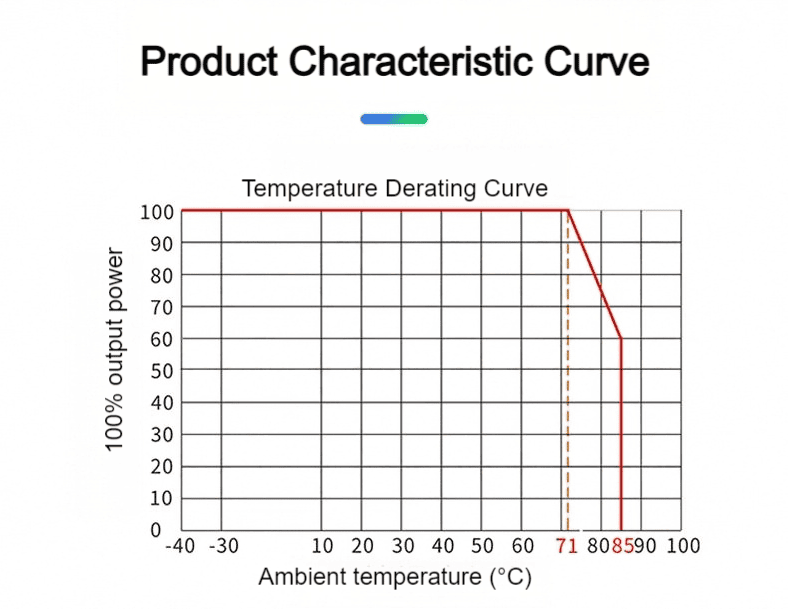

Enviroment Condition
| Project name | Qualification | Unit | Notes |
| Working enviroment temperature | -40—+85 | ℃ | |
| Storage temperture | -40—+125 ℃ | ℃ | |
| Relative humidity | 5—95 | % | |
| Heat dissipation mode | natural cooling | ||
| Atmospheric pressure | 80—106 Kpa | Kpa | |
| Ripple & Noise | 50/130(max) | Mvp-p |
Input Characteristics
| Item | Working conditions | Min. | Typ. | Max. | Unit | |
| Input voltage range(fully loaded/unloaded） | 24VDC Input Series | 3.3V output | - | 238/5 | 245/12 | mA |
| 5V output | - | 305/5 | 313/12 | |||
| others | - | 305/5 | 313/12 | |||
| 48VDC Input Series | 3.3V output | - | 119/3 | 123/6 | ||
| 5V output | - | 152/3 | 162/6 | |||
| others | 152/3 | 162/6 | ||||
| Reflected Ripple Current | - | -- | 50 | -- | mA | |
| Impulse voltage （Isec.max) | 12VDC Input Series | -0.7 | -- | 50 | VDC | |
| 24VDC Input Series | -0.7 | -- | 100 | |||
| Start voltage | 12VDC nominal input series, nominal input voltage | - | - | 9 | ||
| 24VDC nominal input series, nominal input voltage | - | - | 18 | |||
| Input undervoltage protection | 12VDC nominal input series, nominal input voltage | 5.5 | 7.0 | - | ||
| 24VDC nominal input series, nominal input voltage | 13 | 16.0 | - | |||
| Input filter type | Capacitance filter type | |||||
| Hot plugged | Non-support | |||||
Output Characteristics
| Project name | Working and testing condition | Min. | Typ. | Max. | Unit | |
| Output voltage accuracy | 5%~100% no-load, input voltage range | 3.3V/5V output | -- | ±3.0 | ±5.0 | % |
| others | -- | ±1.0 | ±2.0 | % | ||
| Line Regulation | Full load, input voltage changes from low voltage to high voltage | -- | ±0.5 | ±1.0 | % | |
| Load Regulation | 5%~100% load | -- | ±0.5 | ±1.5 | % | |
| Transient Recovery Time | 25% load step change | -- | ±5 | ±8 | mS | |
| Transient response bias | -- | ±3 | ±5 | % | ||
| Ripple&Noise | Pure resistive load, 20MHz bandwidth, peak to peak value | -- | 50 | 130 | mVp-p | |
| Temperature drift coefficient | full load | -- | ±0.02 | ±0.03 | %/°C | |
| Short Circuit Protection | Sustainable, self-healing | |||||
| Note:The testing method for ripple and noise is the twisted pair testing method. | ||||||

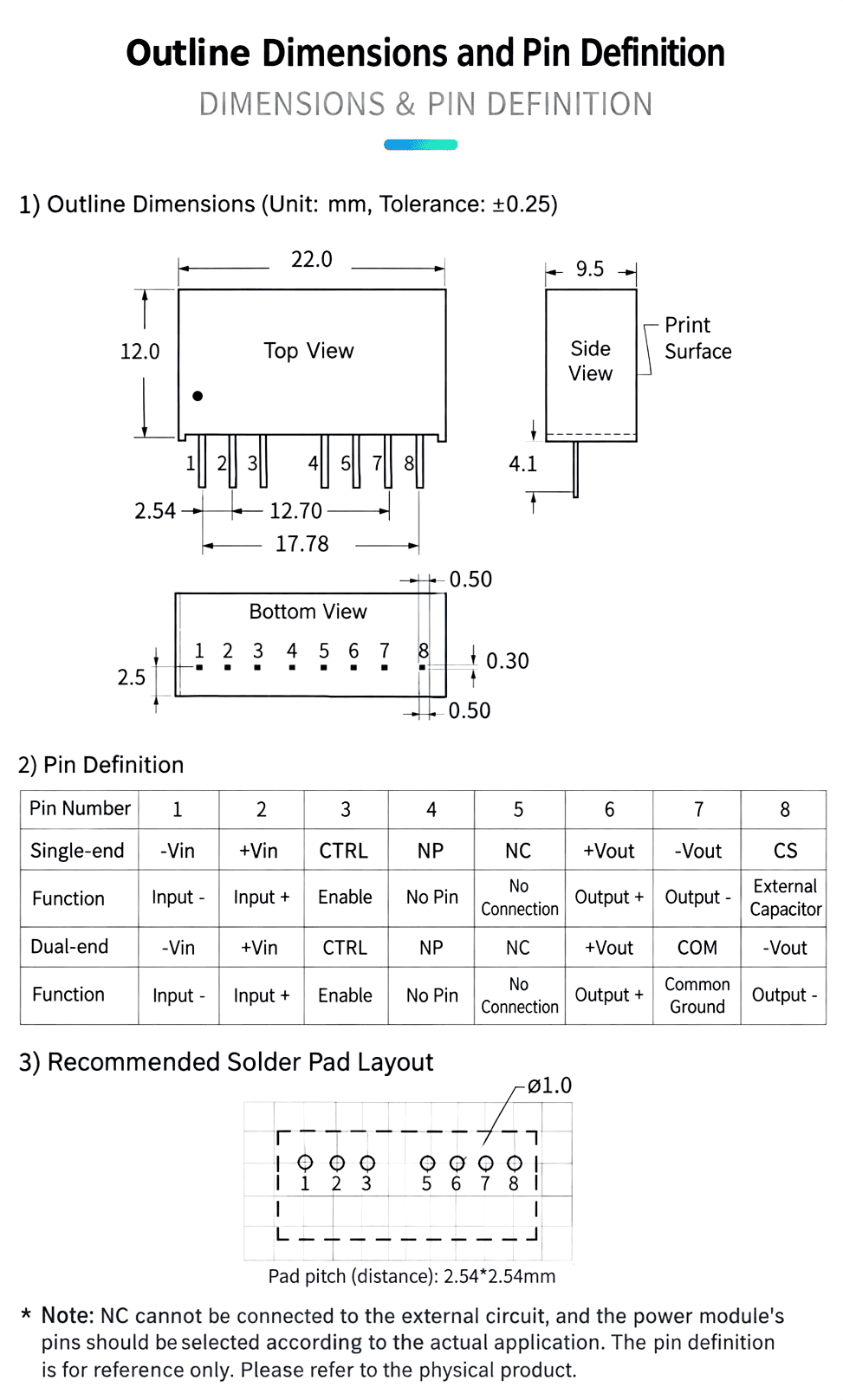

Note:
1、The above is only a list of typical products. If you need products beyond the list, please contact our sales. 2、The maximum capacitive load indicates the maximum capacitive load that + VO or - vo can be connected to,If the value is exceeded, the product will not start normally..

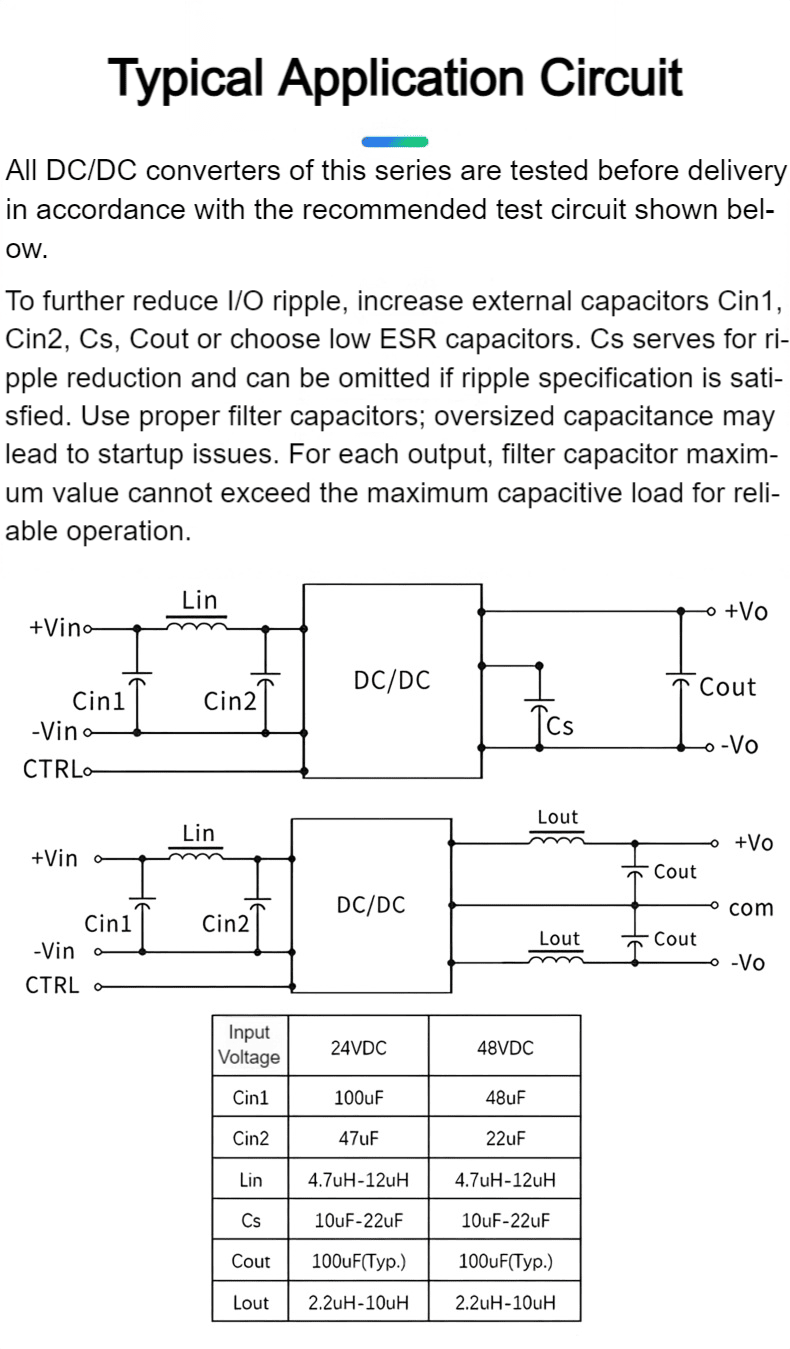

Typical Application Circuits

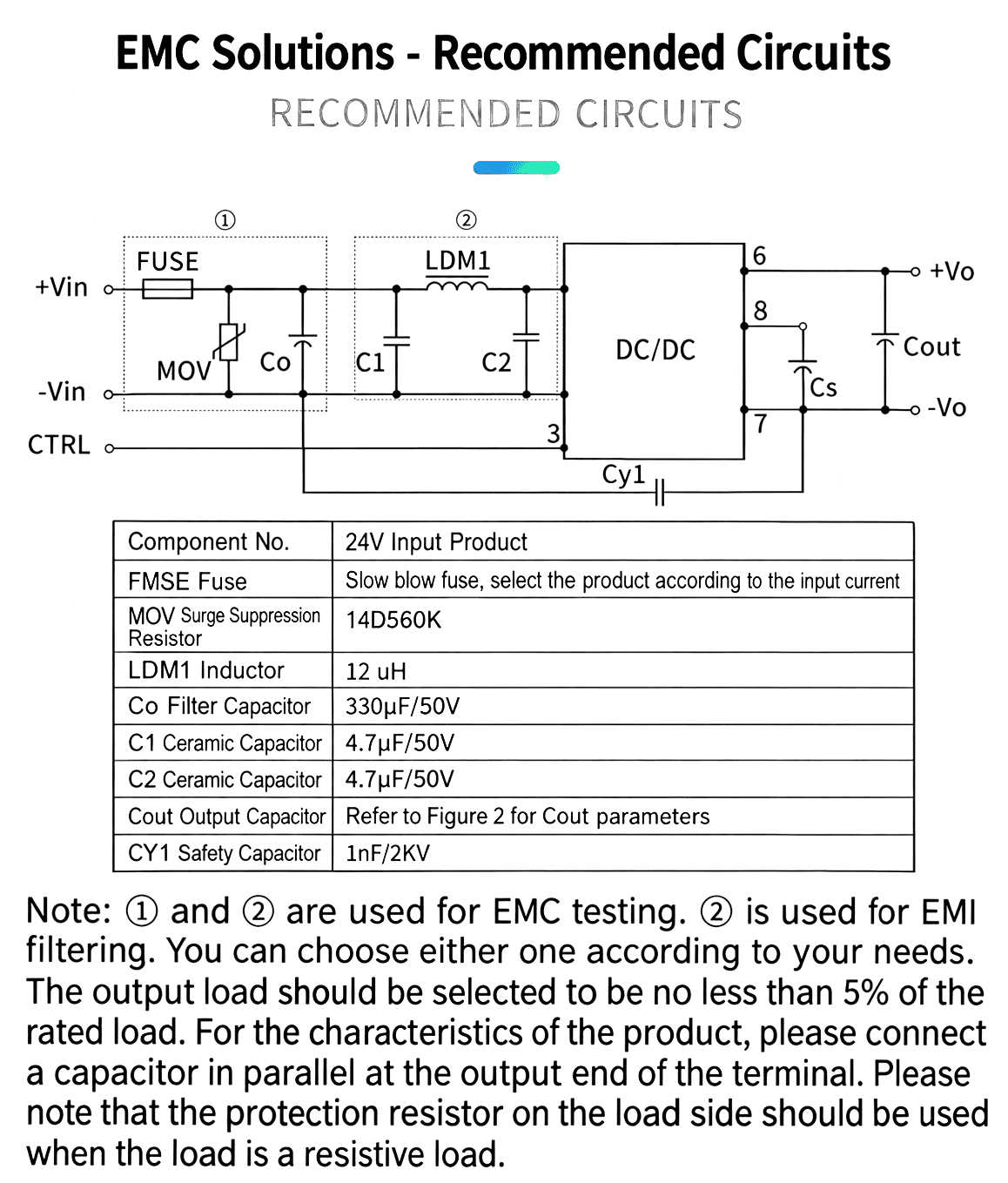

EMC parameter recommendation
| Component No. | Function | Recommended value |
| FMSE | Slow blowing fuse, selected according to the actual input current of the customer | |
| CY1 safety capacitor | 1nF/250Vac | |
Notes：More details please feel free to contact hi-link team.
