AC-DC HLK-15M15C 15W 220V to 5V9V12V15V24V voltage reduction isolation switching power supply converter module stabilizing EMC circuit
-
Visitor3017
-
Buycount:
-
Price$2.58
Download files:
DC to DC power module:
1W: https://drive.google.com/drive/folders/1vk6luTBKSC5gfwLJC-DbyEZYVDwk87JV
2W: https://drive.google.com/drive/folders/1vjf-77LCVQl16Hcb1phADiU3Hz14mhYB
3W: https://drive.google.com/drive/folders/13pTx02uL4moskJ-PQsBYFytdq2pPt2mN
5W: https://drive.google.com/drive/folders/1okF0YdP1Xs35HxnAkTm45WOK0kH7qlb5?
6W: https://drive.google.com/drive/folders/18IOw7PyIx99lbm3u0FEhkepC82w601sw
10W: https://drive.google.com/drive/folders/1vuJp5ZoJA9Ci0M4wCS8nT689LVzgh2tC
12W: https://drive.google.com/drive/folders/1becUdxQODQ25_A_iarNnun3Vmi_wow1g
20W: https://drive.google.com/drive/folders/182aHyvoN8J0fCurg65jOkfQp17dyaXP6
30W: https://drive.google.com/drive/folders/1StP-0SJDyFpH3yQMLLQjkQXMDXc-RGeP
40W: https://drive.google.com/drive/folders/1IXRm7dueYYTNoyXCFp88wRQexmKAgCLm
B0505S-1WR2: https://drive.google.com/file/d/16BPrOWkzOz7efnf3OvF1XjClKGnO6znv/view
AC to DC power module:
40W: https://drive.google.com/drive/folders/1jI-hITgxjtByhSCpUMmrJATHO8b_gpN7
30W(C): https://drive.google.com/drive/folders/1Nz-_SdQAuVha0JM7nJTelIfophZsmUYb
20W: https://drive.google.com/drive/folders/1PlLOzt_k3Ky5THYGOWP72jqxWSkJsU6Z
15W(C): https://drive.google.com/drive/folders/1vnVfcgQH-OvujpO6asvQvjIgmwUS2Pti
10W: https://drive.google.com/drive/folders/1zaMfq4Dm3brmRWhTGp9-49c8hN5HsIuk
5W: https://drive.google.com/drive/folders/1_dzDfHi9HOnj_b0RJHCGZ9j87ma8PU7g
3W: https://drive.google.com/drive/folders/1xz8MPw9KeQXDlyAQoI3KXzjCoL4yBRVP
2W: https://drive.google.com/file/d/1_UaUPWX9K5Bfavle4C1imVY0-WjY4yso/view
1. Ultra-small Series Power Module
The 15W ultra-small series module power supply is a small-volume, high-efficiency AC DC power module
supply designed by Shenzhen Hi-Link Electronics Co.,Ltd. It has the advantages of global input voltage range, low
temperature rise, low power consumption,high efficiency, high reliability and high safety isolation. It has been
widely used in smart home, automation control, communications equipment, instrumentation and other industries.
2. Product Model
Model | Size(mm) | Output Power(W) | Output Voltage(V) | Output Current(mA) | Notes |

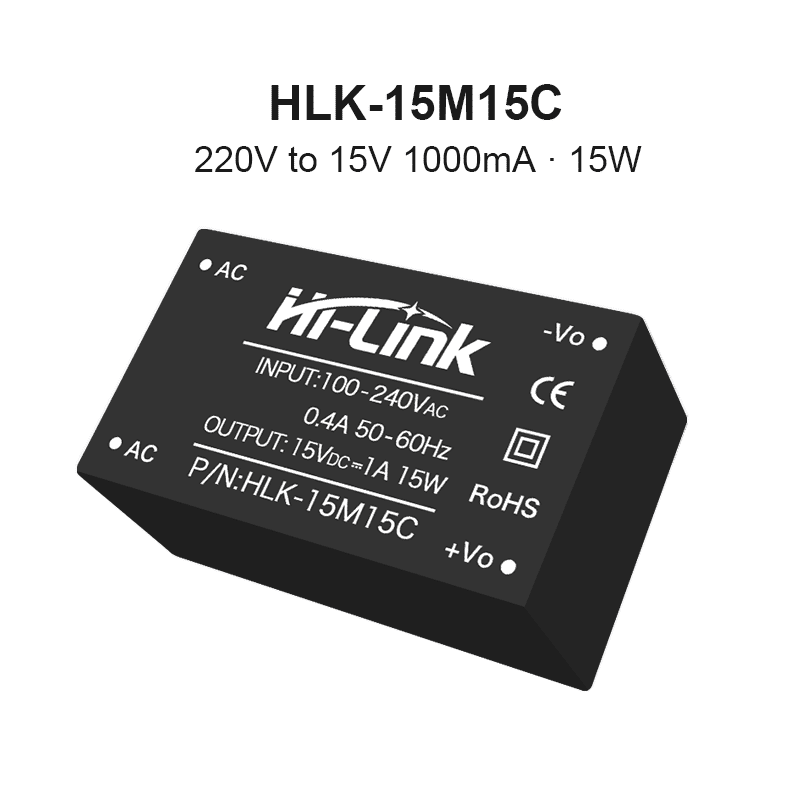

HLK-15M05C | 47.5*28.5*22 | 15 | 5 | 3000 | |
HLK-15M09C | 15 | 9 | 1660 | ||
HLK-15M12C | 15 | 12 | 1250 | ||
HLK-15M15C | 15 | 15 | 1000 | ||
HLK-15M24C | 15 | 24 | 625 |
3. Product Features
1. Ultra-thin, ultra-small, smallest volume;
2. Global universal input voltage (85~265Vac)
3. Low power consumption, green environmental protection, no-load loss<0.1W
4. Low ripple, low noise
5. High output short circuit and over-current protection and self recovery
6. High efficiency, high power density
7. Input and output isolation voltage 3000Vac
8. 100% full load aging and testing
9. High reliability, long life design, continuous working time is greater than 100,000 hours;
10. Meet UL, CE requirements; product design to meet EMC and safety testing requirement;
11. Using high-quality environmentally friendly waterproof plastic potting, moisture, vibration, water and dust to meet IP65 standards
12. Economic solutions, cost-effective
13. Work without external circuit
14. 1 year quality guarantee period
5. Electrical characteristics
5.1. Input Features
Items | Technical Parameters | Units | Notes |
Rated Input Voltage | 100-240 | Vac | |
Input voltage range | 85-265 | Vac | Or 120-350Vdc |
The maximum input current | ≤0.4 | A | |
Input inrush current | ≤34 | A | |
Input low start | ≤50 | mS | |
Long-term reliability | MTBF≥100, 000 | h | |
External fuse recommended | 1A/250Vac | Slow blow |
Note: Tested at room temperature
