1. Ultra-small Series Power Module

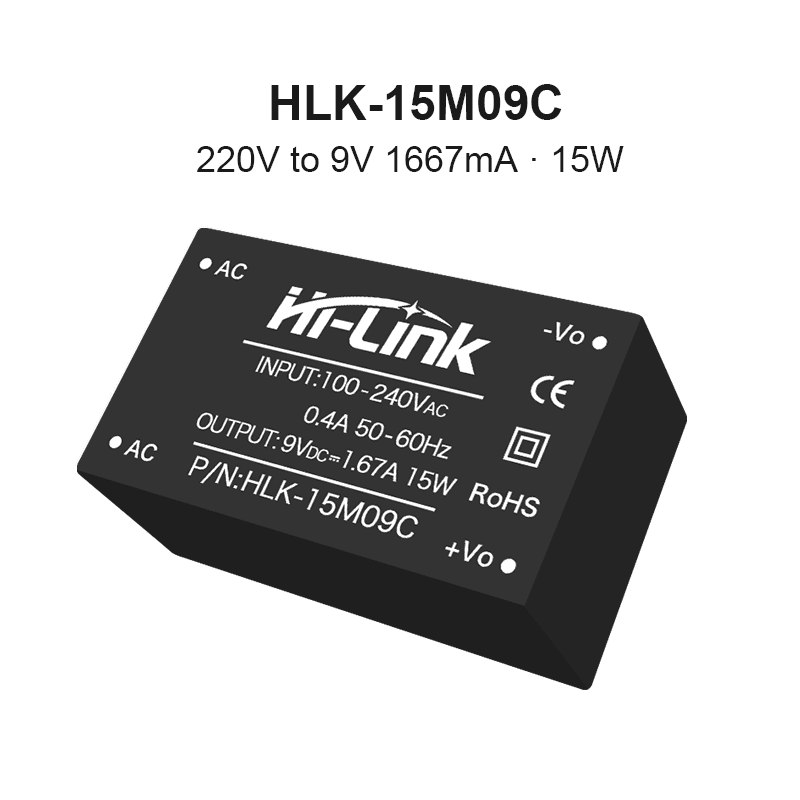

The 15W ultra-small series module power supply is a small-volume, high-efficiency AC DC power module

supply designed by Shenzhen Hi-Link Electronics Co.,Ltd. It has the advantages of global input voltage range, low

temperature rise, low power consumption,high efficiency, high reliability and high safety isolation. It has been

widely used in smart home, automation control, communications equipment, instrumentation and other industries.


2. Product Model


ModelSize(mm)Output Power(W)Output Voltage(V)Output Current(mA)Notes
HLK-15M05C



       47.5*28.5*22

1553000
HLK-15M09C1591660
HLK-15M12C15121250
HLK-15M15C15151000
HLK-15M24C1524625


3. Product Features


1. Ultra-thin, ultra-small, smallest volume;

2. Global universal input voltage (85~265Vac)

3. Low power consumption, green environmental protection, no-load loss<0.1W

4. Low ripple, low noise

5. High output short circuit and over-current protection and self recovery

6. High efficiency, high power density

7. Input and output isolation voltage 3000Vac

8. 100% full load aging and testing

9. High reliability, long life design, continuous working time is greater than 100,000 hours;

10. Meet UL, CE requirements; product design to meet EMC and safety testing requirement;

11. Using high-quality environmentally friendly waterproof plastic potting, moisture, vibration, water and dust to meet IP65 standards

12. Economic solutions, cost-effective

13. Work without external circuit

14. 1 year quality guarantee period


5. Electrical characteristics

5.1. Input Features


Items
Technical ParametersUnitsNotes
Rated Input Voltage100-240 Vac
Input voltage range85-265 VacOr 120-350Vdc

The maximum input current

≤0.4 A
Input inrush current≤34 A
Input low start ≤50 mS
Long-term reliabilityMTBF≥100, 000 h

External fuse recommended

1A/250Vac
Slow blow

Note: Tested at room temperature
