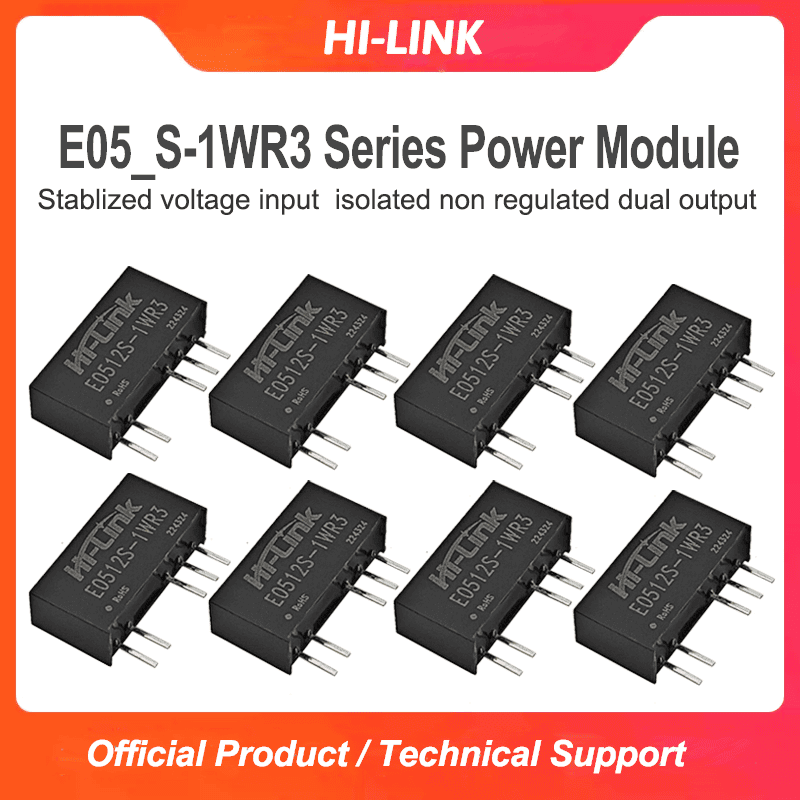

E0505S-1WR3 E0509/E0512/E0515/E0524S-1WR3 DC-DC isolated non stabilized dual output power converter module with short-circuit protection
-
Visitor641
-
Buycount：
-
Price$0.89
DC to DC power module:
1W: https://drive.google.com/drive/folders/1vk6luTBKSC5gfwLJC-DbyEZYVDwk87JV
2W: https://drive.google.com/drive/folders/1vjf-77LCVQl16Hcb1phADiU3Hz14mhYB
3W: https://drive.google.com/drive/folders/13pTx02uL4moskJ-PQsBYFytdq2pPt2mN
5W: https://drive.google.com/drive/folders/1okF0YdP1Xs35HxnAkTm45WOK0kH7qlb5?
6W: https://drive.google.com/drive/folders/18IOw7PyIx99lbm3u0FEhkepC82w601sw
10W: https://drive.google.com/drive/folders/1vuJp5ZoJA9Ci0M4wCS8nT689LVzgh2tC
12W: https://drive.google.com/drive/folders/1becUdxQODQ25_A_iarNnun3Vmi_wow1g
20W: https://drive.google.com/drive/folders/182aHyvoN8J0fCurg65jOkfQp17dyaXP6
30W: https://drive.google.com/drive/folders/1StP-0SJDyFpH3yQMLLQjkQXMDXc-RGeP
40W: https://drive.google.com/drive/folders/1IXRm7dueYYTNoyXCFp88wRQexmKAgCLm
B0505S-1WR2: https://drive.google.com/file/d/16BPrOWkzOz7efnf3OvF1XjClKGnO6znv/view
AC to DC power module:
https://drive.google.com/drive/folders/1HcZhdzhKA4p08B_YEv_A6sUOvNJ0Ei9n?usp=sharing

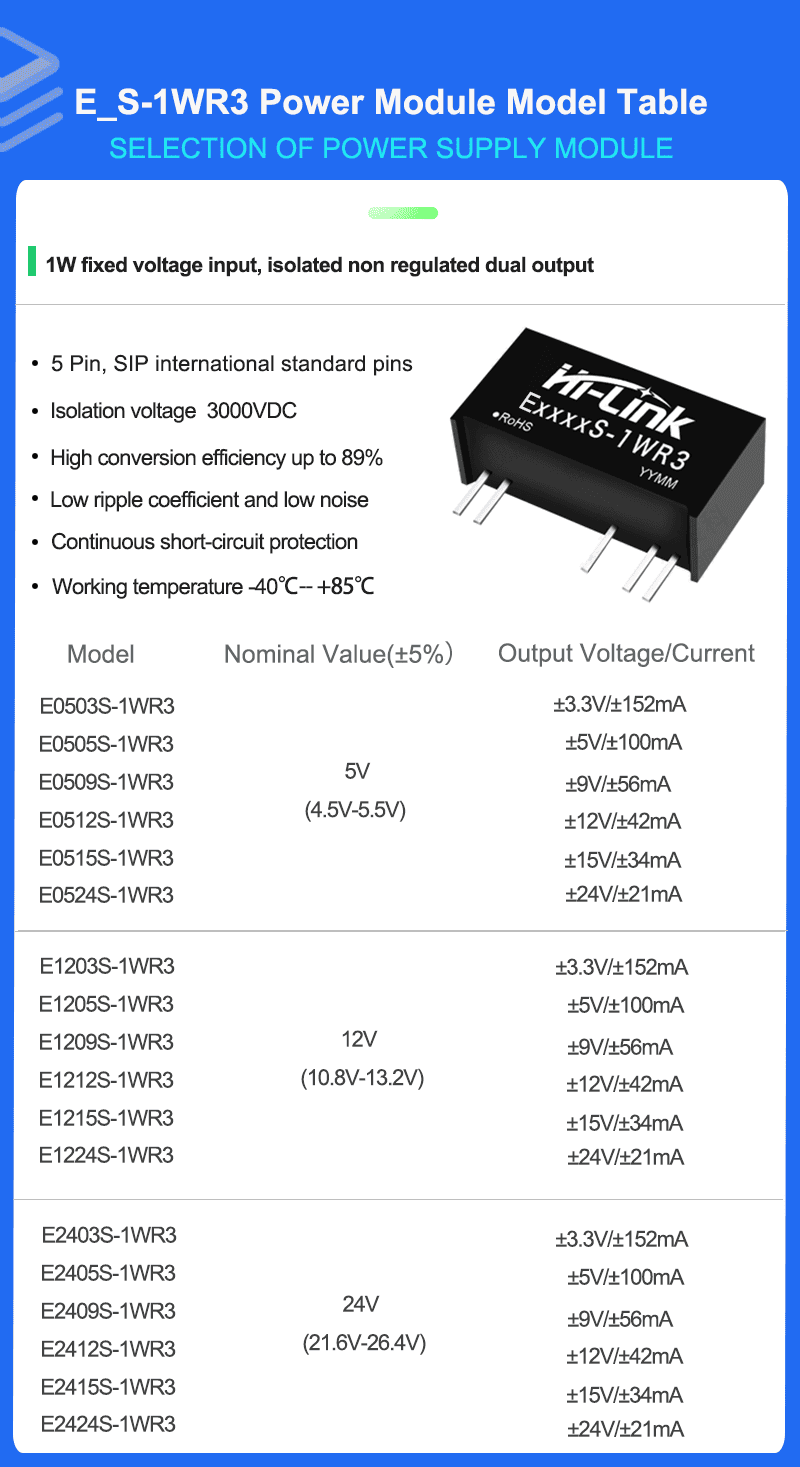

Product Features:
5Pin SIP international standard pin
Isolation voltage: 3000VDC
High conversion efficiency, up to 89%
Low ripple coefficient and low noise
Working environment temperature: -40 ℃~+85 ℃
MTBF ≥ 3.5 million hours (3500000 Hrs)
Output short circuit protection: sustainable short circuit protection, automatic recovery
Built in soft start technology
Special specification products can be designed according to customer needs
Input characteristic:
| Item | Working Conditions | Min. | Typ. | Max. | Unit |
| 3.3VDC input series | -- | 370/3 | --/15 | ||
| 5VDC input series | -- | 235/3 | --/15 | ||
| Input voltage range | 12VDC input series | -- | 99/3 | --/15 | Vdc |
| 15VDC input series | -- | 99/3 | --/15 | ||
| 24VDC input series | -- | 51/3 | --/15 | ||
| Reflected ripple current | -- | 15 | -- | ||
Impulse Voltage | 3.3VDC input series | -0.7 | -- | 5 | Vdc |
| 5VDC input series | -0.7 | -- | 9 | ||
| 12VDC input series | -0.7 | -- | 18 | ||
| 15VDC input series | -0.7 | -- | 21 | ||
| 24VDC input series | -0.7 | -- | 30 | ||
| Input fliter typle | Capacitive filtering | ||||
| Hot plug | Non-support | ||||
Output characteristic:
| Item | Working and testing condition | Min. | Typ. | Max. | Unit | |
| Output load | load percentage | 10 | -- | 100 | % | |
| Output Voltage Accuracy | -- | -- | ±15.0 | % | ||
| Linear adjustment rate | Input voltage variation ±1% | 3.3V output | -- | -- | ±1.5 | % |
| others | -- | -- | ±1.2 | % | ||
| Load adjustment rate | 10%~100% load | 3.3VDC output | -- | 10 | -- | % |
| 5VDC output | -- | 8 | -- | % | ||
| 9VDC output | -- | 8 | -- | % | ||
| 12VDC output | -- | 7 | -- | % | ||
| 15VDC output | -- | 6 | -- | % | ||
| 24VDC output | -- | 6 | -- | % | ||
| Ripple & Noise | Pure resistive load, 20HMz bandwidth, peak-to-peak | -- | 45 | 100 | mVp-p | |
| Temperature Drift Coefficient | Full load | -- | -- | ±0.03 | %/℃ | |
| Output short circuit protection | Continuous short circuit protection, automatic recovery | |||||
| Notes: Ripple and Noise Test Methods Twisted Pair Test Method | ||||||
General characteristic:
| Item | Working condition | Min. | Typ. | Max. | Unit |
| Insulation voltage | Input output, test time of 1 minute, leakage current less than 1mA | 3000 | -- | -- | VDC |
| Insulation resistance | Input output, insulation voltage 500VDC 1000-M Ω | 1000 | -- | -- | MΩ |
| Isolation capacitor | Input output, 100KHz/0.1V --40-- pF | -- | 20 | -- | pF |
| Working temperature | Use reference temperature derating curve chart | -40 | -- | +85 | ℃ |
| Storage temperature | -40 | -- | +125 | ||
| Temperature rise of the casing during operation | -- | 25 | -- | ||
| Storage humidity | No condensation | 5 | -- | 95 | %RH |
| Pin resistance to welding temperature | Welding point distance from the shell 1.5mm, 10 seconds | -- | -- | +300 | ℃ |
| Switching frequency | Full load, nominal voltage input | -- | 100 | -- | KHz |
| Shock | 10-55Hz, 10G, 30 Min. along X, Y and Z | ||||
| Shell material | Black flame retardant and heat-resistant plastic (UL94V-0) | ||||
| Minimum time between failures | MIL-HDBK-217F@25℃ | 3.5X10 6 | -- | -- | Hrs |
