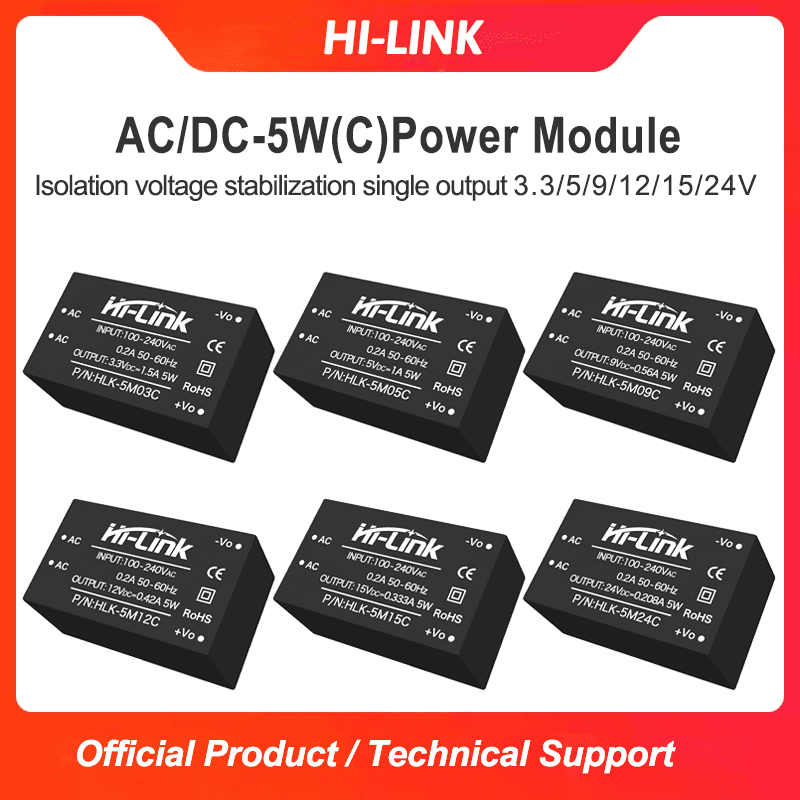

AC to DC 5W HLK-5M05C/5M12C/5M24C Step Down mini Power Supply Converter Module Switch Power Module Insert EMC Electric Circuit
-
Visitor610
-
Buycount：
-
Price$1.45
Download files:
DC to DC power module:
1W: https://drive.google.com/drive/folders/1vk6luTBKSC5gfwLJC-DbyEZYVDwk87JV
2W: https://drive.google.com/drive/folders/1vjf-77LCVQl16Hcb1phADiU3Hz14mhYB
3W: https://drive.google.com/drive/folders/13pTx02uL4moskJ-PQsBYFytdq2pPt2mN
5W: https://drive.google.com/drive/folders/1okF0YdP1Xs35HxnAkTm45WOK0kH7qlb5?
6W: https://drive.google.com/drive/folders/18IOw7PyIx99lbm3u0FEhkepC82w601sw
10W: https://drive.google.com/drive/folders/1vuJp5ZoJA9Ci0M4wCS8nT689LVzgh2tC
12W: https://drive.google.com/drive/folders/1becUdxQODQ25_A_iarNnun3Vmi_wow1g
20W: https://drive.google.com/drive/folders/182aHyvoN8J0fCurg65jOkfQp17dyaXP6
30W: https://drive.google.com/drive/folders/1StP-0SJDyFpH3yQMLLQjkQXMDXc-RGeP
40W: https://drive.google.com/drive/folders/1IXRm7dueYYTNoyXCFp88wRQexmKAgCLm
B0505S-1WR2: https://drive.google.com/file/d/16BPrOWkzOz7efnf3OvF1XjClKGnO6znv/view
AC to DC power module:
40W: https://drive.google.com/drive/folders/1jI-hITgxjtByhSCpUMmrJATHO8b_gpN7
30W(C): https://drive.google.com/drive/folders/1Nz-_SdQAuVha0JM7nJTelIfophZsmUYb
20W: https://drive.google.com/drive/folders/1PlLOzt_k3Ky5THYGOWP72jqxWSkJsU6Z
15W(C): https://drive.google.com/drive/folders/1vnVfcgQH-OvujpO6asvQvjIgmwUS2Pti
10W: https://drive.google.com/drive/folders/1zaMfq4Dm3brmRWhTGp9-49c8hN5HsIuk
5W: https://drive.google.com/drive/folders/1_dzDfHi9HOnj_b0RJHCGZ9j87ma8PU7g
3W: https://drive.google.com/drive/folders/1xz8MPw9KeQXDlyAQoI3KXzjCoL4yBRVP
2W: https://drive.google.com/file/d/1_UaUPWX9K5Bfavle4C1imVY0-WjY4yso/view

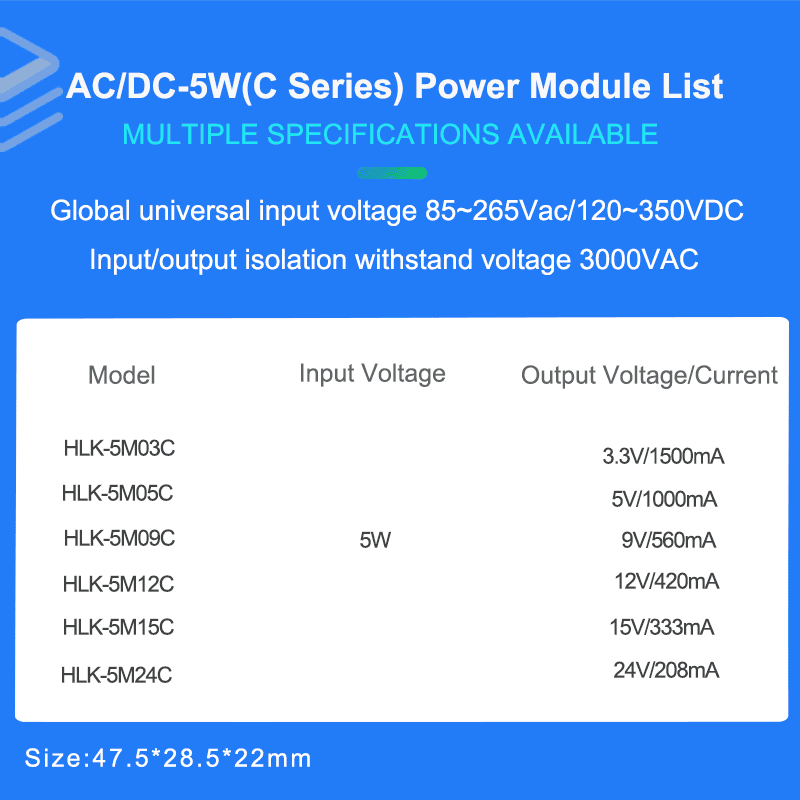

Product Features
Global universal input voltage(85-265VAC)
Input and output isolation voltage 3000VAC
Low power consumption, green enviroment protection, no-load loss＜0.1W
High efficiency, high power density
Long life design, continuous working time is greater then 100,000hours
High output-quality environmentally friendly waterproof thermal conductive glue potting, dustproof,moisture-proof, shockproof, flame-retardant
Meet UL/CE/EMC and safety testing requirenments
Can be used in medical, industrial control, electric power, instrumentation, communication,railway and other fields
Environment Condition
| Working Temerature | -25—+60 ℃ |
| Storage temperature | -40—+80 ℃ |
| Relative humidity | 5—95 % |
| Thermal methods | Natural cooling |
| Atmospheric pressure | 80—106 Kpa |
| Altitude | ≤2000 m |
| Vibration coefficient | 10~500Hz,2G10min./1cycle, 60min.each along X,Y,Z axes. Meets secondary road transportation requirements |
Input Features( test at room temperature)
| Rated input voltage | 100-240Vac |
| Input vlotage range | 85-265VAC/120-350VDC |
| The maximum input CURRENT | ≤0.2A |
| Input low start | ≤200mS |
| Long-term reliablity | MTBF≥100000H |
| External fuse recommended | 1A/250Vac or 10Ω wire wound resistance, Slow blow |
Output Features(3.3V/1500mA)
| No-load rated output voltage | 3.3±0.1Vdc |
| Full-load rated output voltage | 3.3±0.1Vdc |
| Short term maximum output current | ≥1900mA |
| Rated output current | 1500mA |
| Voltage regulation rate | ±0.1% |
| Load regulation rate | ±0.5% |
| Switching on/off overshoot amplitude | （Rated input voltage, output with 10% load) ≤5%VO |
Output ripple and noise (mVp-p) | ≤100 Rated input voltage, output at full load. Using a 20MHz bandwidth oscilloscope, Test the load end with 10uF and 0.1uF capacitors. |
Output Features(5V/1000mA)
| No-load rated output voltage | 5±0.1Vdc |
| Full-load rated output voltage | 5±0.1Vdc |
| Short term maximum output current | ≥1260mA |
| Rated output current | 1000mA |
| Voltage regulation rate | ±0.1% |
| Load regulation rate | ±0.5% |
| Switching on/off overshoot amplitude | （Rated input voltage, output with 10% load) ≤5%VO |
Output ripple and noise (mVp-p) | ≤100 Rated input voltage, output at full load. Using a 20MHz bandwidth oscilloscope, Test the load end with 10uF and 0.1uF capacitors. |
Output Features(12V/420mA)
| No-load rated output voltage | 12±0.1Vdc |
| Full-load rated output voltage | 12±0.1Vdc |
| Short term maximum output current | ≥520mA |
| Rated output current | 420mA |
| Voltage regulation rate | ±0.1% |
| Load regulation rate | ±0.5% |
| Switching on/off overshoot amplitude | （Rated input voltage, output with 10% load) ≤5%VO |
Output ripple and noise (mVp-p) | ≤100 Rated input voltage, output at full load. Using a 20MHz bandwidth oscilloscope, Test the load end with 10uF and 0.1uF capacitors. |
Output Features(24V/208mA)
| No-load rated output voltage | 24±0.1Vdc |
| Full-load rated output voltage | 24±0.1Vdc |
| Short term maximum output current | ≥260mA |
| Rated output current | 208mA |
| Voltage regulation rate | ±0.1% |
| Load regulation rate | ±0.5% |
| Switching on/off overshoot amplitude | （Rated input voltage, output with 10% load) ≤5%VO |
Output ripple and noise (mVp-p) | ≤100 Rated input voltage, output at full load. Using a 20MHz bandwidth oscilloscope, Test the load end with 10uF and 0.1uF capacitors. |
Input Voltage & Load Characteristics
Working Environment Temperature & Load Characteristics
Typical Application Circuit
Parameter Recommendation
| Recommended Component | Function | Recommended Parameters |
| F1/fuse | When the module is abnormal, protect the circuit from damage | 1A/250Vac, slow fuse |
| MOV1/Varistor | The cumulative surge is to protect the module from damage | 10D561K |
| C1/Safety capacitance | Filtering/safety protection/EMC certification | 0.1uF/275VAC |
| L1/Common-mode inductance | EMI filtering | Sensible value 10-30mH(testing requirements 1KHZ/0.3V current:100-500mA) |
Safety Characteristics
Meet UL/CE requirements(UL/CE certification requires customers to self-certify)
Safe compatible with battery
The input end design adopts UL certification 1A insurance
The fire ration of PCB board is 94-V0
Safety standards comply with UL1012,EN60950,UL60950
Insulation voltage I/P-O/P＞2500Vac
Insulation resistance I/P-O/P＞100M 0hms/500Vdc 25℃ 70%RH
Conforms to radiation EN55011, EN55022(CISPR22)
Electrostatic discharge IEC/EN 61000-4--2 level4 8KV/15KV
Temperature rise safety design
Under normal conditons, the maximum temperature rise of the inner surface of the power supply capacitor,
main converter, etc. does not exceed 90℃，and the maximum temperature rise of the shell surface does not exceed 60℃
