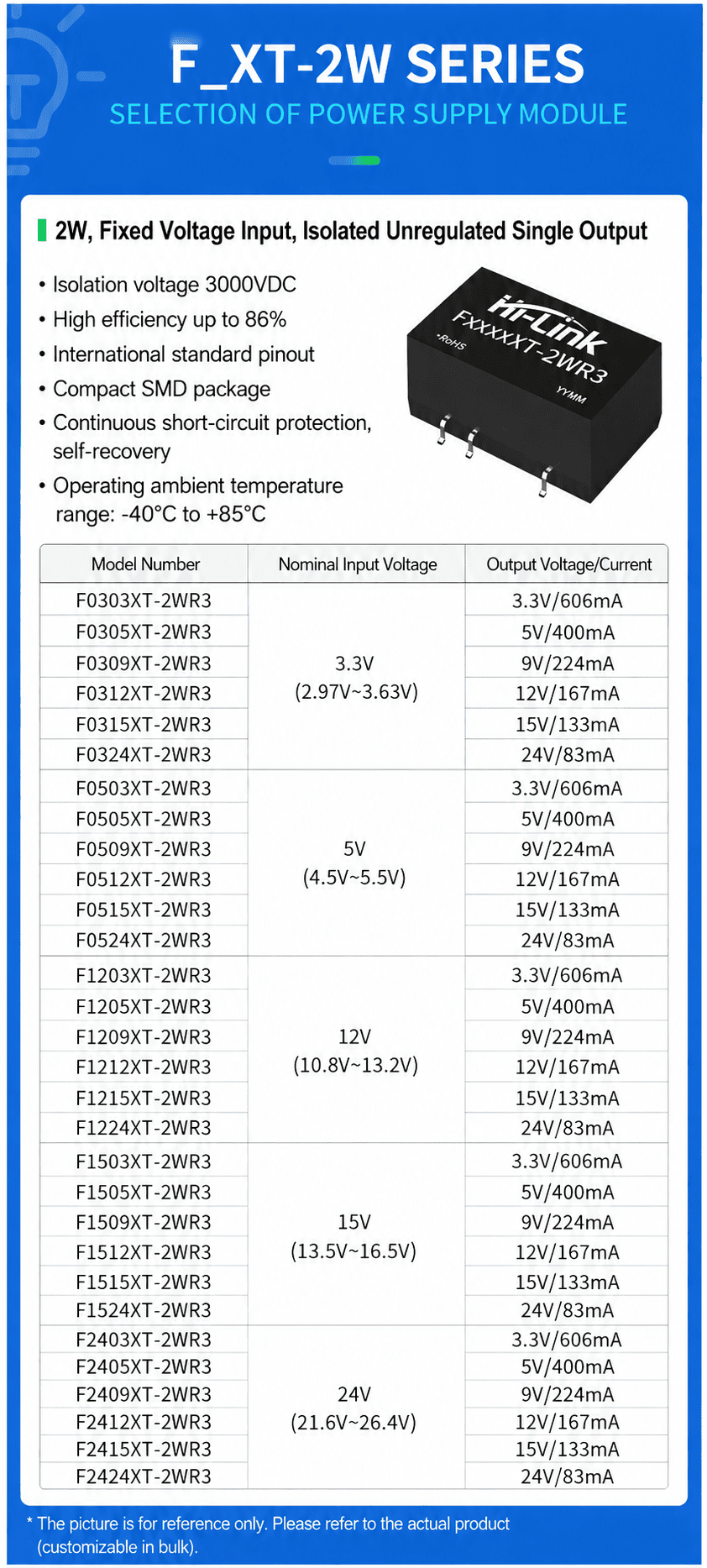

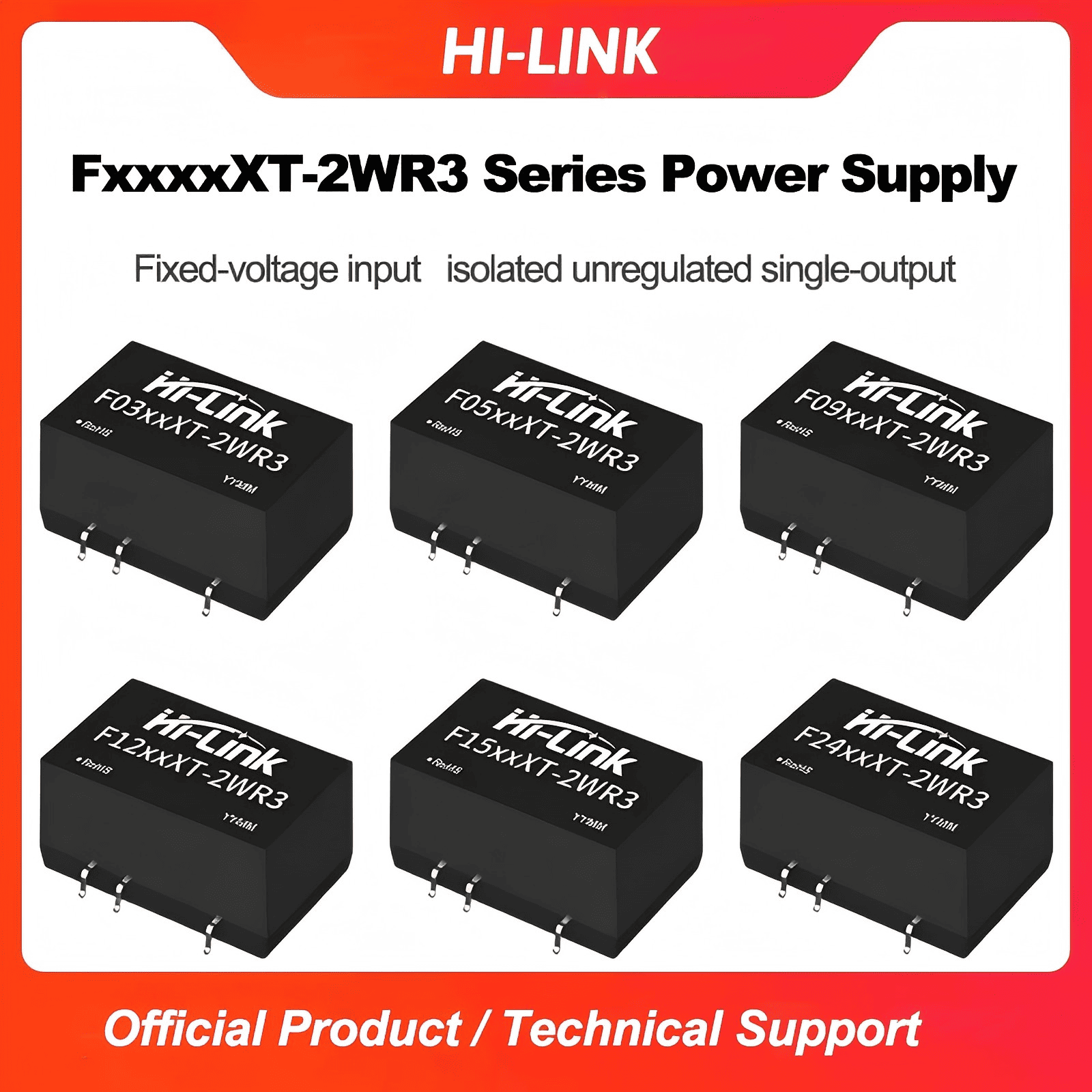

DC-DC isolated power supply F0505XT-2WR3 F1205XT-2WR3 non regulated module with short circuit protection
-
Visitor18
-
Buycount：
-
Price$0.76
Download files:
DC to DC power module:
1W: https://drive.google.com/drive/folders/1vk6luTBKSC5gfwLJC-DbyEZYVDwk87JV
2W: https://drive.google.com/drive/folders/1vjf-77LCVQl16Hcb1phADiU3Hz14mhYB
3W: https://drive.google.com/drive/folders/13pTx02uL4moskJ-PQsBYFytdq2pPt2mN
5W: https://drive.google.com/drive/folders/1okF0YdP1Xs35HxnAkTm45WOK0kH7qlb5?
6W: https://drive.google.com/drive/folders/18IOw7PyIx99lbm3u0FEhkepC82w601sw
10W: https://drive.google.com/drive/folders/1vuJp5ZoJA9Ci0M4wCS8nT689LVzgh2tC
12W: https://drive.google.com/drive/folders/1becUdxQODQ25_A_iarNnun3Vmi_wow1g
20W: https://drive.google.com/drive/folders/182aHyvoN8J0fCurg65jOkfQp17dyaXP6
30W: https://drive.google.com/drive/folders/1StP-0SJDyFpH3yQMLLQjkQXMDXc-RGeP
40W: https://drive.google.com/drive/folders/1IXRm7dueYYTNoyXCFp88wRQexmKAgCLm
B0505S-1WR2: https://drive.google.com/file/d/16BPrOWkzOz7efnf3OvF1XjClKGnO6znv/view
AC to DC power module:
40W: https://drive.google.com/drive/folders/1jI-hITgxjtByhSCpUMmrJATHO8b_gpN7
30W(C): https://drive.google.com/drive/folders/1Nz-_SdQAuVha0JM7nJTelIfophZsmUYb
20W: https://drive.google.com/drive/folders/1PlLOzt_k3Ky5THYGOWP72jqxWSkJsU6Z
15W(C): https://drive.google.com/drive/folders/1vnVfcgQH-OvujpO6asvQvjIgmwUS2Pti
10W: https://drive.google.com/drive/folders/1zaMfq4Dm3brmRWhTGp9-49c8hN5HsIuk
5W: https://drive.google.com/drive/folders/1_dzDfHi9HOnj_b0RJHCGZ9j87ma8PU7g
3W: https://drive.google.com/drive/folders/1xz8MPw9KeQXDlyAQoI3KXzjCoL4yBRVP
2W: https://drive.google.com/file/d/1_UaUPWX9K5Bfavle4C1imVY0-WjY4yso/view
Product Feature
Features: Fixed voltage input, isolated non regulated output, power 2W
Isolation voltage 3000VDC
Working environment temperature: -40 ° C~+105 ° C
Efficiency up to 86%
Output short circuit protection: sustainable short circuit protection, automatic recovery

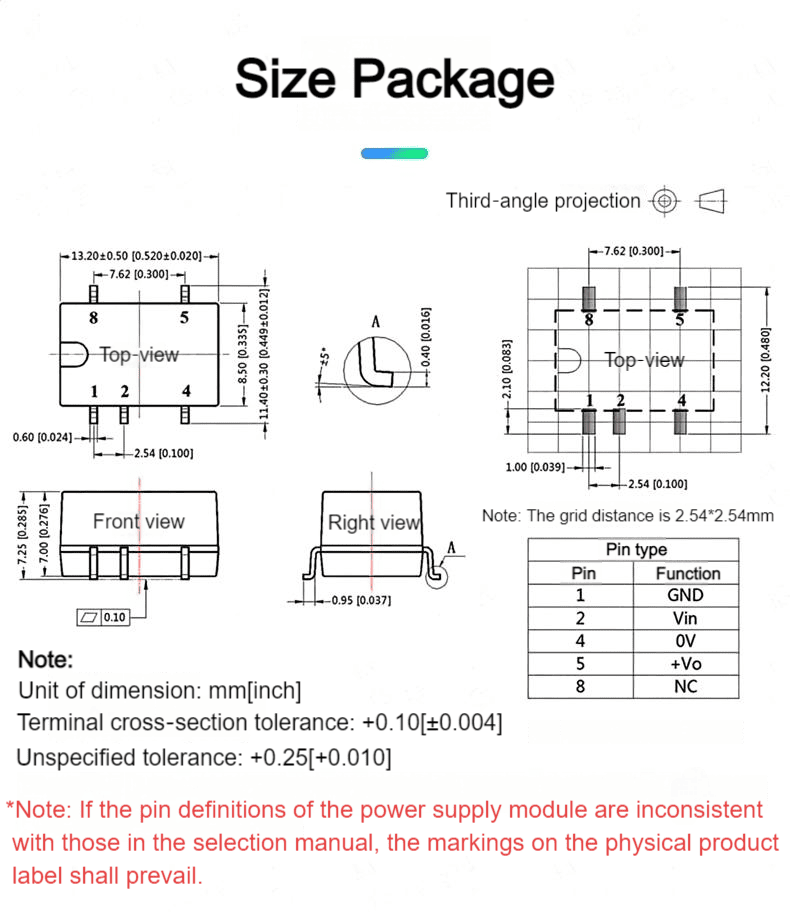

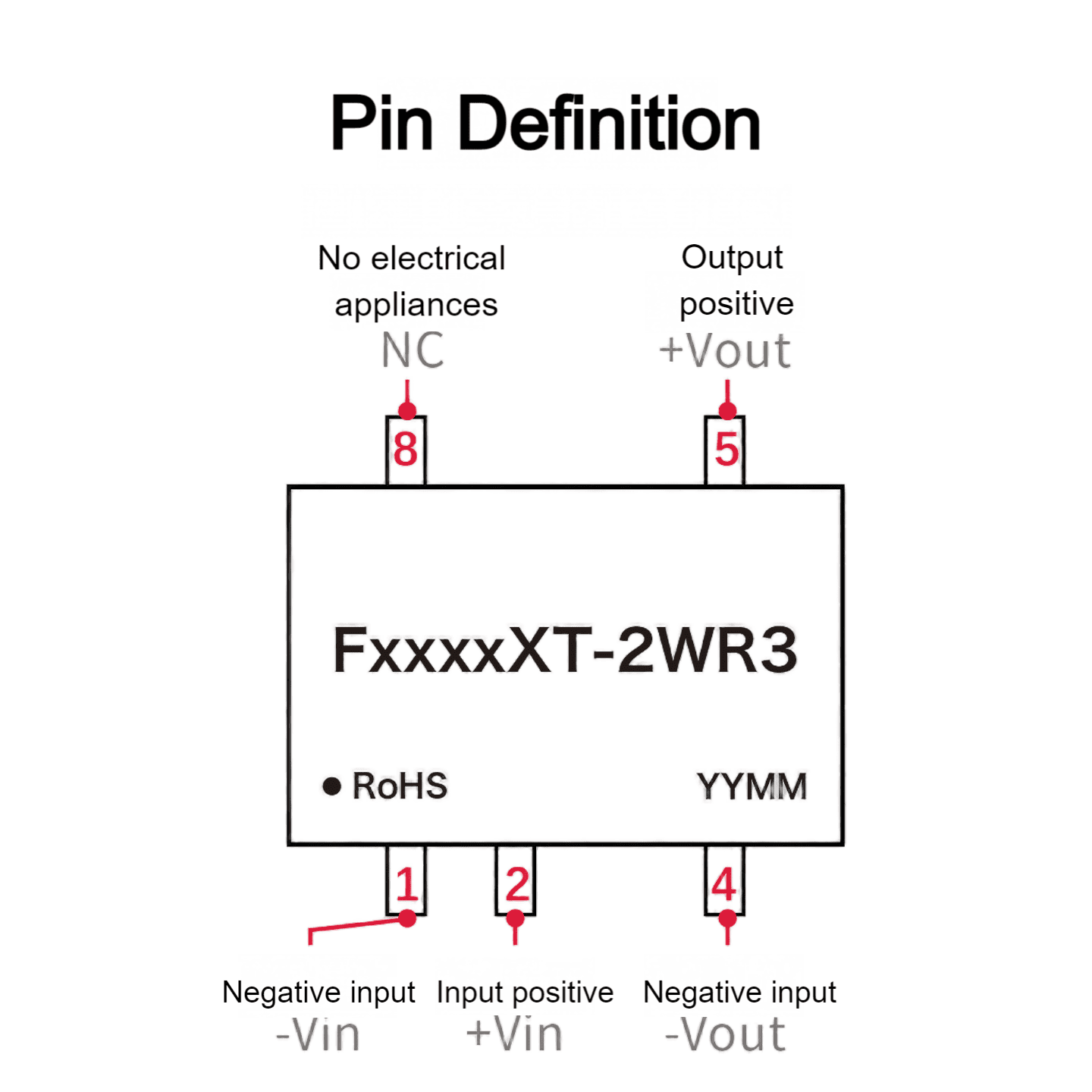

International standard pin method
Small SMD package
MTBF ≥ 3.5 million hours (3500000Hrs)
Input Characteristics
| Item | Working conditions | Min. | Typ. | Max. | Unit |
| Input voltage range(fully loaded/unloaded） | 3.3VDC Input | -- | 740/8 | -- | mA |
| 5VDC Input | -- | 476/8 | -- | ||
| 12VDC Input | -- | 196/8 | -- | ||
| 15VDC Input | -- | 161/8 | -- | ||
| 24VDC Input | -- | 98/8 | -- | ||
| Reflected Ripple Current | 3.3VDC Input | -- | 30 | -- | mA |
| Others | -- | 15 | -- | ||
| Impulse voltage （Isec.max) | 3.3VDC Input | -0.7 | -- | 5 | VDC |
| 5VDC Input | -0.7 | -- | 9 | ||
| 12VDC Input | -0.7 | -- | 18 | ||
| 15VDC Input | -0.7 | -- | 21 | ||
| 24VDC Input | -0.7 | -- | 30 | ||
| Input filter type | Capacitive filtering | ||||
| Hot plugged | Non-support | ||||
Output Characteristics
| Item | Working and testing condition | Min. | Typ. | Max. | Unit | ||

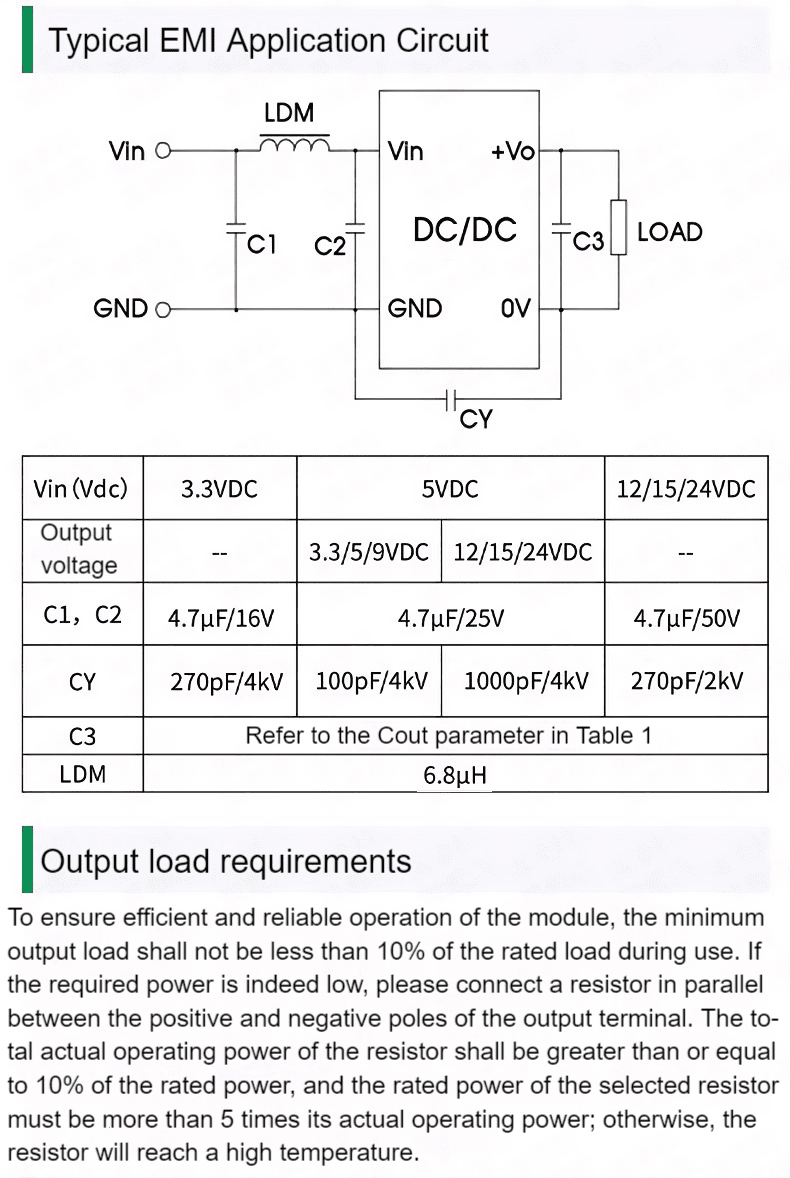

| Output load | load percentage | 10 | -- | 100 | % | ||
| Output Voltage Accuracy | See the error envelope curve graph | ||||||
| Linear adjustment rate | input voltage change ±1% | 3.3V output | -- | -- | ±1.5 | % | |
| others | -- | -- | ±1.2 | % | |||
| Load adjustment rate | 10%~100% rate load | 3.3VDC | -- | 8 | 20 | % | |
| 5VDC | -- | 7 | 15 | % | |||
| 9VDC | -- | 6 | 10 | % | |||
| 12VDC | -- | 5 | 15 | % | |||
| 15VDC | -- | 4 | 10 | % | |||
| 24VDC | -- | 3 | 10 | % | |||
| Ripple & Noise | Pure resistive load, 20HMz bandwidth, peak-to-peak | -- | 50 | 130 | mVp-p | ||
Temperature drift coefficient | Pure resistive load, 20MHz broadband, peak to peak value | -- | -- | ±0.02 | %/℃ | ||
| Output short circuit protection | Continuous short circuit protection, automatic recovery | ||||||

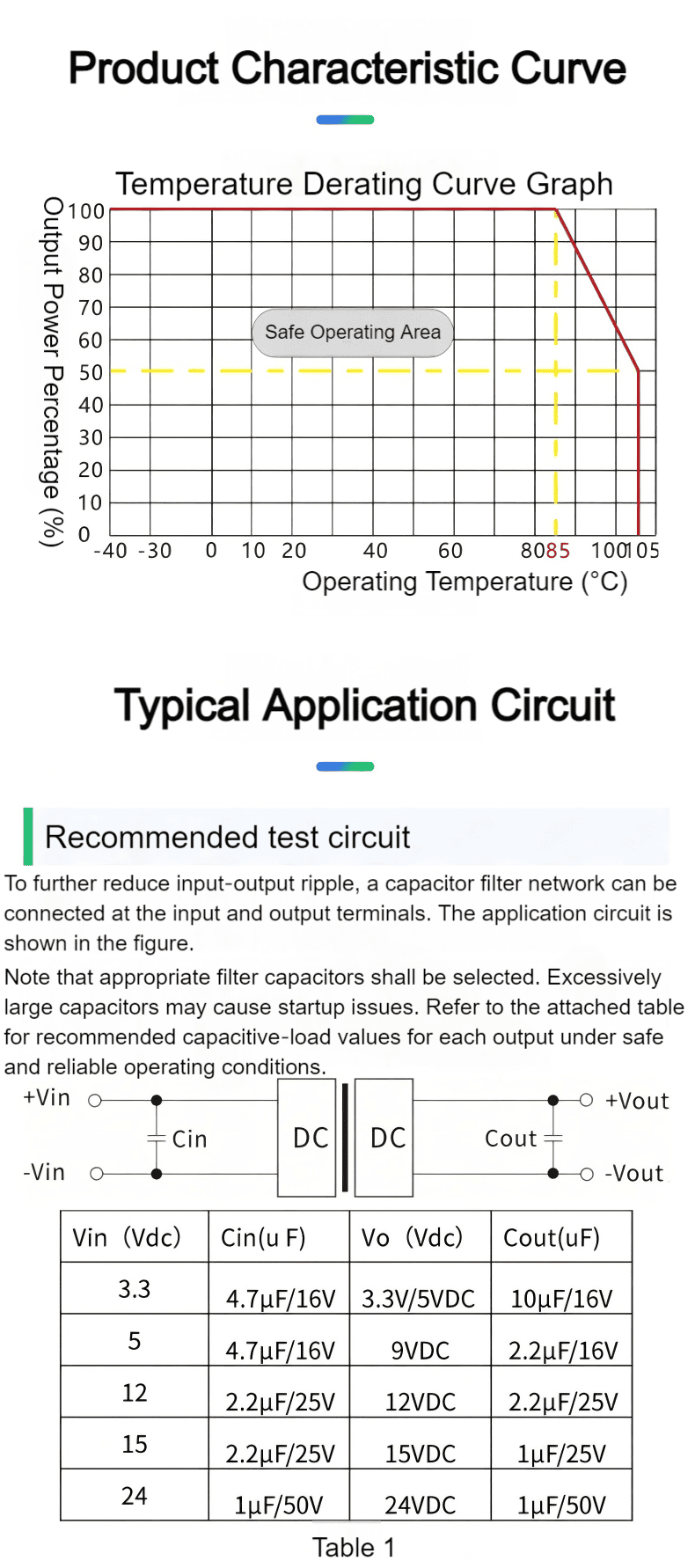

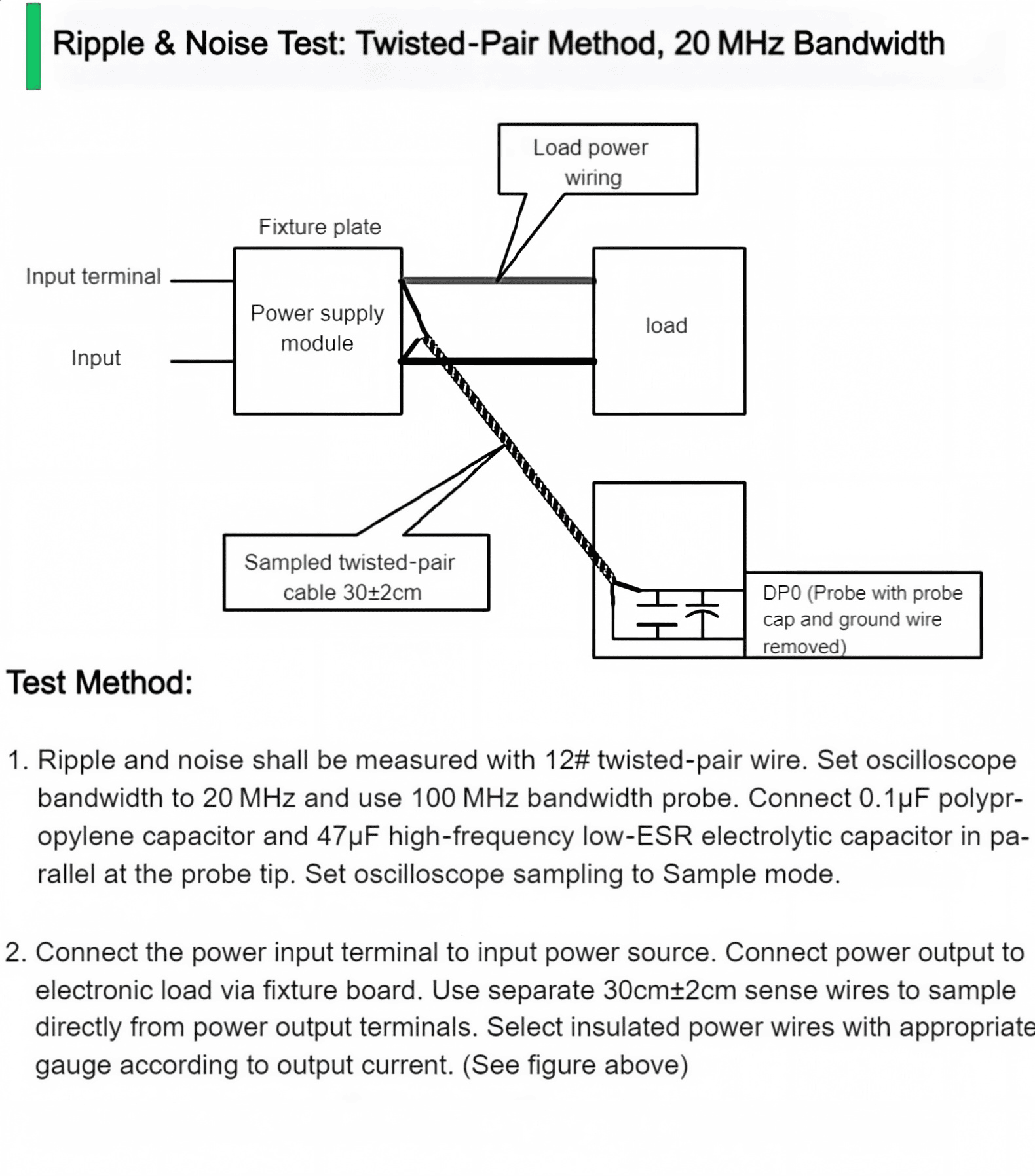

Note: 1. Ripple and noise testing method - Twisted pair testing method. | |||||||
