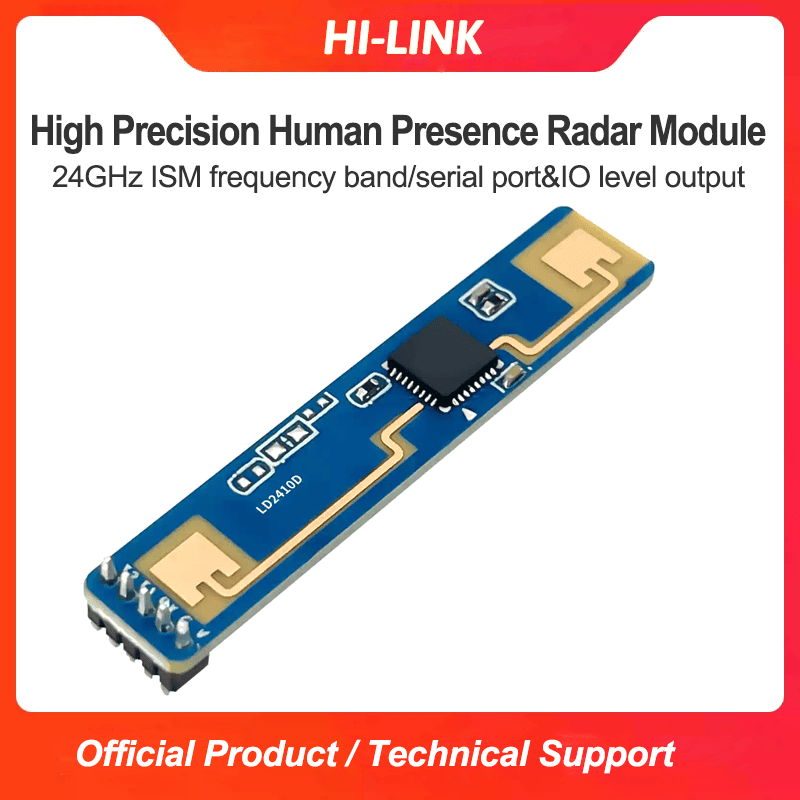

24G Human Presence Sensing Module LD2410D Mmwave Radar Sensing Switch Intelligent Sensor Radar Module 10 Millimeter Detection
-
Visitor7120
-
Buycount：
-
Price$1.95
Product Introduction
HLK-LD2410D is a static human life presence sensor developed based on Hi-link millimeter wave sensor chip. sensing the device adopts FMCW frequency modulation continuous wave, combined with radar signal processing and built-in intelligent human body induction algorithm, to detect the noise in the set space detect human targets and update detection results in real-time. Using HLK-LD2410D, users can quickly develop their own precise human body presence sensing products.
The hardware mainly consists of a fully integrated intelligent millimeter wave sensor SoC, a 24GHz transmitter receiver antenna, and a main control MCU; the software is paired with intelligent human body presence sensing firmware and visual configuration tools to achieve flexible configuration of sensing distance, triggering, and other functions maintain human body sensing function for threshold and unmanned reporting time.
Product Features
Equipped with single-chip intelligent millimeter wave sensor SoC and intelligent algorithm firmware
Ultra small sensor size: 7mmX35mm
Load default human body sensing configuration, plug and play
24GHz ISM frequency band, can be certified by FCC, CE, and non commission spectrum regulations
3.3V and 5V power supply, supporting a wide voltage range of 3.0V~3.6V and 4.5~5.5V
The average working current is 50mA
Detecting targets for motion, micro motion, and the presence of a human body
Real time reporting of detection results
Provide visualization tools that support configuring detection distance intervals and target disappearance delay times
Support automatic generation of detection thresholds
Support the division of sensing range and completely shield any interference outside the interval
The maximum distance of motion human body sensing is 10m
Large detection angle, with a coverage range of ± 60 °
Support multiple installation methods such as hanging on the top and wall
Trigger and maintain state independent configuration, strong anti-interference ability
Product Specifications
| Parameters | Min. | Typle | Max. | Unit | Remarks |
| hardware specifications | |||||
| Support baund | 24 | - | 24.25 | GHz | Compliant with FCC, CE, and non commission certification standards |
| Support maximum sweep bandwidth | - | 0.25 | - | GHz | |
| - | 11 | - | dBm | ||
| Supply Voltage | 3.0 | 3.3 | 3.6 | V | |
| Add LDO power supply voltage | 4.5 | 5 | 5.5 | V | default add |
| Size | - | 7X35 | - | mm | |
| Environment temperature | -40 | - | 85 | °C | |
| HLK-LD2410D System Performance | |||||
| Detection range (wall mounted) | - | 10 | - | m | Sports human target |
| - | 6 | - | m | Micro motion human target | |
| - | 5 | - | m | Sitting human target | |
| Detection range (ceiling mounted) | - | 5 | - | Sports human target | |
| - | 4 | - | Micro motion human target | ||
| - | 4 | - | Sitting human target | ||
| - | 3 | - | Resting human target | ||
| Detection accuracy | ±0.15 | m | Moving targets within a straight-line distance of 6m from the sensor | ||
| Average working current | - | 50- | - | mA | |
| Data refresh cycle | - | 165 | - | ms | |
