1. Introduction

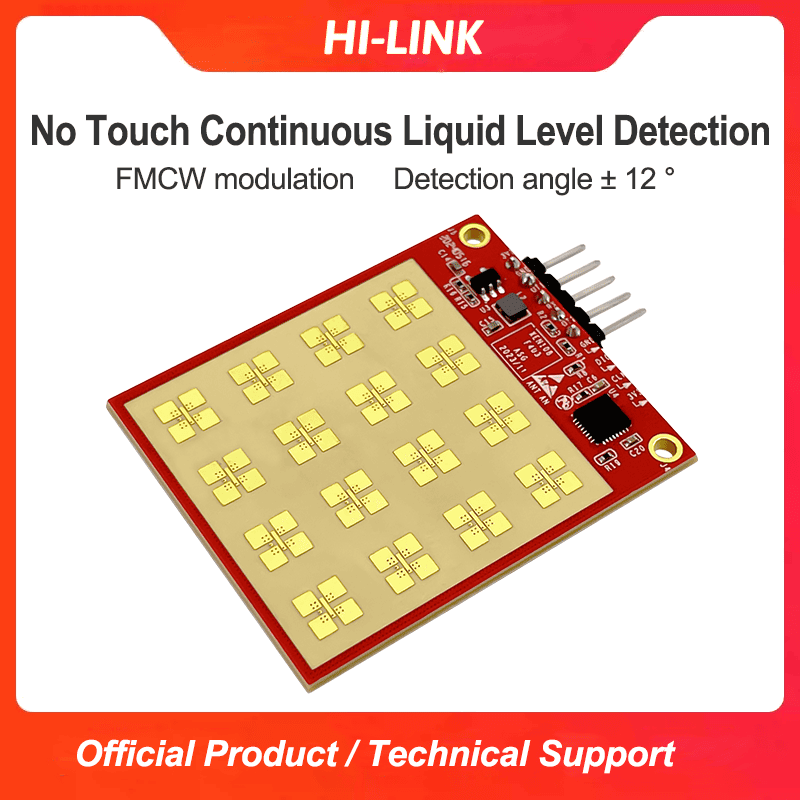

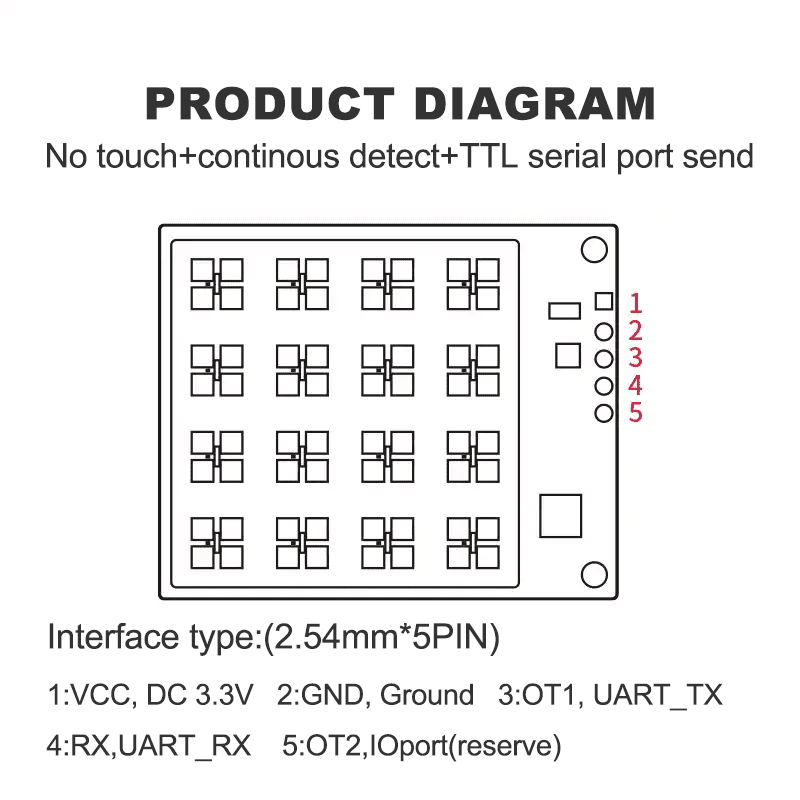

HLK-LD2413 is a miniaturized high-precision liquid level and material level detection sensor from Hi-link. It combines the highly simplified 24GHz millimeter wave sensor HLK-LD2413 and high-precision liquid level detection intelligent algorithm firmware.

The sensor HLK-LD2413 adopts a compact design, which has excellent performance while maintaining an ultra small size. HLK-LD2413 is equipped with AIoT millimeter wave sensor chip, high-performance one transmitter one receiver microstrip antenna, MCU and peripheral auxiliary circuits. The intelligent algorithm firmware for high-precision liquid level and material level detection adopts FMCW waveform and advanced radar signal processing proprietary to the chip, achieving accurate detection of liquid and material height.

The detection range of HLK-LD2413 is 0.15m~10m, and the ranging accuracy is ± 3mm. The sensor is equipped with a visualization tool that allows for easy configuration of detection parameters such as data reporting cycles. In addition, this solution supports real-time reporting of detection results through UART interface, which is plug and play.

2. Product characteristics

• Equipped with single-chip intelligent millimeter wave sensor SoC and intelligent algorithm firmware

• High precision detection

• 44 mm x 36mm ultra small sensor size

• 3.3 V single power supply, supporting 3.0V~3.6V

• Average working current 23mA@160ms Reporting cycle (can be configured according to the scenario)

• Provide visualization tools that support distance calibration and reporting cycle configuration

• Real time reporting of detection results

• Beam width ≤± 12 ° @ -6dB (two-way)

     In practical applications, the HLK-LD2413 miniaturized high-precision liquid level and material level detection sensor can measure various levels in a no-touch manner

     The height of liquids and materials in closed or open containers under the influence of environmental factors such as temperature, pressure, and dust. Therefore,

      it has broad application prospects in the following fields:

• Industrial sector

     No-touch continuous detection of liquid level/level of chemical materials, corrosive liquids, etc. stored in cans to ensure safe production.

• Smart home appliances

     Real time high-precision monitoring of water levels in smart water dispensers, coffee machines, and other household appliances to prevent safety issues such as overflow and dry burning.

• Hydrological monitoring

     Real time monitoring of water levels in natural bodies of water such as reservoirs, rivers, and lakes to provide support for water resource management.

• Smart City

     Real time monitoring of urban ditches and underground water levels to assist in solving urban drainage problems

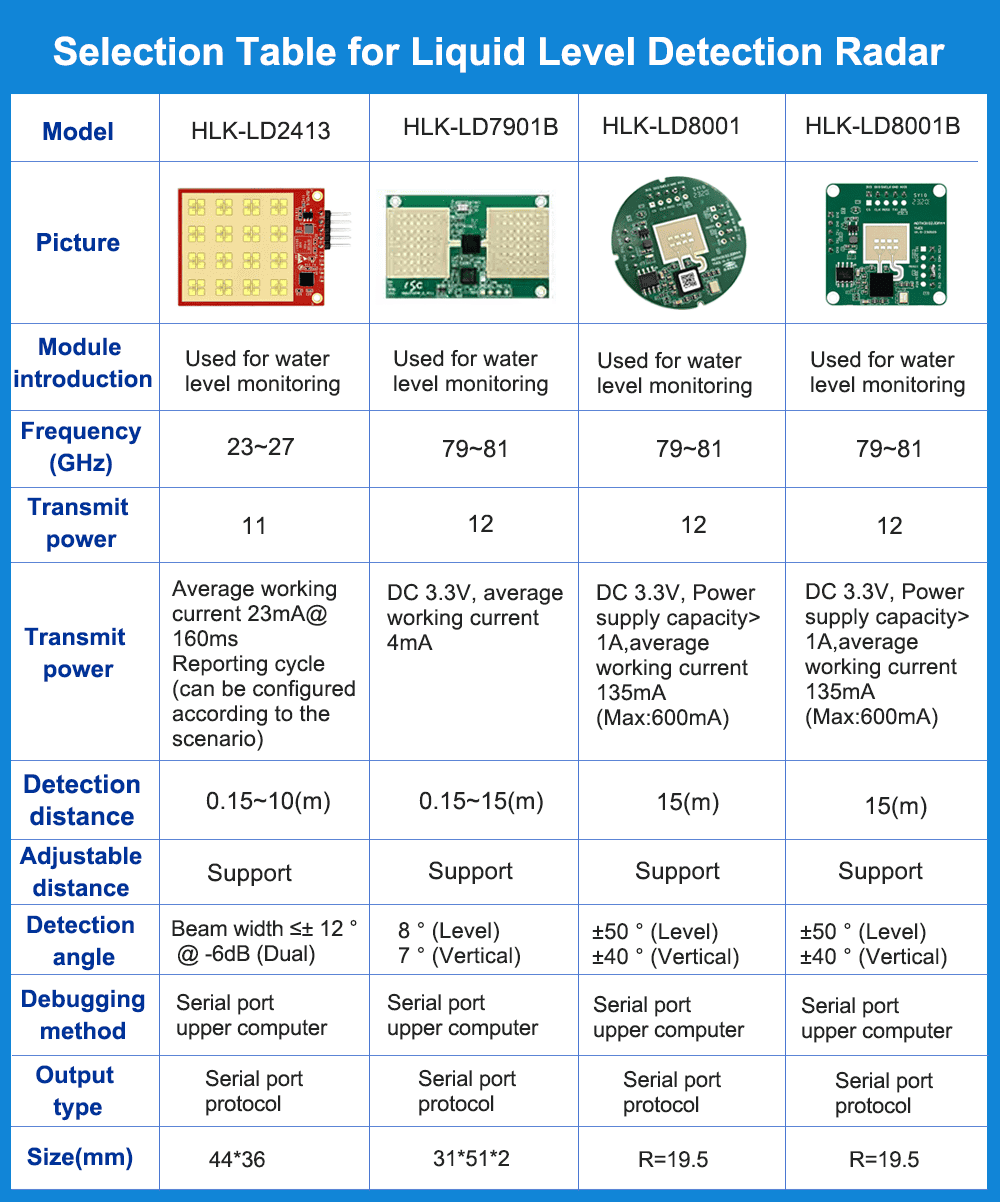

3. Specification parameters
