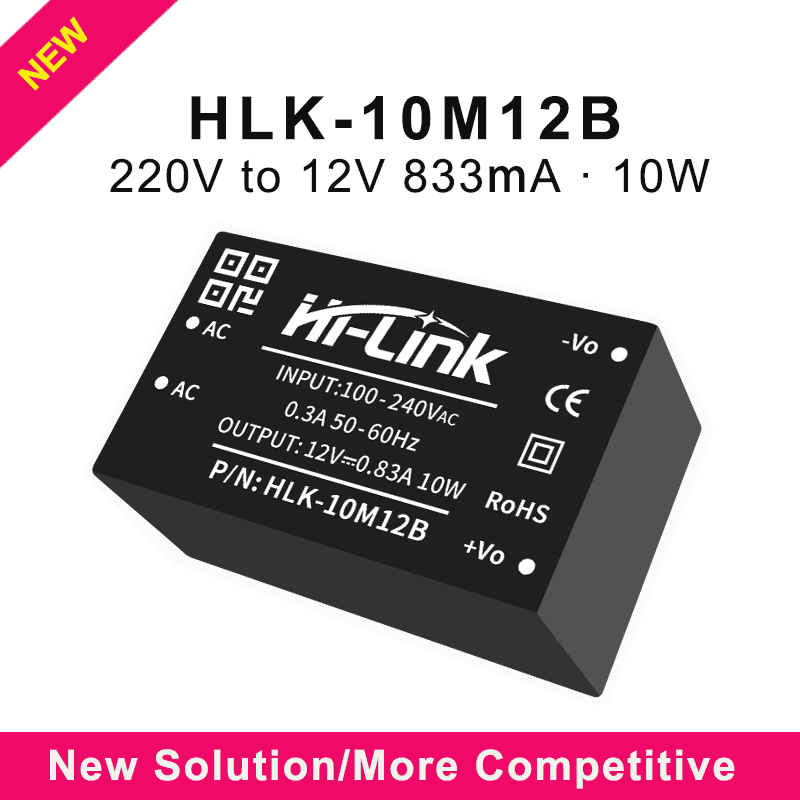

Lower price HLK-10M12B compatible with HLK-10M12 AC to DC 12v 10w Step Down mini Power Supply Module Converter Intelligent household switch power module

  • Visitor
    346
  • Buycount:
  • Price
    $1.45

10WB Series Mode list 拷贝

Download files:

DC to DC power module:

1W: https://drive.google.com/drive/folders/1vk6luTBKSC5gfwLJC-DbyEZYVDwk87JV

2W: https://drive.google.com/drive/folders/1vjf-77LCVQl16Hcb1phADiU3Hz14mhYB

3W: https://drive.google.com/drive/folders/13pTx02uL4moskJ-PQsBYFytdq2pPt2mN

5W: https://drive.google.com/drive/folders/1okF0YdP1Xs35HxnAkTm45WOK0kH7qlb5?

6W: https://drive.google.com/drive/folders/18IOw7PyIx99lbm3u0FEhkepC82w601sw

10W: https://drive.google.com/drive/folders/1vuJp5ZoJA9Ci0M4wCS8nT689LVzgh2tC

12W: https://drive.google.com/drive/folders/1becUdxQODQ25_A_iarNnun3Vmi_wow1g

20W: https://drive.google.com/drive/folders/182aHyvoN8J0fCurg65jOkfQp17dyaXP6

30W: https://drive.google.com/drive/folders/1StP-0SJDyFpH3yQMLLQjkQXMDXc-RGeP

40W: https://drive.google.com/drive/folders/1IXRm7dueYYTNoyXCFp88wRQexmKAgCLm

B0505S-1WR2: https://drive.google.com/file/d/16BPrOWkzOz7efnf3OvF1XjClKGnO6znv/view

AC to DC power module:

40W: https://drive.google.com/drive/folders/1jI-hITgxjtByhSCpUMmrJATHO8b_gpN7

30W(C): https://drive.google.com/drive/folders/1Nz-_SdQAuVha0JM7nJTelIfophZsmUYb

20W: https://drive.google.com/drive/folders/1PlLOzt_k3Ky5THYGOWP72jqxWSkJsU6Z

15W(C): https://drive.google.com/drive/folders/1vnVfcgQH-OvujpO6asvQvjIgmwUS2Pti

10W: https://drive.google.com/drive/folders/1zaMfq4Dm3brmRWhTGp9-49c8hN5HsIuk

5W: https://drive.google.com/drive/folders/1_dzDfHi9HOnj_b0RJHCGZ9j87ma8PU7g

3W: https://drive.google.com/drive/folders/1xz8MPw9KeQXDlyAQoI3KXzjCoL4yBRVP

2W: https://drive.google.com/file/d/1_UaUPWX9K5Bfavle4C1imVY0-WjY4yso/view


Product Features

  • Global universal input voltage(85-265VAC)

  • Input and output isolation voltage 3000VAC

  • Low power consumption, green enviroment protection, no-load loss<0.1W

  • High efficiency, high power density

  • Long life design, continuous working time is greater then 100,000hours

  • High output-quality environmentally friendly waterproof thermal conductive glue potting, dustproof,moisture-proof, shockproof, flame-retardant

  • Meet UL/CE/EMC and safety testing requirenments

  • Can be used in medical, industrial control, electric power, instrumentation, communication,railway and other fields


Environment Condition

Working Temerature-25—+60 ℃
Storage temperature-40—+80 ℃
Relative humidity5—95 %
Thermal methodsNatural cooling
Atmospheric pressure80—106 Kpa
Altitude≤2000 m
Vibration coefficient10~500Hz,2G10min./1cycle, 60min.each along X,Y,Z axes. Meets secondary road transportation requirements




Input Features( test at room temperature)


Rated input voltage100-240Vac
Input vlotage range85-265VAC/120-350VDC
The maximum input CURRENT≤0.2A
Input inrush current ≤10A
Input low start≤300mS
Long-term reliablity MTBF≥100000H
External fuse recommended1A/250Vac or 10Ω wire wound resistance, Slow blow



Output Features

No-load rated output voltage5.0±0.1Vdc
Full-load rated output voltage5.0±0.2Vdc
Short term maximum output current≥1200mA
Rated output current1000mA
Voltage regulation rate±0.2%
Load regulation  rate±0.5%
Switching on/off overshoot amplitude(Rated input voltage, output with 10% load) ≤5%VO
Output over-current protection Output maximum load110-150% A
Ripple/Noise≤100mVp-p(Typ:50)



Input Voltage & Load Characteristics

Working Environment Temperature & Load Characteristics


Typical Application Circuit



Parameter Recommendation

F1/Fuse:1A/250Vac or 10Ω wire wound resistor, slow fuse

MOV1/Varistor:10D561K(The cumulative surge is to protect the module from damage)

C1/Safety capacitance: 0.1uF/275VAC(Filtering/safety protection/EMC certification)

L1/Common-mode inductance:Sensible value 10-30mH(testing requirements 1KHZ/0.3V current:100-500mA). EMI filtering


Safety Characteristics

Meet UL/CE requirements(UL/CE certification requires customers to self-certify)

Safe compatible with battery

The input end design adopts UL certification 1A insurance

The fire ration of PCB board is 94-V0

Safety standards comply with UL1012,EN60950,UL60950

Insulation voltage I/P-O/P>2500Vac

Insulation resistance I/P-O/P>100M 0hms/500Vdc 25℃ 70%RH

Conforms to radiation EN55011, EN55022(CISPR22)

Electrostatic discharge IEC/EN 61000-4--2 level4  8KV/15KV


Temperature rise safety design

Under normal conditons, the maximum temperature rise of the inner surface  of the power supply capacitor,

main converter, etc. does not exceed 90℃,and the maximum temperature rise of the shell surface does not exceed 60℃
