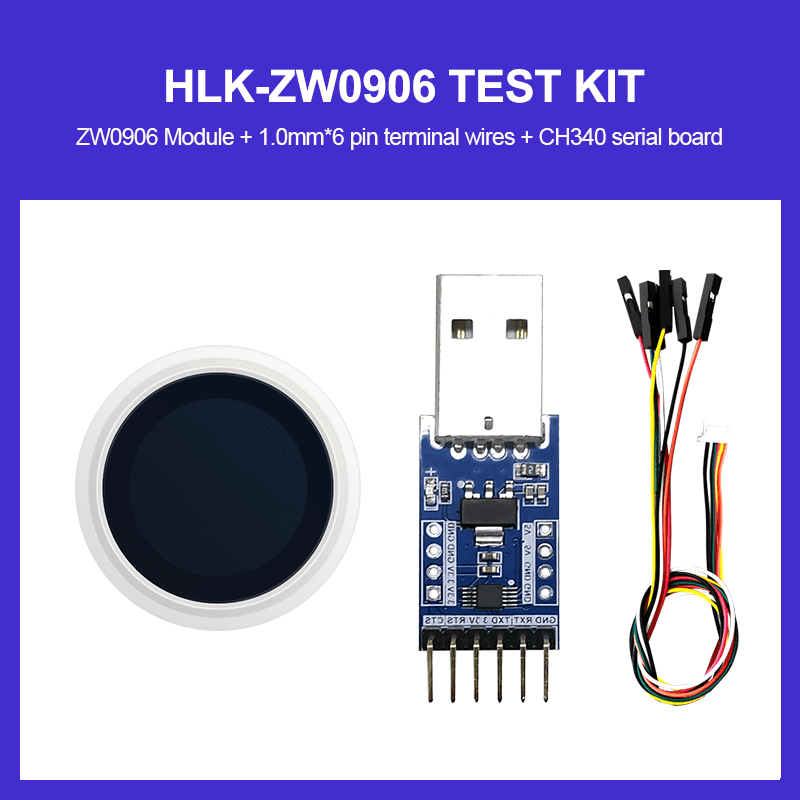

Hi-link semiconductor fingerprint recognition module HLK-ZW0906 capacitive touch fingerprint door lock acquisition sensor module test kit/development board

  • Visitor
    1587
  • Buycount:
  • Price
    $5.32

fingerprint module select list (2)

Download Files:

ZW0919: https://drive.google.com/drive/folders/11Hfr6bKT7IVFzgiRuf_XJhGJf0UnAFrK

ZW0906: https://drive.google.com/drive/folders/1Bf8uB-RA9bikIY9IvqDmcZD6dwdlEOwr

ZW0905: https://drive.google.com/drive/folders/1ZWkALY4HV5pF1nqXNWVdMYNIRgHB01zq

ZW0901: https://drive.google.com/drive/folders/1XtCFsMZ8JKsQx3yhjuWqhK7gvXFB9qMy

ZW0642: https://drive.google.com/drive/folders/1jXBPrjv7TLsIKRhWg4bhauMUmAHeT7RJ

ZW0623: https://drive.google.com/drive/folders/1ErDwzF-Hok0L3yVdE5GFwmbTEP8gphVJ

ZW0608: https://drive.google.com/drive/folders/1fUZlFCNMDEeryqCrYP1cqlvFcZ00cOCG

ZW111: https://drive.google.com/drive/folders/152YhI17TDGtX6wI1UvALbLdHL6ZlcsFw

ZW101: https://drive.google.com/drive/folders/1vSlF8b2zq1eI6UpXk3Jh3JKzu5nJ_RYs



ZW0906-2

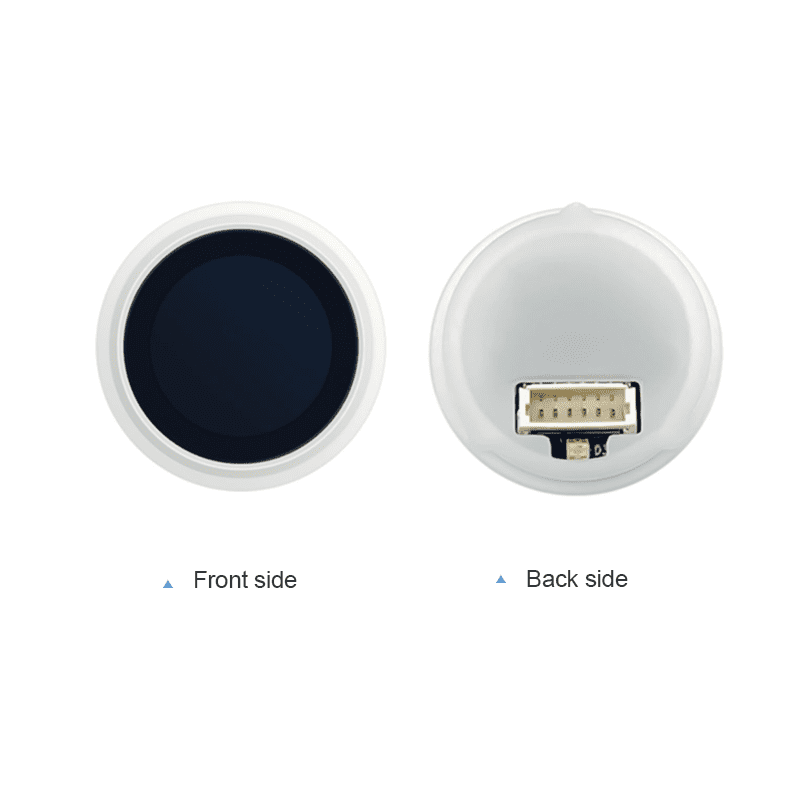

Product introduction

Fingerprint identification module is used for user's identity determination, when the user touches the fingerprint identification module with his/her finger, the fingerprint identification module will scan the user's fingerprints, and the algorithm chip can obtain the fingerprint image data for registration and comparison operation. This product is suitable for various applications that require fingerprint identification.



Parameters

Technical indicators


ItemParameter
Storage

100 fingerprint data as standard

Sensor type                                         Capacitive touch sensor
Resolution                                                       508DPI
FRR.                                                         <3%
FAR.                                                    <0.001%
Fingerprint sensor shape

round

Image gray level                                              8-bit grayscale
Service life                                              one million times
Static electricity test                      Contact discharge ±8KV/Air discharge ±15KV

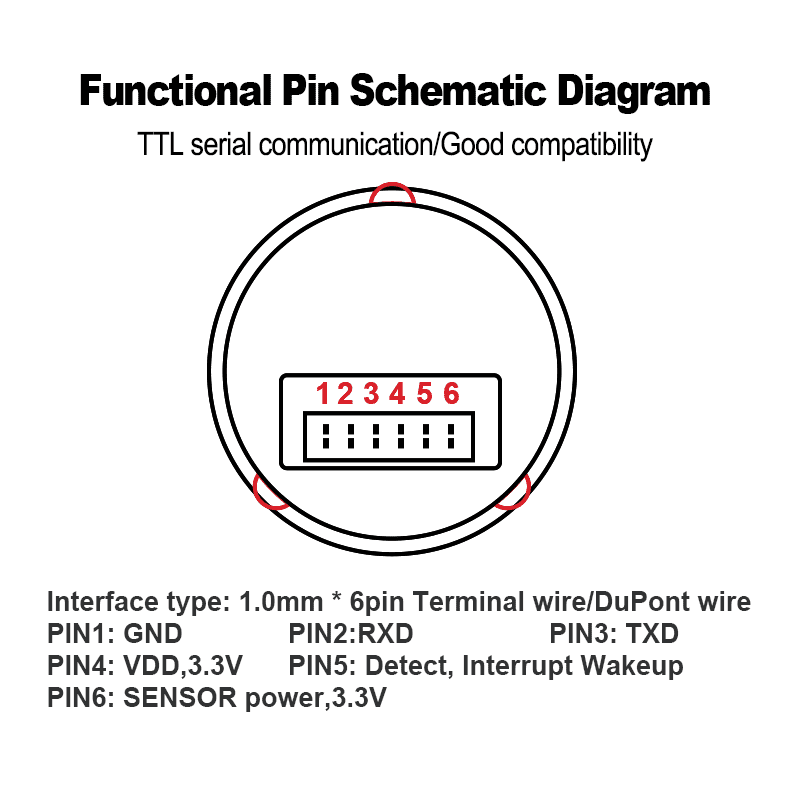

Data interface                                             UART (TTL level)
Sensor surface hardness                                                     3H
Working temperature and humidity range                                 -25℃~+70℃; 45%~85%RH
Storage temperature and humidity range                                 -40℃~+85℃; 45%~95%RH

Mechanical characteristics

Project Description Unit
Dimensions Φ12.8mm mm
Ribbon5.6*4.8mm
Sensor size 112*96


Electrical parameters

ItemMin Typical Max Unit
Supply voltage3.03.3 3.6V
Standby current (sensor) -1012 μA
Operating current (algorithm MCU) 2435 50mA
Maping  time506070mA
Eigenvalue generation time657080ms
Comparison time206001100ms
Power-on start time -67100ms
ESD rating

Non-contact discharg

-15-KV
Contact discharge-8-KV

Application-06
