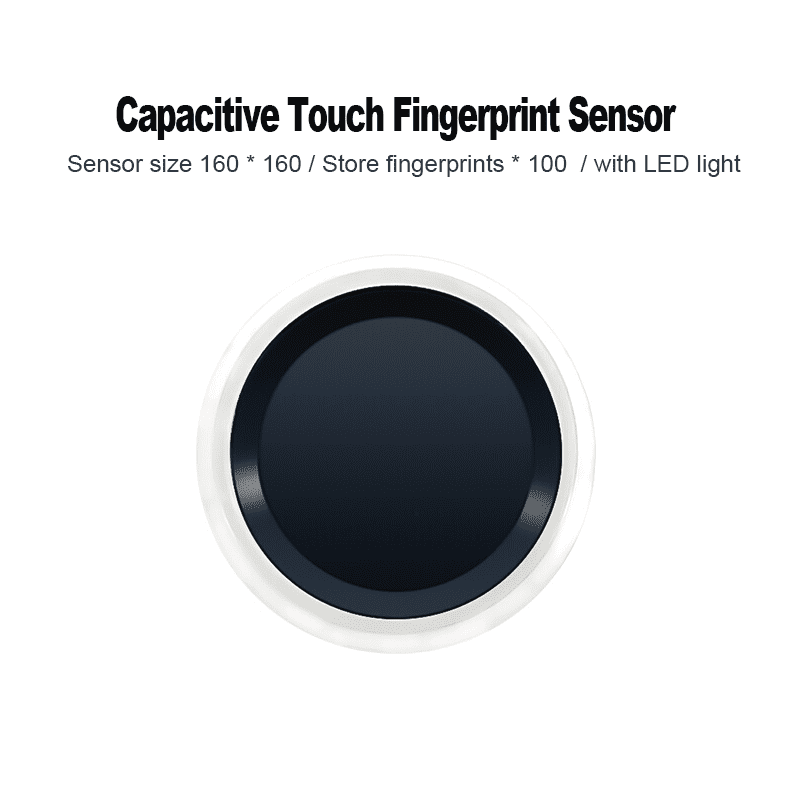

Hi-link fingerprint recognition module HLK-ZW0623 high-resolution capacitive touch fingerprint door lock acquisition sensor module
-
Visitor2215
-
Buycount：
-
Price$4.77
Download Files:
ZW0919: https://drive.google.com/drive/folders/11Hfr6bKT7IVFzgiRuf_XJhGJf0UnAFrK
ZW0906: https://drive.google.com/drive/folders/1Bf8uB-RA9bikIY9IvqDmcZD6dwdlEOwr
ZW0905: https://drive.google.com/drive/folders/1ZWkALY4HV5pF1nqXNWVdMYNIRgHB01zq
ZW0901: https://drive.google.com/drive/folders/1XtCFsMZ8JKsQx3yhjuWqhK7gvXFB9qMy
ZW0642: https://drive.google.com/drive/folders/1jXBPrjv7TLsIKRhWg4bhauMUmAHeT7RJ
ZW0623: https://drive.google.com/drive/folders/1ErDwzF-Hok0L3yVdE5GFwmbTEP8gphVJ
ZW0608: https://drive.google.com/drive/folders/1fUZlFCNMDEeryqCrYP1cqlvFcZ00cOCG
ZW111: https://drive.google.com/drive/folders/152YhI17TDGtX6wI1UvALbLdHL6ZlcsFw
ZW101: https://drive.google.com/drive/folders/1vSlF8b2zq1eI6UpXk3Jh3JKzu5nJ_RYs
Product introduction
Consumers use fingerprint recognition modules for user identity determination. When a user touches the fingerprint recognition module with a finger, the fingerprint recognition module scans
the user's fingerprint. The algorithm chip can obtain the fingerprint image data for registration and comparison. Right operation.
Product Selection List
Specfications
| Project | Parameter |
| storage | Comes with 100 fingerprint data as standard |
| sensor type | capacitive touch sensor |
| resolution | 508DPI |
| FRR. | <3% |
| FAR. | <0.001% |
| Fingerprint sensor shape | round |
| Image gray level | 8-bit grayscale |
| Service life | a million times |
| Static electricity test | Contact discharge ±8KV/air discharge ±15KV |
| Data interface | UART (TTL level) |
| Sensor surface hardness | 3H |
Working temperature and humidity range | -30℃~+70℃: 45%~85%RH |
Storage temperature and humidity range | -40℃~+85℃: 45%~95%RH |
Mechanical Properties
| Project | Describe | Unit |
| Dimensions | Φ14.5mm | mm |
| Ribbon | 8.0*8.0 | mm |
| Sensor size | 160*160 |
Electrical parameters
| Project | Smallest | Typical | Maximum | Unit | |
| Supply voltage | 3.0 | 3.3 | 3.6 | V | |
| Standby current (sensor) | 8 | 10 | 12 | μA | |
| Operating current (algorithm MCU) | - | 25 | 45 | mA | |
| Picture collection time | 120 | 150 | 180 | ms | |
| Generate feature value time | 200 | 220 | 250 | ms | |
| Comparison time | 20 | 100 | 1300 | ms | |
| Power-on start time | - | 100 | - | ms | |
| ESD rating | non-contact discharge | - | 15 | - | KV |
| contact discharge | - | 8 | - | KV | |
Electrical parameters
Directly using the fingerprint sensor FD mode, the SENSOR wake-up is highly reliable and reduces the risk of false triggering.
When there is no finger touch, the Detect signal line is low level. When the finger touches the fingerprint sensor, the signal is triggered to high level, and then changes to low level when the finger leaves
Fingerprint module workflow description:
When the fingerprint module is in sleep state, Detect is used as a wake-up signal. When the finger touches the fingerprint sensor, the interrupt signal is triggered, and then wakes up the system. The main control MCU controls the power-on of MCU_3.3V. After the fingerprint module algorithm chip is powered on and initialized, the main control MCU controls the fingerprint module through serial port commands to complete image collection and registration. , comparison task. After the task is completed, the main control chip controls the fingerprint module to sleep and controls the MCU_3.3V to power off. The system enters sleep and waits for the next round of work. After the system wakes up, the main control MCU can mask the interrupt signal, and turn on interrupt detection again before going to sleep after the task is completed.
Fingerprint sensor chip power supply requirements:
The characteristics of the fingerprint chip itself: in FD (FingerDetect) mode, that is, when the fingerprint sensor periodically scans and detects fingerprints, a peak current of about
200mAwill appear for 4us. Therefore, there are strict requirements for the power supply of the fingerprint chip. sensor_3.3V needs to control the power supply ripple within 200mV to avoid Specifications excessive power supply ripple causing the fingerprint sensor to reset at low voltage, causing the fingerprint sensor to fail to work properly.
