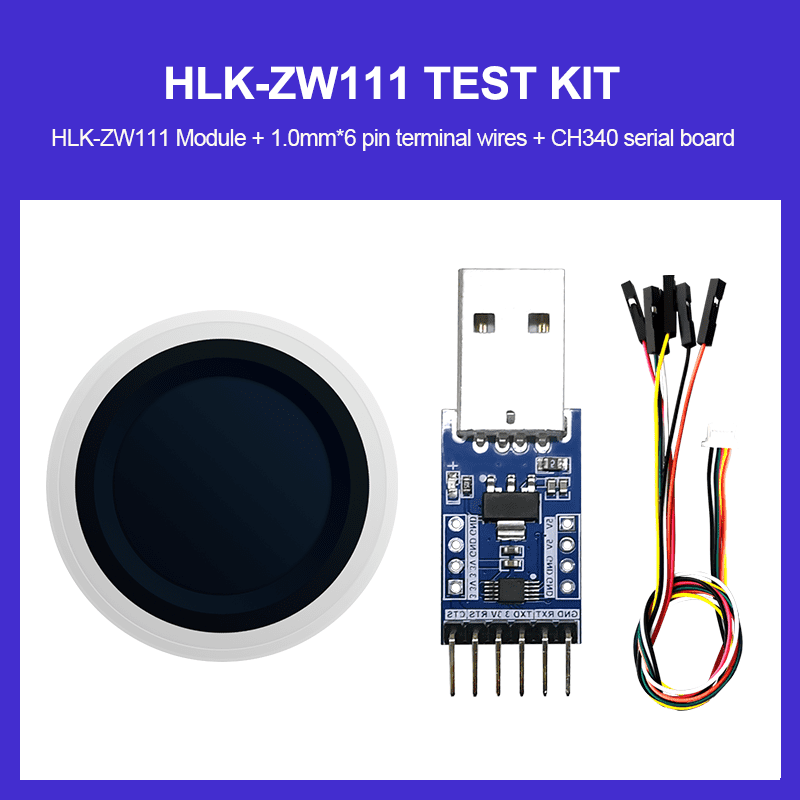

Hi-Link fingerprint recognition module ZW111 test kit/ development board low-power finger detection integrated fingerprint sensor intelligent lock

  • Visitor
    502
  • Buycount:
  • Price
    $4.98

主图-03

Product introduction

HLK-ZW111 is an all-in-one semiconductor fingerprint processing module, which consists of an active semiconductor fingerprint capture SENSOR and a fingerprint identification processing chip.

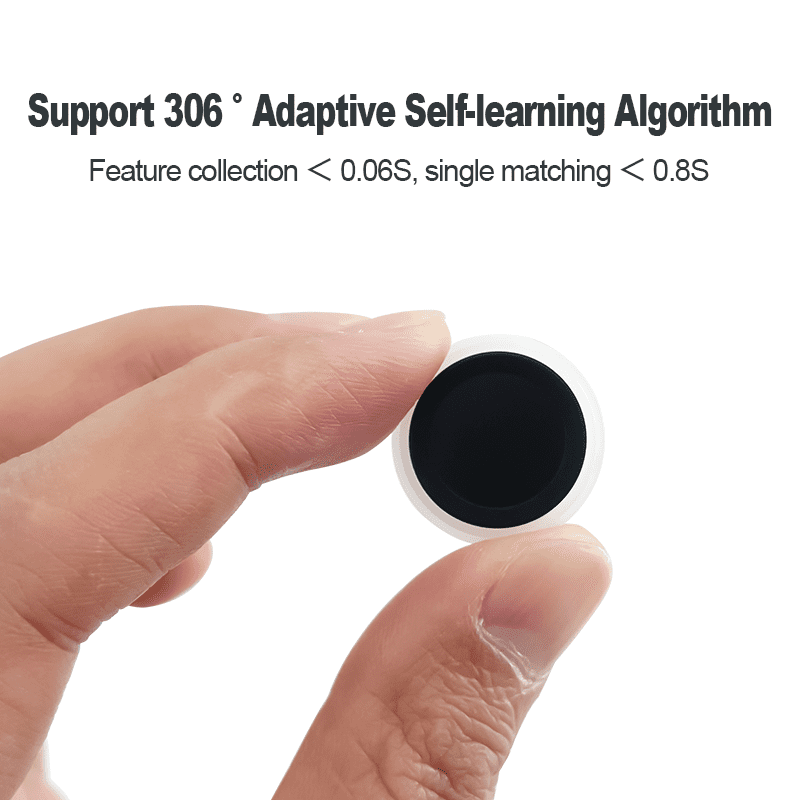

Fingerprint identification algorithm chip adopts high-performance, low-power Riscv core, running 360-degree adaptive self-learning algorithm. Semiconductor Sensor adopts active RF acquisition, supports low-power finger detection, eliminates the need for external finger touch detection chip, high integration, simple product structure, and improves the stability and consistency of the

product. At the same time to provide seven-colour light effect, can be customized according to user requirements of different colors and display mode.




Specifications

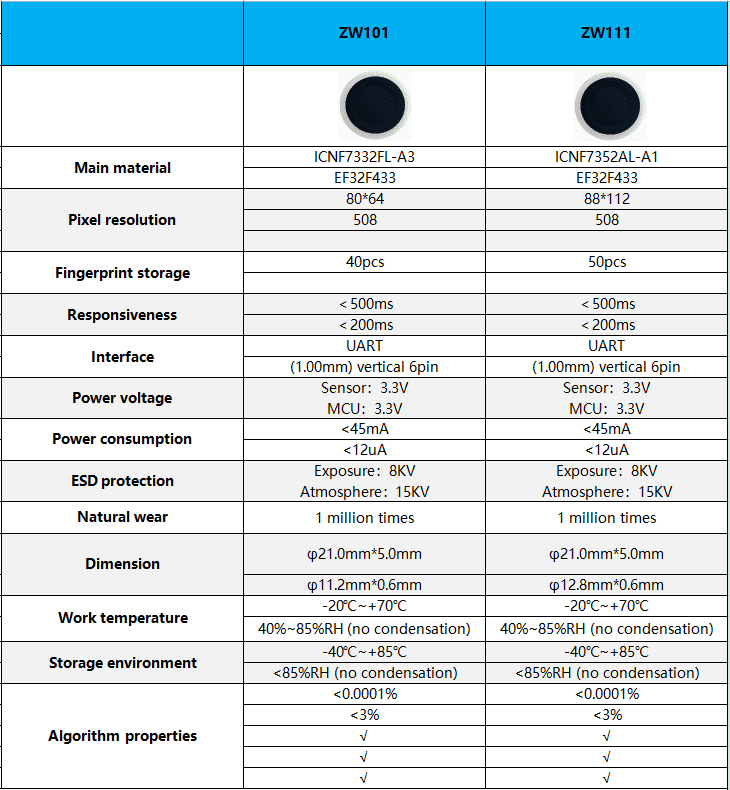

 Please check the following product parameters conpare list

74334bef5524d6a9f3f41ff335ad0fe

ZW111-2

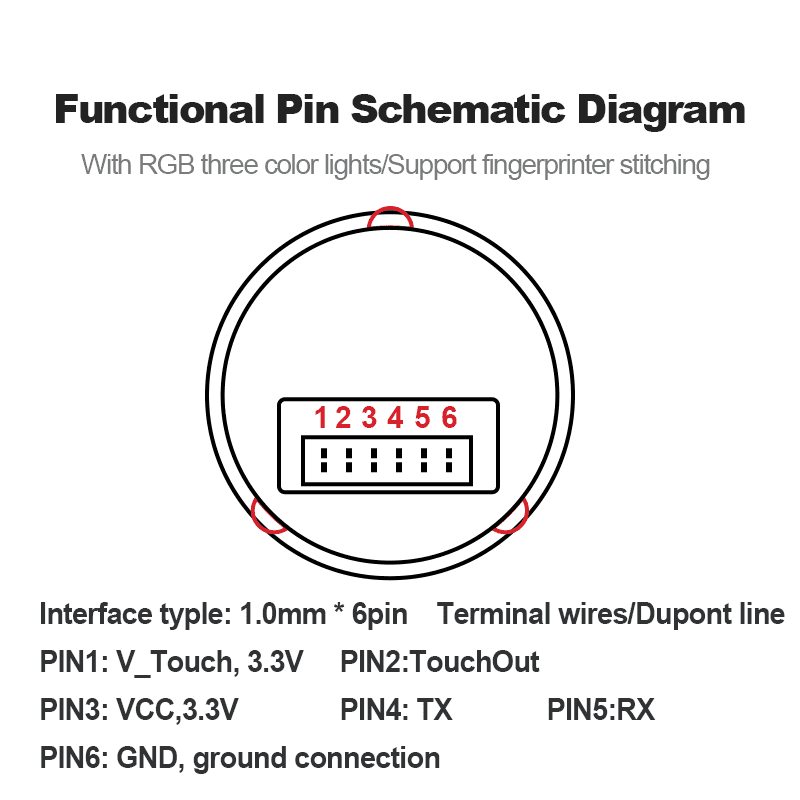

diagram



For more, please contact us.
