  4. DC DC 1W
  5. IB2405LS/IB2403LS/IB2412LS/IB2415LS/IB2424LS-1WR3 24V to 5V/3.3V/12V/15V/24V 1W DC to DC power module
  • j

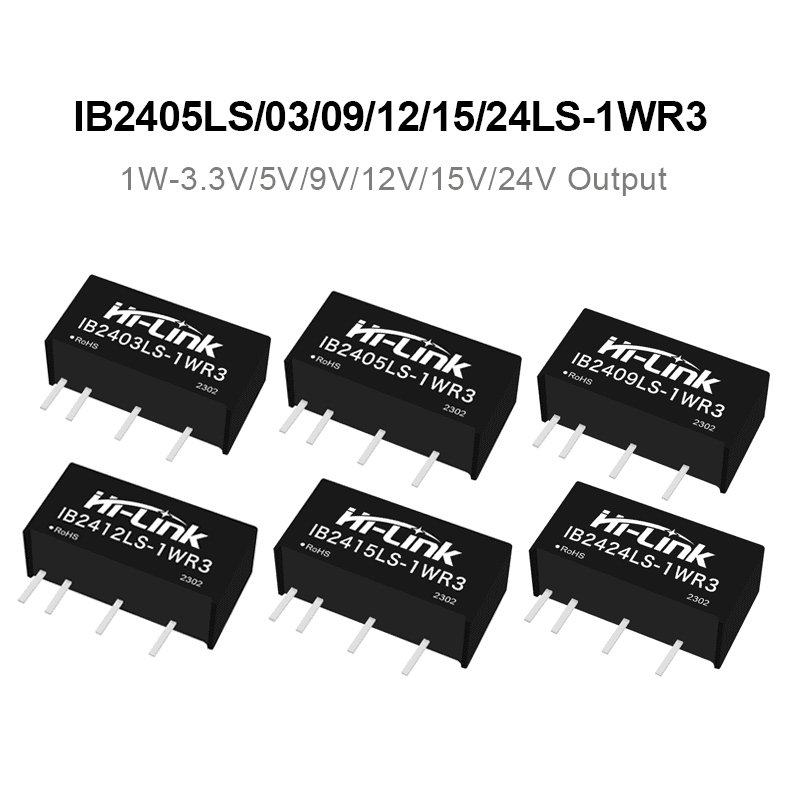

IB2405LS/IB2403LS/IB2412LS/IB2415LS/IB2424LS-1WR3 24V to 5V/3.3V/12V/15V/24V 1W DC to DC power module

  • Visitor
    1429
  • Buycount:
  • Price
    $0.85

B05XX Series Mode list -恢复的


Product Feature

1. characteristic:Constant voltage input, isolated non stabilized voltage single output,1W

2. Isolation voltage≤1500VDC

3. output short-circuit protection

4. The voltage of the input power supply is relatively stable.(Voltage variation range±10%Vin)

5. operating temperature range :-40°C~+85°C

6. The stability of output voltage is not required.

7. Small SIP package, plastic housing

8. International standard pin out method

9. Adopts high quality environmental protection, waterproof and heat conducting adhesive for filling and sealing, moisture-proof and vibration proof, meeting the waterproof and dustproof IP65 standard

10. High reliability and long life design,continuous working time MTBF≥3.5 million hours (3500000Hrs)


Enviroment Condition

Project nameQualificationUnitNotes
Working enviroment temperature-40—+85
Storage temperture-40—+125 ℃
Relative humidity5—95%
Heat dissipation modenatural cooling

Atmospheric pressure80—106 KpaKpa
Ripple & Noise30/80(max)Mvp-p


Input Characteristics

ItemWorking conditionsMin.Typ.Max.Unit
Reflection ripple current
--15--m'A
Impulse voltage3.3VDC Input Series-0.7--5VDC
5VDC Input Series-0.7--9
9VDC Input Series-0.7--15
12VDC Input Series-0.7--18
15VDC Input Series-0.7--21
24VDC Input Series-0.7--30
Input filter type
Capacitive filtering
Hot plugged
Non-support



Output Characteristics

Project nameWorking and testing conditionMin.Typ.Max.Unit
Output loadload percentage10--100%
Output Voltage Accuracy100% load ----±3%
Linear adjustment rateInput voltage variation ±1%3.3V output----±3%
others output----±2%
Load adjustment rate10%~100% load3.3VDC Output----±3%
others output----±2%
Ripple & NoisePure resistive load, 20HMz bandwidth, peak-to-peak--50--mVp-p
Temperature Drift CoefficientFull load
----±0.03%/℃
Output short circuit protection1s

Note:

①The test method of ripple and noise twisted pair test method.

②The series module does not have the input anti-reverse function, it is strictly forbidden to reverse the input positive and negative connection, otherwise it will cause irreversible damage to the module

Typical Application Reference Circuit( Recommended Parameters)

  1. Conventinal applications


    To further reduce the input and output ripple, a capacitor filter network can be connected to the input and output terminals, and the application circuit is shown in Figure 1.

    However, care should be taken to select the appropriate filtering capacitor. If the capacitor is too large, it is likely to cause start-up problems. For each output, under the condition of ensuring safe and reliable operation, the recommended capacitive load value is detailed in Table 1. recommended capacitive load value details (Table 1).



   2. EMI typical application circuit



 3. Output load requirements

To ensure that the module works efficiently and reliably, the minimum output load must not be less than 10% of the rated load when in use. If the power you need is really small, please connect

a resistor in parallel between the positive and negative terminals of the output (the sum of the actual power used by the resistor is greater than or equal to 10% of the rated power and the rated power of the selected resistor must be more than 5 times the actual power used, otherwise the temperature of the resistor will be higher).


Note:

1、The above is only a list of typical products. If you need products beyond the list, please contact our sales. 2、The maximum capacitive load indicates the maximum capacitive load that + VO or - vo can be connected to,If the value is exceeded, the product will not start normally..


Product dimensions and pin definition, suggested printing layout



*Note: If the definition of each pin of the power supply module does not match with the selection manual, the label on the physical label shall prevail.
