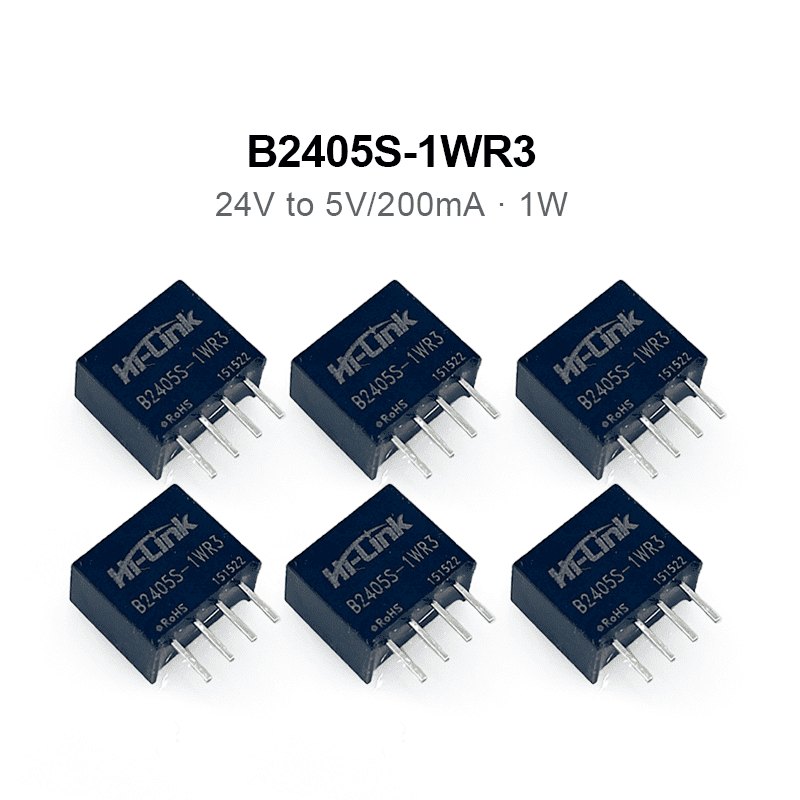

B2405S-1WR3 24V to 5V 1W 200mA DC to DC 88% transfer input power supply module
-
Visitor5380
-
Buycount：
-
Price$0.55
Download files:
DC to DC power module:
1W: https://drive.google.com/drive/folders/1vk6luTBKSC5gfwLJC-DbyEZYVDwk87JV
2W: https://drive.google.com/drive/folders/1vjf-77LCVQl16Hcb1phADiU3Hz14mhYB
3W: https://drive.google.com/drive/folders/13pTx02uL4moskJ-PQsBYFytdq2pPt2mN
5W: https://drive.google.com/drive/folders/1okF0YdP1Xs35HxnAkTm45WOK0kH7qlb5?
6W: https://drive.google.com/drive/folders/18IOw7PyIx99lbm3u0FEhkepC82w601sw
10W: https://drive.google.com/drive/folders/1vuJp5ZoJA9Ci0M4wCS8nT689LVzgh2tC
12W: https://drive.google.com/drive/folders/1becUdxQODQ25_A_iarNnun3Vmi_wow1g
20W: https://drive.google.com/drive/folders/182aHyvoN8J0fCurg65jOkfQp17dyaXP6
30W: https://drive.google.com/drive/folders/1StP-0SJDyFpH3yQMLLQjkQXMDXc-RGeP
40W: https://drive.google.com/drive/folders/1IXRm7dueYYTNoyXCFp88wRQexmKAgCLm
B0505S-1WR2: https://drive.google.com/file/d/16BPrOWkzOz7efnf3OvF1XjClKGnO6znv/view
AC to DC power module:
40W: https://drive.google.com/drive/folders/1jI-hITgxjtByhSCpUMmrJATHO8b_gpN7
30W(C): https://drive.google.com/drive/folders/1Nz-_SdQAuVha0JM7nJTelIfophZsmUYb
20W: https://drive.google.com/drive/folders/1PlLOzt_k3Ky5THYGOWP72jqxWSkJsU6Z
15W(C): https://drive.google.com/drive/folders/1vnVfcgQH-OvujpO6asvQvjIgmwUS2Pti
10W: https://drive.google.com/drive/folders/1zaMfq4Dm3brmRWhTGp9-49c8hN5HsIuk
5W: https://drive.google.com/drive/folders/1_dzDfHi9HOnj_b0RJHCGZ9j87ma8PU7g
3W: https://drive.google.com/drive/folders/1xz8MPw9KeQXDlyAQoI3KXzjCoL4yBRVP
2W: https://drive.google.com/file/d/1_UaUPWX9K5Bfavle4C1imVY0-WjY4yso/view
Product Feature
1. characteristic:Constant voltage input, isolated non stabilized voltage single output,1W
2. transfer efficiency 88%（Typ）
3. Isolation is required between input and output（isolation voltage≤1500VDC）
4. output short-circuit protection
5. The voltage of the input power supply is relatively stable.（Voltage variation range±10%Vin）
6. operating temperature range ：-40°C~+85°C
7. The stability of output voltage is not required.
8. Small SIP package
9. International standard pin，direct installation of PCB board.
10. Adopts high quality environmental protection, waterproof and heat conducting adhesive for filling and sealing, moisture-proof and vibration proof, meeting the waterproof and dustproof IP65 standard
11. High reliability and long life design,continuous working time MTBF≥3.5 million hours (3500000Hrs)
Enviroment Condition
| Project name | Qualification | Unit | Notes |
| Working enviroment temperature | -40—+85 | ℃ | |
| Storage temperture | -40—+80 ℃ | ℃ | |
| Relative humidity | 5—95 | % | |
| Heat dissipation mode | natural cooling | ||
| Atmospheric pressure | 80—106 Kpa | Kpa | |
| Vibrate | Vibration coefficient 10~500Hz,2G10min./1cycle, 60min.each along X,Y,Z axes | Meet the requirements of secondary road transportation |
Input Characteristics
| Items | Working conditions | Unit | Notes |
| Related input voltage | 24 | Vdc | |
| Input voltage range | 21.6-24.6 | Vdc | |
| Maximum input current | ≤0.2 | A | |
| Reflection ripple current | 15 | mA | DC12V rated input voltage series |
| Impulse voltage | ≤30 | Vdc | |
| Starting voltage | 21.6 | Vdc | |
| Input under voltage protection | --- | Vdc | |
| Start delay time | --- | Vdc | Reted input voltage and constant resistance load |
| Input filter type | Capacitive filtering | ||
| Hot plug | Non-support | ||
Notes: test at room temperature
Output Characteristics(5V/200mA)
| Items | Technical parameters | Unit | Notes |
| No-load rated output voltageVdcVdc | 5V±15% | Vdc | |
| Short time maximum output current | ≥220 | mA | |
| Rated output current | 200 | mA | |
| Voltage regulation | ±1.5 | % | |
| Load regulation | ±12 | % | |
| Conversion efficiency | Vin=24Vdc, Output full load 80 | % | |
| Output ripple and noise(m Vp-p) | ≤100 Pure resistive load, 20MHz bandwith, peak to peak value | mV | |
| Output over-voltage protection | Output 110-160% of the maximum voltage | Vdc | |
| Insulation voltage | Input-output, test time 1 minute, leakage current less than 1mA/1500V | ||
| Insulation resistance | Input-output, insulation voltage 500VDC/1000MΩ | MΩ | |
| Isolated capacitor | Input-output,100KHz/0.1V 20pF |
Note:
1. Due to limited space, the above is only a list of typical products. If you need products outside the list, please contact our sales department.
2. The maximum capacitive load indicates the maximum capacitive load that + Vo or -Vo can connect to. If it exceeds this value, the product will not start normally.
Typical Application Circuits
EMC parameter recommendation
| Component No. | Function | Recommended value |
| Cin Capacitance | Filter capacitor | 4.7μA/50V |
| Cout Capacitance | Filter capacitor | 2.2-10μA/50V |
| Lin inductance | Filter inductance | Inductance: 4.7uH |
| Lout inductance | Cin Capacitance | Inductance: 4.7uH |
Notes：Output Load Requirements
In order to ensure that the module can work efficiently and reliably, the minimum output load should not be less than 10% of the rated load.If the power you need is really small, please connect a resistor in parallel between the positive and negative poles of the output terminal (the sum of the actual power used by the resistor is greater than or equal to 10% of the rated power and the rated power of the selected resistor must be greater than 5 times of the actual power used, otherwise the temperature of the resistor will be higher)
