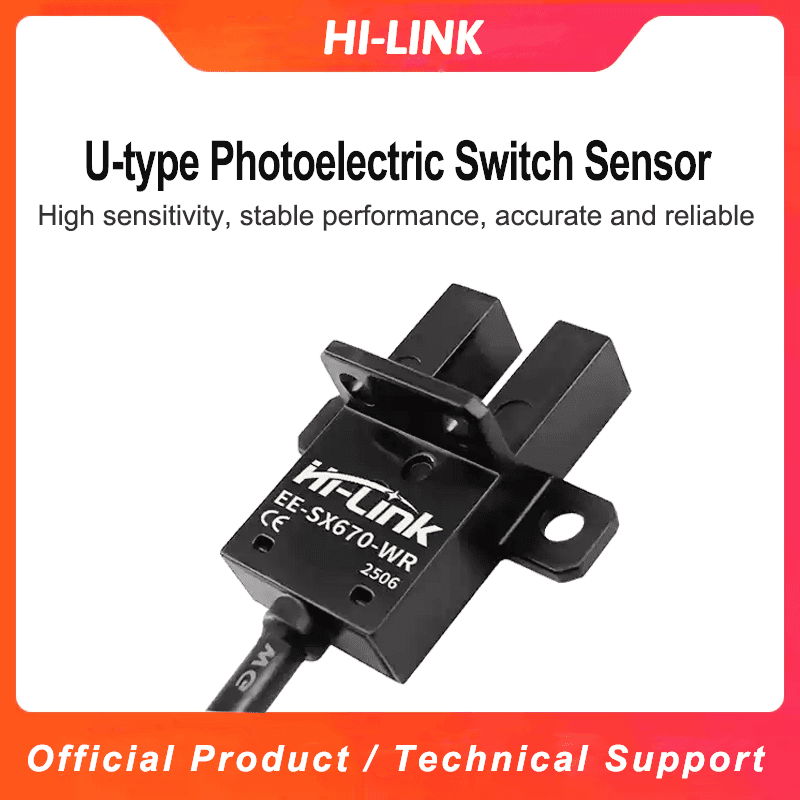

Product Introduction

Slot type photoelectric switch is actually a type of reflective photoelectric switch, also known as U-shaped photoelectric switch, which is an infrared sensing photoelectric product

The infrared emitting tube and the infrared receiving tube are combined, and the groove width determines the strength of the induction received signal and the distance of the received signal. Using light as a medium, the infrared light between the emitter and the receiver is received and converted to detect the position of the object.

Product Features

• Simple assembly method

• High sensitivity

• Stable performance

• Long service life

• The ultimate cost-effective choice

Product Application

As a non-contact infrared detection device, the U-shaped slot type photoelectric sensing switch (also known as slot type photoelectric switch) has a wide range of application scenarios

To cover the following areas:

1、 Industrial automation control

1. Material transportation and positioning

Used for material detection, position control, and seamless transmission in scenarios such as assembly lines and conveyor belts, such as detecting bearing stroke limits and module positioning

Position waiting.

2. Detection of high-speed moving objects

Suitable for detecting high-speed moving objects in stamping machinery, unmanned transport vehicles, and other equipment, such as reading shaft rotation (measuring rotational speed).

2、 Packaging and Printing Industry

1. Label positioning and paper alignment

Realize precise label positioning, paper alignment, and discharge detection on the packaging machine to ensure the continuity and accuracy of printing or packaging materials.

2. Fabric/paper discharge detection

By blocking infrared light to detect the discharge status of textile fabrics or printing paper, prevent material jamming or breakage.

3、 Logistics and Sorting System

1. Goods identification and counting

Used in logistics sorting systems for rapid identification, counting, and classification of goods, improving sorting efficiency and accuracy.

2. Warehouse automation

Applied to inventory management in automated warehouses, intelligent access is achieved by detecting the location of items.

4、 Elevators and Safety Protection

1. Elevator door status monitoring

Detect the opening/closing status and position of elevator doors to ensure the safe operation of the door control system.

2. Safety protection of mechanical equipment
