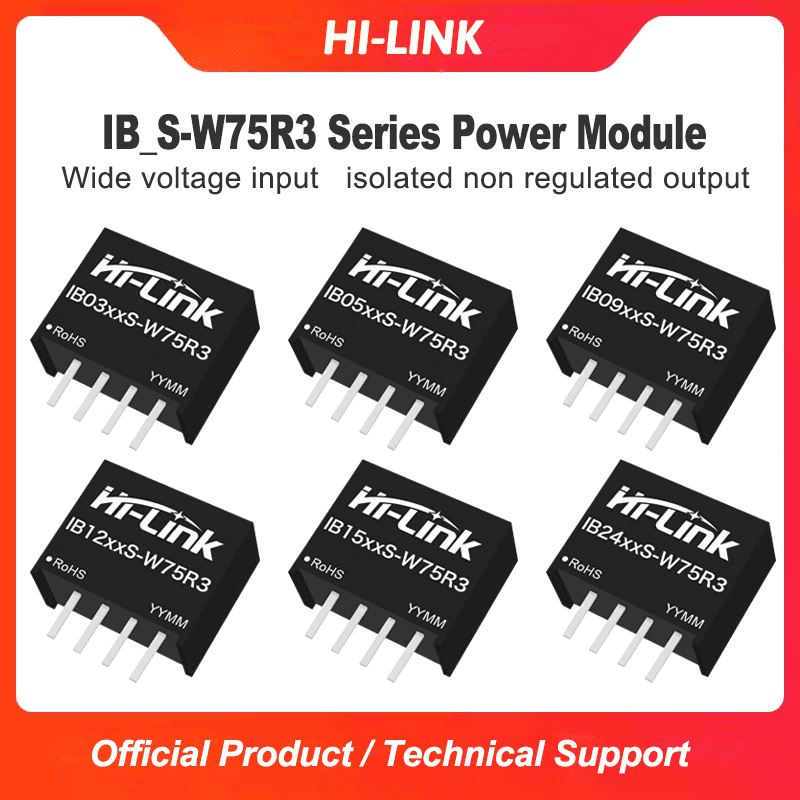

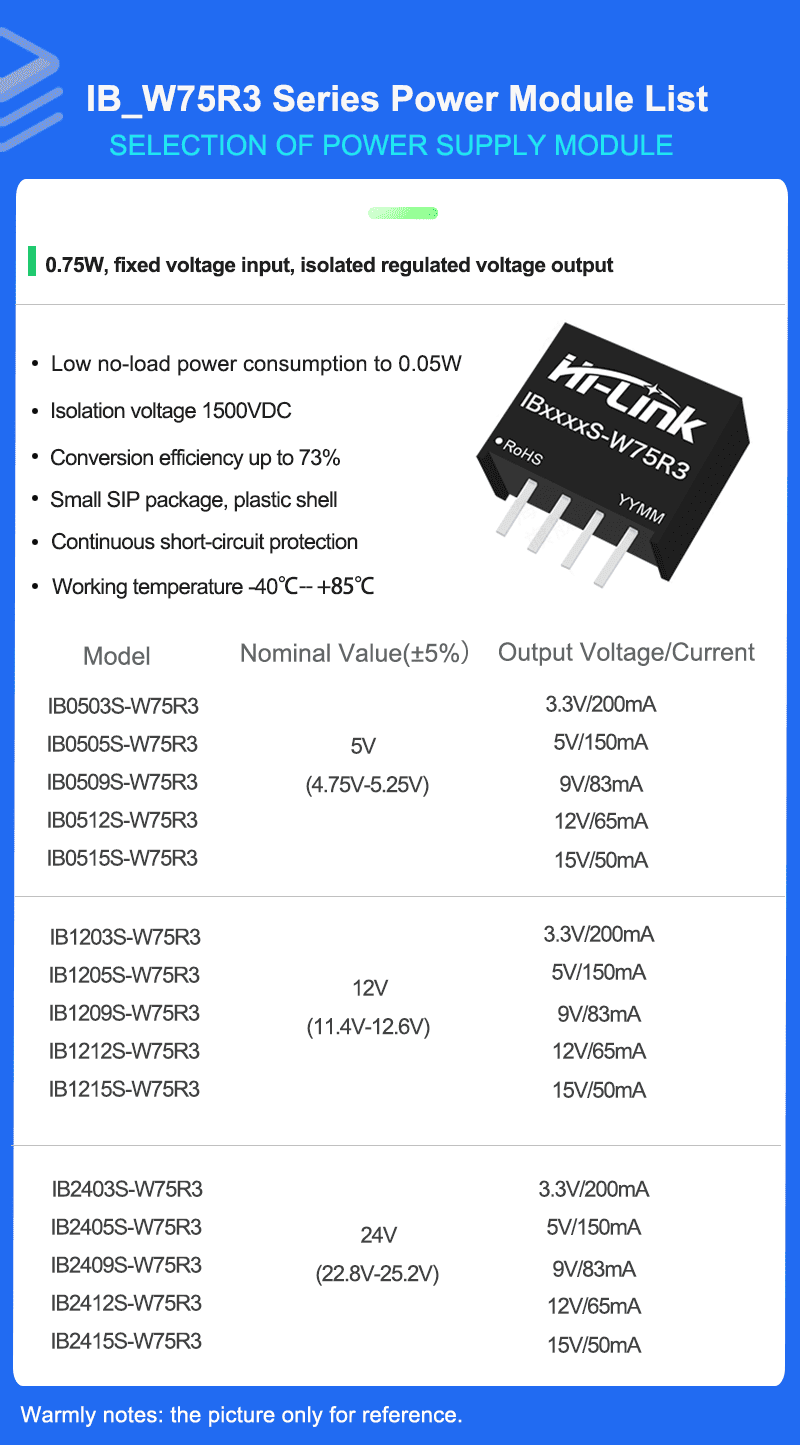

IB0505S-W75R3/IB0512S/IB1205S/IB1212S/IB2405S/IB2412S-W75R3/ DCDC Isolated non regulated dual output power converter module
-
Visitor389
-
Buycount：
-
Price$1.05
Download files:
DC to DC power module:
1W: https://drive.google.com/drive/folders/1vk6luTBKSC5gfwLJC-DbyEZYVDwk87JV
2W: https://drive.google.com/drive/folders/1vjf-77LCVQl16Hcb1phADiU3Hz14mhYB
3W: https://drive.google.com/drive/folders/13pTx02uL4moskJ-PQsBYFytdq2pPt2mN
5W: https://drive.google.com/drive/folders/1okF0YdP1Xs35HxnAkTm45WOK0kH7qlb5?
6W: https://drive.google.com/drive/folders/18IOw7PyIx99lbm3u0FEhkepC82w601sw
10W: https://drive.google.com/drive/folders/1vuJp5ZoJA9Ci0M4wCS8nT689LVzgh2tC
12W: https://drive.google.com/drive/folders/1becUdxQODQ25_A_iarNnun3Vmi_wow1g
20W: https://drive.google.com/drive/folders/182aHyvoN8J0fCurg65jOkfQp17dyaXP6
30W: https://drive.google.com/drive/folders/1StP-0SJDyFpH3yQMLLQjkQXMDXc-RGeP
40W: https://drive.google.com/drive/folders/1IXRm7dueYYTNoyXCFp88wRQexmKAgCLm
B0505S-1WR2: https://drive.google.com/file/d/16BPrOWkzOz7efnf3OvF1XjClKGnO6znv/view
AC to DC power module:
40W: https://drive.google.com/drive/folders/1jI-hITgxjtByhSCpUMmrJATHO8b_gpN7
30W(C): https://drive.google.com/drive/folders/1Nz-_SdQAuVha0JM7nJTelIfophZsmUYb
20W: https://drive.google.com/drive/folders/1PlLOzt_k3Ky5THYGOWP72jqxWSkJsU6Z
15W(C): https://drive.google.com/drive/folders/1vnVfcgQH-OvujpO6asvQvjIgmwUS2Pti
10W: https://drive.google.com/drive/folders/1zaMfq4Dm3brmRWhTGp9-49c8hN5HsIuk
5W: https://drive.google.com/drive/folders/1_dzDfHi9HOnj_b0RJHCGZ9j87ma8PU7g
3W: https://drive.google.com/drive/folders/1xz8MPw9KeQXDlyAQoI3KXzjCoL4yBRVP
2W: https://drive.google.com/file/d/1_UaUPWX9K5Bfavle4C1imVY0-WjY4yso/view
Product Feature

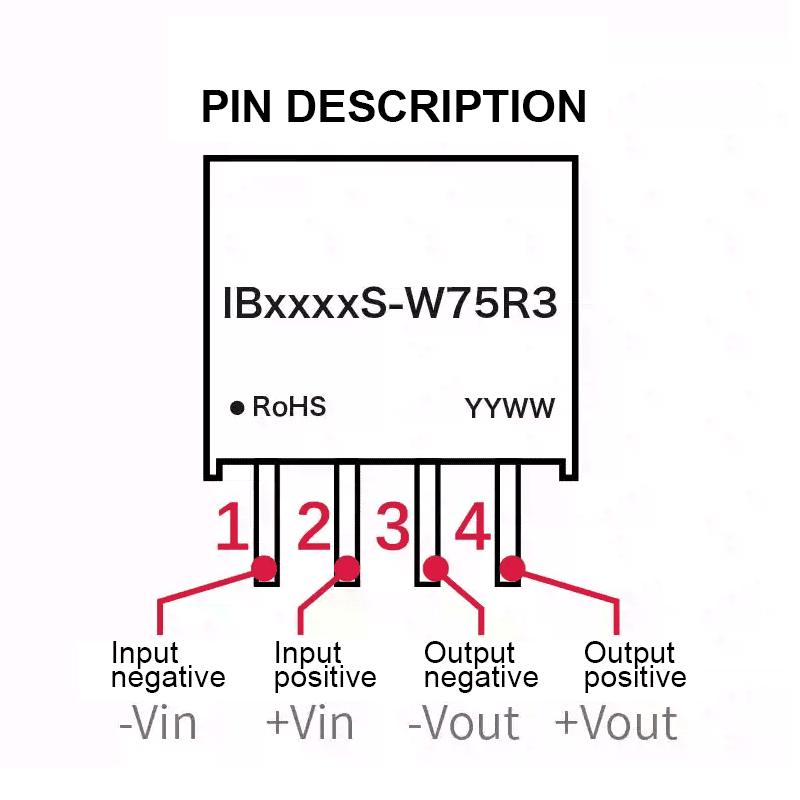

1. Small SIP-4 package, international standard pin
2. Isolation voltage 1500VDC
3. Transfer efficiency up to 73%
4. Ripple/noise (20MHz bandwidth): 30mVp-p (Typ.)
5. Output short-circuit protection, self-recovery
6. Operating temperature range ：-40°C~+85°C
Input characteristic:
| Item | Working Conditions | Min. | Typ. | Max. | Unit | |
| Input voltage range(full-load/ no-load) | 5VDC input series | 3.3V/5V DC output | -- | 209/8 | 221/-- | mA |
| 9V/12V DC output | -- | 208/12 | 221/-- | |||
| 12VDC input series | 3.3V DC output | -- | 92/8 | 98/-- | ||
| 5V DC output | -- | 87/8 | 92/-- | |||
| 12V DC output | -- | 86/8 | 91/-- | |||
| 24VDC input series | 3.3V DC output | -- | 46/8 | 51/-- | ||
| 5V DC output | -- | 44/8 | 48/-- | |||
| 12V DC output | -- | 43/8 | 47/-- | |||
| Reflected ripple current | -- | 15 | -- | |||
Impulse Voltage | 5VDC input series | -0.7 | -- | 9 | Vdc | |
| 12VDC input series | -0.7 | -- | 18 | |||
| 24VDC input series | -0.7 | -- | 30 | |||
| Input fliter typle | Capacitive filtering | |||||
| Hot plug | Non-support | |||||
Output characteristic:
| Item | Working and testing condition | Min. | Typ. | Max. | Unit | |
| Output load | load percentage | 10 | -- | 100 | % | |
| Output Voltage Accuracy | -- | -- | ±3.0 | % | ||
| Linear adjustment rate | Input voltage variation ±5% | -- | -- | ±0.25 | % | |
| Load adjustment rate | 10%~100% load | -- | +1 | +2 | % | |
| Ripple & Noise | Pure resistive load, 20HMz bandwidth, peak-to-peak | -- | 50 | 100 | mVp-p | |
| Temperature Drift Coefficient | Full load | -- | -- | ±0.03 | %/℃ | |
| Output short circuit protection | Continuous short circuit protection, automatic recovery | |||||
| Notes: Ripple and Noise Test Methods Twisted Pair Test Method | ||||||
General characteristic:
| Item | Working condition | Min. | Typ. | Max. | Unit |
| Insulation voltage | Input output, test time of 1 minute, leakage current less than 1mA | 1500 | -- | -- | VDC |
| Insulation resistance | Input output, insulation voltage 500VDC 1000-M Ω | 1000 | -- | -- | MΩ |
| Isolation capacitor | Input output, 100KHz/0.1V --40-- pF | -- | 20 | -- | pF |
| Working temperature | Use reference temperature derating curve chart | -40 | -- | +85 | ℃ |
| Storage temperature | -40 | -- | +125 | ||
| Temperature rise of the casing during operation | -- | 25 | -- | ||
| Storage humidity | No condensation | 5 | -- | 95 | %RH |
| Pin resistance to welding temperature | Welding point distance from the shell 1.5mm, 10 seconds | -- | -- | +300 | ℃ |
| Switching frequency | Full load, nominal voltage input | -- | 100 | -- | KHz |
| Shock | 10-55Hz, 10G, 30 Min. along X, Y and Z | ||||
| Shell material | Black flame retardant and heat-resistant plastic (UL94V-0) | ||||
| Minimum time between failures | MIL-HDBK-217F@25℃ | 3.5X10 6 | -- | -- | Hrs |
