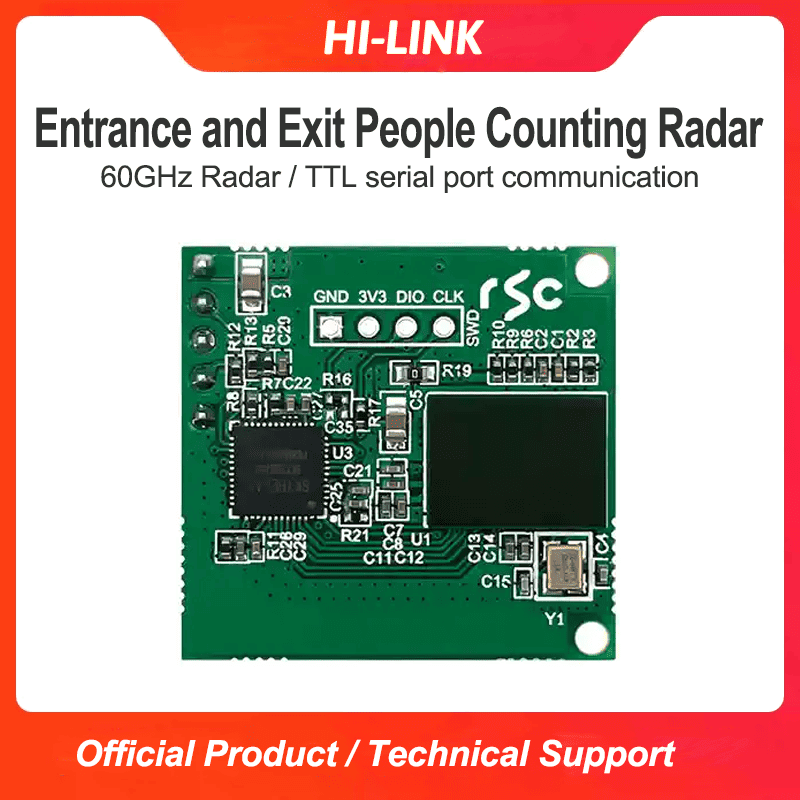

Hi-link 60GHz millimeter wave radar entrance and exit counting people up to 8 radar sensing module HLK-LD6001C
-
Visitor40
-
Buycount：
-
Price$25.35
Download Files:
HLK-LD8001B/H, LD7901: https://drive.google.com/drive/folders/1aiIZDubSBSWa8osZvaEuoZJp1Z7ra97i
HLK-LD6002C: https://drive.google.com/drive/folders/1UFBTpL7mLjvzcOgDNnifWcXyOEQX2Cx5
HLK-LD6002B: https://drive.google.com/drive/folders/1ug-oR3rV8ndN-lEZMgYn8a-KIOFFdn4V
HLK-LD6002: https://drive.google.com/drive/folders/1oMJYYOvhXx9uJD9SCkCsjMzLqdOg7AqR
HLK-LD2461: https://drive.google.com/drive/folders/14_KgZpL4Th2LTRuq_W0X_ePjHu_Z6lcS
HLK-LD2450: https://drive.google.com/drive/folders/1kTt0Z3hjKKrIF3OCIDGdwQ4KotDJ8SGA
HLK-LD2415H: https://drive.google.com/drive/folders/1eOj3xdVOvwmmCniIhfUZZwE_R63wWeKO
HLK-LD2410S: https://drive.google.com/drive/folders/1wC8KC-DaNavNbpeVouZ1HdiBzZ9YrAcg
HLK-LD2410C: https://drive.google.com/drive/folders/1ypOlacBmmFXY6lDQ0f1hEJFmczNe-0WG
HLK-LD2410B: https://drive.google.com/drive/folders/16zI-fium_BZeP08EyQke0rWp0BJTMvw3
HLK-LD2410: https://drive.google.com/drive/folders/1lCQv3mfHJ3XKXzweeHPFnJ_8_D_EWEKk
HLK-LD2411: https://drive.google.com/drive/folders/1ZAFkDPr_BLQpmw1h6furMvg-hcByOt5z
HLK-LD101V: https://drive.google.com/drive/folders/1O8H_NBj3Bm8QCHyXO-5YvEremdVrs-EM
Product introduction
As shown in the figure below, the radar module is installed at the entrance and exit of the door, with a pink area set as the ground projection range. Based on the trajectory of personnel entering and leaving the pink area, it determines whether they are entering or leaving the door, thus achieving entrance and exit counting.
Product parameters
| No. | Parameters | No. | Parameters |
| 1 | Install method: ceiling installation | 6 | Peak power consumption: 1.7w |
| 2 | Detection distance: 0.5~8m (The effective projection ground is a circle with a radius of 3.5m, so as to Installation height 2.7m) | 7 | Communication method: TTL serial port |
| 3 | Azimuth and pitch angle coverage: ±60° | 8 | Working frequency: 60-64GHz |
| 4 | Power: 3.3V | 9 | Processing cycle: ≤30ms |
| 5 | Average power consumption: 0.3w | 10 | size：29.36*28mm |
