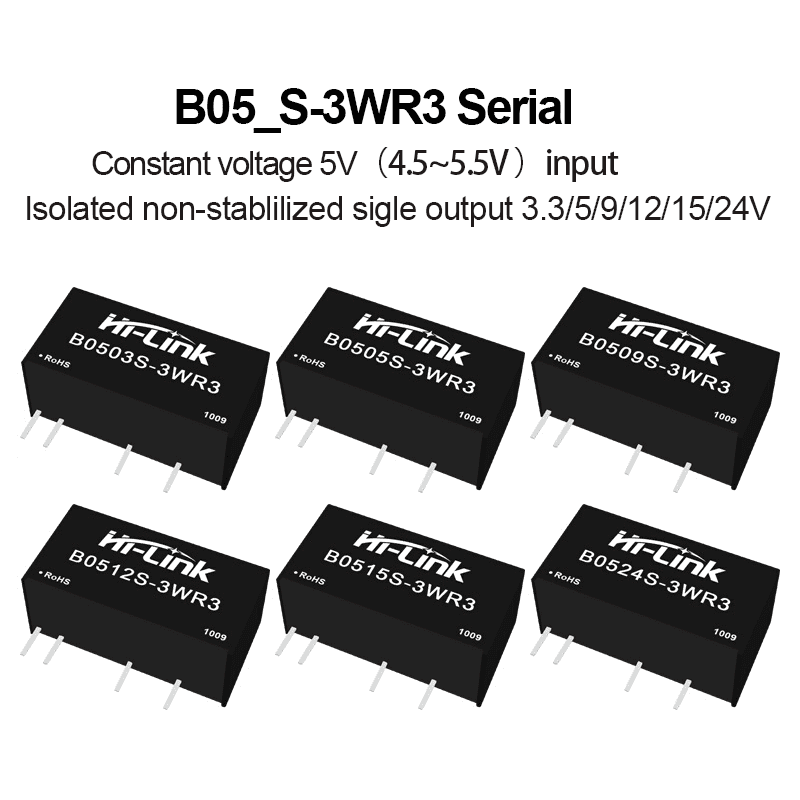

B0505S-3WR3 power module B0503/B0509/B0512/B0515/B0524S-3WR3 isolated non stabilized voltage power converter
-
Visitor3302
-
Buycount：
-
Price$1.08
Download files:
DC to DC power module:
1W: https://drive.google.com/drive/folders/1vk6luTBKSC5gfwLJC-DbyEZYVDwk87JV
2W: https://drive.google.com/drive/folders/1vjf-77LCVQl16Hcb1phADiU3Hz14mhYB
3W: https://drive.google.com/drive/folders/13pTx02uL4moskJ-PQsBYFytdq2pPt2mN
5W: https://drive.google.com/drive/folders/1okF0YdP1Xs35HxnAkTm45WOK0kH7qlb5?
6W: https://drive.google.com/drive/folders/18IOw7PyIx99lbm3u0FEhkepC82w601sw
10W: https://drive.google.com/drive/folders/1vuJp5ZoJA9Ci0M4wCS8nT689LVzgh2tC
12W: https://drive.google.com/drive/folders/1becUdxQODQ25_A_iarNnun3Vmi_wow1g
20W: https://drive.google.com/drive/folders/182aHyvoN8J0fCurg65jOkfQp17dyaXP6
30W: https://drive.google.com/drive/folders/1StP-0SJDyFpH3yQMLLQjkQXMDXc-RGeP
40W: https://drive.google.com/drive/folders/1IXRm7dueYYTNoyXCFp88wRQexmKAgCLm
B0505S-1WR2: https://drive.google.com/file/d/16BPrOWkzOz7efnf3OvF1XjClKGnO6znv/view
AC to DC power module:
40W: https://drive.google.com/drive/folders/1jI-hITgxjtByhSCpUMmrJATHO8b_gpN7
30W(C): https://drive.google.com/drive/folders/1Nz-_SdQAuVha0JM7nJTelIfophZsmUYb
20W: https://drive.google.com/drive/folders/1PlLOzt_k3Ky5THYGOWP72jqxWSkJsU6Z
15W(C): https://drive.google.com/drive/folders/1vnVfcgQH-OvujpO6asvQvjIgmwUS2Pti
10W: https://drive.google.com/drive/folders/1zaMfq4Dm3brmRWhTGp9-49c8hN5HsIuk
5W: https://drive.google.com/drive/folders/1_dzDfHi9HOnj_b0RJHCGZ9j87ma8PU7g
3W: https://drive.google.com/drive/folders/1xz8MPw9KeQXDlyAQoI3KXzjCoL4yBRVP
2W: https://drive.google.com/file/d/1_UaUPWX9K5Bfavle4C1imVY0-WjY4yso/view
Product Feature
Constant voltage input, isolatedunregulated output, 3W power
Isolation voltage: 1500VDC
Low no-load power consumption: 0.025W
Efficiency: up to 90% (Typ.)
Working temperature: -40°C~+85°C
MTBF > 3.5 million hours
Output short circuit protection: sustainable short circuit protection,automatic recovery
Small SIP package, Plastic housingInternational standard pin out
Ripple/noise (20MHz bandwidth)30mVp-p
Input Characteristics
| Item | Working conditions | Min. | Typ. | Max. | Unit |
| Input current (full load/no load) | 5VDC Input Series | -- | 682/5 | --/10 | mA |
| 9VDC Input Series | -- | 379/5 | --/10 | ||
| 12VDC Input Series | -- | 284/2 | --/5 | ||
| 15VDC Input Series | -- | 227/2 | --/4 | ||
| 24VDC Input Series | -- | 142/1 | --/2 | ||
| Reflection ripple current | -- | 15 | -- | mA | |
| Impulse voltage（1sec.max.) | 5VDC Input Series | -0.7 | -- | 9 | VDC |
| 9VDC Input Series | -0.7 | -- | 15 | ||
| 12VDC Input Series | -0.7 | 18 | |||
| 15VDC Input Series | -0.7 | -- | 21 | ||
| 24VDC Input Series | -0.7 | -- | 30 | ||
| Input filter type | Capacitance filter type | ||||
| Hot plugged | Non-support | ||||
Output Characteristics
| Items | Working and testing condition | Min. | Typ. | Max. | Unit | |
| Output load | Load percetage | 10 | -- | 100 | % | |
| Output Voltage Accuracy | See error envelope graph | -- | -- | ±15.0 | % | |
| Linear adjustment rate | Input voltage variation ±1% | 3.3V output | -- | -- | ±1.5 | % |
| Others | -- | -- | ±1.2 | % | ||
| Load adjustment rate | 10%~100% load | 5VDC Output | -- | 12 | -- | % |
| 9VDC Output | -- | 8 | -- | % | ||
| 12VDC Output | -- | 7 | -- | % | ||
| 15VDC Output | -- | 6 | -- | % | ||
| 24VDC Output | -- | 5 | -- | % | ||
| Ripple & Noise | Pure resistive load, 20HMz bandwidth, peak-to-peak | -- | 30 | 80 | mVp-p | |
| Temperature Drift Coefficient | Full load | -- | -- | ±0.03 | %/℃ | |
| Output short circuit protection | Continuous short circuit protection, automatic recovery | |||||
| Notes: Ripple and Noise Test Methods Twisted Pair Test Method | ||||||
Note:
1、The above is only a list of typical products. If you need products beyond the list, please contact our sales. 2、The maximum capacitive load indicates the maximum capacitive load that + VO or - vo can be connected to,If the value is exceeded, the product will not start normally..
Pin description
Dimension
Notes：More details please feel free to contact hi-link team.
