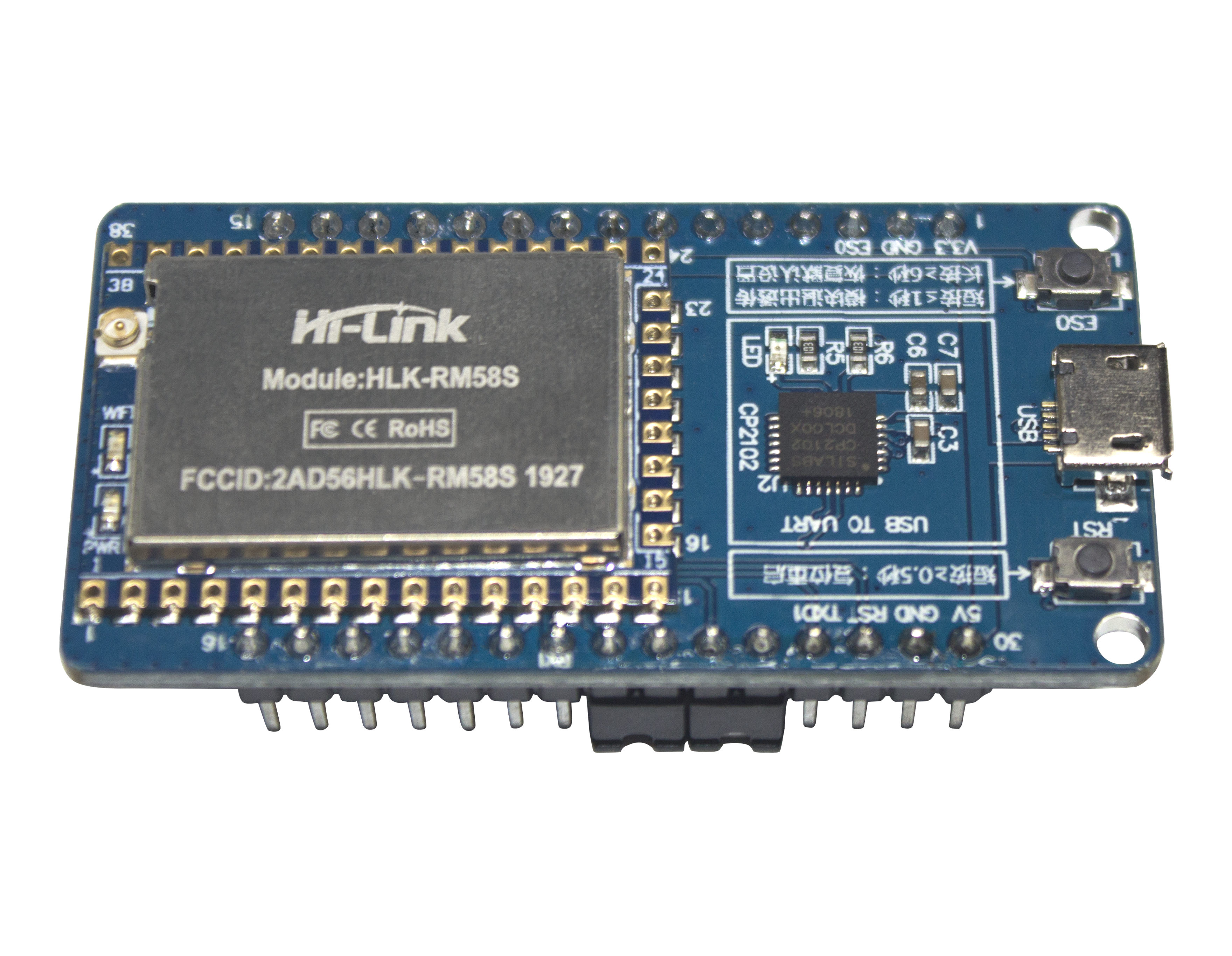

2.4g/ 5.8 G Dual Band Hi-link Serial Port to WiFi Module Low Power Bluetooth 2-in-1 Wireless Transmission Module KIT
-
Visitor4531
-
Buycount：
-
Price$12.98
Download Files
HLK-RM65: https://drive.google.com/drive/folders/156pIBs0rKDvnFZNoD0uBIjzKKSTZeYaU
HLK-7688A: https://drive.google.com/drive/folders/1fNV08Eu1_OCQUpqZ8By9CD68w4Ibh8fZ
HLK-RM60: https://drive.google.com/drive/folders/1WrerOCwMmxqeHFxjGQFIHfmw9LDR2teG
HLK-RM58S: https://drive.google.com/file/d/1tQjHtr3GOKEMJGjtrWmpxgh-OA4UBCMv/view
HLK-RM08S: https://drive.google.com/file/d/1vnyq0m8AySX9s-Hb3LmcJV_DQZnyrRrD/view
HLK-RM08K: https://drive.google.com/file/d/1vnyq0m8AySX9s-Hb3LmcJV_DQZnyrRrD/view
HLK-GD01: https://drive.google.com/drive/folders/1Y-xBwPyz2IDlPkSSQYoxwO6WWQ1s9bRo
HK-7628N: https://drive.google.com/drive/folders/1Z8-RLZVs9jjOHwORsGWpotGak7IFOwQo
HLK-7621: https://drive.google.com/drive/folders/14MdhLn9S1d7RK7_obvcoT2zCo8x5EadU
HLK-RM65: https://drive.google.com/drive/folders/156pIBs0rKDvnFZNoD0uBIjzKKSTZeYaU
HLK-7688A: https://drive.google.com/drive/folders/1fNV08Eu1_OCQUpqZ8By9CD68w4Ibh8fZ
HLK-RM60: https://drive.google.com/drive/folders/1WrerOCwMmxqeHFxjGQFIHfmw9LDR2teG
HLK-RM58S: https://drive.google.com/file/d/1tQjHtr3GOKEMJGjtrWmpxgh-OA4UBCMv/view
HLK-RM08S: https://drive.google.com/file/d/1vnyq0m8AySX9s-Hb3LmcJV_DQZnyrRrD/view
HLK-RM08K: https://drive.google.com/file/d/1vnyq0m8AySX9s-Hb3LmcJV_DQZnyrRrD/view
HLK-GD01: https://drive.google.com/drive/folders/1Y-xBwPyz2IDlPkSSQYoxwO6WWQ1s9bRo
HK-7628N: https://drive.google.com/drive/folders/1Z8-RLZVs9jjOHwORsGWpotGak7IFOwQo
HLK-7621: https://drive.google.com/drive/folders/14MdhLn9S1d7RK7_obvcoT2zCo8x5EadU
Product Description
HLK-RM58N is a low-cost embedded UART WIFI (Serial Wireless Network) module launched by Hi-link Electronics. This product is based on an embedded module that complies with network standards through a serial interface, embedded with the TCP/IP protocol stack, and capable of converting between user serial port and wireless network (WIFI).
Through the HLK-RM58N module, traditional serial devices can transmit their data over the Internet network without changing any configuration, providing a complete and fast solution for users' serial devices to transmit data over the network.
Product Feature
Compatible with IEEE 802.11 a/b/g/n
Dedicated high-performance Cortex-M33
Supports 20 MHz and 40 MHz bandwidth in the 2.4 GHz frequency band
Single frequency 1T1R mode, with a data rate of up to 150Mbps
Supports 2.4g/5.8 GHz frequency band, dual band 1T1R
Supports two working modes: STA/AP
Built in TCP/IP protocol stack
Support rich AT instructions
Supports Bluetooth BLE5.0
Support wireless upgrade (OTA)
3.3V single power supply with low power consumption
Fast serial port transmission speed
Technical specification
| Module | Mode | HLK-RM58N |
| Wireless parameters | Packaging | SMT |
| Wireless standard | IEEE 802.11 a/b/g/n | |
| Frequency range | 2.412GHz-2.484GHz 5.180GHz-5.825GHz | |
| Transmission power | 802.11b: +16 +/-2dBm (@11Mbps) | |
| 802.11g: +14 +/-2dBm (@54Mbps) | ||
| 802.11n: +13 +/-2dBm (@HT20,HT40- MCS7) | ||
| 802.11a: +15 +/-2dBm (@HT40,MCS7) | ||
| Receiving sensitivity | 802.11b: -88.4 dBm (@11Mbps ,CCK) | |
| 802.11g: -75.7dBm (@54Mbps, OFDM) | ||
| 802.11n: -73.6dBm (@HT20, MCS7) | ||
| 802.11a: -75.0 dBm (@MCS7) | ||
| Antenna form | External: SMT pads | |
| External: I-PEX first generation connector | ||
| Built in: No built-in antenna | ||
| Hardware parameters | Hardware interface | UART，GPIO |
| Operation power | 3.3V | |
| GPIO Driving Capability | Max：16ma | |
Working current | Continuous transmission=>Average:~151mA, Peak: 200mA Under normal mode=>Average:~130mA, Peak: 180mA | |
| Temperature | Working temperature: -20 ℃~+85 ℃ Storage temperature: Temperature:<125 ℃, relative humidity:<90% R.H | |
| Size | 18mm * 18mm * 2.4mm | |
| Serial port transparent transmission | Transmission speed | 110-921600bps |
| TCP Client | 1 | |
| Software parameters | Wireless network type | STA/AP |
| Security mechanism | WEP/WPA-PSK/WPA2-PSK | |
| Encryption type | WEP64/WEP128/TKIP/AES | |
| Firmware upgrade | Wirelss upgrade, serial port upgrade | |
| Network protocol | IPv4, TCP/UDP | |
| User configuration | AT+instruction set，web configuration |
Working voltage
| Parameters | Min | Typical | Max | Unit |
| Input voltage | 3.1 | 3.3 | 3.5 | V |
| I/O voltage | 3.3 | V | ||
| No-load operation currency | 150 | mA | ||
| Module avarage power consumption | 495 | mW | ||
| Module current peak | 200 | mA | ||
| Power supply current requirement | ≥500 | mA | ||
| Power supply ripple requirement | ≤50 | mV |
