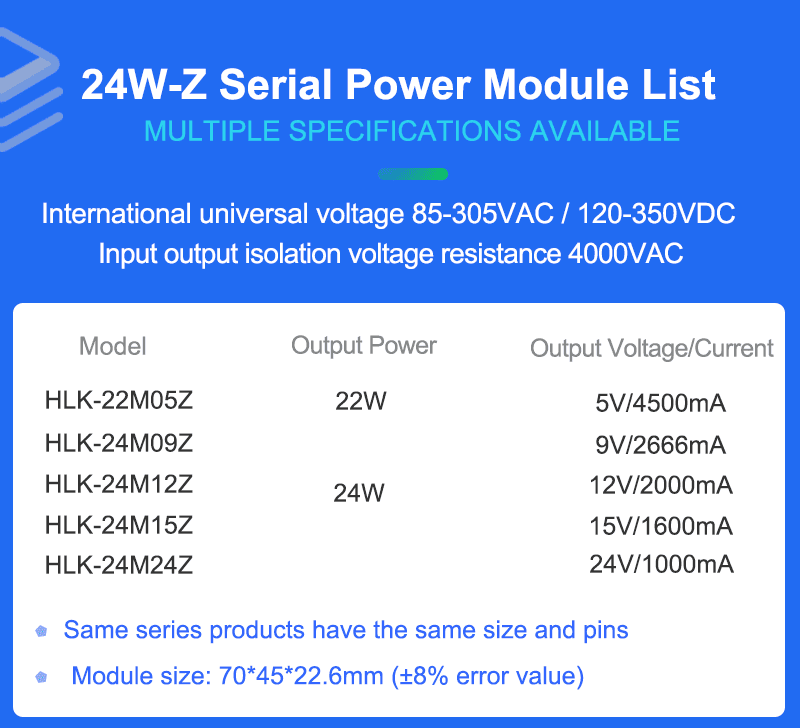

AC-DC 22W/24W series 220V to 5V/12V/24V power supply stable output isolated power converter module HLK-22M05Z/24M12Z/24M15Z/24M24Z
-
Visitor316
-
Buycount：
-
Price$2.62
AC to DC power module:
40W: https://drive.google.com/drive/folders/1jI-hITgxjtByhSCpUMmrJATHO8b_gpN7
30W(C): https://drive.google.com/drive/folders/1Nz-_SdQAuVha0JM7nJTelIfophZsmUYb
20W: https://drive.google.com/drive/folders/1PlLOzt_k3Ky5THYGOWP72jqxWSkJsU6Z
15W(C): https://drive.google.com/drive/folders/1vnVfcgQH-OvujpO6asvQvjIgmwUS2Pti
10W: https://drive.google.com/drive/folders/1zaMfq4Dm3brmRWhTGp9-49c8hN5HsIuk
5W: https://drive.google.com/drive/folders/1_dzDfHi9HOnj_b0RJHCGZ9j87ma8PU7g
3W: https://drive.google.com/drive/folders/1xz8MPw9KeQXDlyAQoI3KXzjCoL4yBRVP
2W: https://drive.google.com/file/d/1_UaUPWX9K5Bfavle4C1imVY0-WjY4yso/view
Product Feature

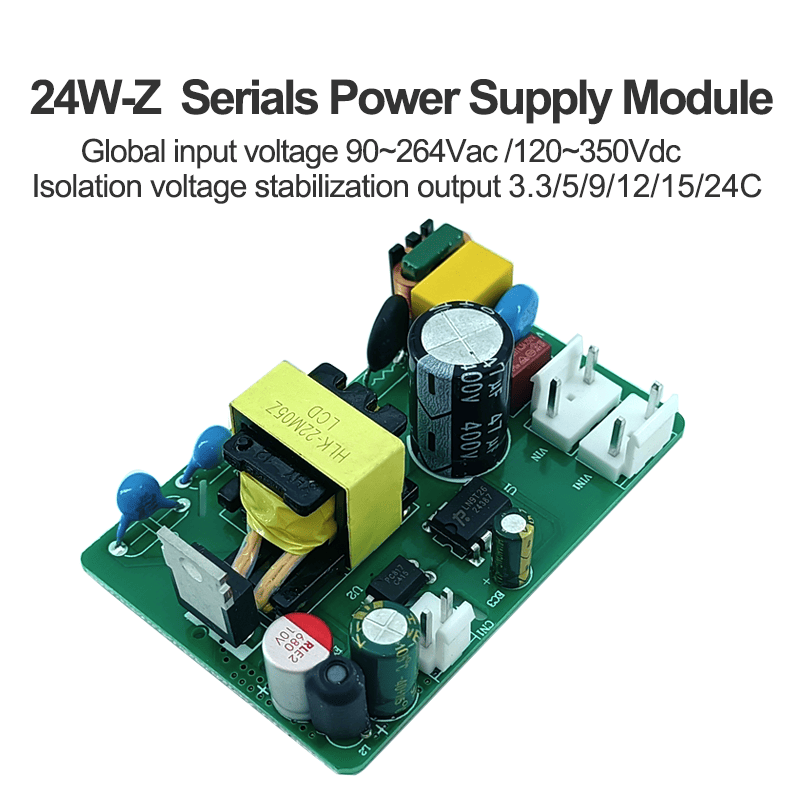

The HLK-22M05Z bare board power module is a small-sized, high-efficiency module power supply designed by Hi-link Electronics for customers. Having global input voltage
Advantages include range, low temperature rise, low power consumption, high efficiency, high reliability, and high safety isolation. Widely used in smart homes, automation control, and communication in industries such as telecommunications equipment and instrumentation.
Product Specifications
Ultra thin, compact, and small volume in the industry
Global universal input voltage (100~240Vac)
Low power consumption, green environmental protection, no-load loss<0.5W
Low ripple and low noise
Good output short-circuit and overcurrent protection and self recovery
Input/output isolation withstand voltage 4000Vac, surge resistance 4KV
100% full load aging and testing
High reliability and long-life design, with continuous working time greater than 70000 hours
Meet the circuit requirements of UL and CE; Product design meets EMC and safety testing requirements
Adopting high-quality environmental protection, moisture resistance, and vibration resistance to meet various requirements and standards
Economic solutions with high cost-effectiveness
Can work without external circuits
High efficiency and high power density
Environment condition
| Item name | technical index | Unit | Remark |
| Working Temerature | -25—+60 | ℃ | |
| Storage Temerature | -40—+80 | ℃ | |
| Relative humidity | 5—95 | % | |
| Thermal methods | natual cooling | ||
| Atmospheric pressure | 80—106 | Kpa | |
| Altitude | ≤2000 | m | |
| Vibration coefficient | 10~500Hz,2G10min./1cycle, 60min.each along X,Y,Z axes | Meets requirements for secondary road transportation | |
Input Features(test at room temperature)
| Item name | technical index | Unit | Remark |
| Rated input voltage | 100-240Vac | ||
| Input vlotage range | 90-264Vac | or 120-350Vdc | |
| The maximum input CURRENT | ≤0.7A | ||
| Input inrush current | ≤50A | ||
| Input low start | ≤3S | ||
| Long-term reliablity | MTBF≥100000H |
Output Features
| Item name | technical index | Unit | Remark |
| No-load rated output voltage | 5.0±0.1Vdc | Vdc | |
| Full-load rated output voltage | 5.0±0.2Vdc | Vdc | |
| Short term maximum output current | 6000mA | mA | |
| Rated output current | 4500mA | mA | |
| Voltage regulation rate | ≤±2 | % | |
| Load regulation rate | ≤±5 | % | |
Input low voltage efficiency | Vin=115Vac， Output full load ≥ 83 | % | |
Input high voltage efficiency | Vin=230Vac， Output full load ≥ 85 | % | |
Output ripple and noise (mVp-p) | ≤120 Rated input voltage, output at full load. Using a 20MHz bandwidth oscilloscope, Test the load end with 10uF and 0.1uF capacitors. | mV | |
| Switching on/off overshoot amplitude | （Rated input voltage, output with 10% load) ≤5%VO | %VO | |
| Output overcurrent protection | Output 110-140% of maximum load | A | |
| OUtput Short Circuit Protection | Short circuit directly during normal output, and automatically resume normal operation after the short circuit is removed | Do not damage the entire machine |
Input Voltage & Load Characteristics

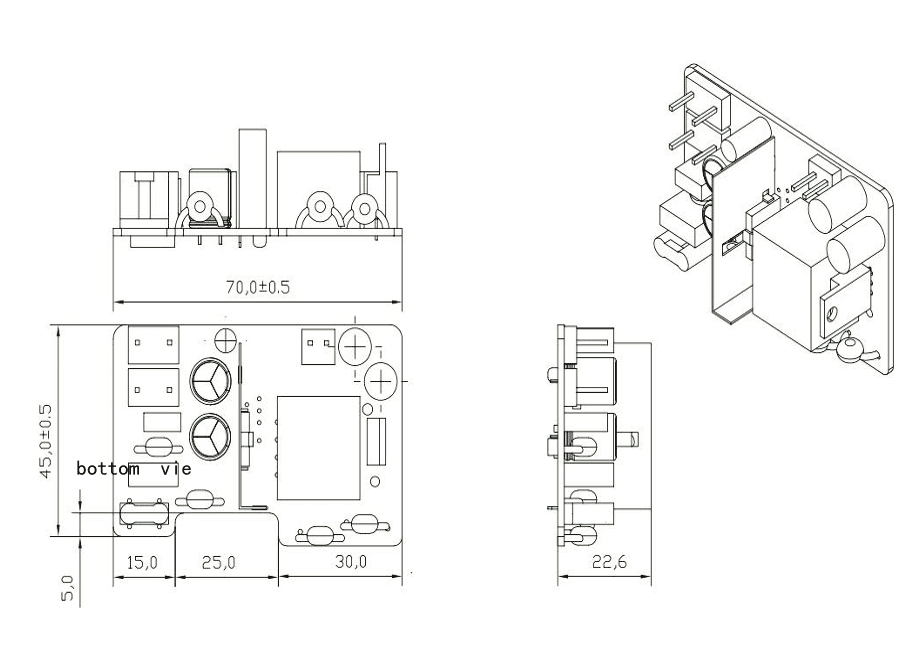

Dimension
Dimensional error:
1. Length, width, height, and pin spacing error ± 1mm
2. Pin length error ± 1mm
3. Pin diameter error -0.2mm
Unit: Millimeters
