Hi-link 60G radar sensor module LD6001 intelligent sensing detection of human body area position, quantity statistics, and walking trajectory
-
Visitor43
-
Buycount：
-
Price$27.46

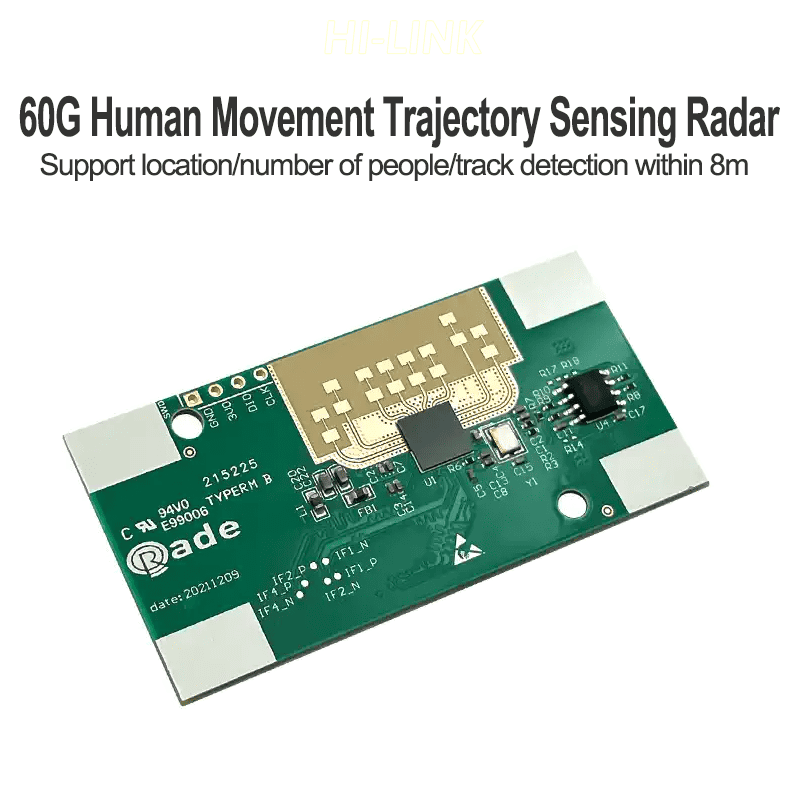

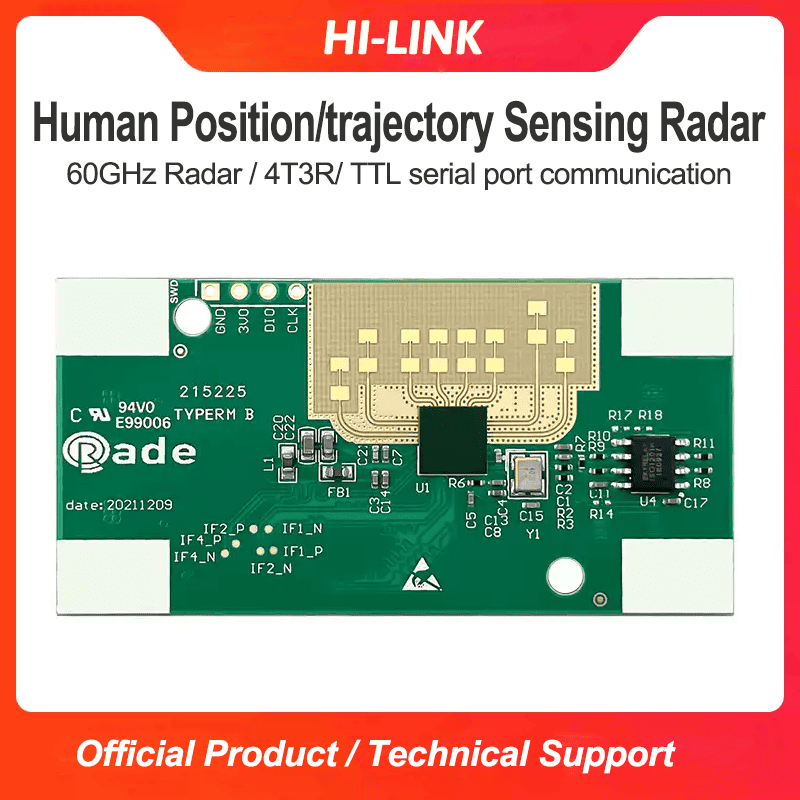

Product introduction
The LD6001 module is a 4T3R (four channel transmitter, three channel receiver) fully integrated 60GHz millimeter wave radar module. Can be used to detect the location and quantity of human body areas (up to 8 people), walking trajectories, etc.
Product parameters
| Parameters | Value | Unit | Remark |
| Working frequency range | 60 | GHz | |
| Sending voltage | 12 | dBm | |
| Modulation Type | FMCW | / | Frequency modulated continuous wave |
| Sweep frequency broadband | 4 | GHz | |
| Horizontal width of antenna beam | ±60 | ° | |
| Antenna beam elevation width | ±30 | ° | |
Detect the farthest distance | 8 | m | |
| Working voltage | 5 | V | |
| Average power consumption | 1.1 | W | |
| Working teperature | -15~70 | ℃ | |
| Dimension | 60*30 | mm | |
| Start time | 3 | s |
Installation requirement
Install the module on a vertical wall with a height of 2.2 meters, and tilt the front of the module (with the antenna facing upwards) at an angle of 10 degrees. It is generally recommended to install it according to this method for the most ideal effect, but it can also be installed slightly higher or the angle can be adjusted slightly as needed. The actual test effect shall prevail.

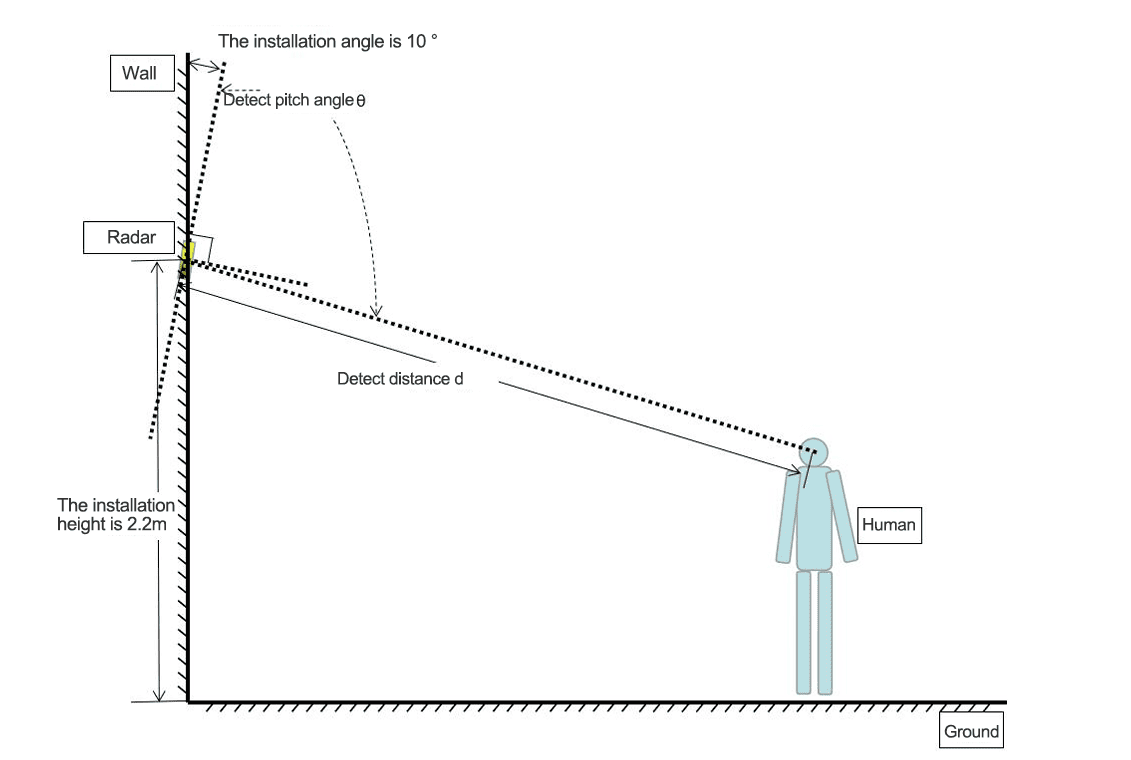

The schematic diagram of the target installation effect, as well as the distance, horizontal angle, and pitch angle, are shown in the following figure:
Please feel free to contact us for more detail.
