Introduction

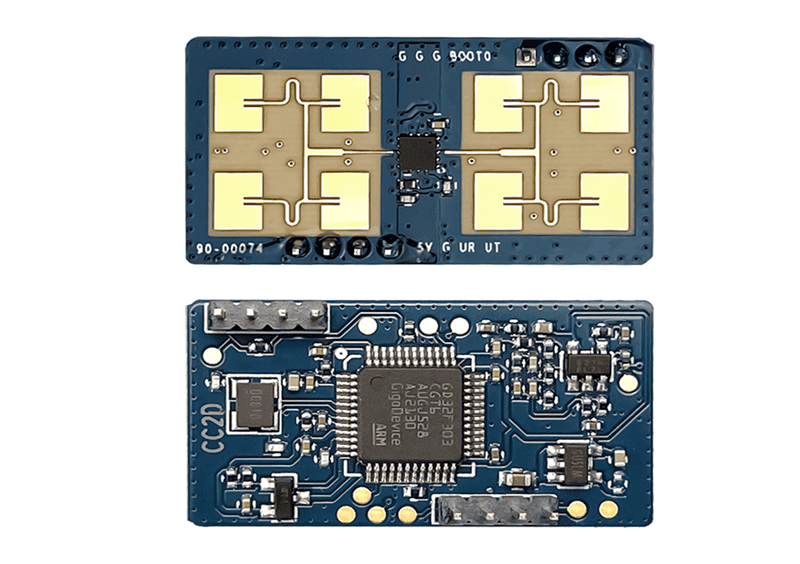

HLK-LD1125H-24G is a high sensitivity 24GHz millimeter wave human presence detection radar module. The main feature of this module is to judge the existence of the human body by detecting and accumulating tiny movements such as human respiration. Therefore, the detection of human presence is more accurate than traditional mobile detection radars. Not easy to miss

Specifications

Frequency                                             23.5G-24.5GHz

Modulation method                             FMCW

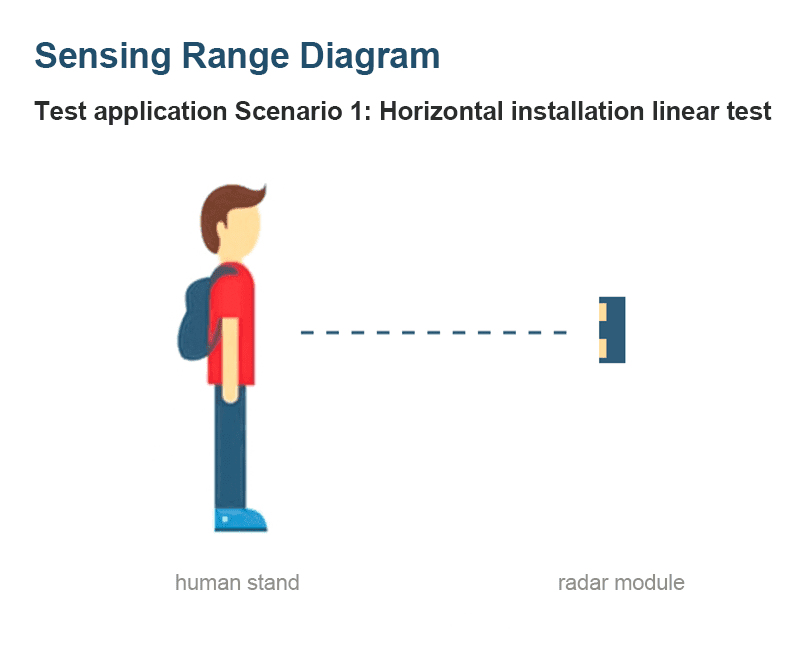

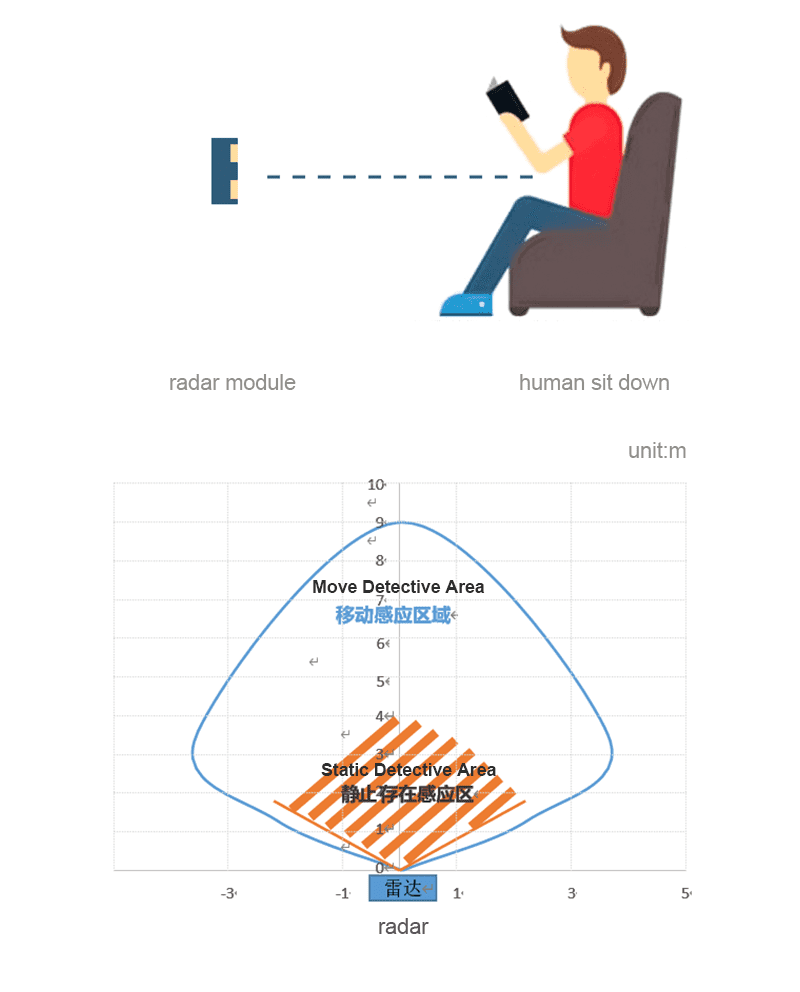

Detection distance                               > 4m static detection, > 8m moving detection

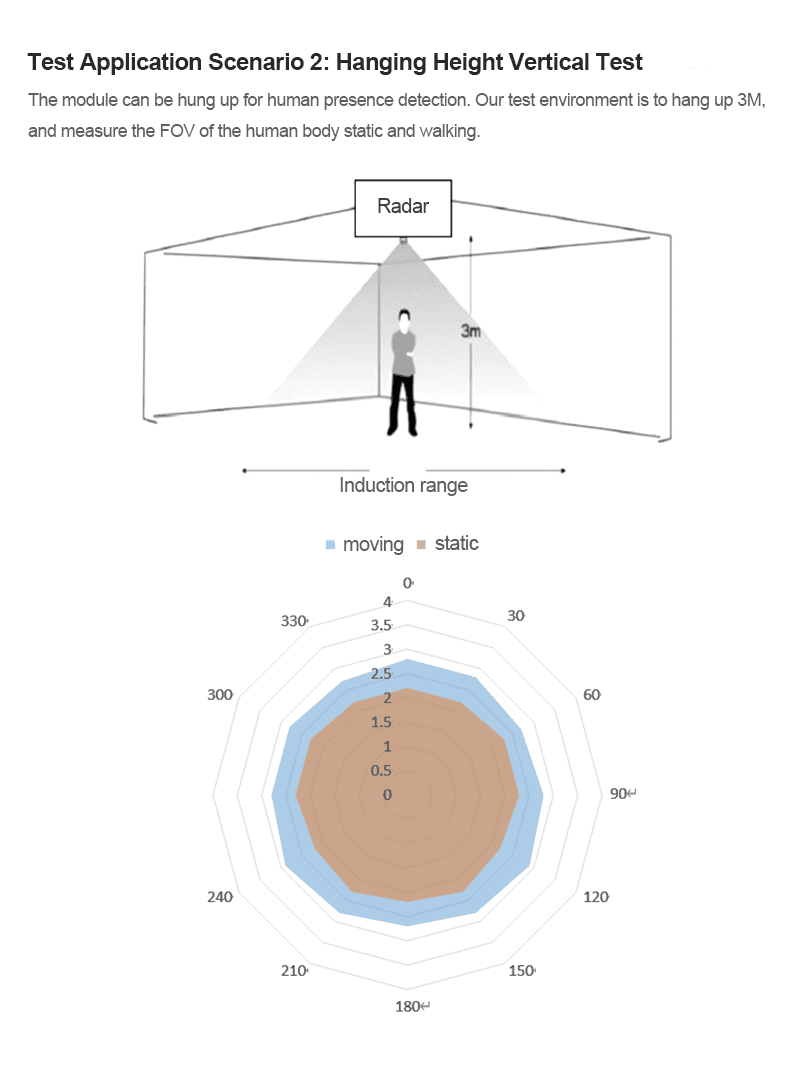

Range                                                   hanging height 3m, static body detection coverage radius ＞2m,

Power supply                                       3.3-5V

Current                                                80mA

Output serial level                               3.3V

Detection cycle                                    adaptive

Antenna half power angle                   horizontal ±22°, vertical ±24°

Data format                                         Serial port ASCII output
