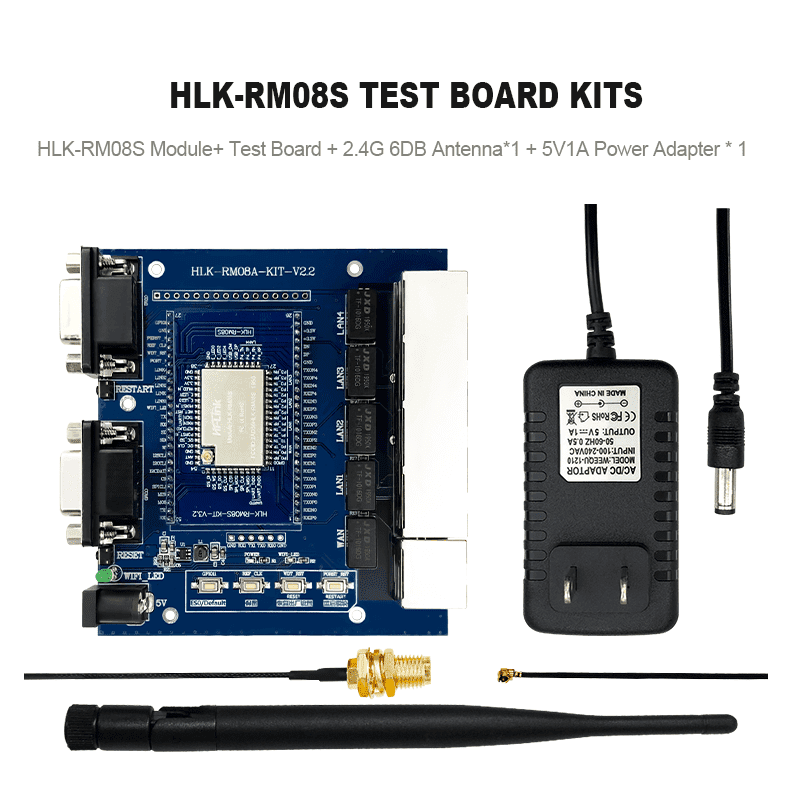

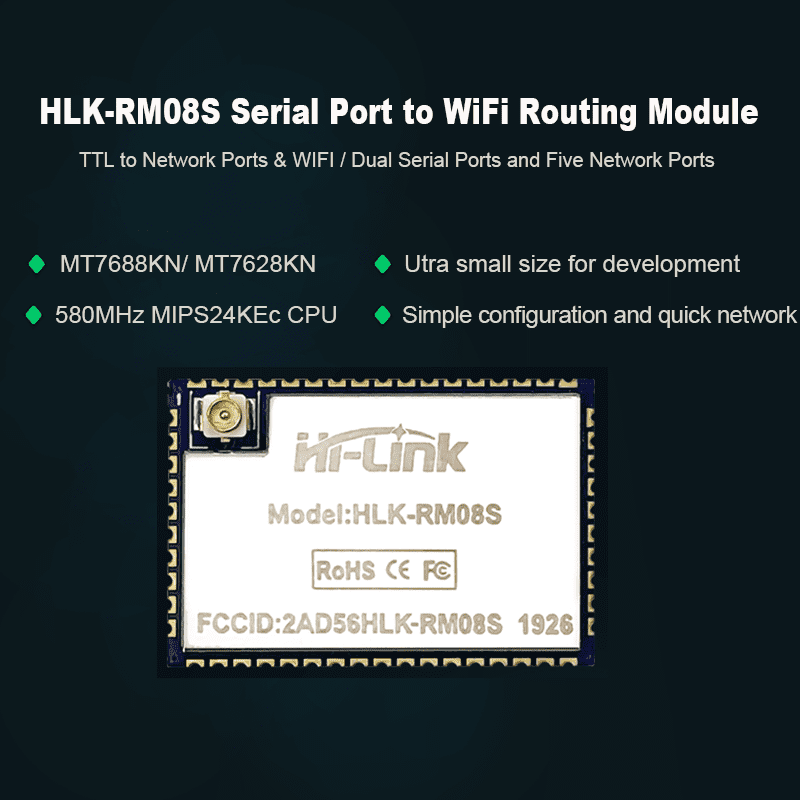

MT7688KN Chipset Wireless Router Wifi module HLK-RM08S Development board

  • Visitor
    3476
  • Buycount:
  • Price
    $15.98
RM08K-3


Product Parameters

  • High data processing ability,MCU frequency 580MHz
  • 150M Mbps
  • Support 802.11b/g/n mode
  • 20/40 channel bandwidth
  • Support 802.11v
  • Support AP,STA and AP,STA mixed
  • Fifth 10/100M adaptive com port
  • One USB2.0 host interface
  • Multiple interfaces SPI/SD-XC/eMMC
  • Rich peripheral interfaces,SPI,I2C,I2S,PCM,UART,JTAG,GPIO
  • Widely used in IOT
  • Inbuilt powerful PMU
  • Support 16 Multiple BSSID
  • Support QoS,WMM,WMM-PS


Block Diagram



Typical Applications




Specificaion

ItemParameter
ModelHLK-RM08S
Main ChipMT7688KN
I-Cache, D-Cache64KB,32KB
KemelMIPS24KEc
Main frequency580MHz
RAM64Mb
FLASH32Mb
RF1T1R 802.11n   2.4GHz
USB2.0
UART2
TemperatureEnvironmental temperature:-40℃~85℃
HumidityWorking: 10-95%  (Nondondensing)
Storage: 5-95% (Nondondensing)
Size17.4*25.8*2.8mm


Pins Definition diagram
