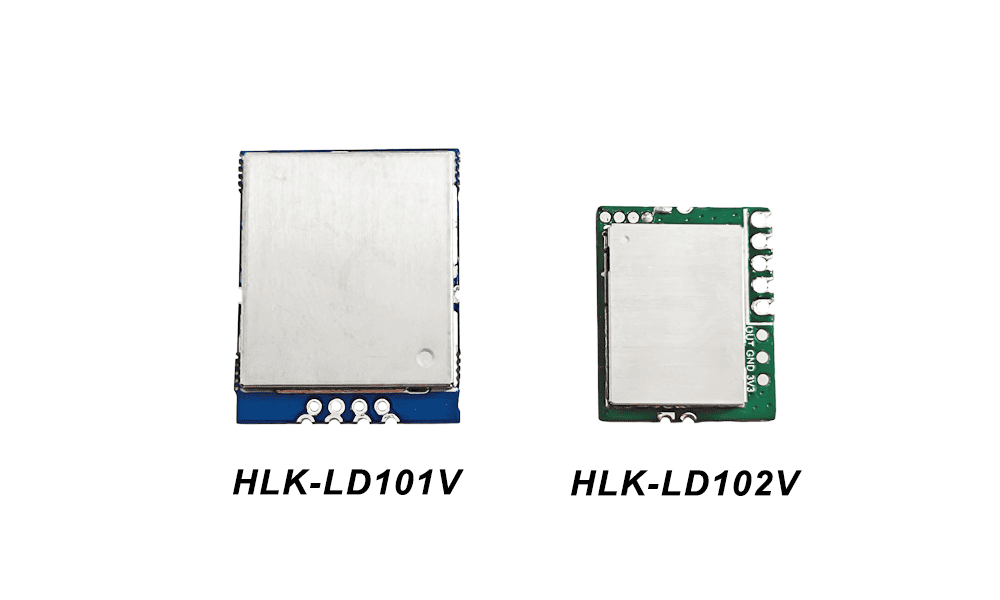

HLK-LD101V updated version:

Product Introduction

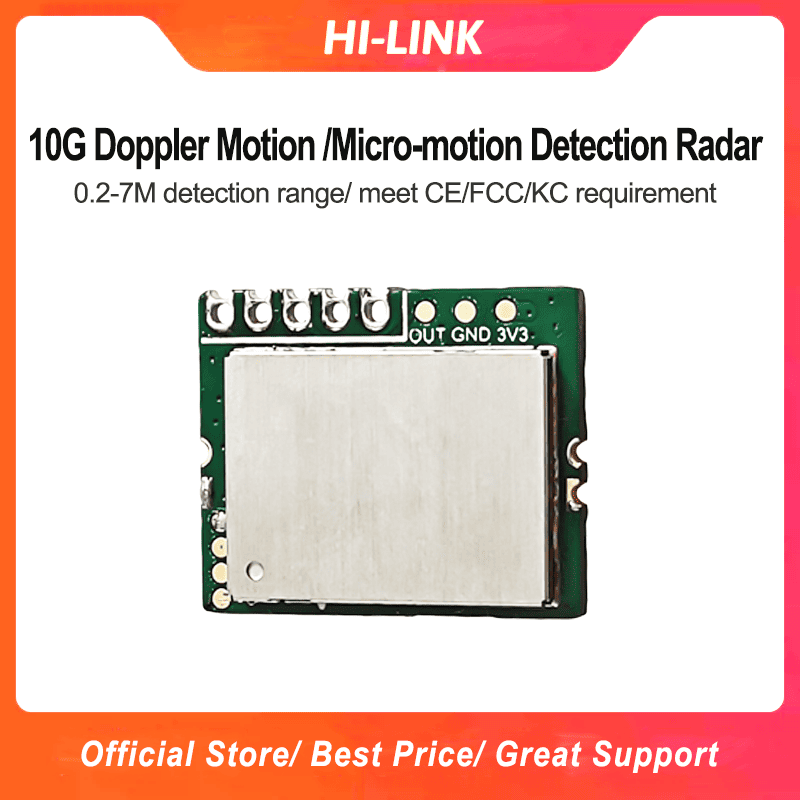

HLK-LD101V is an X-band radar module working at 10.525GHz. Based on the Doppler effect, this design uses fixed-frequency, directional transmitting and receiving antennas, which are first combined with chip integration technology and microwave antennas on the market. It has the characteristics of anti-interference, small size, no wall penetration, high stability, good consistency, and good clutter and high-order harmonic suppression effect. The on-board integrated IF demodulation, signal amplification, digital processing, light intensity detection, timing and other functions are integrated on the module, and the serial port function is opened at the same time, which is convenient for users to adjust relevant parameters. This product adopts pulse power supply mode, and the average power consumption can be reduced to 7mA.

Product Feature

 Working frequency 10.525GHz

 Wide voltage operation：+3.3V~15V

 Module size：20mm*25mm*4mm

 The sensing distance is about 7m (straight line distance)

 Detect angle 100°

 Maximum transmit power：2dBm

 Maximum receiving sensitivity：-95dBm

 Motion detection

 Onboard integrated transmit and receive antennas

Application Scenarios

 Smart home

 Smart lighting

 Smart home appliances

 Smart security

Input parameters

Output Parameters
