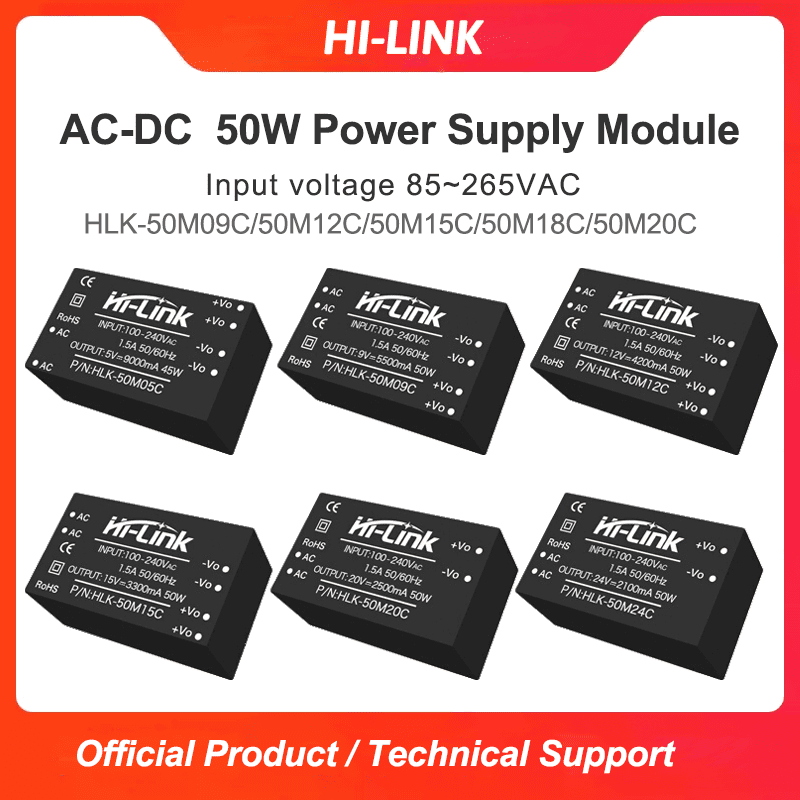

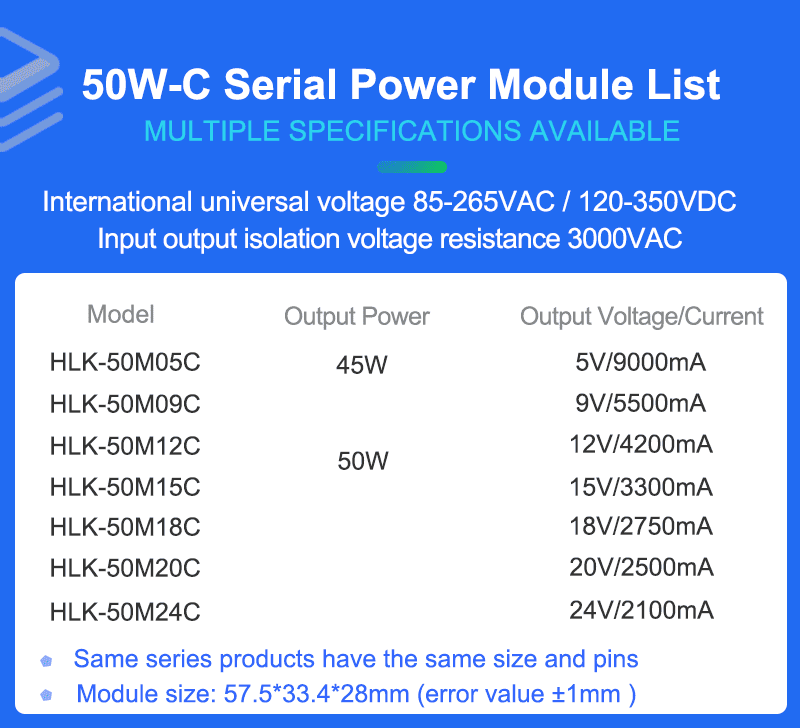

Ultra small and the smallest volume in the industry in terms of homogeneity
Global universal input voltage (100~240Vac)
Low power consumption, green environmental protection, no-load loss<0.21W
Low ripple, low noise
Good output short circuit and overcurrent protection with self recovery capability
High efficiency and high power density
Input/output isolation withstand voltage 3000Vac
100% full load aging and testing
High reliability, long-life design, continuous working time greater than 100000 hours 9
Meet UL, CCC, and CE requirements; Product design meets EMC and safety testing requirements
Adopting high-quality environmentally friendly waterproof thermal conductive adhesive for sealing, moisture-proof and vibration proof, meeting the IP65 standard for waterproof and dustproof
Economic solutions with high cost-effectiveness
Can work without external circuits

Environment Condition

Project name	Technical standard	Unit	Remark
Working Temerature	-25—+60	℃
Storage temperature	-40—+80	℃
Relative humidity	5—95	%
Thermal methods	Natural cooling
Atmospheric pressure	80—106	Kpa
Altitude	≤2000	m
Vibration coefficient	10~500Hz,2G10min./1cycle, 60min.each along X,Y,Z axes		Meets requirements for secondary road transportation

Input Features( test at room temperature)

Output Features(9V/5500mA)

Project name	Technical requirement	Unit	Remark
No load rated output voltage	9+0.3	vdc
Full-load rated output voltage	9±0.3	vdc
Short term maximum output current	≥5500	mA
Output current	5500	mA
Voltage regulation	士0.2	%
Load Regulation	士0.5	%
Input low voltage efficiency	Vin=115Vac， Output full load>90	%
Input high voltage efficiency	Vin=230Vac，output full load>90	%
Output ripple and noise (mVp-p)	≤100 Rated input voltage, output at full load. Use a 20MHz bandwidth oscilloscope to test the load end with 47uF and 0.1uF capacitors.	mV
Output over-current protection	Output 130-180% of maximum load	A
Short Circuit Protection	Short circuit directly during normal output, and automatically resume normal operation after the short circuit is removed		Do not damage the entire machine

Output Features(12V/4200mA)

Project name	Technical requirement	Unit	Remark
No load rated output voltage	12+0.3	vdc
Full-load rated output voltage	12±0.3	vdc
Short term maximum output current	≥4500	mA
Output current	4200	mA
Voltage regulation	士0.2	%
Load Regulation	士0.5	%
Input low voltage efficiency	Vin=115Vac， Output full load>91	%
Input high voltage efficiency	Vin=230Vac，output full load>91	%
Output ripple and noise (mVp-p)	≤100 Rated input voltage, output at full load. Use a 20MHz bandwidth oscilloscope to test the load end with 47uF and 0.1uF capacitors.	mV
Output over-current protection	Output 130-180% of maximum load	A
Short Circuit Protection	Short circuit directly during normal output, and automatically resume normal operation after the short circuit is removed		Do not damage the entire machine

Output Features(15V/3500mA)

Project name	Technical requirement	Unit	Remark
No load rated output voltage	15+0.3	vdc
Full-load rated output voltage	15±0.3	vdc
Short term maximum output current	≥3500	mA
Output current	3300	mA
Voltage regulation	士0.2	%
Load Regulation	士0.5	%
Input low voltage efficiency	Vin=115Vac， Output full load>91	%
Input high voltage efficiency	Vin=230Vac，output full load>91	%
Output ripple and noise (mVp-p)	≤100 Rated input voltage, output at full load. Use a 20MHz bandwidth oscilloscope to test the load end with 47uF and 0.1uF capacitors.	mV
Output over-current protection	Output 130-180% of maximum load	A
Short Circuit Protection	Short circuit directly during normal output, and automatically resume normal operation after the short circuit is removed		Do not damage the entire machine

Output Features(24V/2100mA)

Project name	Technical requirement	Unit	Remark
No load rated output voltage	24+0.3	vdc
Full-load rated output voltage	18±0.4	vdc
Short term maximum output current	≥2200	mA
Output current	2100	mA
Voltage regulation	士0.2	%
Load Regulation	士0.5	%
Input low voltage efficiency	Vin=115Vac， Output full load>91	%
Input high voltage efficiency	Vin=230Vac，output full load>91	%
Output ripple and noise (mVp-p)	≤100 Rated input voltage, output at full load. Use a 20MHz bandwidth oscilloscope to test the load end with 47uF and 0.1uF capacitors.	mV
Output over-current protection	Output 130-180% of maximum load	A
Short Circuit Protection	Short circuit directly during normal output, and automatically resume normal operation after the short circuit is removed		Do not damage the entire machine

Input Voltage & Load Characteristics

Working Environment Temperature & Load Characteristics

5W environment temperature

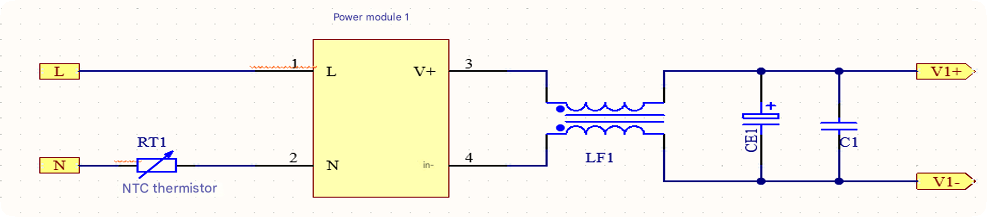

Typical Application Circuit

EMC

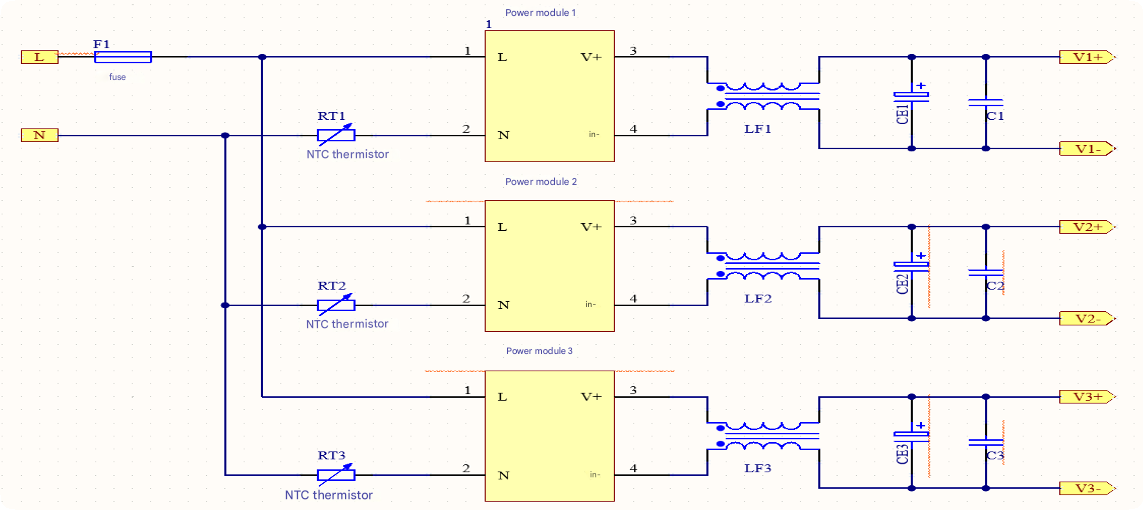

Multi Channel Application Circuit

Parameter Recommendation

F1/Fuse:1A/250Vac or 10Ω wire wound resistor, slow fuse

MOV1/Varistor:10D561K(The cumulative surge is to protect the module from damage)

C1/Safety capacitance: 0.1uF/275VAC(Filtering/safety protection/EMC certification)

L1/Common-mode inductance:Sensible value 10-30mH(testing requirements 1KHZ/0.3V current:100-500mA). EMI filtering

Safety Characteristics

Meet UL/CE requirements(UL/CE certification requires customers to self-certify)

Safe compatible with battery

The input end design adopts UL certification 1A insurance

The fire ration of PCB board is 94-V0

Safety standards comply with UL1012,EN60950,UL60950

Insulation voltage I/P-O/P＞2500Vac

Insulation resistance I/P-O/P＞100M 0hms/500Vdc 25℃ 70%RH

Conforms to radiation EN55011, EN55022(CISPR22)

Electrostatic discharge IEC/EN 61000-4--2 level4 8KV/15KV
