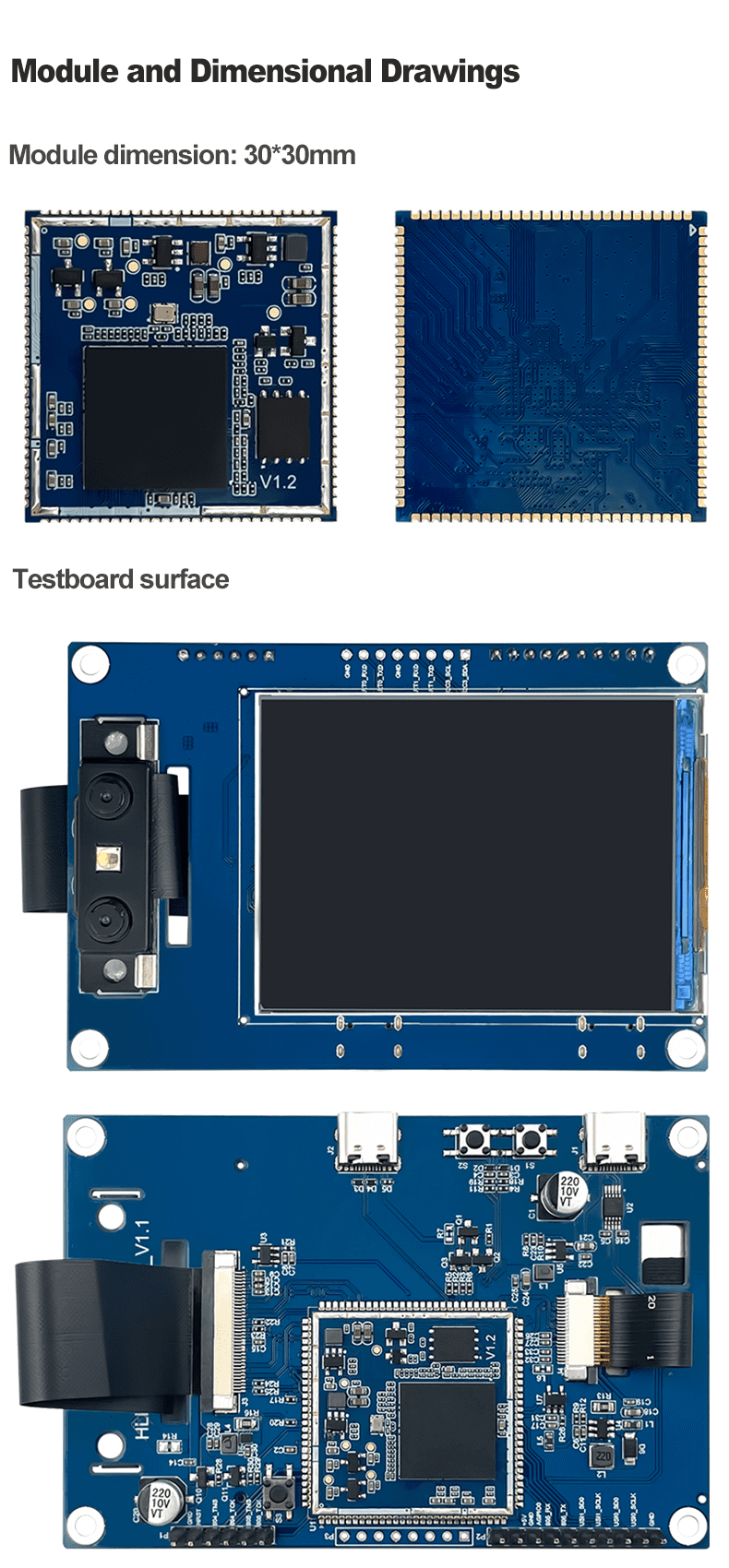

AI face recognition module 3D binocular camera live detection and discrimination serial communication HLK-TX510

  • Visitor
    383
  • Buycount:
  • Price
    $10.58

Product Introduction

HLK-TX510 is a module developed based on artificial intelligence chip TX510, which has AI computing power 1.2T@8bit / 9.6T@binary , supports mixed precision, can quickly detect faces, supports 3D live detection, 3D face recognition, infrared live detection, visible Optical live detection can resist two-dimensional attacks such as photos and videos, and three-dimensional attacks such as masks. It has a high recognition success rate and can be widely used. It is applied to smart door lock, smart access control, financial payment and other industries.


Product Feature

  • 5V/1A power input

  • Simple module and small volume

  • RISC32 core, CK804 as the main controller and CK805 as the auxiliary controller

  • Support the main frequency up to 400Mhz

  • Fast startup and comparison

  • Support 1000 face databases, and the comparison time is less than 1 second

  • Infrared fill light+infrared sensor, supporting dark environment comparison


Technical specification

ModuleModelHLK-TX510
Wireless parameterspackageSMT
CPUTX510
Neural network 1TOPS AI
RAM64M Byte
FLASH16M
Operation systemRTOS
Hardware parametersStarting time<1000mS
Recognition time<600mS
Face database
1000
InterfacesUART, USB. MIPI.12C
Power dissipation
Working voltage5V
Serial port parametersBaud rate115200
Working temperature<90%


Electric parameters

ParameterMinTypleMaxUnit
Power voltage
4.555.5V
Average power dissipation
250310500mA
Power current requirements

≥800
mA
