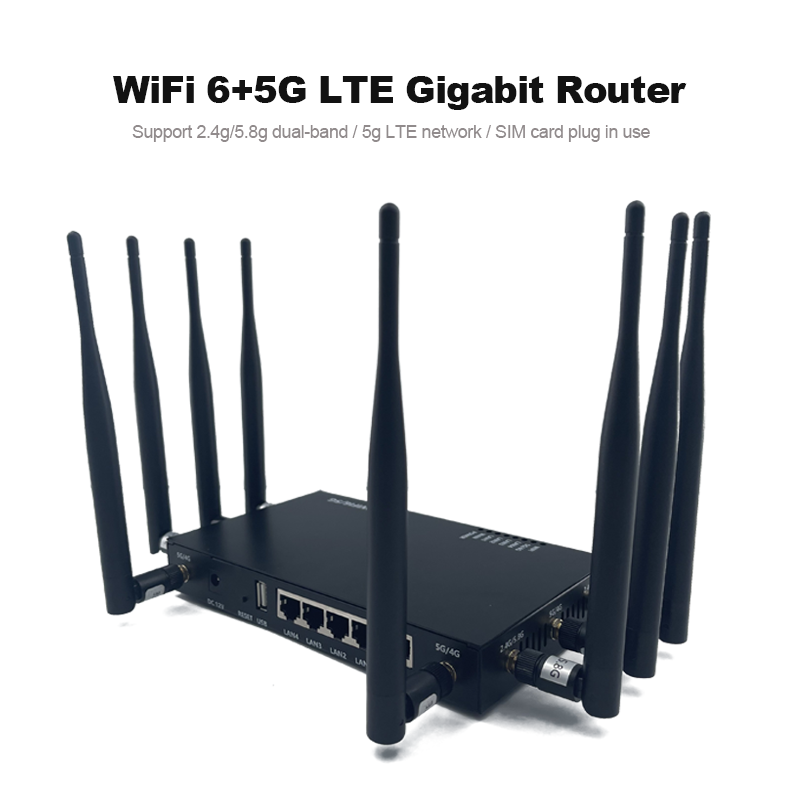

  • j

Hi-Link HLK-GD11 WiFi 6+5G LTE Gigabit Router with M.2 Interface 256MB DDR3/ 16MB Flash

  • Visitor
    384
  • Buycount:
  • Price
    $412.58

HLK-GD11 is a high-performance WiFi 6+5G router developed by Hi-Link electronics. It uses RM60 module, supports dual band WiFi 6, 5G module with M.2 interface, 12VDC power supply, 1 Gigabit Wan and 4 Gigabit LANs. Providing users with wireless long-distance data transmission services and routing functions.

HLK-GD11-2


Features

* IEEE 802.11 a/b/g/n/ac/ax wireless protocol

* Dual core 880mhzcpu, 256MB DDR3, 16MB flash

* Supports 20/40MHz bandwidth and 5G 20/40/80MHz in the 2.4GHz Band

* Supports 2.4g/ 5.8 GHz band,with data rate up to574+1201Mbps

* 2×2 MU-MIMO

* Bulit in TCP/IP protocol stack

* Supports wireless upgrade (OTA)

* 12V DC power supply



Simple Sepcifications:

Main chipset: RM60module-MT7621AT+MT7905DAN+MT7975DN

Main Frequency: 880MHz

RAM: DDR3 256MB

Flash: 16MB

Temperature: Ambient temperature: -20~50C, Storage:-40℃~70℃

Humidity: 5~95%(non-condensing)

Size: 186mm*110mm*31mm (without antenna)

Parameters

WIFI part

Wireless standards

IEEE 802.11a/b/g/n/ac/ax


frequency range

2.412-2.484GHz

5.150-5.850GHz


2.4G

RF parameters

11b 11MTX23±1.5dBm

11g 54MTX20±1.5dBm

11n HT20 MCS7TX19±1.5dBm

11n HT40 MCS7TX19±1.5dBm

11ac VHT20 MCS8TX17±1.5dBm

11ac VHT40 MCS9TX17±1.5dBm

11ax HESU20 MCS11TX16.5±1.5dBm

11ax HESU40 MCS11TX16.5±1.5dBm


5.8G

RF parameters

11a 54MTX 18±1.5dBm

11n HT20 MCS7TX 18±1.5dBm

11n HT40 MCS7TX 18±1.5dBm

11ac VHT20 MCS8TX 17±1.5dBm

11ac VHT40 MCS9TX 16.5±1.5dBm

11ac VHT80 MCS9TX 16.5±1.5dBm

11ax HESU20 MCS11TX 15±1.5dBm

11ax HESU40 MCS11TX 15±1.5dBm

11ax HESU80 MCS11TX 15±1.5dBm


Number of

channels

2.4G:1-11

5.8G:36-165


Antenna type

omnidirectional rod antenna, gain 6dbi

(2.4G/5.8G dual-frequency antenna * 4)

5G part

Module interface

M.2 Interface


5G frequency

range

N28/N41/N78/N79

2G/3G/4G/5G Full netcom


Module support

list

Quectel RM500U, RM500Q(Qualcomm)

Fibocom FM650(Unisoc)


Antenna Type

Fully directional rod antenna with gain 6dbi

(5G LTE full netcom antenna * 4)

Software

parameters

Working mode

Router, Repeate, AP, Client, Bridge


Wireless security

Wireless MAC address filtering, WPA-PSK, WPA2-PSK, WPA3 wireless

encryption


Firmware upgrade

Web upgrade


Networking

protocol

IPv4, TCP/UDP


User configuration

Web configuration

Electrical

parameters

Power supply

interface size

DC5.5*2.1mm


power

requirement

DC12V/1.5A

Other ports

Internet access

1 Gigabit WAN port + 4 Gigabit LAN port


USB

1 USB2.0 Port


SIM card

1 card slot(Nano SIM)


TF card

1 TF card slot


Key

1 reset button


Antenna interface

2.4G/5.8G WiFi:SMA External screw inner needle *4

2G/3G/4G/5G netword :SMA External screw inner hole*4

Interface reference

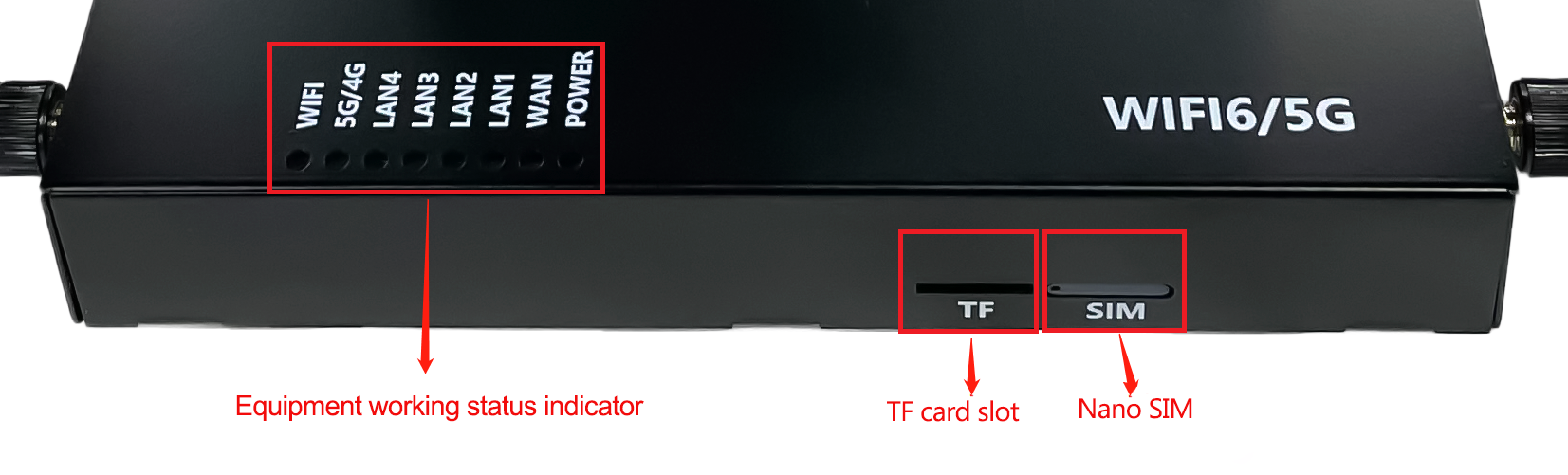

* Front interface

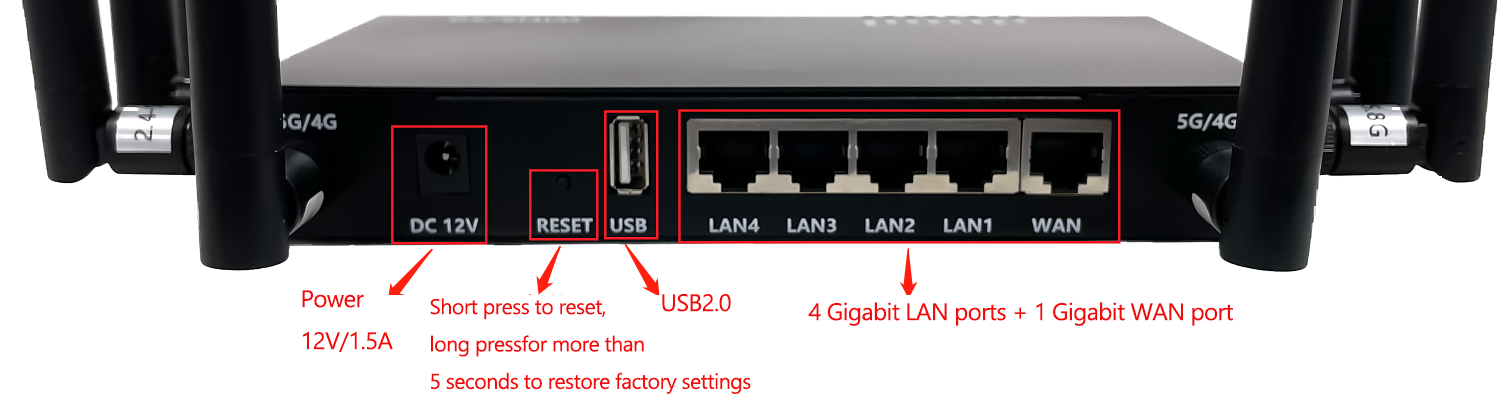

* Back interface

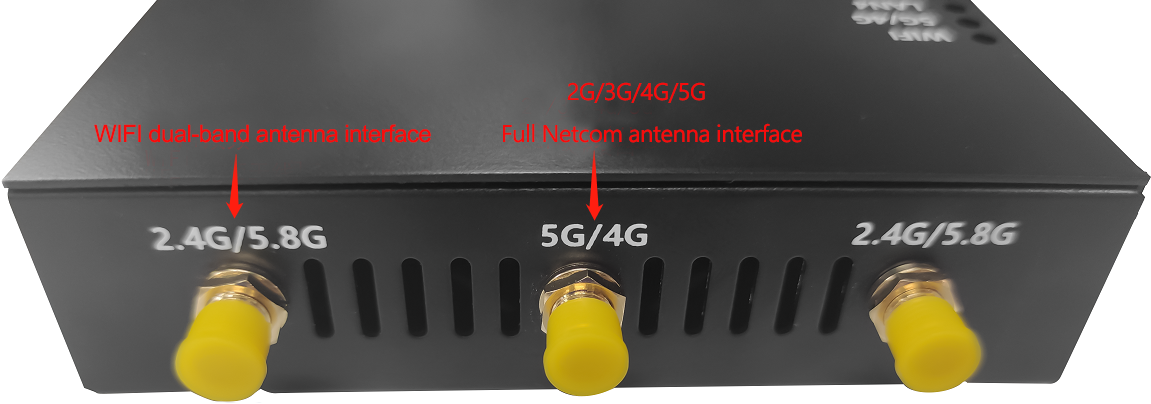

* Antenna interface

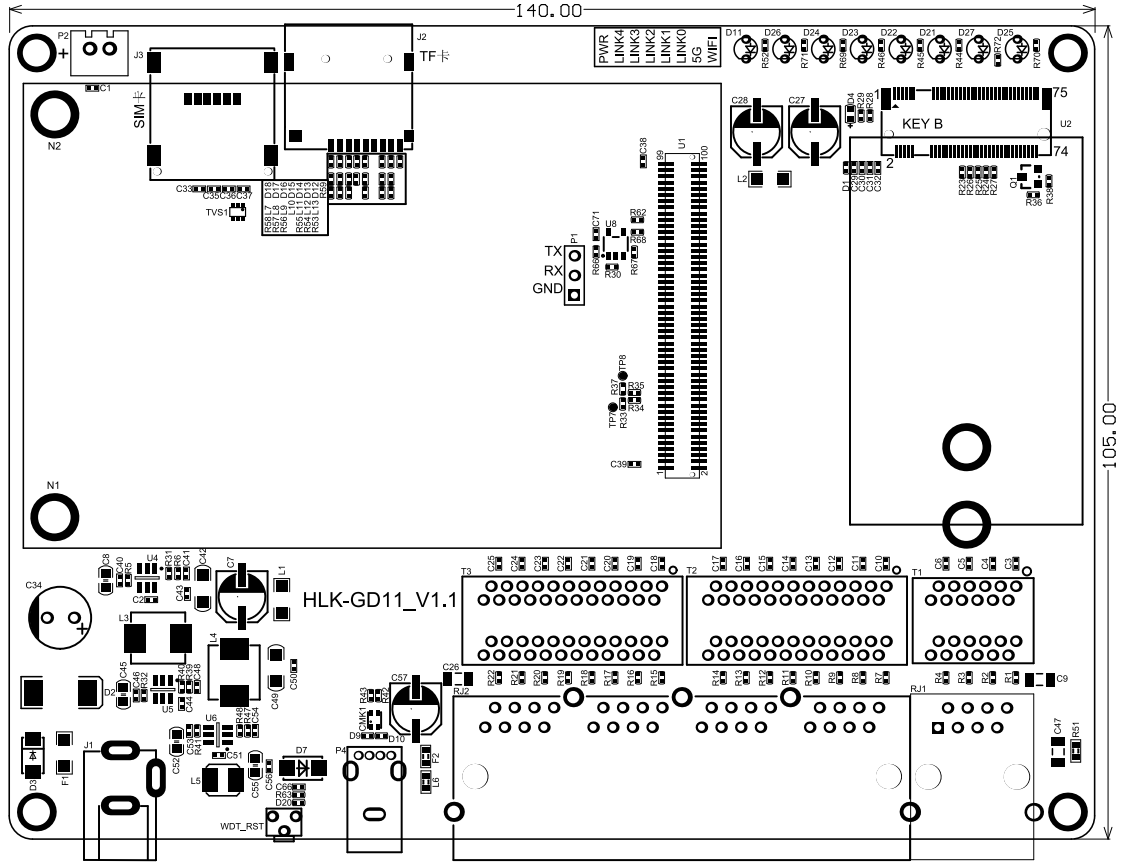

Module size and FAQ
