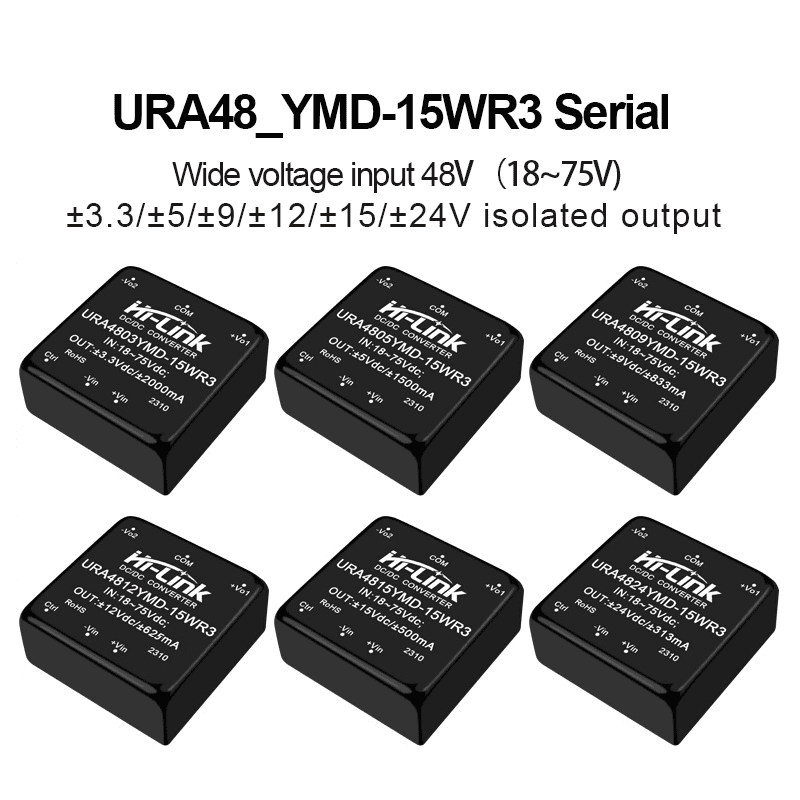

URA4805YMD-15WR3 URA4812YMD/ URA4824YMD DC-DC isolated dual output 48V to 5v/12v/15v/24v power converter module

  • Visitor
    5455
  • Buycount:
  • Price
    $6.87

产品型号 拷贝


Product Feature

1. Ultra wide range input (4:1), output 15W

2. Conversion efficiency 91%(Typ)

3. Isolation voltage: 1500VDC

4. Ultra low standby power consumption: 0.036W (typical)

5. Ultra fast start: 1mS (typical)

6. Operating temperature range :-40°C~+85°C

7. Output protection: short circuit protection, over current protection, over voltage protection

8. Metal case, low output ripple

9. International standard pin, PCB board in-line installation


Enviroment Condition

Project nameQualificationUnitNotes
Working enviroment temperature-40—+85
Storage temperture-40—+125 ℃
Relative humidity5—95%
Heat dissipation modenatural cooling

Atmospheric pressure80—106 KpaKpa
Vibrate10-55Hz,10G,30Min.alongx,YandZ


Input Characteristics

ItemWorking conditionsMin.Typ.Max.Unit

Input current

(full load/no load)

24VDC Input Series3.3V-625/30640/50mA
5V-694/30710/50
12V-694/69710/35
15V-687/69703/15
24V-687/10703/20
±5V-718/25735/35
±12V-686/1.5702/2
±15V-686/1.5702/2
±24V-


48VDC Input Series3.3V-313/15320/30
5V-348/15356/30
12V-344/3352/11
15V-344/3352/11
24V-344/4352/11
±5V-359/1368/1.5
±12V-343/1351/1.5
±15V-343/1351/1.5
±24V-343/1351/1.5
Reflection ripple currentRated input voltage-30-mA

Impulse voltage

(lsec.max)

24VDC Input Series
-0.7--50







VDC



48VDC Input Series
-0.7--100
Start Voltage24VDC Input Series
--9
48VDC Input Series
--18

Input undervoltage protection

24VDC Input Series
5.56.5-
48VDC Input Series
1215.5-
Input filter type
PI type
Hot plugged
Non-support



Output Characteristics

Project nameWorking and testing condition+Vo1-Vo2


Min.Typ.Max.Min.Typ.Max.
Output load load percentage0%-100%0%-100%

Output voltage accuracy


-±1.0%±2.0%-±2.0%±3.0%

Linear adjustment rate

input voltage range-

±0.2%

±0.5%-±1.5%±2%

Load adjustment rate

20%-100% rated load, balanced load-±0.5%±1.0%-±4.0%±5.0%
Ripple & NoisePure resistive load,20MHz broadband, peak to peak, 5%-100% load
-50mVp-p80mVp-p-50mVp-p80mVp-p
Start time delay

-1ms--1ms-
Input vlotage adjustmentinput voltage range-no adjustment--no adjustment -
Dynamic response step deviation

25% nominal load step

-±3.0%±5.0%-±3.0%±5.0%

Dynamic response recovery time

-300μs500μs-300μs500μs
Output overvoltage protection
full voltage input range110%Vo-160%Vo


Output overcurrent protectionfull voltage input range110%lo150%lo200%lo


Output short circuit protectionfull voltage input range

sustainable, self-recovery











Note:

(1) For product model with output voltage ±5VDC or ±9VDC , the maximum output voltage accuracy is ±5% under 0% - 5% load condition

(2) When tested according to the 0%-00% load working condition, the load adjustment rate is ±5%

(3) 0%-5% load ripple & noise less than or equal to 5% Vo. Ripple and noise test method, Twisted pair test method, can add capacitive load at the output to reduce light load ripple


Typical Application Circuits


EMC parameter recommendation


Component No.24V input48V input
FuseFollow up on customer needs and connect corresponding fuses
MOV1/Varistor14D560K14D101K
ldm1/Common mode inductance10mH15mH
CO,C1 Ceramic capacitors1uF/50V1uF/100V
E1,E2 Electrolytic capacitor100uF/50V100uF/100V
LDM2/Differential mode inductance1nF/250Vac

Notes:

* Fuses and varistors are basic parts of protection circuits (required).

* If the certification is required, the safety capacitor and common mode inductance cannot be omitted.


Output filtering

QQ_1727169617223

For usual requirements of ripple and noise, the peripheral recommendation is only C2; For strict requirements of ripple and noise, the above circuit is recommended. Notes:

(1) C2, C3 use high frequency low resistance electrolytic capacitor, and the total capacity can not exceed the maximum capacitive load indicated in the manual, otherwise the module will not start normally. (2) When the capacitive load is used, the minimum load of 3% must be guaranteed, otherwise the module output will be abnormal.


Component No.3.3V output±5V or 5V output

±9/±12V or 9V/1V

 output

±15 or 15V output±24 or 24V output

LDM3/Common mode inductance0.47uH1uH2.2uH2.2uH4.7uH
LDM4/Common mode inductance0.47uH1uH2.2uH2.2uH4.7uH
LDM5/Common mode inductance-1uH2.2uH2.2uH4.7uH
C2,C3 Electrolytic capacitor220uF220uF100uF100uF68uF
C5,C6 Electrolytic capacitor220uF220uF100uF100uF68uF
C4 Ceramic capacitors1uF/50V

Dimension and Weight

dimension 拷贝


Single(S)123456
-VIN+VIN+VONPGNDCTRL
Input negativeInput positiveOutput positive----Output positiveremote terminal

Dual(D)
-VIN+VIN+VO1COM-VO2CTRL
Input negativeInput positiveOutput positivecommon terminal
output negative2remote terminal
