Product Description

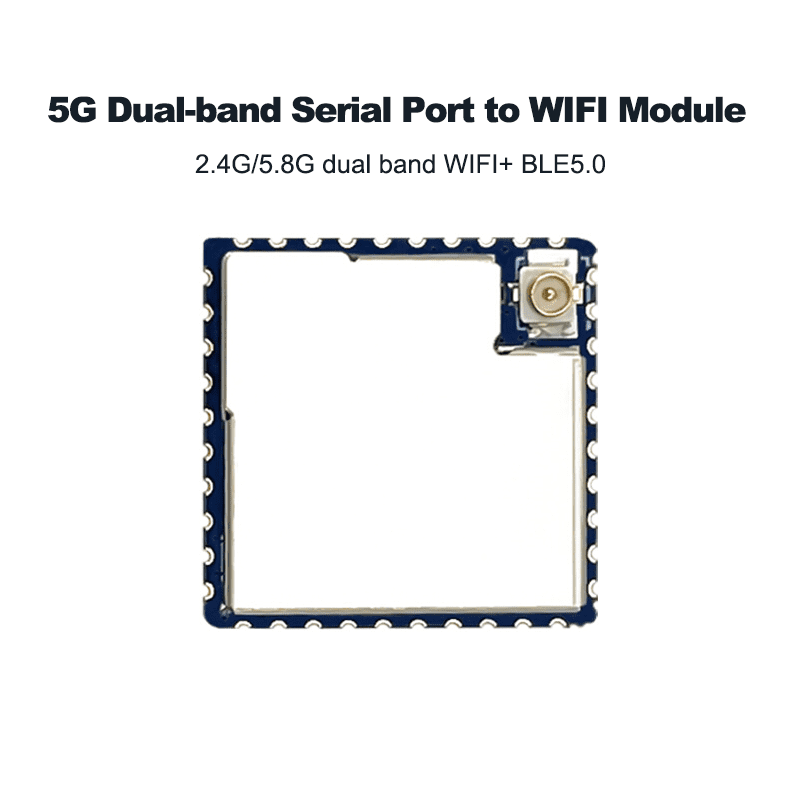

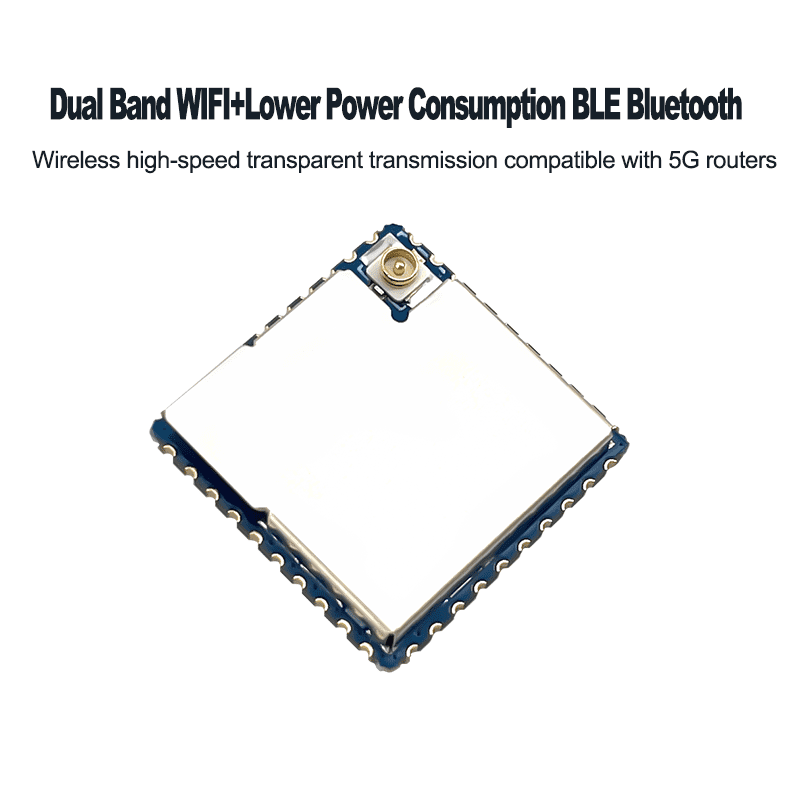

HLK-RM58N is a low-cost embedded UART WIFI (Serial Wireless Network) module launched by Hi-link Electronics. This product is based on an embedded module that complies with network standards through a serial interface, embedded with the TCP/IP protocol stack, and capable of converting between user serial port and wireless network (WIFI).

Through the HLK-RM58N module, traditional serial devices can transmit their data over the Internet network without changing any configuration, providing a complete and fast solution for users' serial devices to transmit data over the network.


Product Feature

  • Compatible with IEEE 802.11 a/b/g/n

  • Dedicated high-performance Cortex-M33

  • Supports 20 MHz and 40 MHz bandwidth in the 2.4 GHz frequency band

  • Single frequency 1T1R mode, with a data rate of up to 150Mbps

  • Supports 2.4g/5.8 GHz frequency band, dual band 1T1R

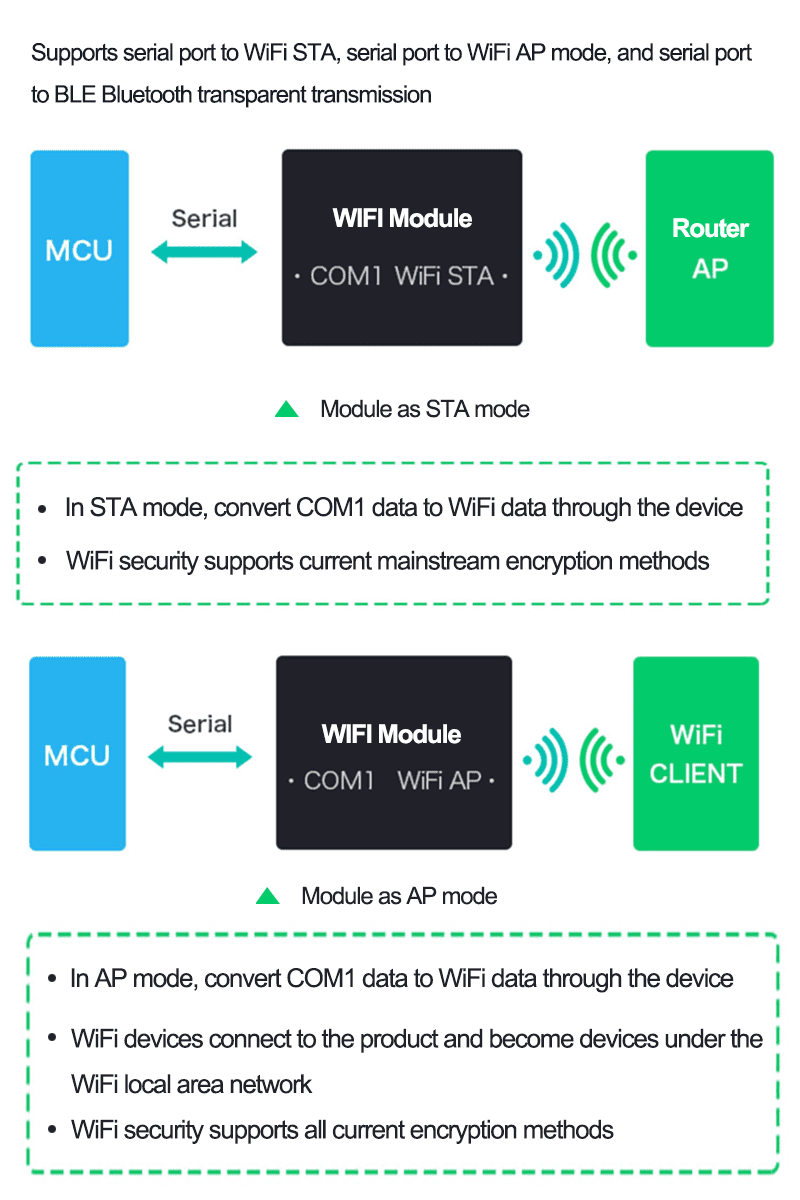

  • Supports two working modes: STA/AP

  • Built in TCP/IP protocol stack

  • Support rich AT instructions

  • Supports Bluetooth BLE5.0

  • Support wireless upgrade (OTA)

  • 3.3V single power supply with low power consumption

  • Fast serial port transmission speed


Technical specification

ModuleModeHLK-RM58N
Wireless parametersPackagingSMT
Wireless standardIEEE 802.11 a/b/g/n
Frequency range2.412GHz-2.484GHz 5.180GHz-5.825GHz
Transmission power802.11b: +16 +/-2dBm (@11Mbps)
802.11g: +14 +/-2dBm (@54Mbps)
802.11n: +13 +/-2dBm (@HT20,HT40- MCS7)
802.11a: +15 +/-2dBm (@HT40,MCS7)
Receiving sensitivity802.11b: -88.4 dBm (@11Mbps ,CCK)
802.11g: -75.7dBm (@54Mbps, OFDM)
802.11n: -73.6dBm (@HT20, MCS7)
802.11a: -75.0 dBm (@MCS7)
Antenna formExternal: SMT pads
External: I-PEX first generation connector
Built in: No built-in antenna
Hardware parameters
Hardware interfaceUART,GPIO
Operation power3.3V
GPIO Driving CapabilityMax:16ma

Working current

Continuous transmission=>Average:~151mA, Peak: 200mA

Under normal mode=>Average:~130mA, Peak: 180mA

Temperature

Working temperature: -20 ℃~+85 ℃

Storage temperature: Temperature:<125 ℃, relative humidity:<90% R.H

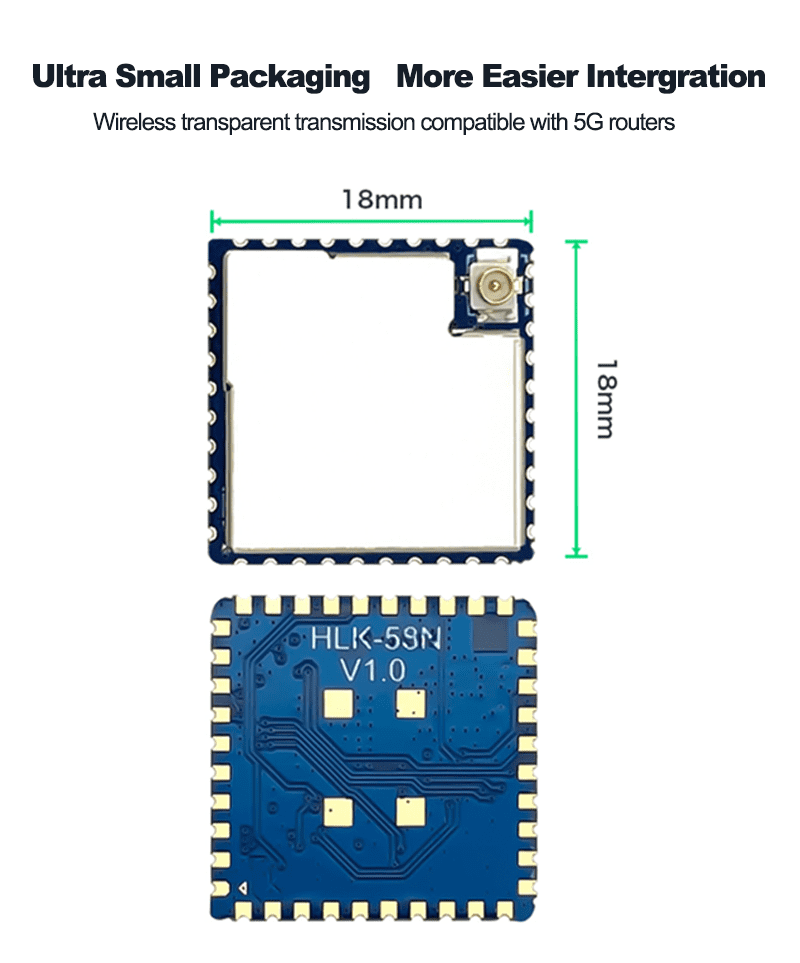

Size18mm * 18mm * 2.4mm
Serial port transparent transmissionTransmission speed 110-921600bps
TCP Client1
Software parametersWireless network typeSTA/AP
Security mechanismWEP/WPA-PSK/WPA2-PSK
Encryption typeWEP64/WEP128/TKIP/AES
Firmware upgradeWirelss upgrade, serial port upgrade
Network protocolIPv4, TCP/UDP
User configurationAT+instruction set,web configuration

Working voltage

ParametersMinTypical
Max
Unit
Input voltage3.13.33.5V
I/O voltage
3.3
V
No-load operation currency
150
mA
Module avarage power consumption
495
mW
Module current peak
200
mA
Power supply current requirement
≥500
mA
Power supply ripple requirement
≤50
mV
