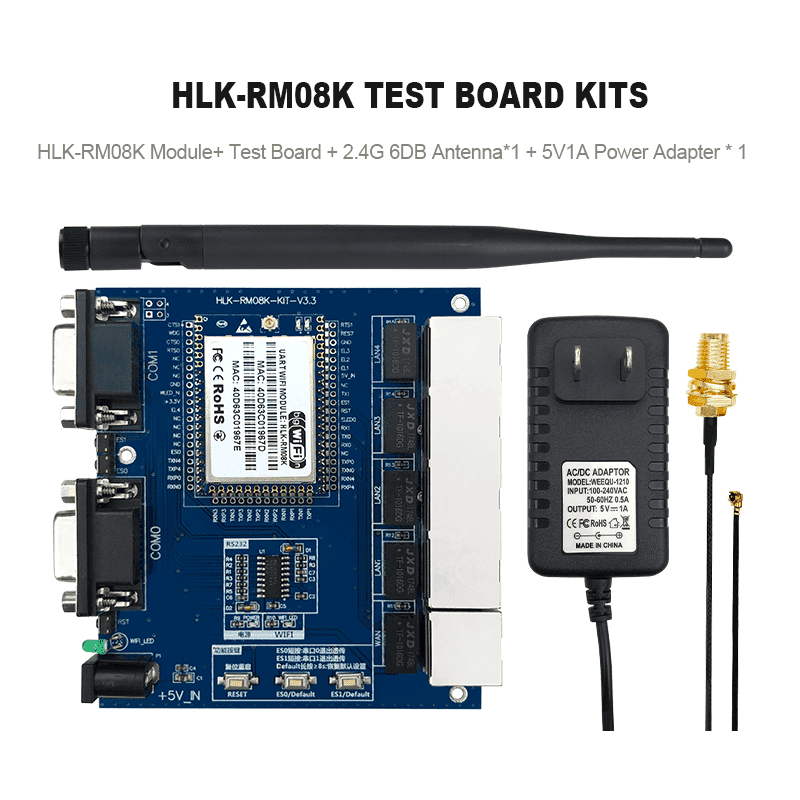

MT7688K low-cost embedded UART-ETH-WIFI module 5*network ports 2*serial ports communication WIFI module HLK-RM08K development board

  • Visitor
    67255
  • Buycount:
  • Price
    $14.85

RM08K-3


Download Files

HLK-RM65: https://drive.google.com/drive/folders/156pIBs0rKDvnFZNoD0uBIjzKKSTZeYaU

HLK-7688A: https://drive.google.com/drive/folders/1fNV08Eu1_OCQUpqZ8By9CD68w4Ibh8fZ

HLK-RM60: https://drive.google.com/drive/folders/1WrerOCwMmxqeHFxjGQFIHfmw9LDR2teG

HLK-RM58S: https://drive.google.com/file/d/1tQjHtr3GOKEMJGjtrWmpxgh-OA4UBCMv/view

HLK-RM08S: https://drive.google.com/file/d/1vnyq0m8AySX9s-Hb3LmcJV_DQZnyrRrD/view

HLK-RM08K: https://drive.google.com/file/d/1vnyq0m8AySX9s-Hb3LmcJV_DQZnyrRrD/view

HLK-GD01: https://drive.google.com/drive/folders/1Y-xBwPyz2IDlPkSSQYoxwO6WWQ1s9bRo

HK-7628N: https://drive.google.com/drive/folders/1Z8-RLZVs9jjOHwORsGWpotGak7IFOwQo

HLK-7621: https://drive.google.com/drive/folders/14MdhLn9S1d7RK7_obvcoT2zCo8x5EadU

HLK-RM65: https://drive.google.com/drive/folders/156pIBs0rKDvnFZNoD0uBIjzKKSTZeYaU

HLK-7688A: https://drive.google.com/drive/folders/1fNV08Eu1_OCQUpqZ8By9CD68w4Ibh8fZ

HLK-RM60: https://drive.google.com/drive/folders/1WrerOCwMmxqeHFxjGQFIHfmw9LDR2teG

HLK-RM58S: https://drive.google.com/file/d/1tQjHtr3GOKEMJGjtrWmpxgh-OA4UBCMv/view

HLK-RM08S: https://drive.google.com/file/d/1vnyq0m8AySX9s-Hb3LmcJV_DQZnyrRrD/view

HLK-RM08K: https://drive.google.com/file/d/1vnyq0m8AySX9s-Hb3LmcJV_DQZnyrRrD/view

HLK-GD01: https://drive.google.com/drive/folders/1Y-xBwPyz2IDlPkSSQYoxwO6WWQ1s9bRo

HK-7628N: https://drive.google.com/drive/folders/1Z8-RLZVs9jjOHwORsGWpotGak7IFOwQo

HLK-7621: https://drive.google.com/drive/folders/14MdhLn9S1d7RK7_obvcoT2zCo8x5EadU


Brief Introduction

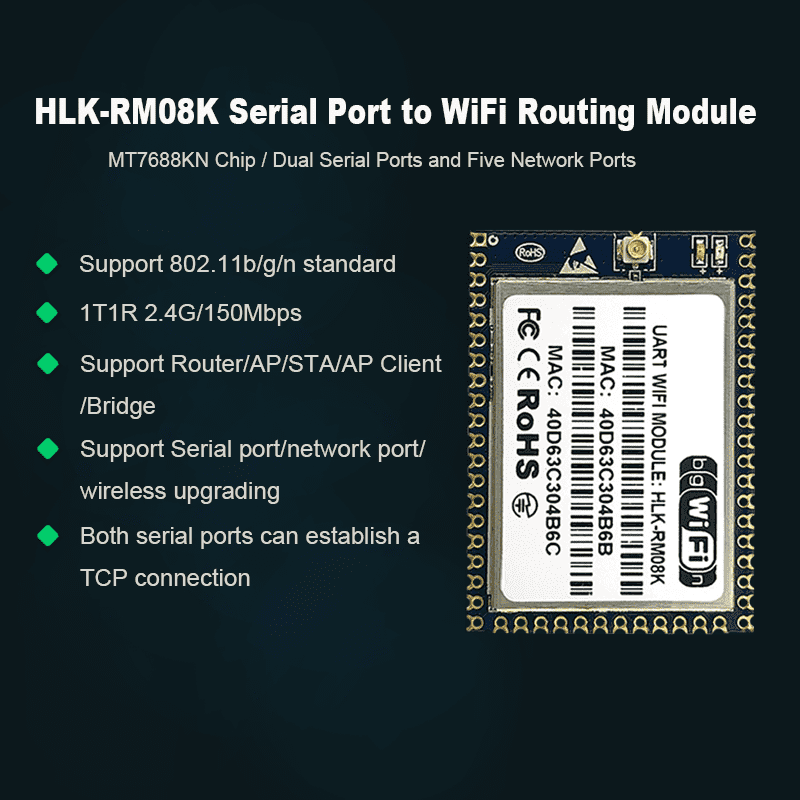

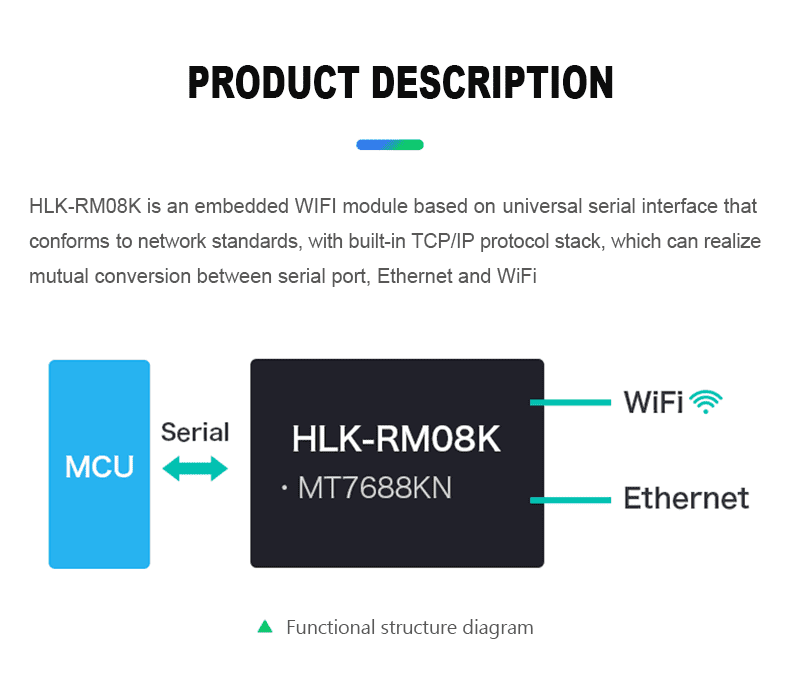

HLK-RM08K is a new low-cost embedded UART-ETH-WIFI module (serial port - Ethernet - Wireless network) developed by Shenzhen Hi-Link co., Ltd This product is an embedded module based on the universal serial interface network standard, built-in TCP / IP protocol stack, enabling the user serial port, Ethernet, wireless network (wifi) interface between the conversions. Through the HLK-RM08K module, the traditional serial devices do not need to change any configuration; data can be transmitted through the Internet network. Provide a quick solution for the user’s serial devices to transfer data via Ethernet.


RM08K-4


Technical Specifications


Network StandardWireless: IEEE802.11n/ IEEE802.11g/IEEE802.11b
Wireless: IEEE802.3/ IEEE802.3u
Wireless Transmission Rate11n:maximum up to 150Mbps
11g:maximum up to 54Mbps
11b:maximum up to 11Mbps
Tracks Number1-14
Frequency Power2.4-2.483G
Emission Range12-15DBM
Interface1WAN, 4 LAN, 2 Serial ports
Antenna
Antenna TypeEcternal Antenna(IPEX)
Functional Parameters
WIFI work modeClient/AP/Router
WDS FunctionSupport WDS wireless bridge connection
Wireless SecurityWireless MAC address filtering
Wirelss ssecurity function switch
64/128/152 bit WEP encryption
WPA-PSK/WPA2-PSK, WPA/WPA2 security mechanism
Network Management
Remote web management
Configuration file import and export
WEB software upgrade
Serial to Ethernet
Maximum  transmission230400bps
TCP connectionMax connection number >20
UDP connectionMax connection number >20
Serial band rate1200~2500000bps(2500000/n 1<=n<=65535    )
Other Parameters
Status indicatorStatus indicator
Environment standardOpearation temperature:-20-55℃

Operating  humidity:10%-90%RH(noncondensing)

Storage temperature: -40-80℃

Storage  humidity: 5%-90%RH(noncondensing)
Additional propertiesFrequency bandwidth optional: 20MHz. 40MHz. Automatic


Serial to Ethernet

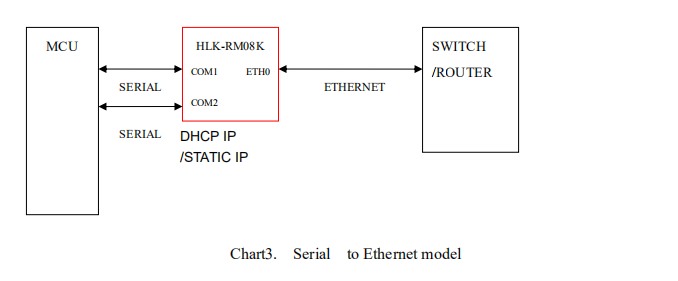

In this mode, ETH0 enable, WIFI function close. Ethernet can be configured as dynamic IP address (DHCP), can also be configured as static IP address (STATIC).



Serial to WIFI STA

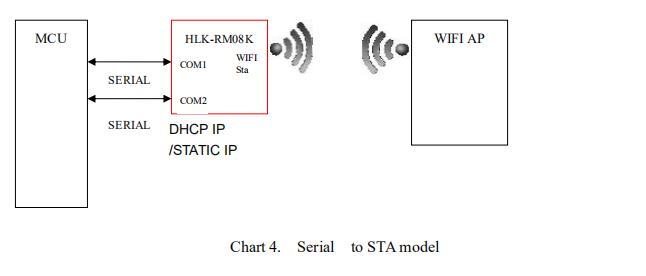

In this mode, WIFI enable, module works in the STA mode, ETH function close. WIFI STA can be configured as dynamic IP address (DHCP), can also be configured as static IP address (STATIC).


Serial to WIFI AP

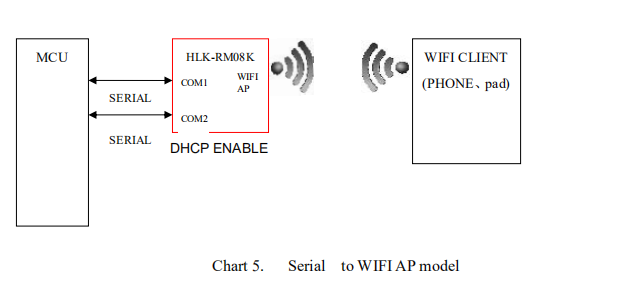

In this mode, WIFI enable, module works in the AP mode, ETH function close. In this mode, WIFI device can connect with the module and become the device under WIFI LAN.


Default mode

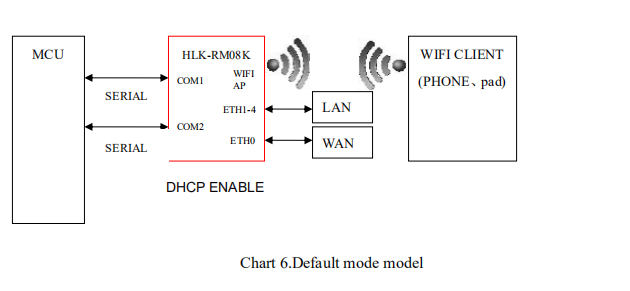

In this mode, WIFI enable, module works in the AP mode, ETH function enable. ETH0 works as WAN, ETH1-4 works as LAN. In this mode, WIFI device can connect with the module and become the device under WIFI LAN. WAN default IP is dynamic IP address. LAN, WIFI for the same local area network, enabled by default DHCP Server .
