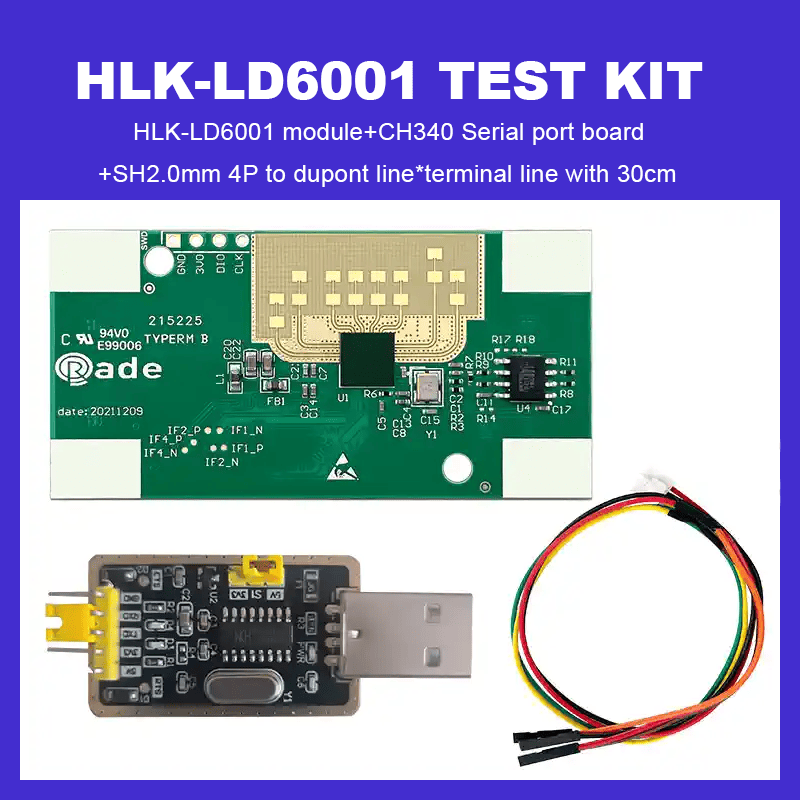

Hi-link 60G radar sensor module test board LD6001 intelligent sensing detection of human body area position, quantity statistics, and walking trajectory
-
Visitor960
-
Buycount：
-
Price$28.35
Download files:
HLK-LD2410C: https://drive.google.com/drive/folders/1ypOlacBmmFXY6lDQ0f1hEJFmczNe-0WG
HLK-LD2410B: https://drive.google.com/drive/folders/16zI-fium_BZeP08EyQke0rWp0BJTMvw3
HLK-LD2410: https://drive.google.com/drive/folders/1lCQv3mfHJ3XKXzweeHPFnJ_8_D_EWEKk
HLK-LD2410S: https://drive.google.com/drive/folders/1wC8KC-DaNavNbpeVouZ1HdiBzZ9YrAcg
HLK-LD2420: https://drive.google.com/drive/folders/1IggDH6ejNSOs8EklQbAXcqUI7KENSZLt?usp=sharing
HLK-LD2411: https://drive.google.com/drive/folders/1ZAFkDPr_BLQpmw1h6furMvg-hcByOt5z
HLK-LD101V: https://drive.google.com/drive/folders/1O8H_NBj3Bm8QCHyXO-5YvEremdVrs-EM
HLK-LD2412: https://drive.google.com/drive/folders/17TAVgH5YI_6naA24dpjnJjm2v28alRPl?usp=sharing
HLK-LD2451: https://drive.google.com/drive/folders/1Xl7lnvCAQHD2xjOfU_lpxdr0GGXO0-F6?usp=sharing
HLK-LD2461: https://drive.google.com/drive/folders/14_KgZpL4Th2LTRuq_W0X_ePjHu_Z6lcS
HLK-LD2450: https://drive.google.com/drive/folders/1kTt0Z3hjKKrIF3OCIDGdwQ4KotDJ8SGA
HLK-LD2415H: https://drive.google.com/drive/folders/1eOj3xdVOvwmmCniIhfUZZwE_R63wWeKO
HLK-LD6001: https://drive.google.com/file/d/1lJ8Q1gavV_uBjRdbdkvXneLqPl5dG83O/view?usp=sharing
HLK-LD6001A: https://drive.google.com/file/d/1FmuCOF4Ao6_-ismF7j4xBd8VGdTdG-GJ/view?usp=sharing
HLK-LD6001C: https://drive.google.com/file/d/1u00TH9nXYE_9Jml9VwZ4z0sUKFog7o3K/view?usp=sharing
HLK-LD6002C: https://drive.google.com/drive/folders/1UFBTpL7mLjvzcOgDNnifWcXyOEQX2Cx5?usp=sharing
HLK-LD6002B: https://drive.google.com/drive/folders/1ug-oR3rV8ndN-lEZMgYn8a-KIOFFdn4V?usp=sharing
HLK-LD6002: https://drive.google.com/drive/folders/1oMJYYOvhXx9uJD9SCkCsjMzLqdOg7AqR?usp=sharing
HLK-LD8001B/H, LD7901: https://drive.google.com/drive/folders/1aiIZDubSBSWa8osZvaEuoZJp1Z7ra97i
Product introduction
The LD6001 module is a 4T3R (four channel transmitter, three channel receiver) fully integrated 60GHz millimeter wave radar module. Can be used to detect the location and quantity of human body areas (up to 8 people), walking trajectories, etc.
Product parameters
| Parameters | Value | Unit | Remark |
| Working frequency range | 60 | GHz | |
| Sending voltage | 12 | dBm | |
| Modulation Type | FMCW | / | Frequency modulated continuous wave |
| Sweep frequency broadband | 4 | GHz | |
| Horizontal width of antenna beam | ±60 | ° | |
| Antenna beam elevation width | ±30 | ° | |
Detect the farthest distance | 8 | m | |
| Working voltage | 5 | V | |
| Average power consumption | 1.1 | W | |
| Working teperature | -15~70 | ℃ | |
| Dimension | 60*30 | mm | |
| Start time | 3 | s |
Installation requirement
Install the module on a vertical wall with a height of 2.2 meters, and tilt the front of the module (with the antenna facing upwards) at an angle of 10 degrees. It is generally recommended to install it according to this method for the most ideal effect, but it can also be installed slightly higher or the angle can be adjusted slightly as needed. The actual test effect shall prevail.
The schematic diagram of the target installation effect, as well as the distance, horizontal angle, and pitch angle, are shown in the following figure:
Please feel free to contact us for more detail.
