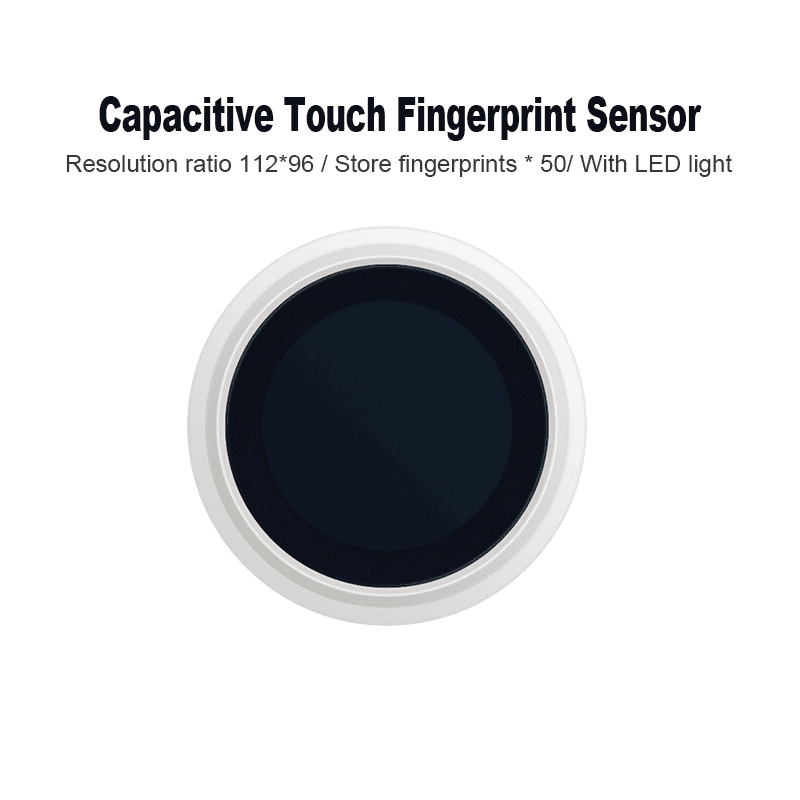

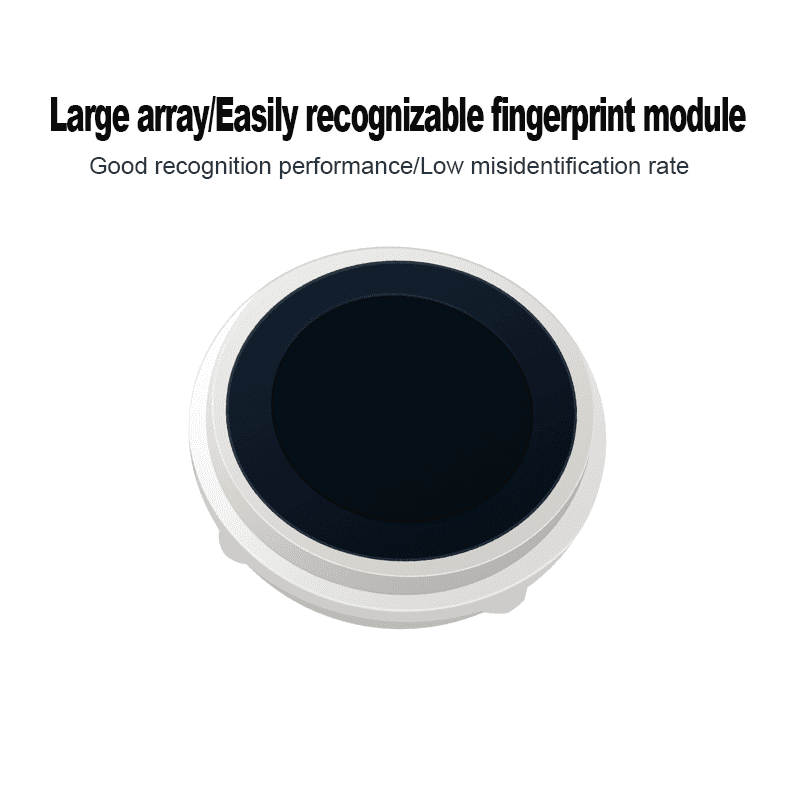

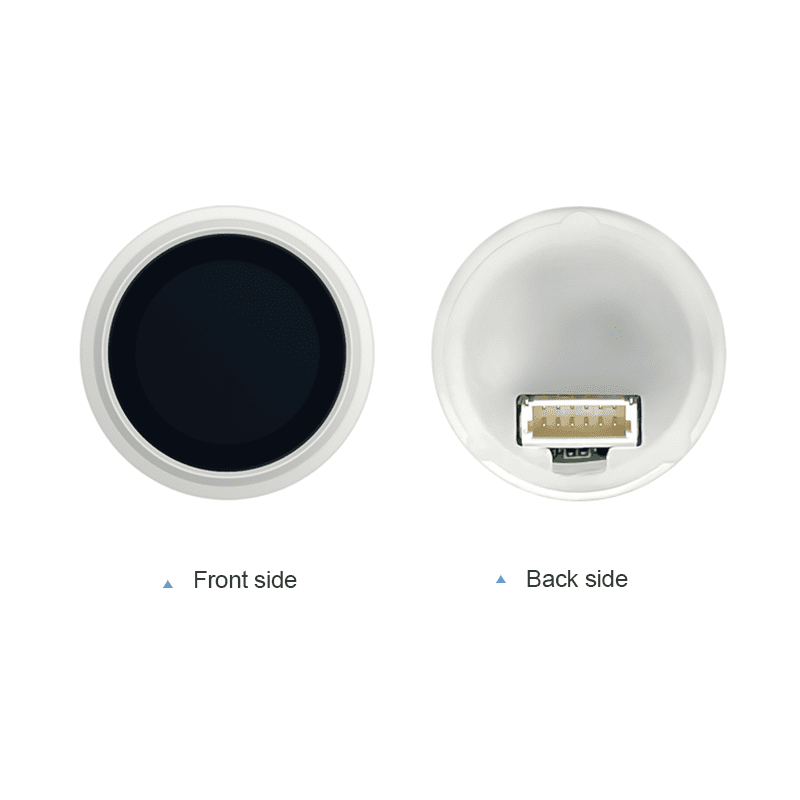

Hi-link surface array semiconductor fingerprint recognition module HLK-ZW0901 capacitive touch fingerprint sensor module

  • Visitor
    1990
  • Buycount:
  • Price
    $2.86

fingerprint module select list (2)

Download Files:

ZW0919: https://drive.google.com/drive/folders/11Hfr6bKT7IVFzgiRuf_XJhGJf0UnAFrK

ZW0906: https://drive.google.com/drive/folders/1Bf8uB-RA9bikIY9IvqDmcZD6dwdlEOwr

ZW0905: https://drive.google.com/drive/folders/1ZWkALY4HV5pF1nqXNWVdMYNIRgHB01zq

ZW0901: https://drive.google.com/drive/folders/1XtCFsMZ8JKsQx3yhjuWqhK7gvXFB9qMy

ZW0642: https://drive.google.com/drive/folders/1jXBPrjv7TLsIKRhWg4bhauMUmAHeT7RJ

ZW0623: https://drive.google.com/drive/folders/1ErDwzF-Hok0L3yVdE5GFwmbTEP8gphVJ

ZW0608: https://drive.google.com/drive/folders/1fUZlFCNMDEeryqCrYP1cqlvFcZ00cOCG

ZW111: https://drive.google.com/drive/folders/152YhI17TDGtX6wI1UvALbLdHL6ZlcsFw

ZW101: https://drive.google.com/drive/folders/1vSlF8b2zq1eI6UpXk3Jh3JKzu5nJ_RYs


ZW0901-2

Product introduction

Consumers use fingerprint recognition modules to determine user identity. When the user touches the fingerprint recognition module with his finger, the fingerprint recognition module will

scan the user's fingerprint, and the algorithm chip can obtain the fingerprint image data for registration and comparison.



Parameters

Technical indicators


ItemParameter
Storage

50 fingerprint data as standard

Sensor type                                         Capacitive touch sensor
Resolution                                                       508DPI
FRR.                                                         <3%
FAR.                                                    <0.001%
Fingerprint sensor shape

round

Image gray level                                              8-bit grayscale
Service life                                              one million times
Static electricity test                      Contact discharge ±8KV/Air discharge ±15KV

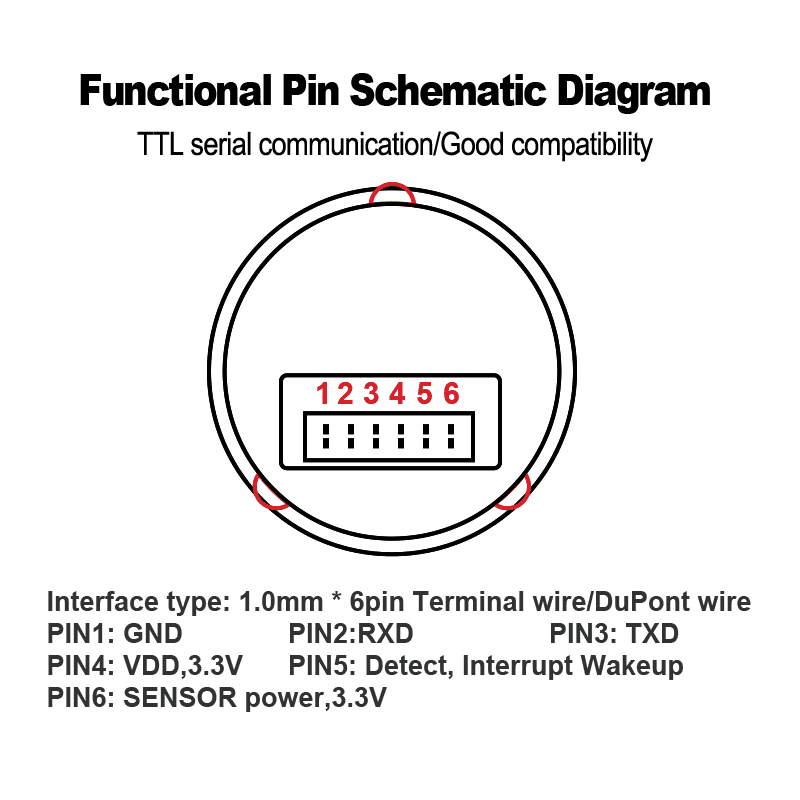

Data interface                                             UART (TTL level)
Sensor surface hardness                                                     3H
Working temperature and humidity range                                 -30℃~+70℃; 45%~85%RH
Storage temperature and humidity range                                 -40℃~+85℃; 45%~95%RH

Mechanical characteristics

Project Description Unit
Dimensions Φ12.8mm mm
Ribbon5.6*4.8mm
Resolution ratio112*96mm

Electrical parameters

ItemMin Typical Max Unit
Supply voltage3.03.3 3.6V
Standby current (sensor) -912 μA
Operating current (algorithm MCU) -25 50mA

Picture collection time

150155160
ms
Eigenvalue generation time200220250ms
Comparison time10180400ms
Power-on start time -100-ms
ESD rating

Non-contact discharg

--15KV
Contact discharge--8KV


Application-06
