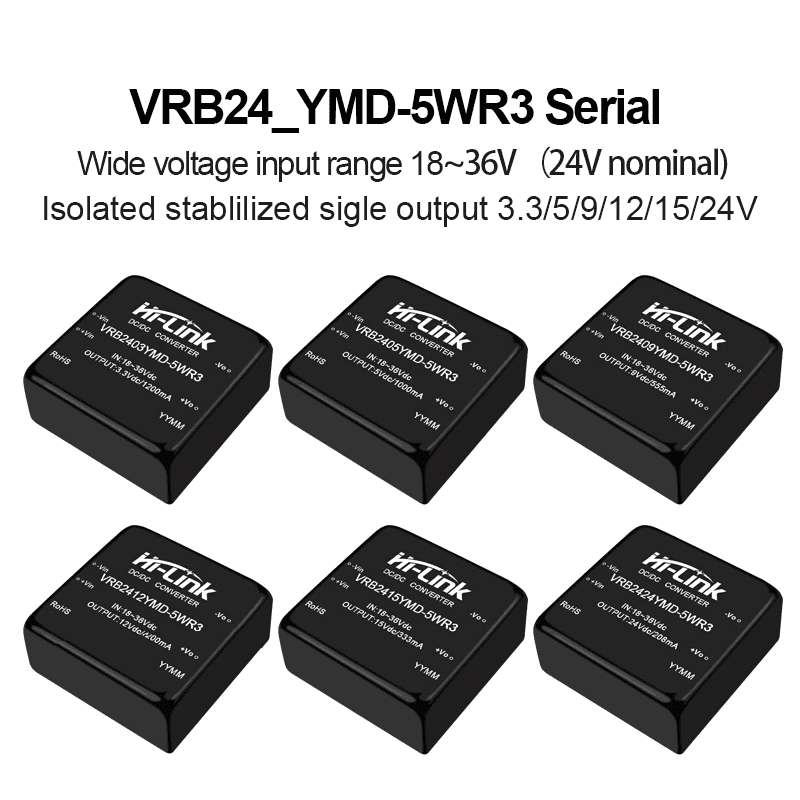

VRB2405YMD-5WR3 Power Converter VRB2403/VRB2412/VRB2415/VRB2424YMD-5WR3 DC-DC isolated stable voltage output power supply module

  • Visitor
    3455
  • Buycount:
  • Price
    $3.22

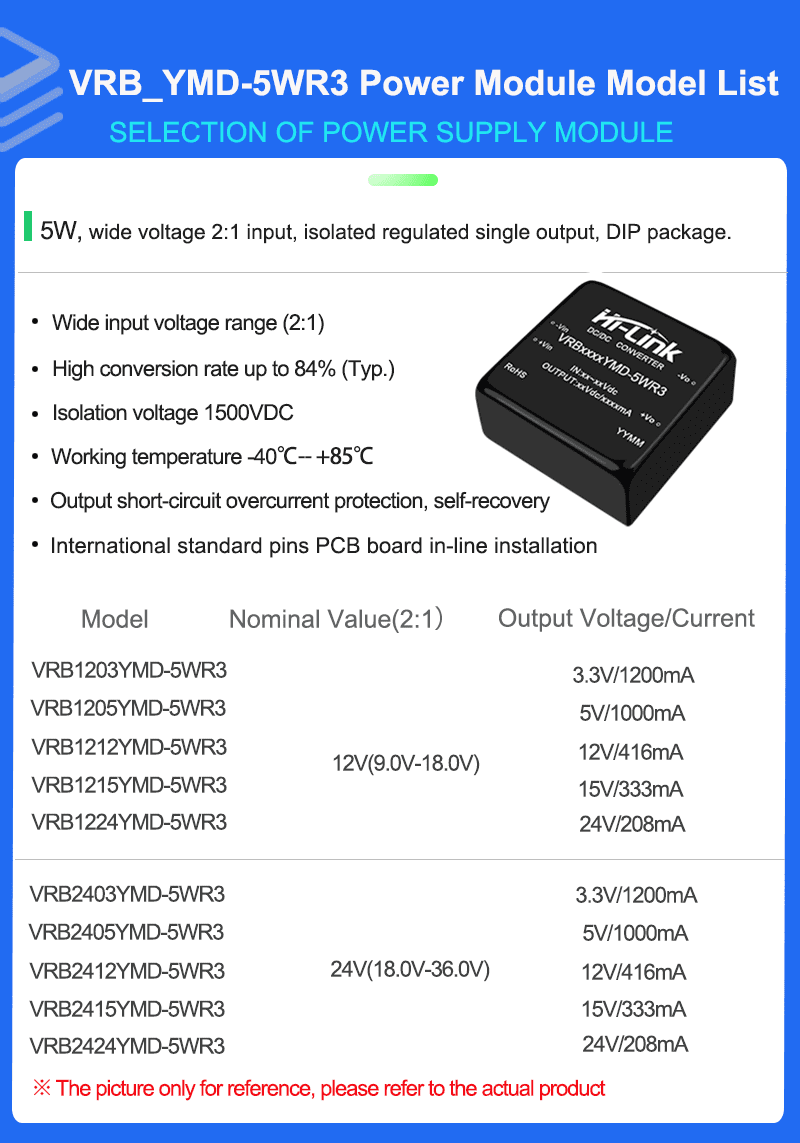

VRB24XXYMD-5W Series Mode list

Download files:

DC to DC power module:

1W: https://drive.google.com/drive/folders/1vk6luTBKSC5gfwLJC-DbyEZYVDwk87JV

2W: https://drive.google.com/drive/folders/1vjf-77LCVQl16Hcb1phADiU3Hz14mhYB

3W: https://drive.google.com/drive/folders/13pTx02uL4moskJ-PQsBYFytdq2pPt2mN

5W: https://drive.google.com/drive/folders/1okF0YdP1Xs35HxnAkTm45WOK0kH7qlb5?

6W: https://drive.google.com/drive/folders/18IOw7PyIx99lbm3u0FEhkepC82w601sw

10W: https://drive.google.com/drive/folders/1vuJp5ZoJA9Ci0M4wCS8nT689LVzgh2tC

12W: https://drive.google.com/drive/folders/1becUdxQODQ25_A_iarNnun3Vmi_wow1g

20W: https://drive.google.com/drive/folders/182aHyvoN8J0fCurg65jOkfQp17dyaXP6

30W: https://drive.google.com/drive/folders/1StP-0SJDyFpH3yQMLLQjkQXMDXc-RGeP

40W: https://drive.google.com/drive/folders/1IXRm7dueYYTNoyXCFp88wRQexmKAgCLm

B0505S-1WR2: https://drive.google.com/file/d/16BPrOWkzOz7efnf3OvF1XjClKGnO6znv/view

AC to DC power module:

40W: https://drive.google.com/drive/folders/1jI-hITgxjtByhSCpUMmrJATHO8b_gpN7

30W(C): https://drive.google.com/drive/folders/1Nz-_SdQAuVha0JM7nJTelIfophZsmUYb

20W: https://drive.google.com/drive/folders/1PlLOzt_k3Ky5THYGOWP72jqxWSkJsU6Z

15W(C): https://drive.google.com/drive/folders/1vnVfcgQH-OvujpO6asvQvjIgmwUS2Pti

10W: https://drive.google.com/drive/folders/1zaMfq4Dm3brmRWhTGp9-49c8hN5HsIuk

5W: https://drive.google.com/drive/folders/1_dzDfHi9HOnj_b0RJHCGZ9j87ma8PU7g

3W: https://drive.google.com/drive/folders/1xz8MPw9KeQXDlyAQoI3KXzjCoL4yBRVP

2W: https://drive.google.com/file/d/1_UaUPWX9K5Bfavle4C1imVY0-WjY4yso/view



Product Feature

1. Wide input voltage range 2:1, isolated regulated output 5W

2. Isolation voltage 1500VDC

3. Transfer efficiency up to 84%

4. Quick Start:1mS(Typ)

5. Operating temperature range :-40°C~+85°C

6. Small SIP package, metal case, low output ripple

7. International standard pin,direct installation of PCB board

8. Output short-circuit protection: continuous short circuit protection, automatic recovery


Enviroment Condition

Project nameQualificationUnitNotes
Working enviroment temperature-40—+85
Storage temperture-40—+125 ℃
Relative humidity5—95%
Heat dissipation modenatural cooling

Atmospheric pressure80—106 KpaKpa
Ripple & Noise50/80(max)
Mvp-p


Input Characteristics

ItemWorking conditions
Min.Typ.Max.Unit
Input voltage range(fully loaded/unloaded)12VDC Input Series3.3V-428/25440/30mA
others-534/25548/30
24VDC Input Series3.3V-214/13220/15
others-267/13274/15
48VDC Input Series3.3V-107/7110/8
others-134/7137/8
110VDC Input Series3.3V-47/348/4
others-58/360/4
Reflected Ripple Current12VDC Input Series-----mA
24VDC Input Series-----
48VDC Input Series-----
110VDC Input Series--20--
Impulse voltage  (Isec.max)12VDC Input Series-0.7--30VDC
24VDC Input Series-0.7--50
48VDC Input Series-0.7--100
110VDC Input Series-0.7--200
Start voltage12VDC nominal input series, nominal input voltage--9
24VDC nominal input series, nominal input voltage--18
48VDC nominal input series, nominal input voltage--36
110VDC nominal input series, nominal input voltage--72
Input undervoltage protection24VDC nominal input series, nominal input voltage5.56.5-
48VDC nominal input series, nominal input voltage1215.5-
110VDC nominal input series, nominal input voltage3236-
Input filter type

Capacitance filter type
Hot plugged

Non-support



Output Characteristics

Project nameWorking and testing condition+V01-V02
Min.Typ.Max.Min.Typ.Max.
output loadload percentage0%-100%0%-100%
Output Voltage Accuracy
-±1.0%±2.0%-±2.0%±3.0%
Linear adjustment rateinput voltage range-
±2.0%±0.5%-±1.5%±2.0%
Load adjustment rate

20%~100% rate

load, balanced

--

±0.5%

±1.0%-±4.0%±5.0%
Ripple & NoisePure resistive load, 20HMz bandwidth, peak-to-peak--50mVp-p80mVp-p-50mVp-p80mVp-p
Output voltage regulationInput voltage range
-No adjustment end--No adjustment endNo adjustment end-
Output short circuit protectionContinuous short circuit protection, automatic recovery

Notes: Ripple and Noise Test Methods Twisted Pair Test Method



Note:

1、The above is only a list of typical products. If you need products beyond the list, please contact our sales. 2、The maximum capacitive load indicates the maximum capacitive load that + VO or - vo can be connected to,If the value is exceeded, the product will not start normally..


Typical Application Circuits


EMC parameter recommendation


Component No.FunctionRecommended value
FMSESlow blowing fuse, selected according to the actual input current of the customer
CY1 safety capacitor1nF/250Vac

Notes:More details please feel free to contact hi-link team.
