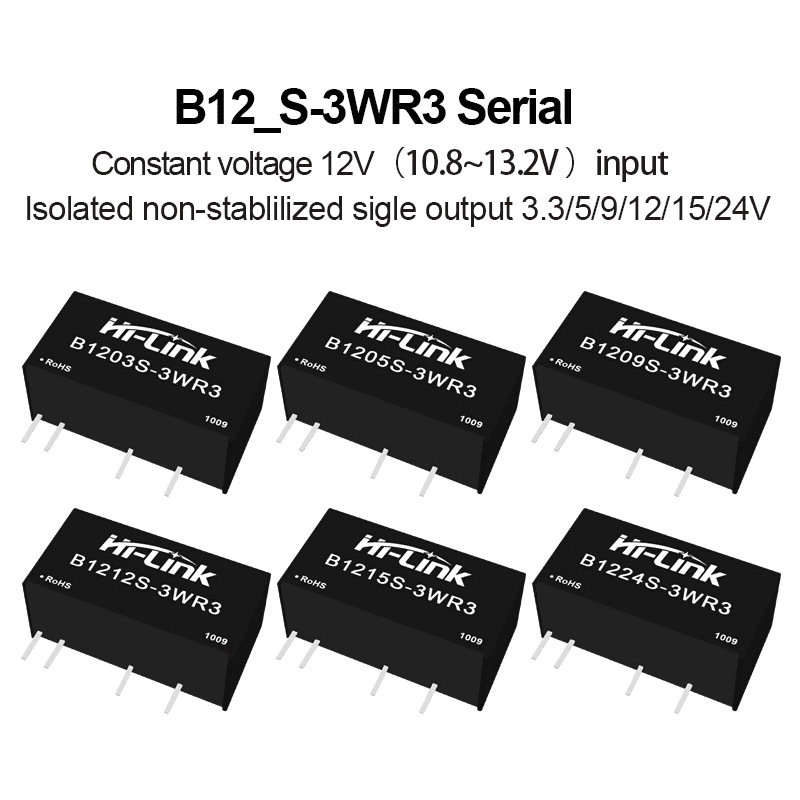

B1205S-3WR3 power module B1203/B1209/B1212/B1215/B1224S-3WR3 isolated non stabilized voltage power converter

  • Visitor
    2386
  • Buycount:
  • Price
    $1.38

Download files:

DC to DC power module:

1W: https://drive.google.com/drive/folders/1vk6luTBKSC5gfwLJC-DbyEZYVDwk87JV

2W: https://drive.google.com/drive/folders/1vjf-77LCVQl16Hcb1phADiU3Hz14mhYB

3W: https://drive.google.com/drive/folders/13pTx02uL4moskJ-PQsBYFytdq2pPt2mN

5W: https://drive.google.com/drive/folders/1okF0YdP1Xs35HxnAkTm45WOK0kH7qlb5?

6W: https://drive.google.com/drive/folders/18IOw7PyIx99lbm3u0FEhkepC82w601sw

10W: https://drive.google.com/drive/folders/1vuJp5ZoJA9Ci0M4wCS8nT689LVzgh2tC

12W: https://drive.google.com/drive/folders/1becUdxQODQ25_A_iarNnun3Vmi_wow1g

20W: https://drive.google.com/drive/folders/182aHyvoN8J0fCurg65jOkfQp17dyaXP6

30W: https://drive.google.com/drive/folders/1StP-0SJDyFpH3yQMLLQjkQXMDXc-RGeP

40W: https://drive.google.com/drive/folders/1IXRm7dueYYTNoyXCFp88wRQexmKAgCLm

B0505S-1WR2: https://drive.google.com/file/d/16BPrOWkzOz7efnf3OvF1XjClKGnO6znv/view

AC to DC power module:

40W: https://drive.google.com/drive/folders/1jI-hITgxjtByhSCpUMmrJATHO8b_gpN7

30W(C): https://drive.google.com/drive/folders/1Nz-_SdQAuVha0JM7nJTelIfophZsmUYb

20W: https://drive.google.com/drive/folders/1PlLOzt_k3Ky5THYGOWP72jqxWSkJsU6Z

15W(C): https://drive.google.com/drive/folders/1vnVfcgQH-OvujpO6asvQvjIgmwUS2Pti

10W: https://drive.google.com/drive/folders/1zaMfq4Dm3brmRWhTGp9-49c8hN5HsIuk

5W: https://drive.google.com/drive/folders/1_dzDfHi9HOnj_b0RJHCGZ9j87ma8PU7g

3W: https://drive.google.com/drive/folders/1xz8MPw9KeQXDlyAQoI3KXzjCoL4yBRVP

2W: https://drive.google.com/file/d/1_UaUPWX9K5Bfavle4C1imVY0-WjY4yso/view

B_S-3WR3 Series Mode list 拷贝


Product Feature

  • Constant voltage input, isolatedunregulated output, 3W power

  • Isolation voltage: 1500VDC

  • Low no-load power consumption: 0.025W

  • Efficiency:  up to 90% (Typ.)

  • Working temperature: -40°C~+85°C

  • MTBF > 3.5 million hours

  • Output short circuit protection: sustainable short circuit protection,automatic recovery

  • Small SIP package, Plastic housingInternational standard pin out

  • Ripple/noise (20MHz bandwidth)30mVp-p



Input Characteristics

ItemWorking conditionsMin.Typ.Max.Unit
Input current (full load/no load)5VDC Input Series--682/5--/10mA
9VDC Input Series--379/5--/10
12VDC Input Series--284/2--/5
15VDC Input Series--227/2--/4
24VDC Input Series--142/1--/2
Reflection ripple current
--15--mA
Impulse voltage(1sec.max.)5VDC Input Series-0.7--9VDC
9VDC Input Series-0.7--15
12VDC Input Series-0.7
18
15VDC Input Series-0.7--21
24VDC Input Series-0.7--30
Input filter type
Capacitance filter type
Hot plugged
Non-support



Output Characteristics

ItemsWorking and testing conditionMin.Typ.Max.Unit
Output loadLoad percetage10--100%
Output Voltage AccuracySee error envelope graph----±15.0%
Linear adjustment rateInput voltage variation ±1%3.3V output----±1.5%
Others----±1.2%
Load adjustment rate10%~100% load5VDC Output--12--%
9VDC Output--8--%
12VDC Output--7--%
15VDC Output--6--%
24VDC Output--5--%
Ripple & NoisePure resistive load, 20HMz bandwidth, peak-to-peak--3080mVp-p
Temperature Drift CoefficientFull load
----±0.03%/℃
Output short circuit protectionContinuous short circuit protection, automatic recovery

Notes: Ripple and Noise Test Methods Twisted Pair Test Method


Note:

1、The above is only a list of typical products. If you need products beyond the list, please contact our sales. 2、The maximum capacitive load indicates the maximum capacitive load that + VO or - vo can be connected to,If the value is exceeded, the product will not start normally..


Pin description

B24_S-3WR3-PIN DEFINITION 拷贝

Dimension

dimension


Notes:More details please feel free to contact hi-link team.
