  4. DC DC K78XX-500R3
  5. K7805-500R3/K7803-500R3/K7812-500R3 24V to 3.3V 9V 5V 12V 15V DC DC Non-isolated voltage stabilization power module
  • j

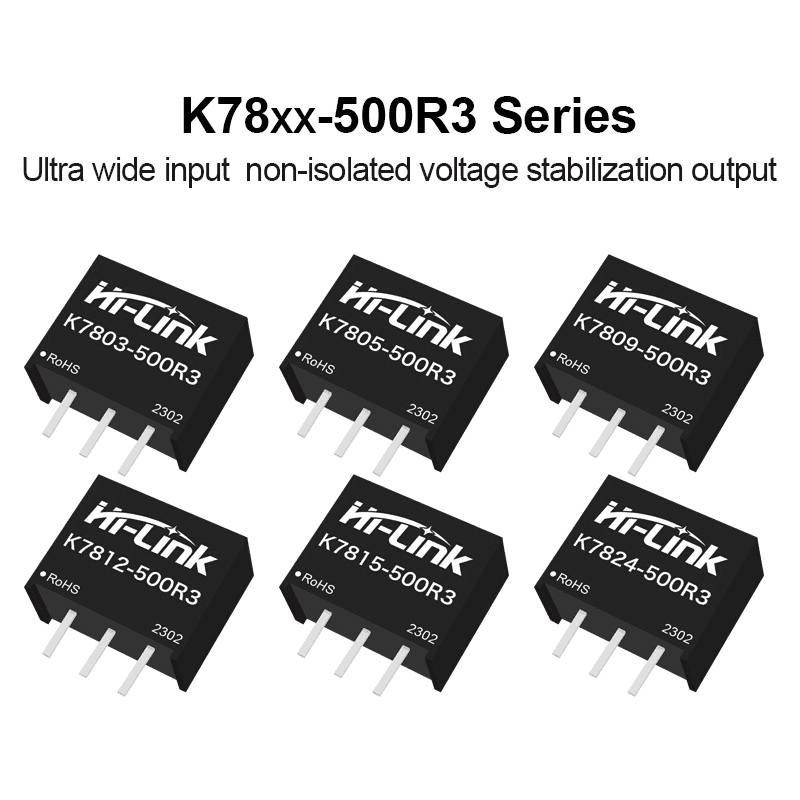

K7805-500R3/K7803-500R3/K7812-500R3 24V to 3.3V 9V 5V 12V 15V DC DC Non-isolated voltage stabilization power module

  • Visitor
    2868
  • Buycount:
  • Price
    $1.05

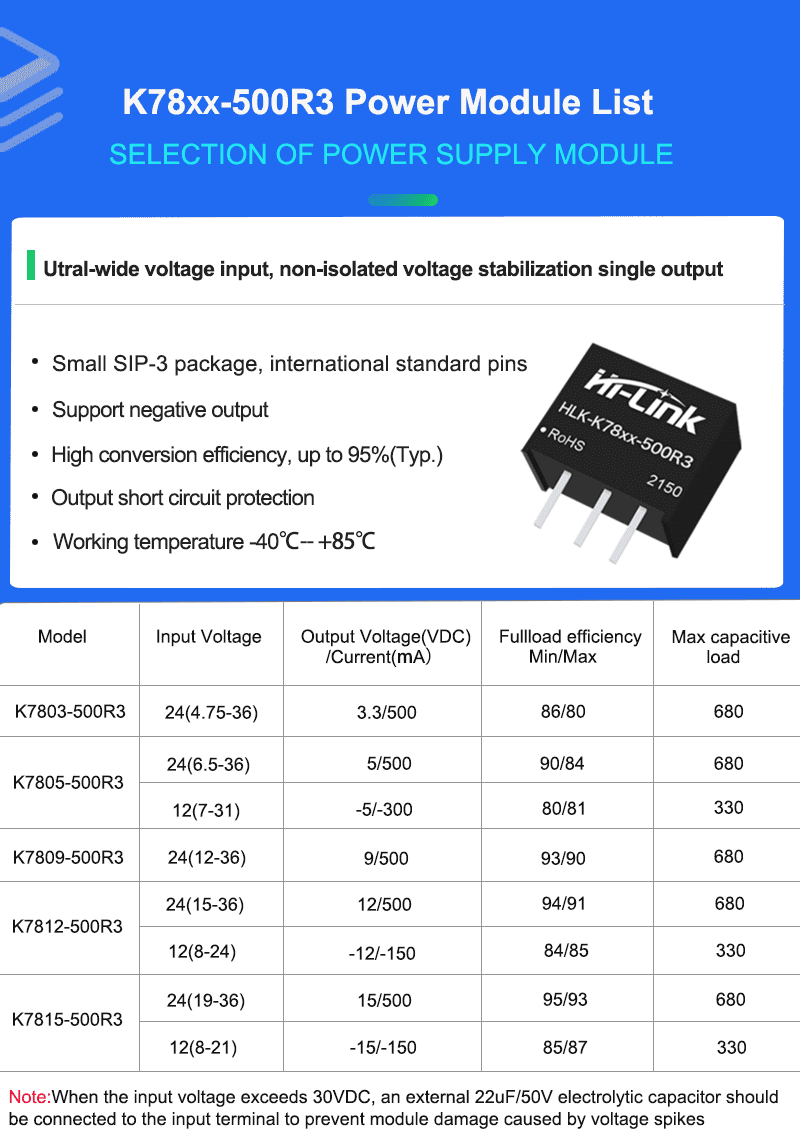

K78_500R3 Series Mode list 拷贝

Download files:

DC to DC power module:

1W: https://drive.google.com/drive/folders/1vk6luTBKSC5gfwLJC-DbyEZYVDwk87JV

2W: https://drive.google.com/drive/folders/1vjf-77LCVQl16Hcb1phADiU3Hz14mhYB

3W: https://drive.google.com/drive/folders/13pTx02uL4moskJ-PQsBYFytdq2pPt2mN

5W: https://drive.google.com/drive/folders/1okF0YdP1Xs35HxnAkTm45WOK0kH7qlb5?

6W: https://drive.google.com/drive/folders/18IOw7PyIx99lbm3u0FEhkepC82w601sw

10W: https://drive.google.com/drive/folders/1vuJp5ZoJA9Ci0M4wCS8nT689LVzgh2tC

12W: https://drive.google.com/drive/folders/1becUdxQODQ25_A_iarNnun3Vmi_wow1g

20W: https://drive.google.com/drive/folders/182aHyvoN8J0fCurg65jOkfQp17dyaXP6

30W: https://drive.google.com/drive/folders/1StP-0SJDyFpH3yQMLLQjkQXMDXc-RGeP

40W: https://drive.google.com/drive/folders/1IXRm7dueYYTNoyXCFp88wRQexmKAgCLm

B0505S-1WR2: https://drive.google.com/file/d/16BPrOWkzOz7efnf3OvF1XjClKGnO6znv/view

AC to DC power module:

40W: https://drive.google.com/drive/folders/1jI-hITgxjtByhSCpUMmrJATHO8b_gpN7

30W(C): https://drive.google.com/drive/folders/1Nz-_SdQAuVha0JM7nJTelIfophZsmUYb

20W: https://drive.google.com/drive/folders/1PlLOzt_k3Ky5THYGOWP72jqxWSkJsU6Z

15W(C): https://drive.google.com/drive/folders/1vnVfcgQH-OvujpO6asvQvjIgmwUS2Pti

10W: https://drive.google.com/drive/folders/1zaMfq4Dm3brmRWhTGp9-49c8hN5HsIuk

5W: https://drive.google.com/drive/folders/1_dzDfHi9HOnj_b0RJHCGZ9j87ma8PU7g

3W: https://drive.google.com/drive/folders/1xz8MPw9KeQXDlyAQoI3KXzjCoL4yBRVP

2W: https://drive.google.com/file/d/1_UaUPWX9K5Bfavle4C1imVY0-WjY4yso/view



Product Feature

1. Small SIP-3 package, international standard pin

2. Transfer efficiency up to 95%

3. Support negative output

4. Output short-circuit protection

5. Operating temperature range :-40°C~+85°C


Input Characteristics

ItemWorking conditionsMin.Typ.Max.Unit
No load input currrent
Positive output-0.21.5mA

Reverse input


prohibit
input fliter type
capacity fliter



Output Characteristics

Project nameWorking and testing conditionMin.Typ.Max.Unit
Output Voltage Accuracyfull load, input voltage rangeK7803-500R3--±2.0±4.0%
others--±2.0±3.0%

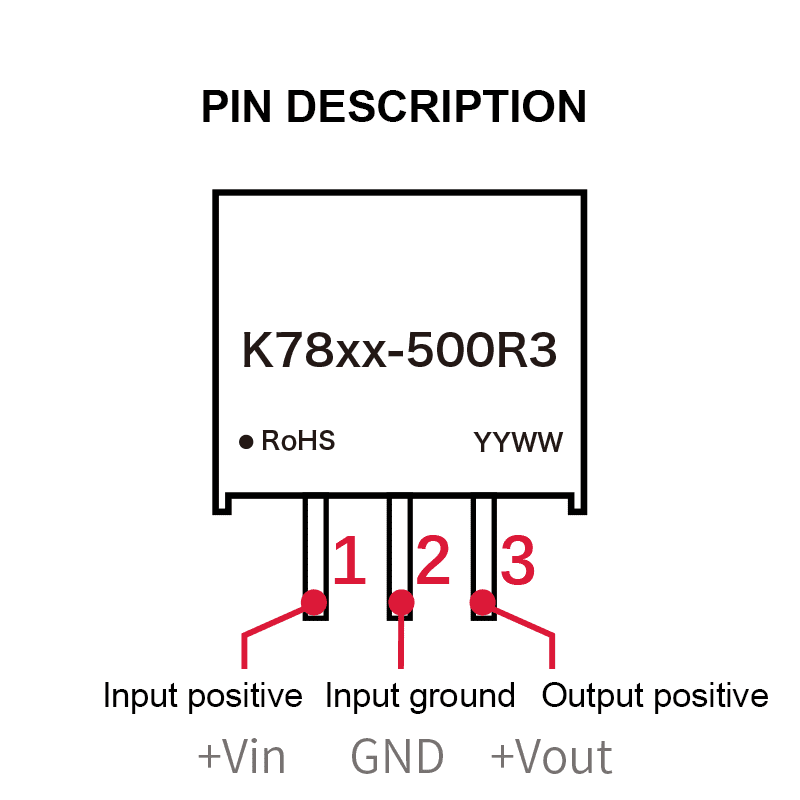

pin description 拷贝

More details please feel free to contact hi-link team.
