  5. F0505/F0512/F0515/F0524S-1WR3 DC to DC 5V to 5v/12V/15v/24v 1W Isolated constant voltage input non stabilized voltage single ourput converter module
  • j

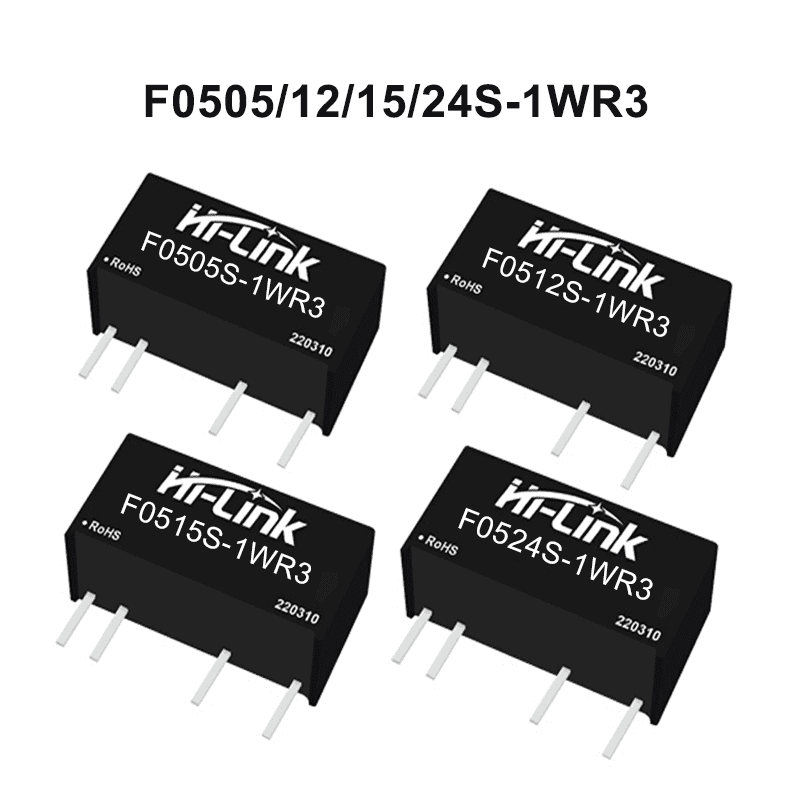

F0505/F0512/F0515/F0524S-1WR3 DC to DC 5V to 5v/12V/15v/24v 1W Isolated constant voltage input non stabilized voltage single ourput converter module

  • Visitor
    2336
  • Buycount:
  • Price
    $0.61

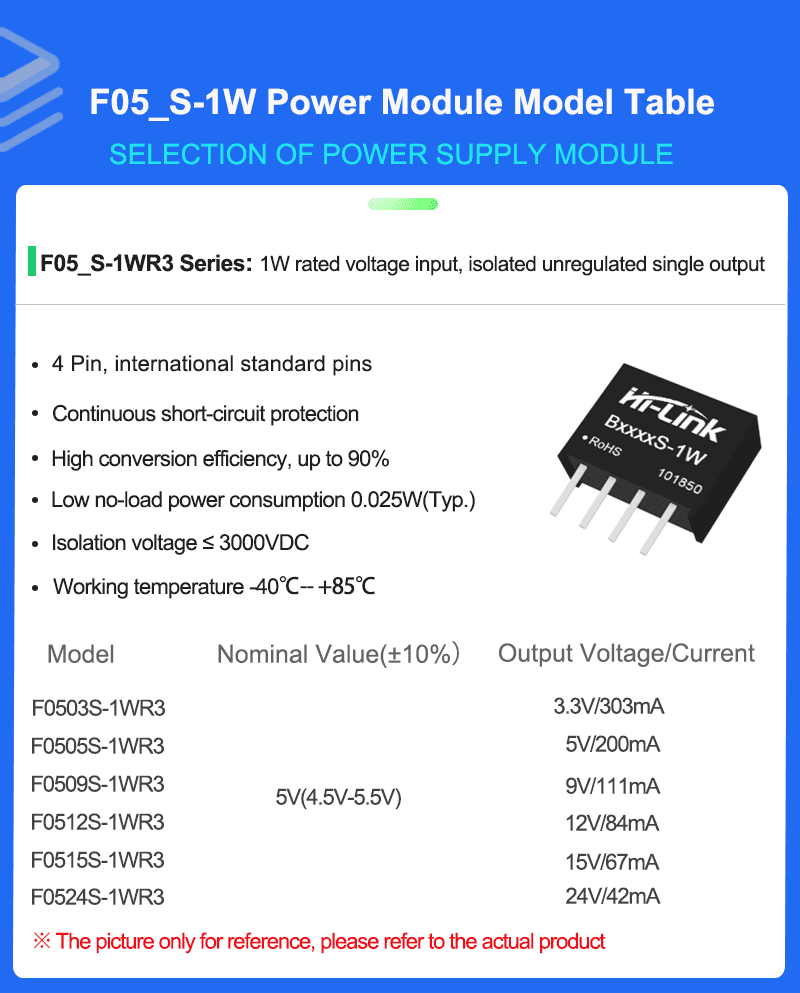

F05XX Series Mode list

Download files:

DC to DC power module:

1W: https://drive.google.com/drive/folders/1vk6luTBKSC5gfwLJC-DbyEZYVDwk87JV

2W: https://drive.google.com/drive/folders/1vjf-77LCVQl16Hcb1phADiU3Hz14mhYB

3W: https://drive.google.com/drive/folders/13pTx02uL4moskJ-PQsBYFytdq2pPt2mN

5W: https://drive.google.com/drive/folders/13pTx02uL4moskJ-PQsBYFytdq2pPt2mN

6W: https://drive.google.com/drive/folders/18IOw7PyIx99lbm3u0FEhkepC82w601sw

10W: https://drive.google.com/drive/folders/1vuJp5ZoJA9Ci0M4wCS8nT689LVzgh2tC

12W: https://drive.google.com/drive/folders/1becUdxQODQ25_A_iarNnun3Vmi_wow1g

20W: https://drive.google.com/drive/folders/182aHyvoN8J0fCurg65jOkfQp17dyaXP6

30W: https://drive.google.com/drive/folders/1StP-0SJDyFpH3yQMLLQjkQXMDXc-RGeP

40W: https://drive.google.com/drive/folders/1IXRm7dueYYTNoyXCFp88wRQexmKAgCLm

B0505S-1WR2: https://drive.google.com/file/d/16BPrOWkzOz7efnf3OvF1XjClKGnO6znv/view

AC to DC power module:

40W: https://drive.google.com/drive/folders/1jI-hITgxjtByhSCpUMmrJATHO8b_gpN7

30W(C): https://drive.google.com/drive/folders/1Nz-_SdQAuVha0JM7nJTelIfophZsmUYb

20W: https://drive.google.com/drive/folders/1PlLOzt_k3Ky5THYGOWP72jqxWSkJsU6Z

15W(C): https://drive.google.com/drive/folders/1vnVfcgQH-OvujpO6asvQvjIgmwUS2Pti

10W: https://drive.google.com/drive/folders/1zaMfq4Dm3brmRWhTGp9-49c8hN5HsIuk

5W: https://drive.google.com/drive/folders/1_dzDfHi9HOnj_b0RJHCGZ9j87ma8PU7g

3W: https://drive.google.com/drive/folders/1xz8MPw9KeQXDlyAQoI3KXzjCoL4yBRVP

2W: https://drive.google.com/file/d/1_UaUPWX9K5Bfavle4C1imVY0-WjY4yso/view



Product Feature

1. characteristic:Constant voltage input, isolated non stabilized voltage single output,1W

2. Isolation voltage≤3000VDC

3. Low no-load power consumption 0.025W(Typ.)

4. Transfer efficiency up to 90%

5. Output short-circuit protection: continuous short circuit protection, automatic recovery

6. The voltage of the input power supply is relatively stable.(Voltage variation range±10%Vin)

7. Operating temperature range :-40°C~+85°C

8. Small SIP package

9. International standard pin,direct installation of PCB board.

10. High reliability and long life design,continuous working time MTBF≥3.5 million hours (3500000Hrs)


Enviroment Condition

Project nameQualificationUnitNotes
Working enviroment temperature-40—+85
Storage temperture-40—+125 ℃
Relative humidity5—95%
Heat dissipation modenatural cooling

Atmospheric pressure80—106 KpaKpa
Ripple & Noise30/80(max)Mvp-pPure resistive load, 20MHz broadband, peak-to-peak


Input Characteristics

Project nameWorking conditionsUnitNotes
Related input voltage5Vdc
Input voltage range4.5-5.5Vdc
Maximum input current≤0.3A
Reflection ripple current15mA

DC5V rated input voltage series

Impulse voltage≤9Vdc
Starting voltage4.5Vdc
Input undervoltage protection---Vdc
Start-up delay---msRated input voltage and costant resistance load
Input filter type
Capacitance filter type
Hot plugged
Non-support



Output Characteristics(12v/84mA)

Project nameTechnical requirementUnitNotes
No load rated output voltage12V±15%Vdc
Short-time maximum output current≥94mA
Rated output current84mA
Voltage regulation±1.5%
Load regulation ±12%
Transfer efficiency Vin=12Vdc, output full load 90%
Output grain sweep noise(mVp-p)Pure resistance load, 20MHz bandwidth, peak to peak valuemV
Output over-voltage protection
Outputting the maximum voltage 110-160%Vdc
Insulation voltageInput- output, test in 1 minute, leakage current less than 1mA/1500V-
Insulation resisitanceInput- output, insulation volaltge 500VDC/1000MΩ
Isolation capacitanceInput- output, 100KHz/0.1V 20pF-


Note:

1、The above is only a list of typical products. If you need products beyond the list, please contact our sales. 2、The maximum capacitive load indicates the maximum capacitive load that + VO or - vo can be connected to,If the value is exceeded, the product will not start normally..


Typical Application Circuits


EMC parameter recommendation


Component No.FunctionRecommended value
 Cin CapacitanceFilter capacitor4.7μA/50V
Cout CapacitanceFilter capacitor2.2-10μA/50V
Lin inductanceFilter inductanceInductance: 4.7uH
Lout inductanceCin CapacitanceInductance: 4.7uH

Notes:Output Load Requirements

In order to ensure that the module can work efficiently and reliably, the minimum output load should not be less than 10% of the rated load.If the power you need is really small, please connect a resistor in parallel between the positive and negative poles of the output terminal (the sum of the actual power used by the resistor is greater than or equal to 10% of the rated power and the rated power of the selected resistor must be greater than 5 times of the actual power used, otherwise the temperature of the resistor will be higher)
